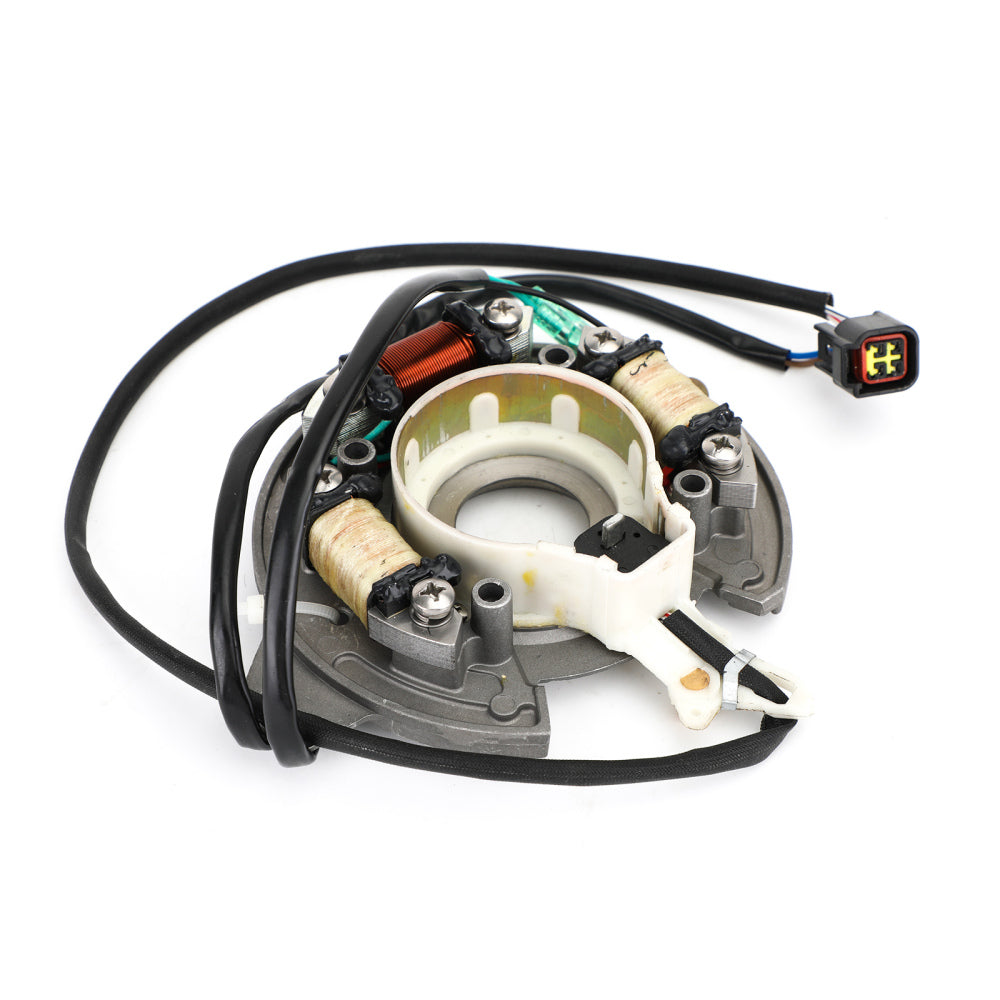

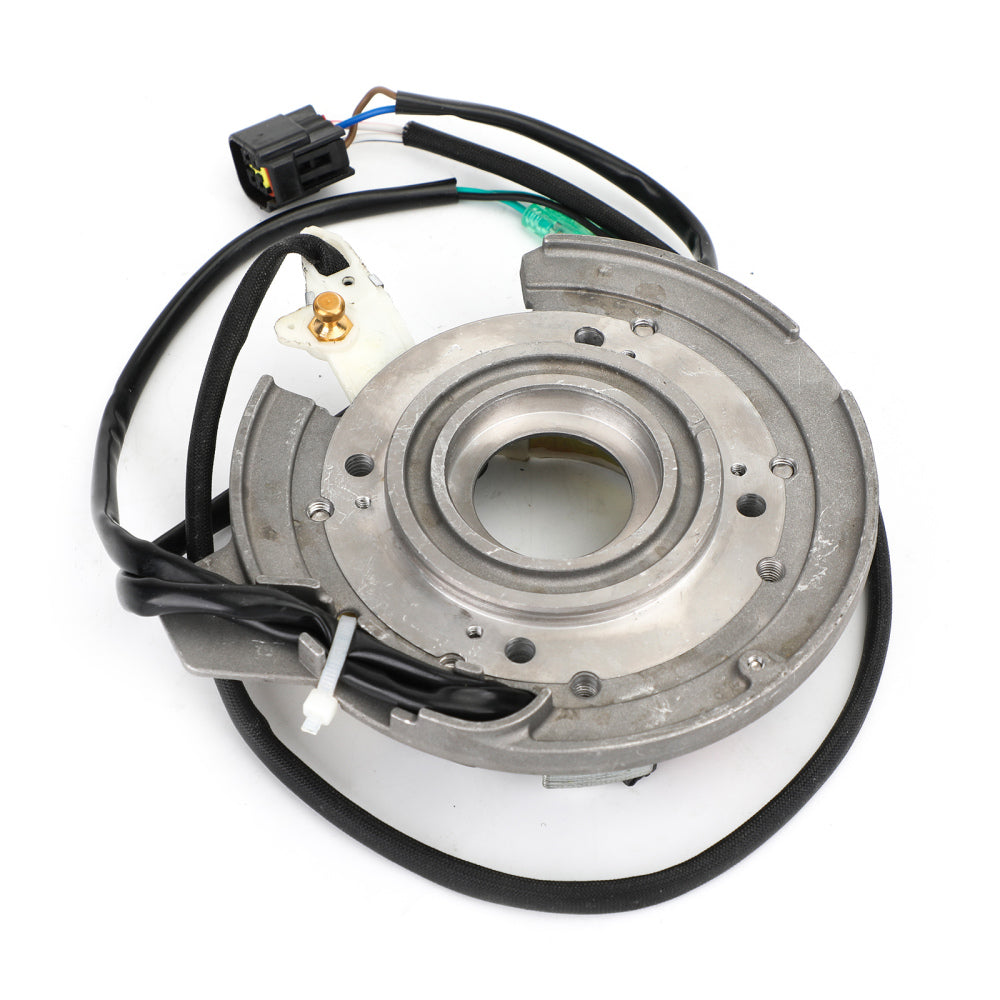

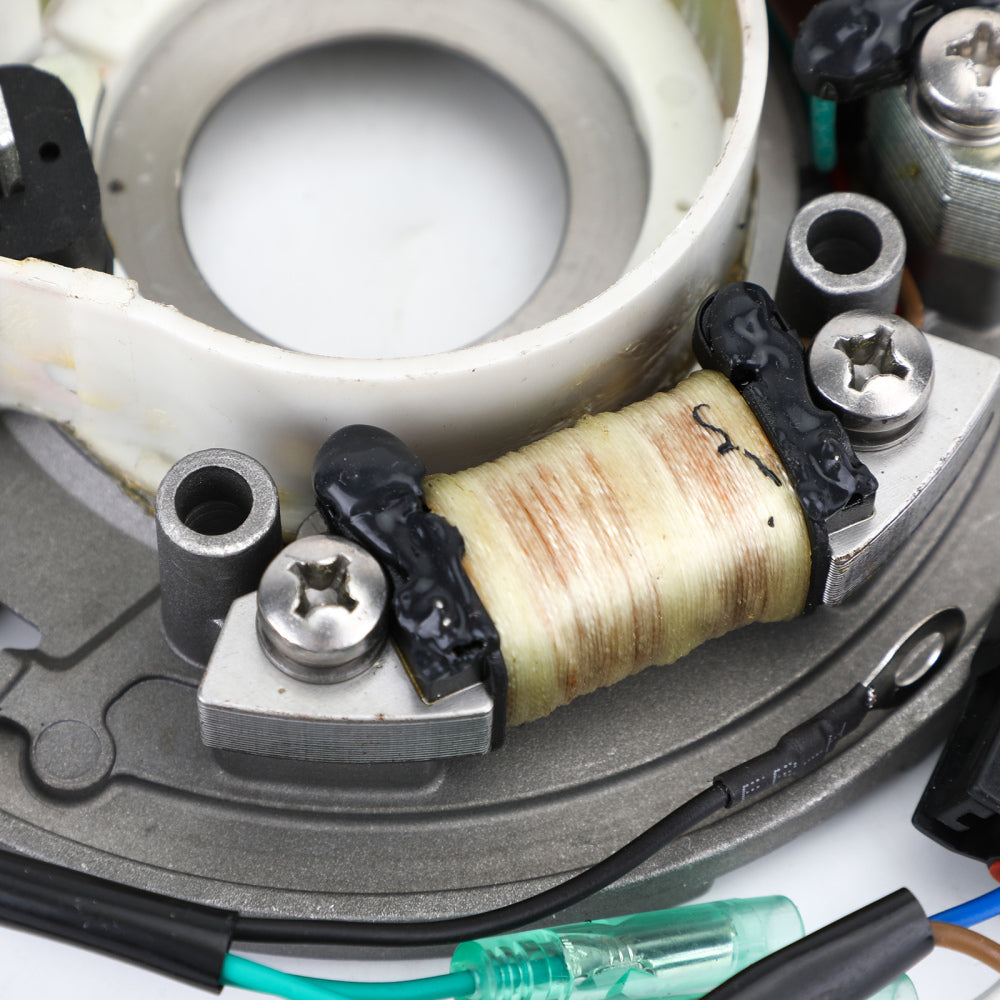

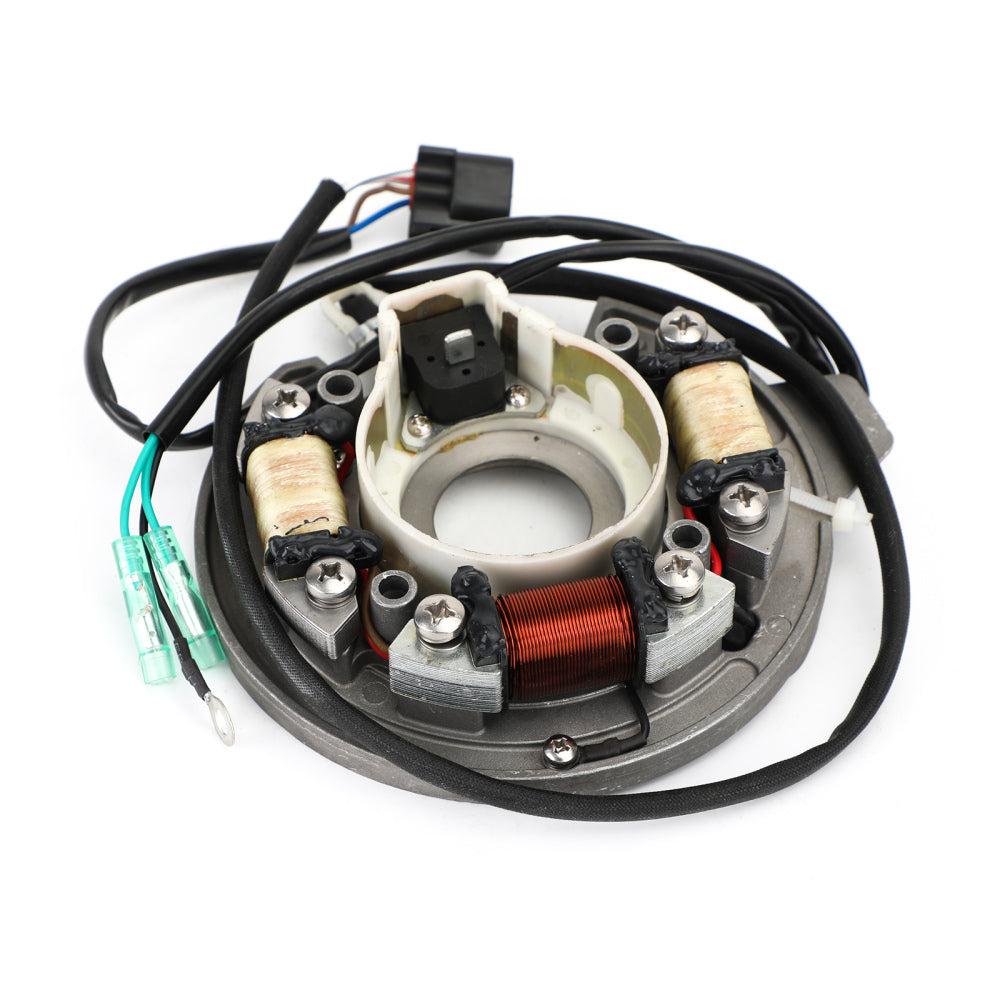

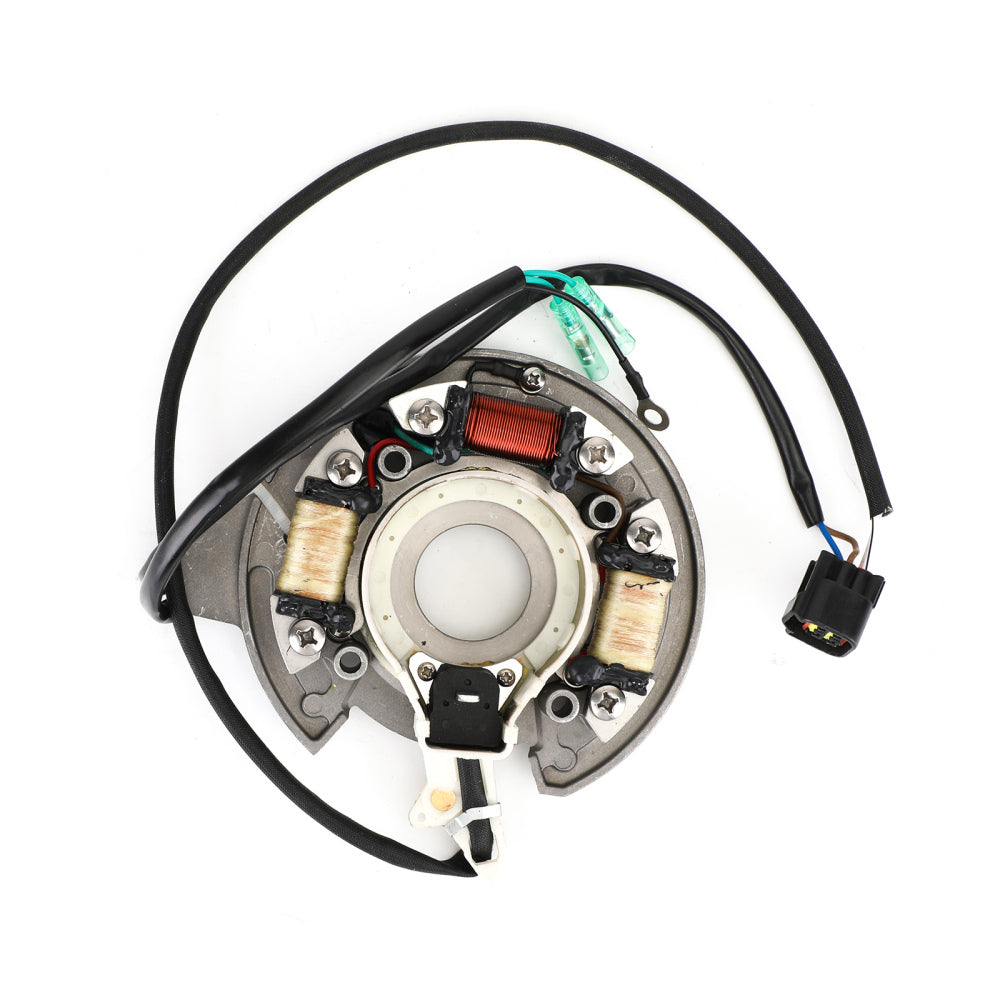

Magneto Generator Engine Stator Assembly Fit For Yamaha 40hp 40X E40X 1998-2017

Sale price$175.89 USD
SKU: M550-A519
Quantity:

Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

Magneto Generator Engine Stator Assembly Fit For Yamaha 40hp 40X E40X  1998-2017



Other Specifications :
Number of wires: 7
Number of pins: 7
Number of plugs: 1(+3)

Reference Part Number:
66T-85560-00-00
66T-85560-01-00

Fitments:
Fit for Yamaha 40hp 40X E40X
Fit for Yamaha 40X M(W/T)HS/L 1998-2013
Fit for Yamaha E40X M(W/T)HS/L 1999-2009
Fit for Yamaha E40X MHL 2010-2017

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

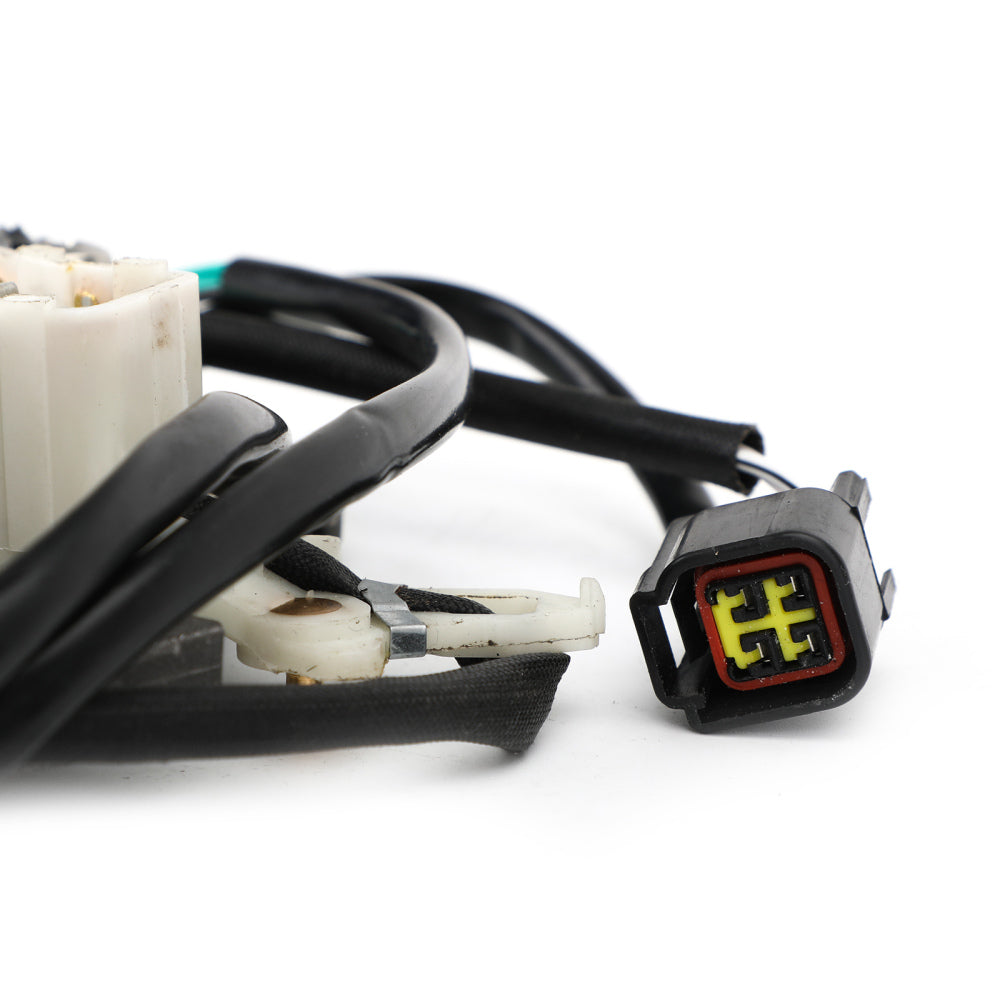

Connector included.
All products shipped are tested.

Package includes: 1 x Stator Assembly

Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
