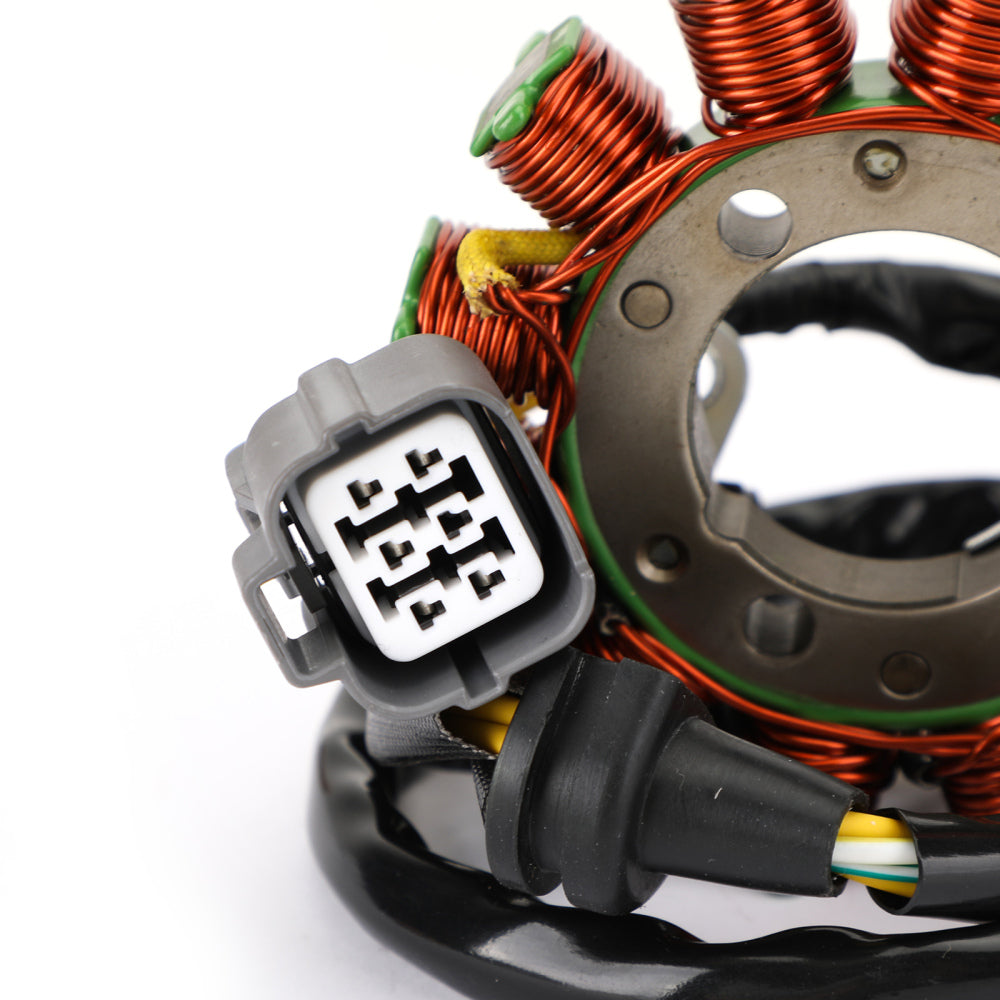

Kawasaki KX 250 F 4T 2011-2020 KX 450 F 2009-2018 Magneto Generator Engine Stator Coil

Sale price$69.89 USD
SKU: M550-A510
Quantity:
Fitments:
Fit for Kawasaki KX250F KX250 2011-2016
Fit for Kawasaki KX250F KX252 2017-2020
Fit for Kawasaki KX250 KX252 2019-2020
Fit for Kawasaki KX450F KX450 2009-2018
Kawasaki KX 250 F 4T 2011-2020  KX 450 F 2009-2018 Magneto Generator Engine Stator Coil
Reference Part Number:
21003-0102
21003-0147
21003-0082
21003-0148
21003-0168

Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

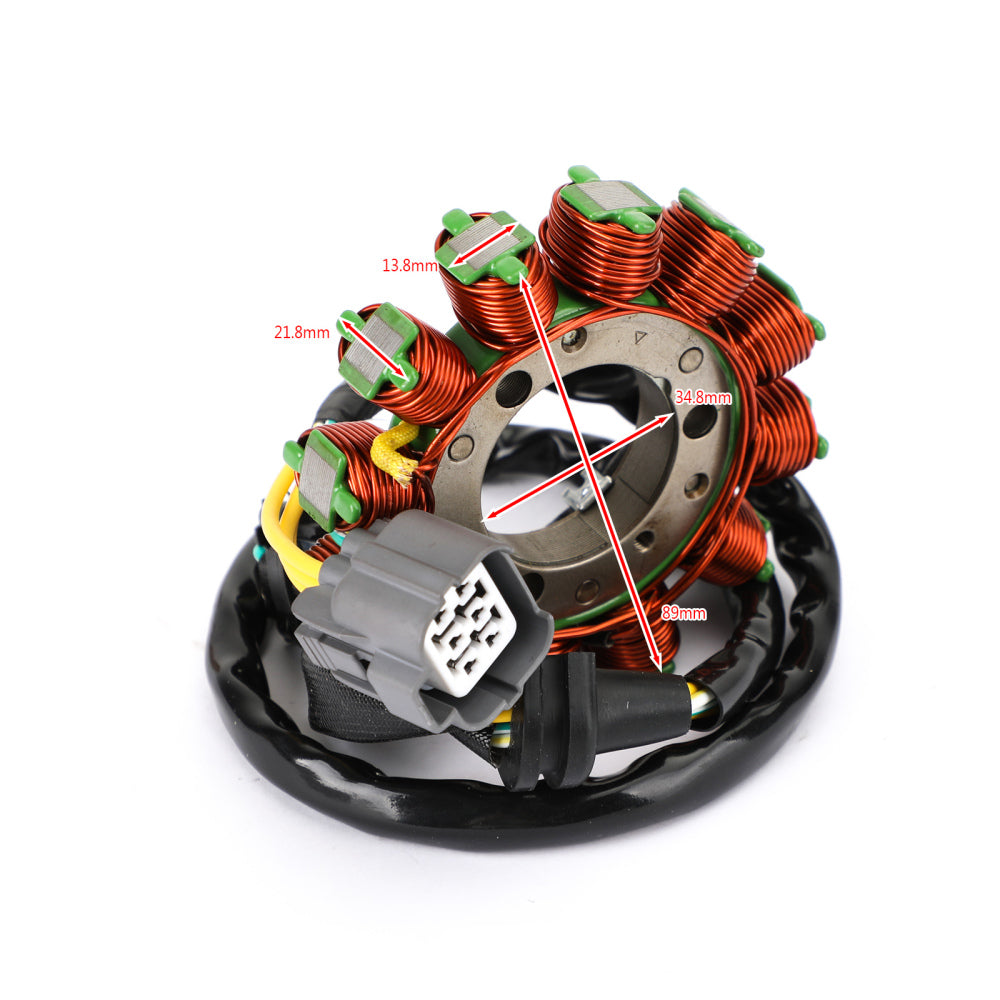

Dimensions :
Interior diameter : 34.8 mm
Exterior diameter : 89 mm
Pole's Thickness : 21.8 mm
Pole's Width : 13.8 mm
Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 1
Number of fixation holes: 3
Number of poles: 12

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Package includes: 1 x Generator Stator Coil

Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
