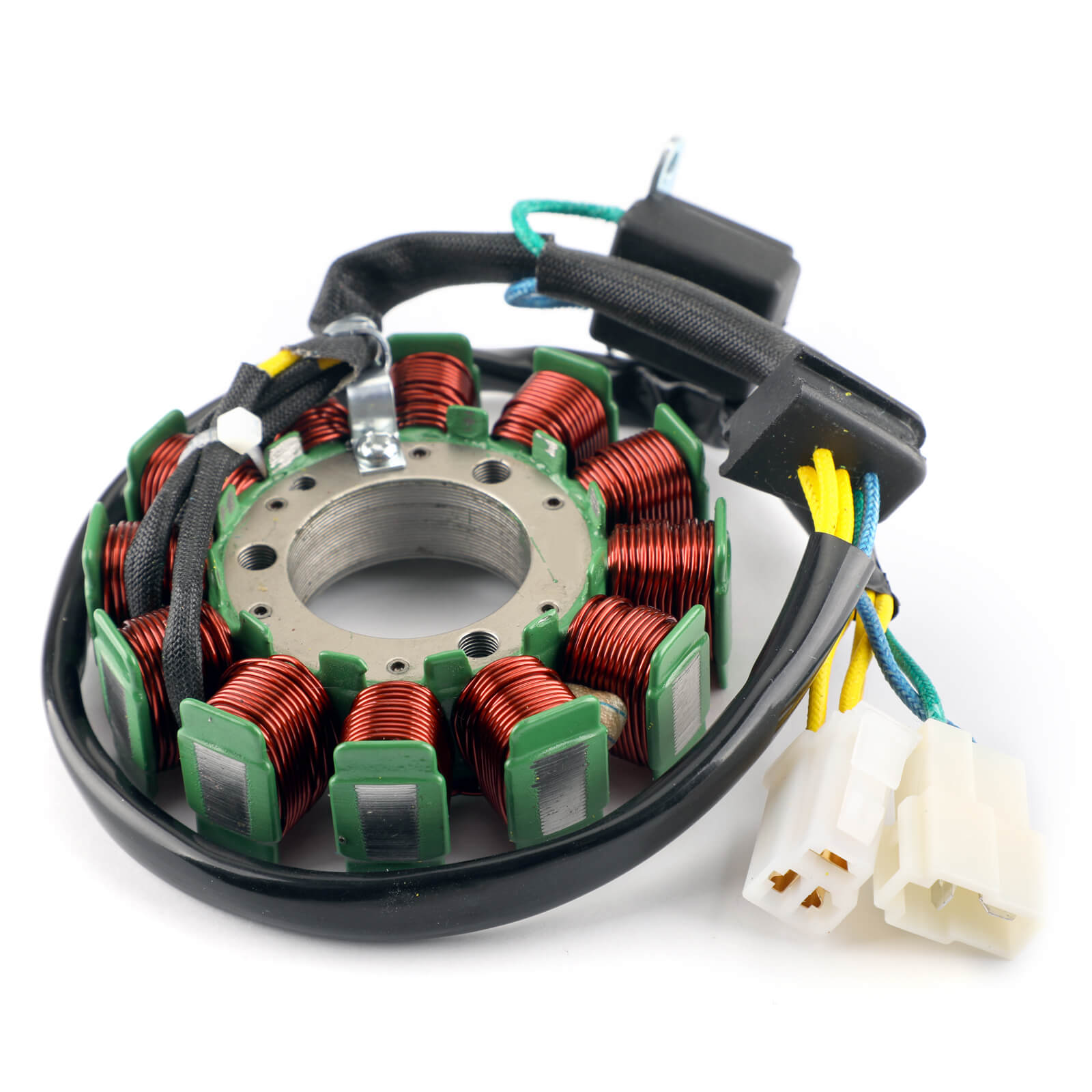

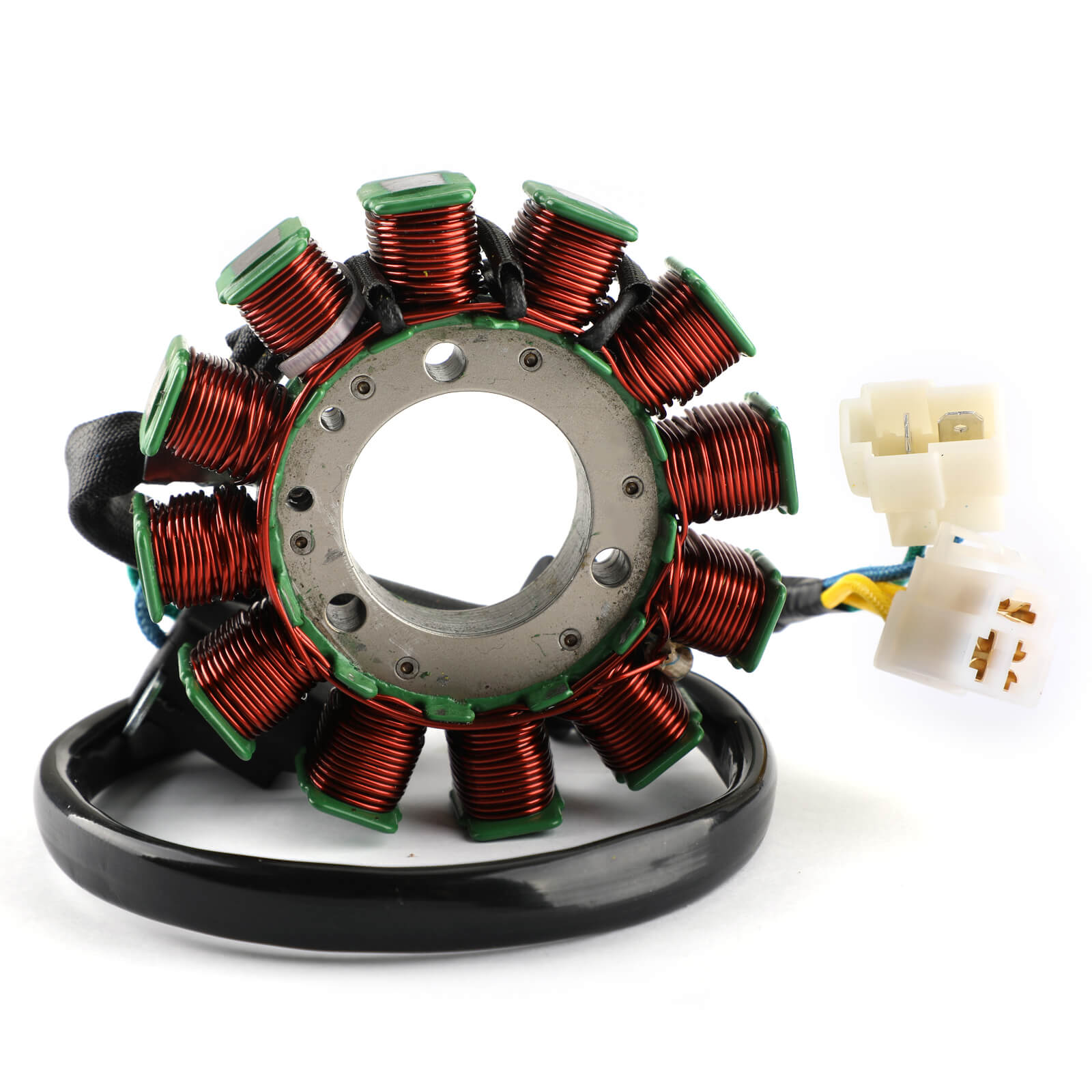

Magneto Generator Engine Stator Coil Fit For Hyosung GV250 GT250 R 2006-2011 GV125 GT125 R 2002-2010

Fitment:
For Hyosung GV250 2006-2011
For Hyosung GT250R 2006-2008
For Hyosung GT250 2006-2009
For Hyosung GT125R 2002-2010
For Hyosung GT125 2002-2010
For Hyosung GV125 2002-2010

Replacement Part Number:
32100HG5100, 32101HG5100
Please confirm the?Replacement Part Number before ordering.

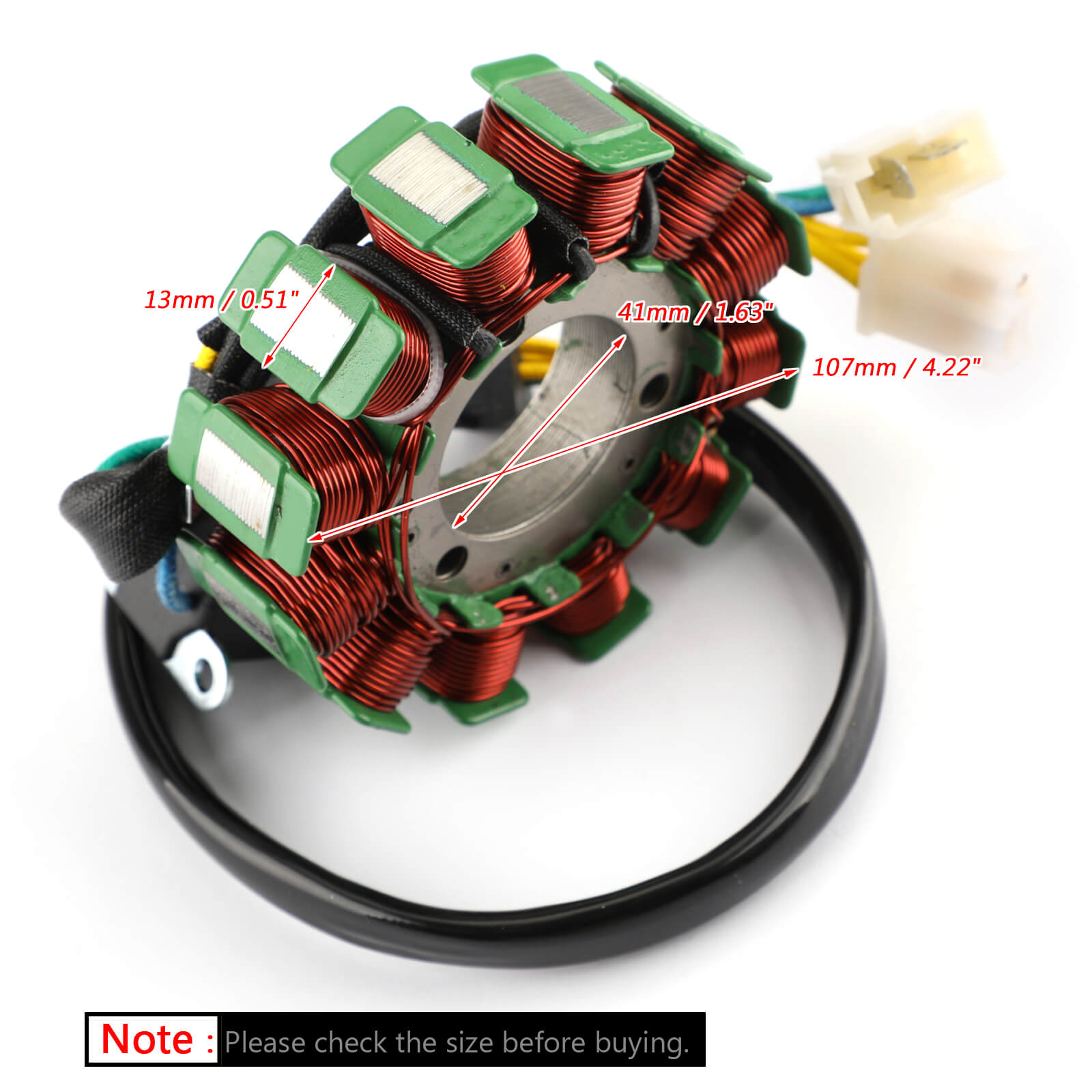

Dimensions:
Interior diameter : 34 mm / 1.36 inches
Exterior diameter : 92 mm / 3.64 inches
Thickness : 16 mm / 0.61 inches

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

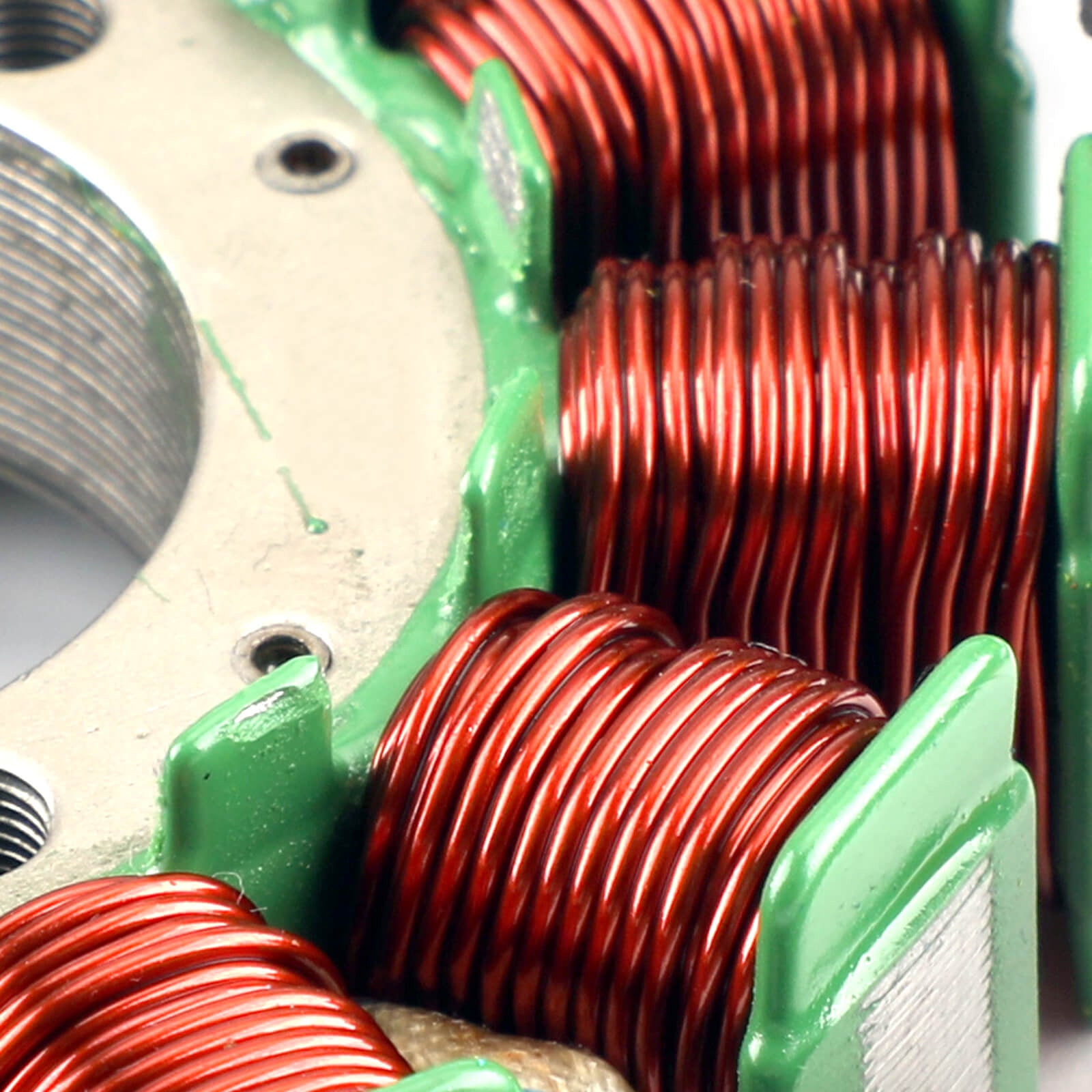

Highest grade copper wingdings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

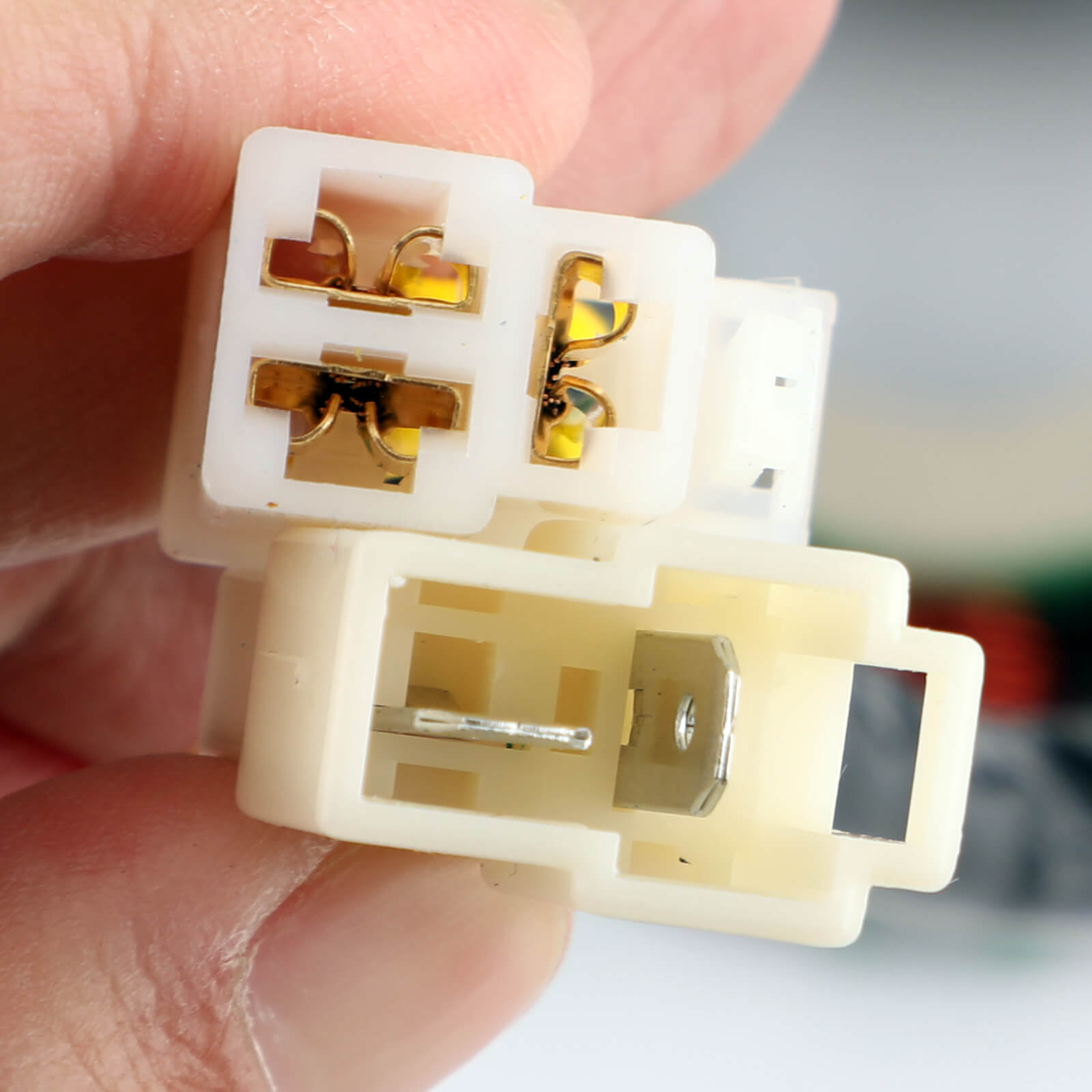

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

Other specifications:
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+1)

Package Incleded:
1 x Generator Stator Coil

Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
