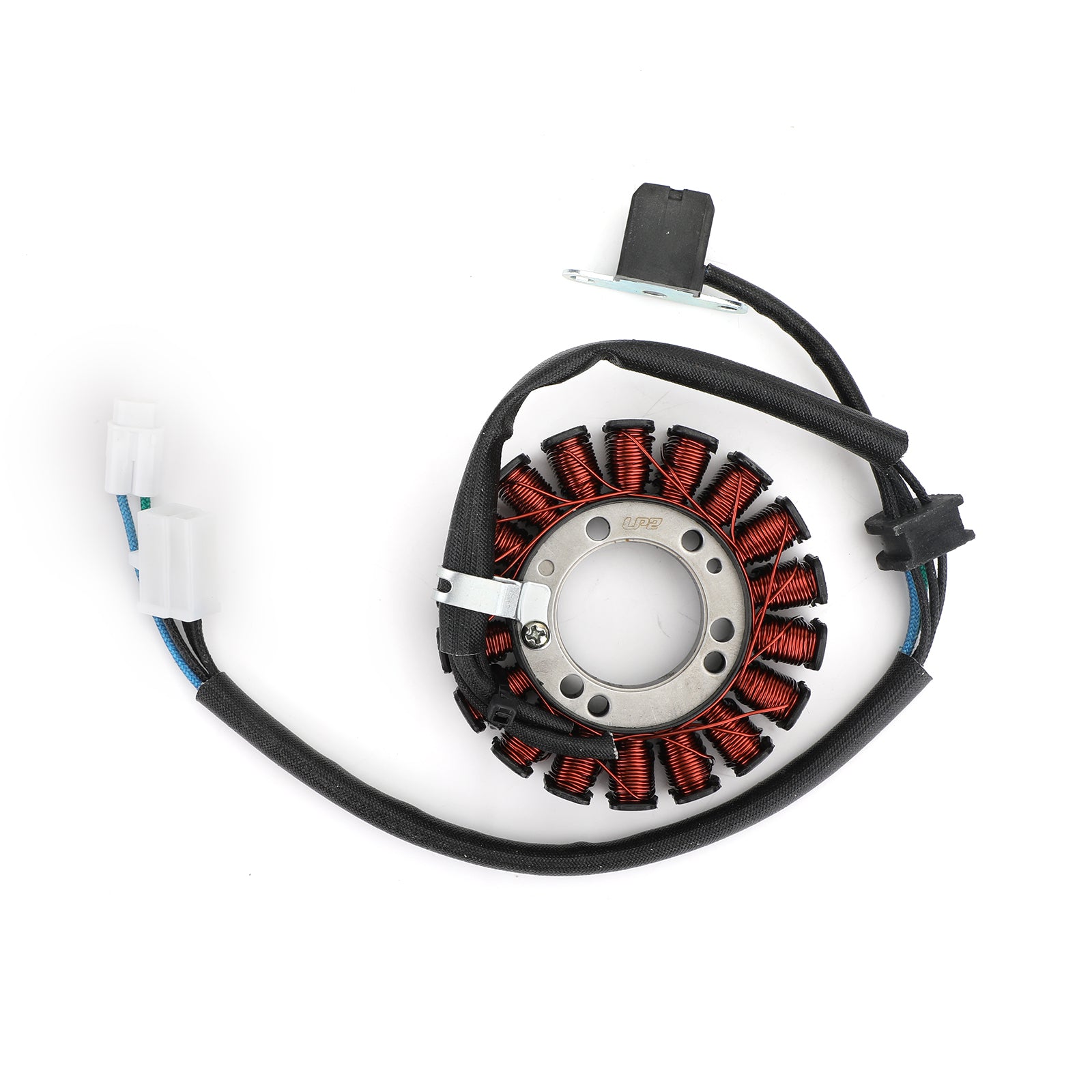

Alternator Stator Magneto Fit for Aprilia RXV 450 550 06-11 MXV 450 08-10
Choose options
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

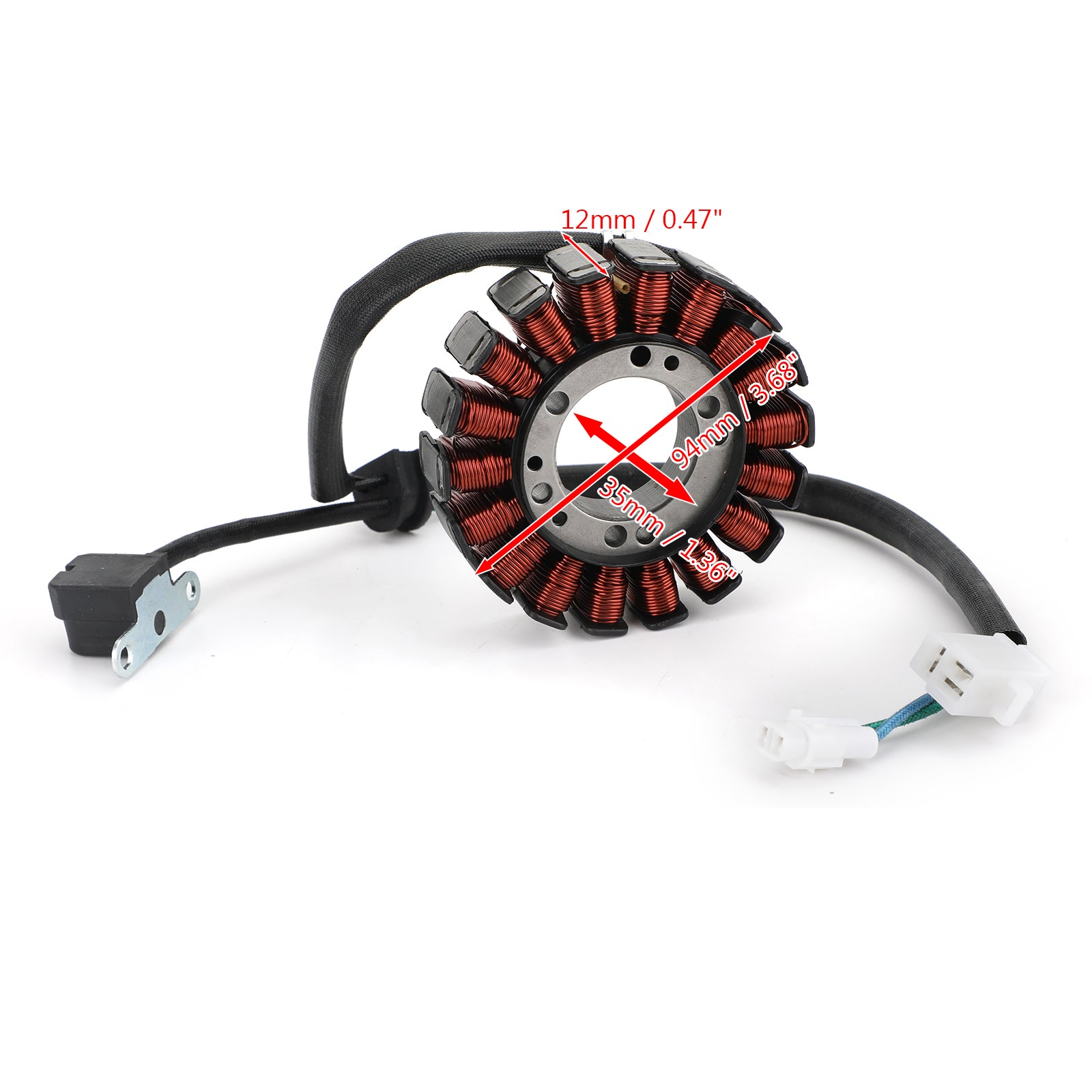

Dimensions:
Interior diameter : 35mm / 1.36 inches
Exterior diameter : 94mm / 3.68 inches
Thickness : 12mm / 0.47 inches
Please confirm the?Size?before purchasing.
Other Specifications:
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 4(+3)
Fixation holes length: 34mm / 1.35 inches
Fitment:
Fit for Aprilia RXV450 2006-2011
Fit for Aprilia RXV550 2006-2011
Fit for Aprilia SXV450 2006-2011
Fit for Aprilia SXV550 2006-2011
Fit for Aprilia MXV450 2008-2010
Fit for Aprilia MXV450 CROSS 2008-2010
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Manufacturer Part Number:
AP9150180
855680
855181
855011
Please confirm the Manufacturer Part Number before purchasing.
Package Incleded:
1x Generator Stator Coil
Notice:
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
