Condition: Aftermarket 100% Brand New

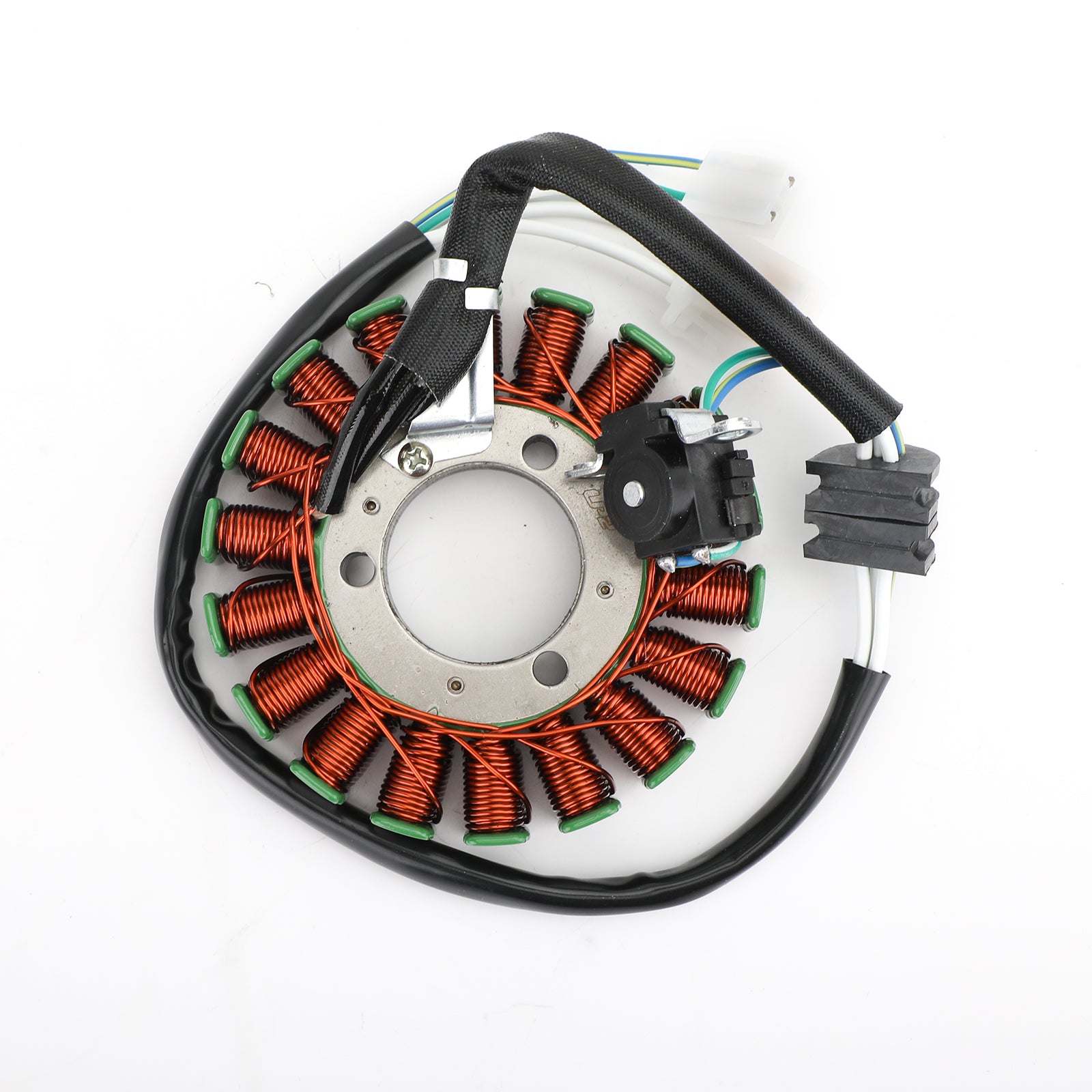

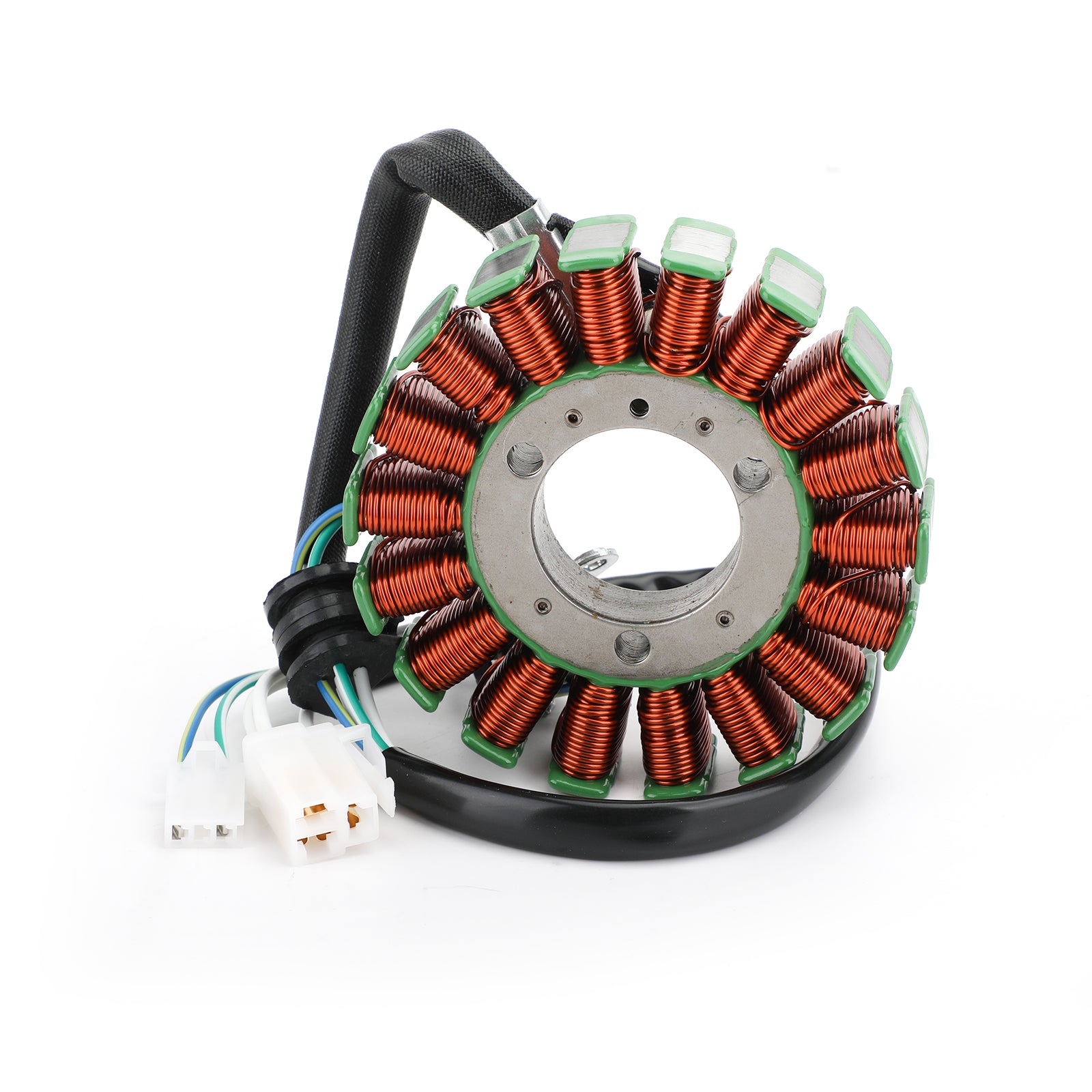

Type: Generator Stator Coil

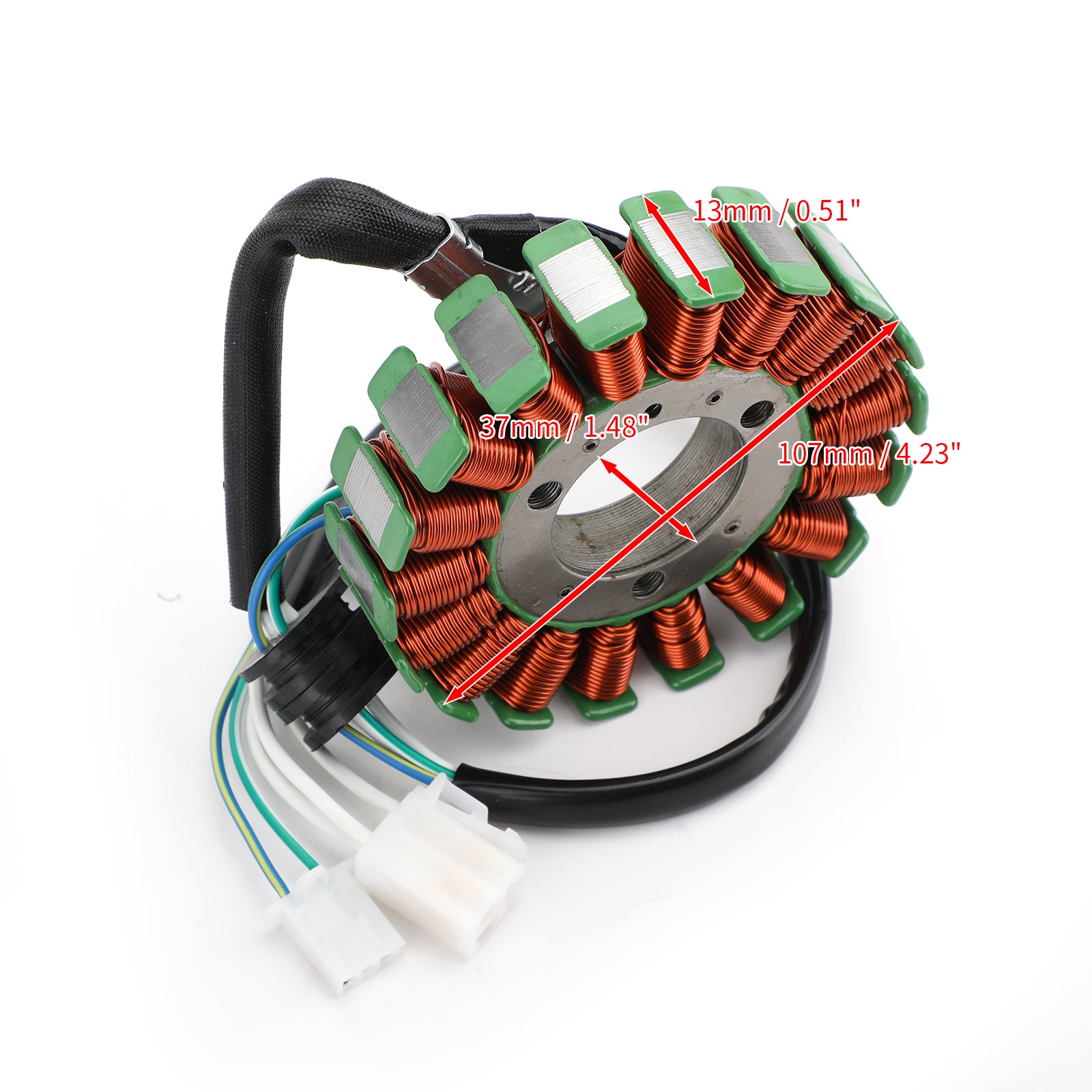

Interior diameter : 37mm / 1.48"
Exterior diameter : 107mm / 4.23"
Thickness : 13mm / 0.51"
Please confirm the Size before purchasing.

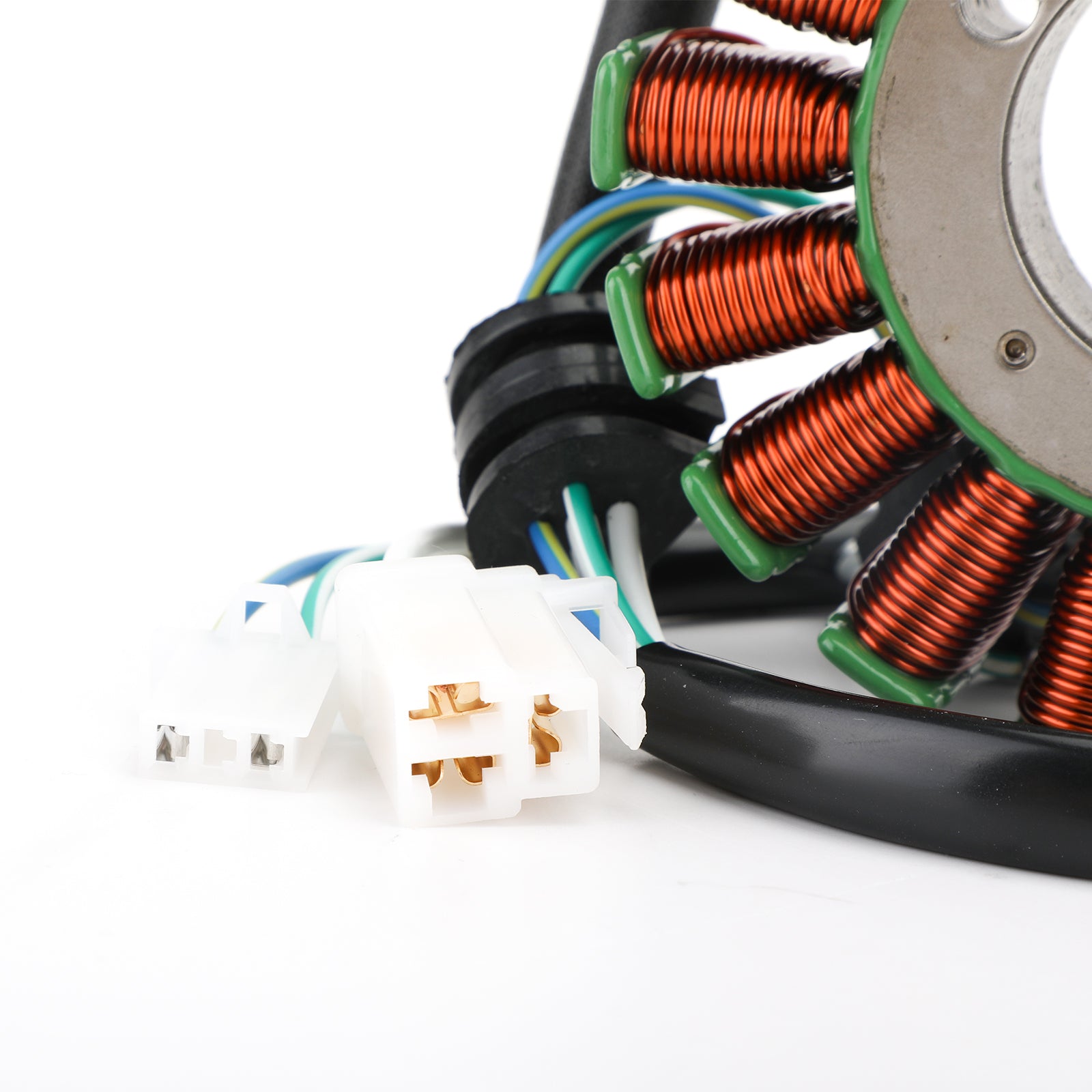

Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Fixation holes length: 35mm / 1.4"
For Yamaha YZF R25 2015-2017
For Yamaha YZF R3 2015-2018
For Yamaha YZF R3A (ABS) 2015-2018
For Yamaha MTN320 MT-03 2016-2017
For Yamaha MTN320-A MT-03 (ABS) 2016-2018
For Yamaha MTN250 MT-25 2016-2017
Replacement Part Number:
1WD-H1410-00 / 1WD-H1410-01
Please confirm the Replacement Part before ordering.
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
All products shipped are tested.
1x Generator Stator Coil
Before installing your new stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
