Alternator Stator For Honda VT125 Shadow 99-07 XL125V XLV125 Varadero JC32 01-06
Choose options
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil
Replacement Part Number:31120-KPC-640 / 31120-KPC-D21 / 31120-KGB-D11

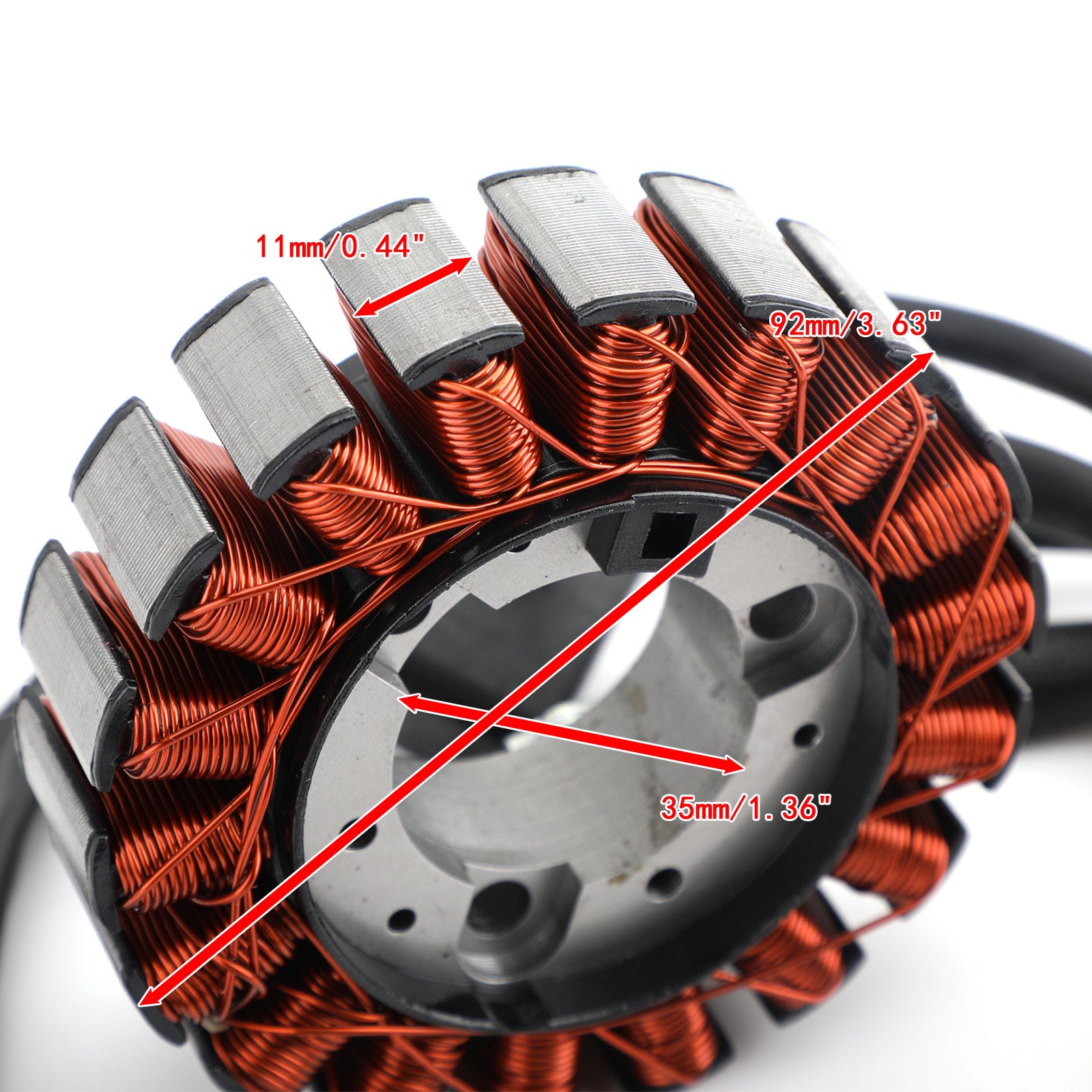

Dimensions :
Interior diameter : 35 mm / 1.36"
Exterior diameter : 92 mm / 3.63"
Thickness : 11 mm / 0.44"
Other specifications :

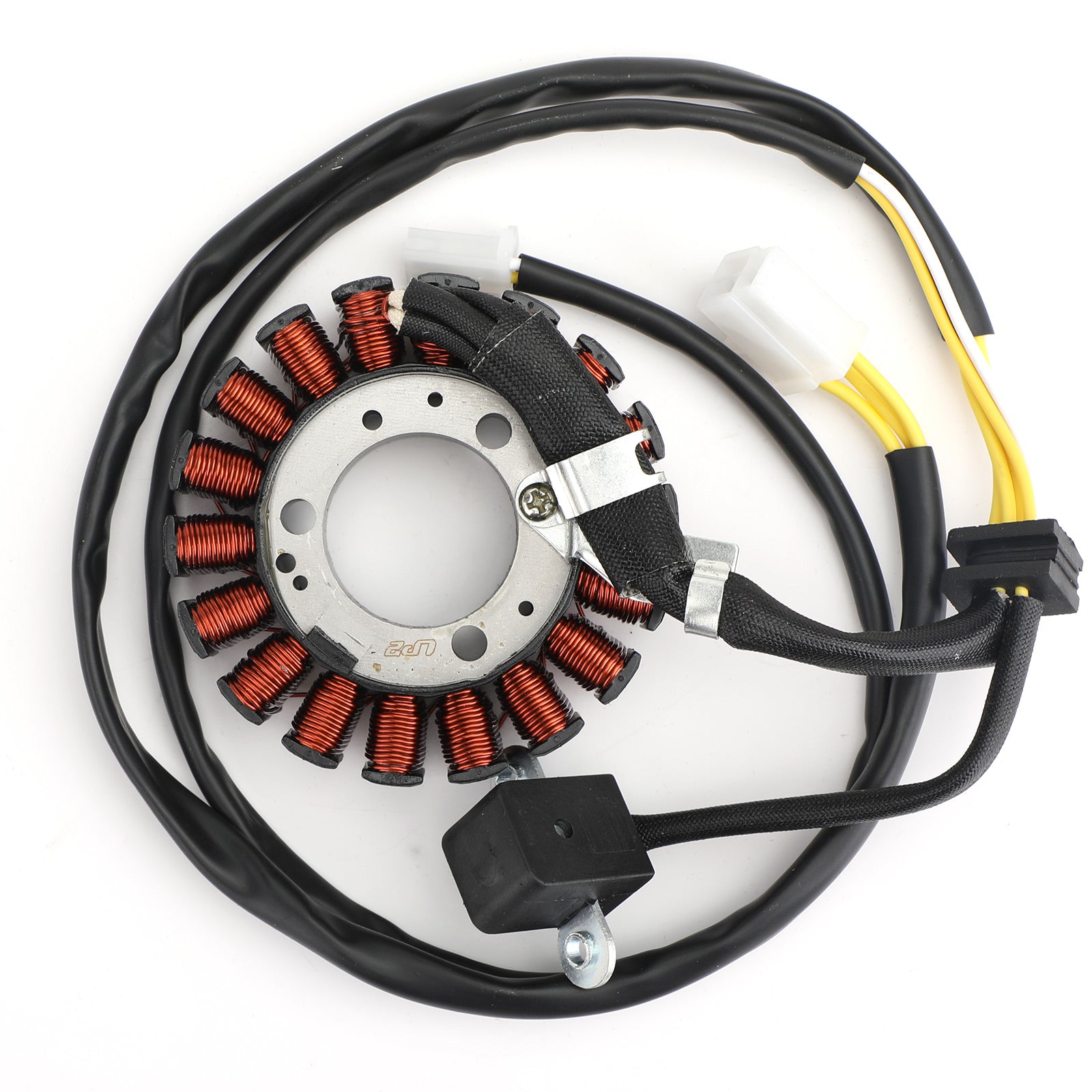

Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3
Fixation holes length: 42 mm/1.64"
Fitments:
For Honda VT125 Shadow 125 1999-2007
For Honda VT125C2 Shadow125 2000-2001
For Honda XL125V XLV125 Varadero 125 JC32 2001-2006
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Package Included:
1 x Generator Stator Coil
Note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
