Fitment:
For Can-Am Traxter 500 1999-2005
For Can-Am Traxter Max 500 2003-2005
For Can-Am Traxter 650 2005
For Can-Am Traxter Max 650 2005
Replacement Part Number:
420296321
Please confirm the Replacement Part Number before ordering.

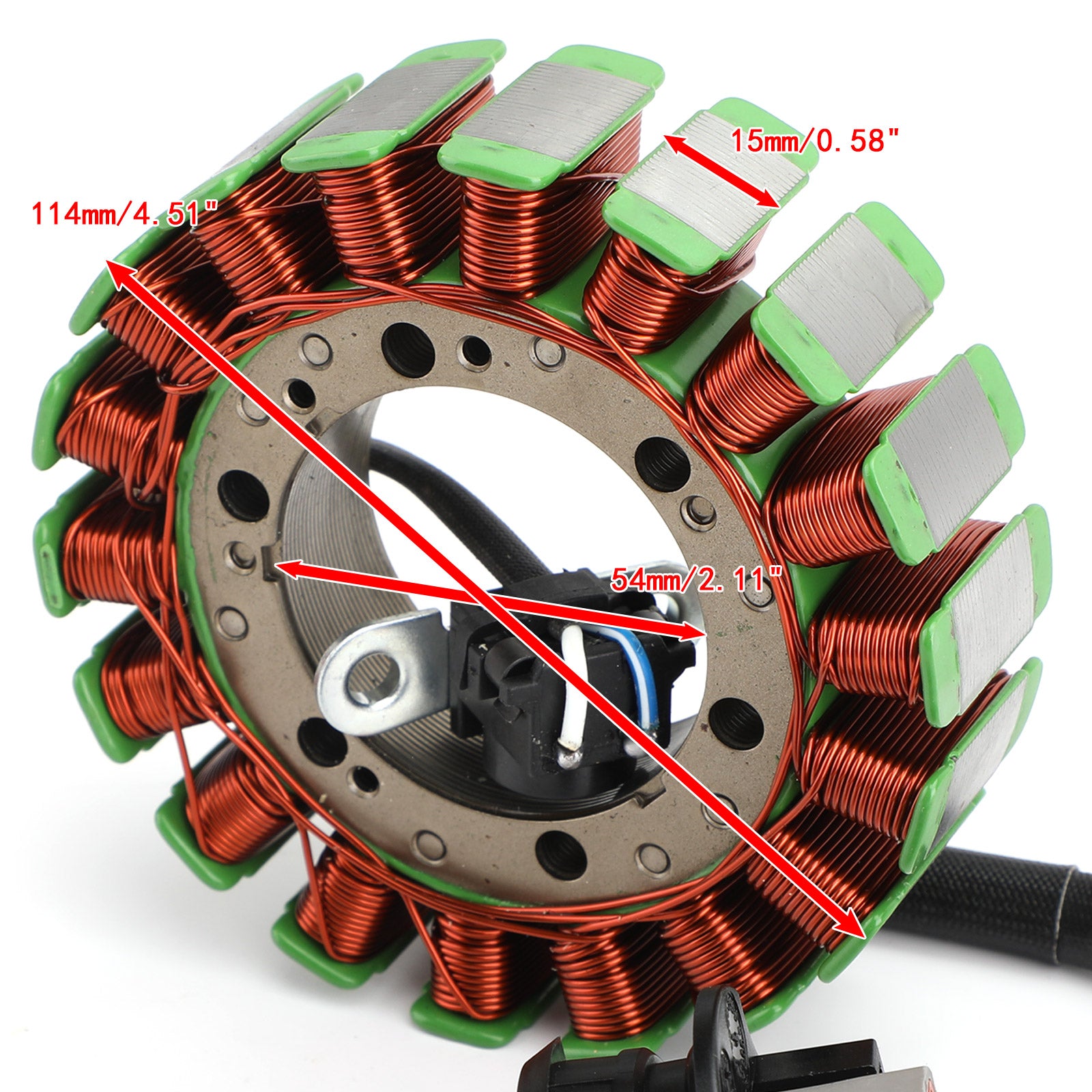

Dimensions:
Interior diameter : 54mm / 2.11"
Exterior diameter : 114mm / 4.51"
Thickness : 15mm / 0.58"
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.

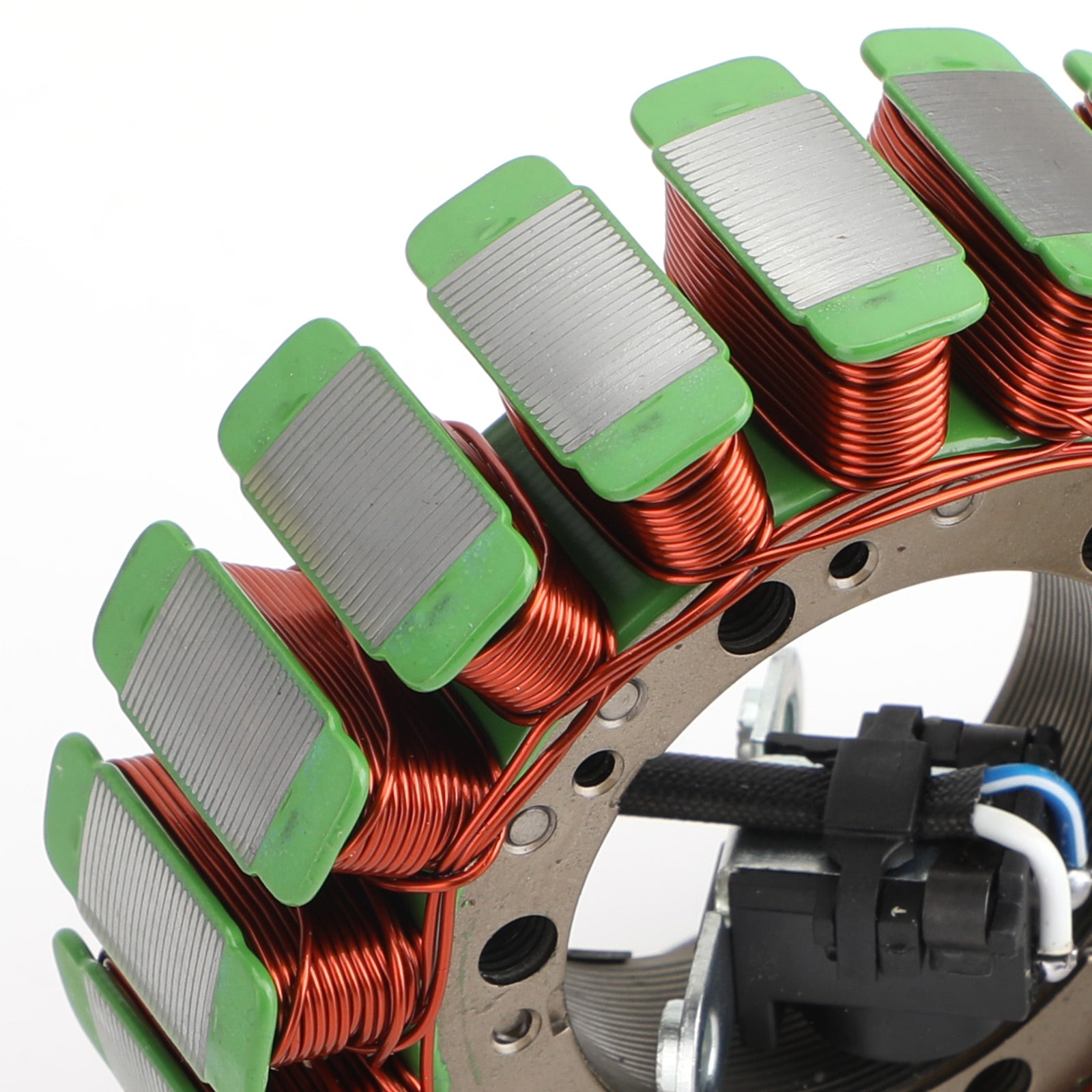

Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

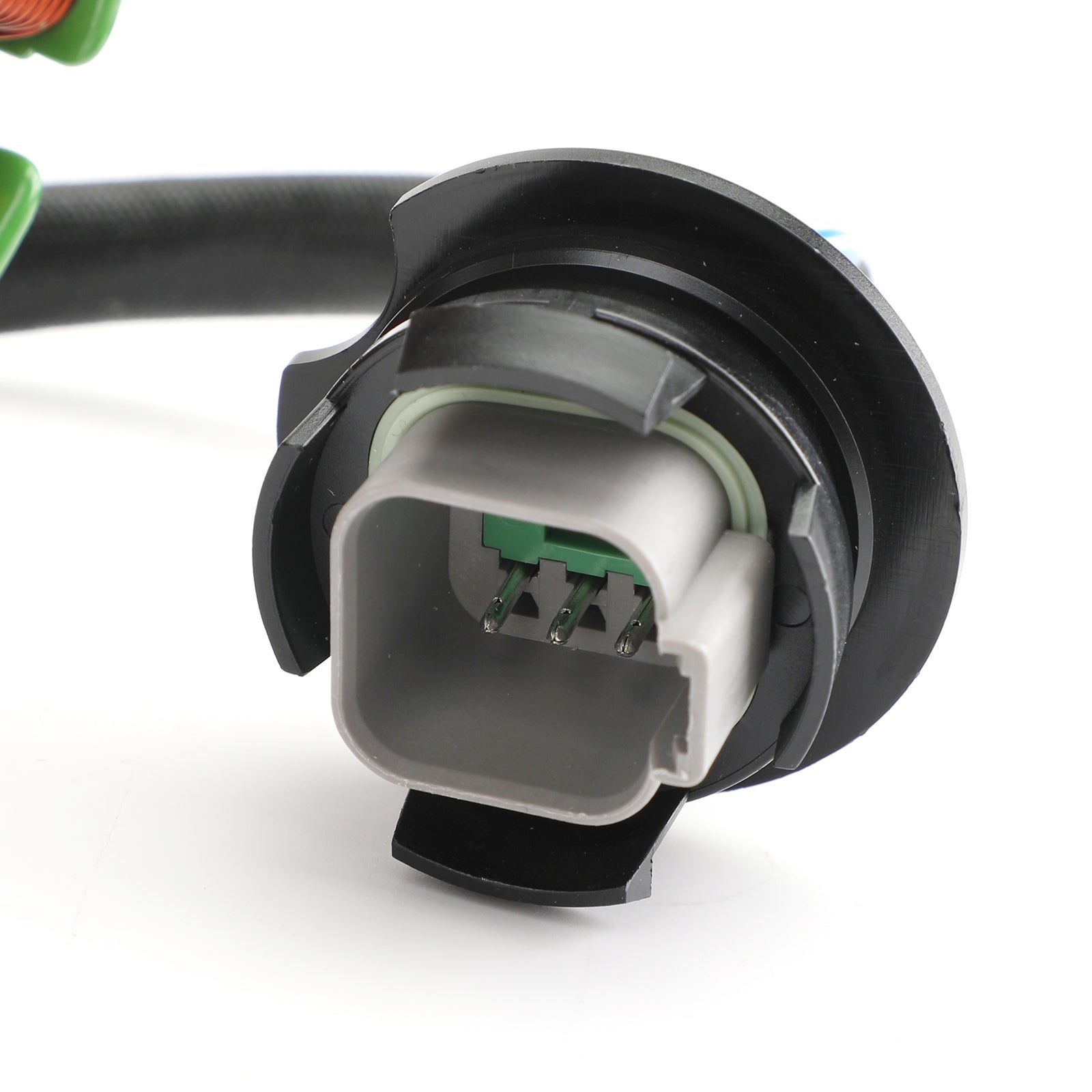

Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

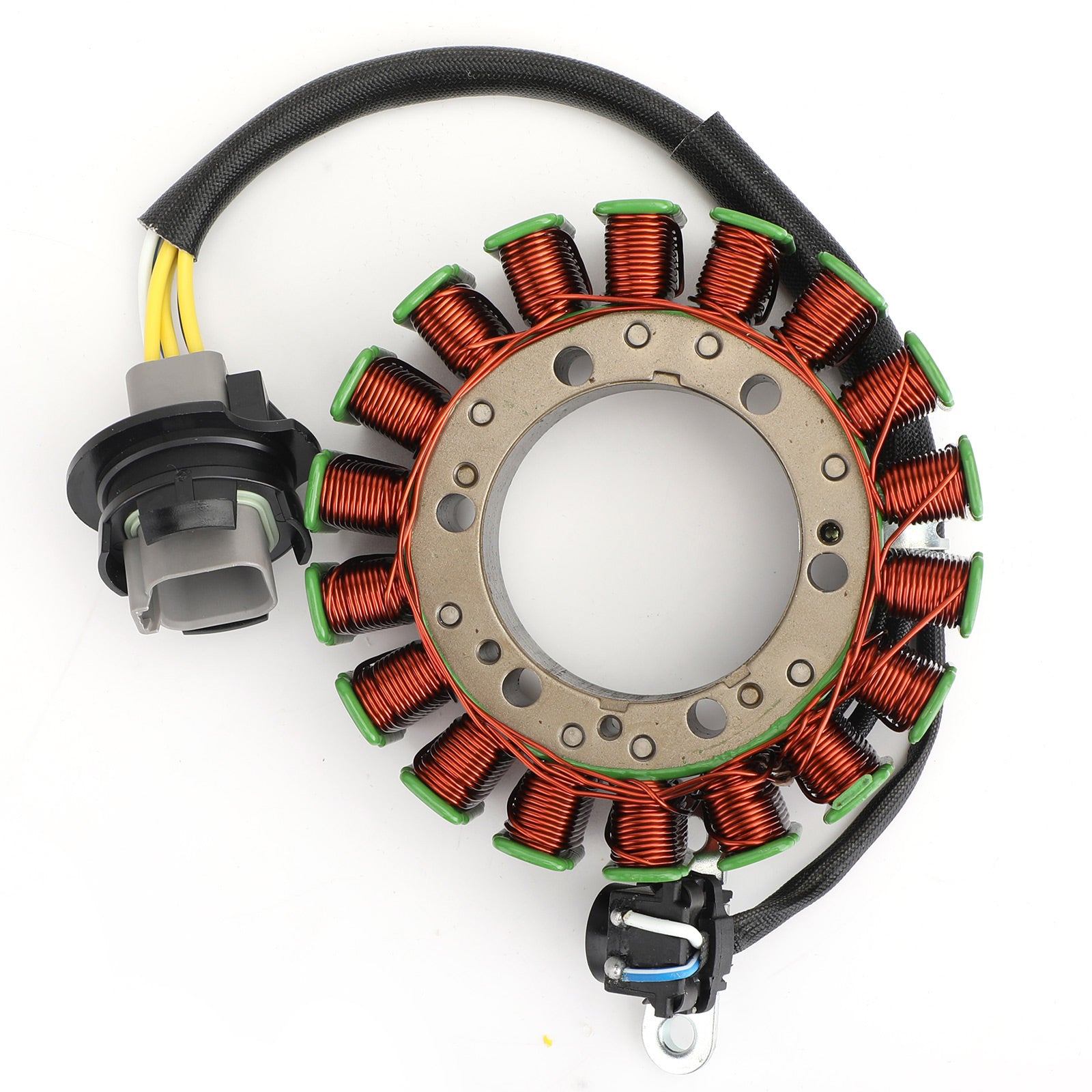

Type: Generator Stator Coil
Other specifications:
Number of wires: 5
Number of pins: 6
Number of plugs: 1
Number of fixation holes: 6(+2)
Fixation holes length: 28mm / 1.12"
Package Incleded:
1x Generator Stator Coil
Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
