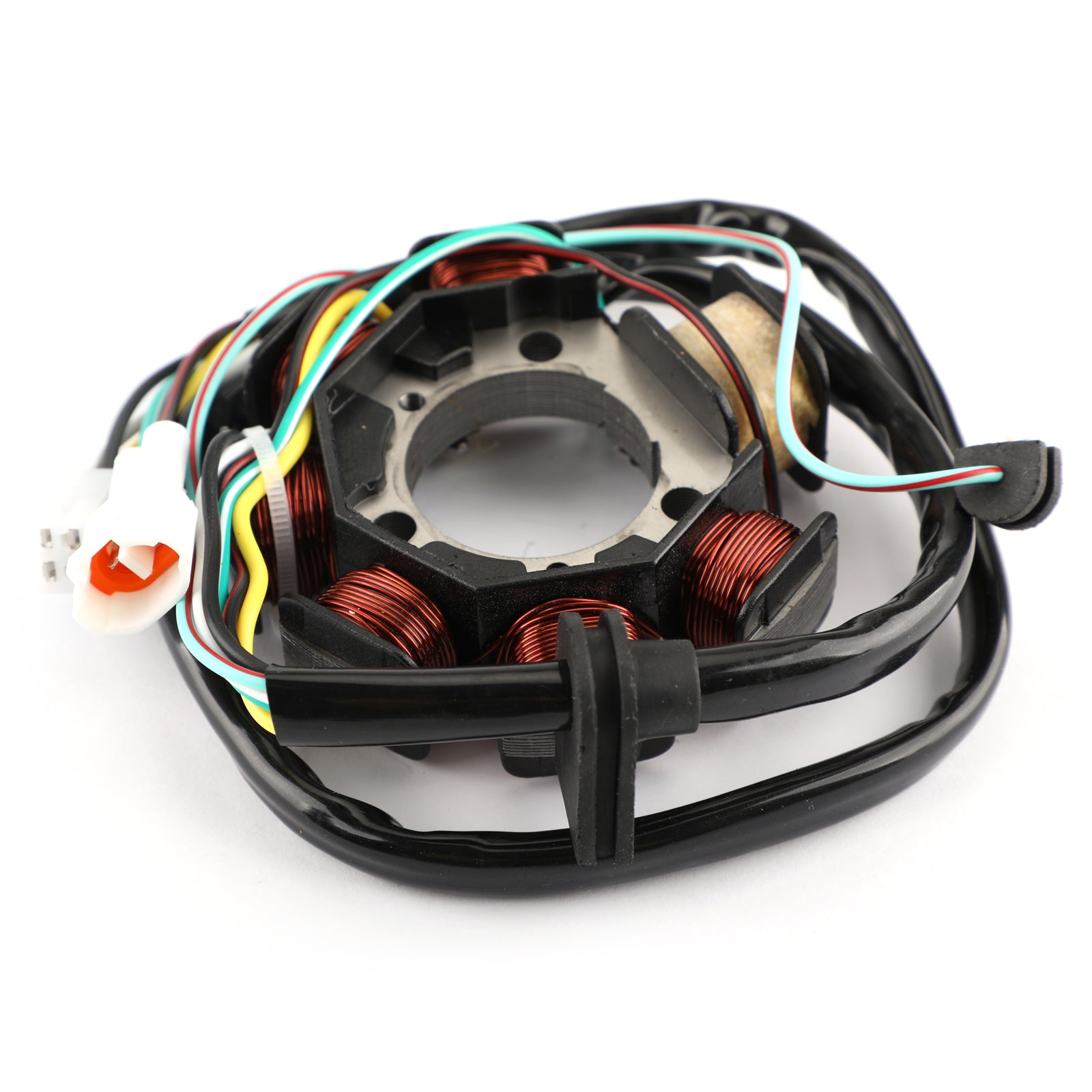

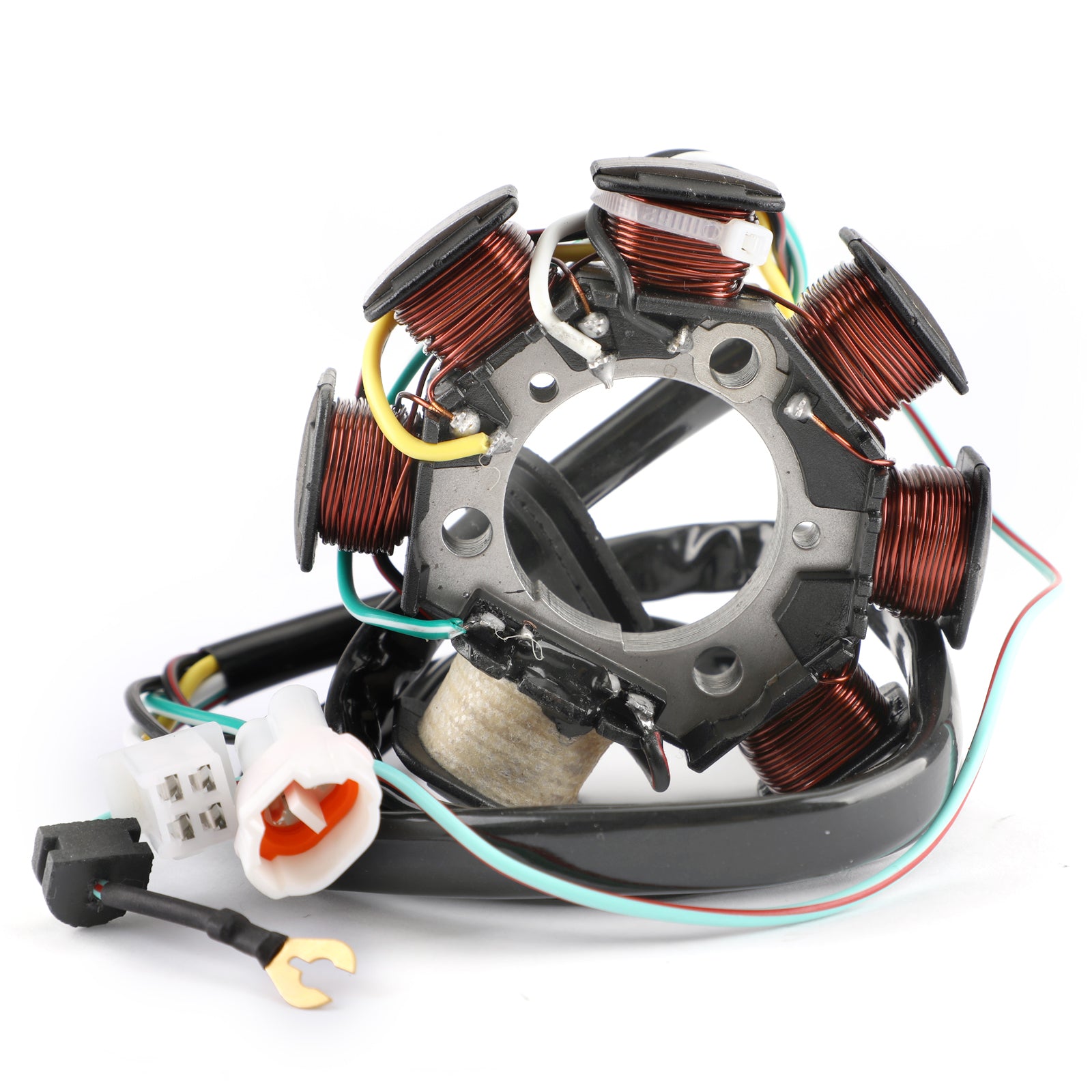

Alternator Stator Coil For Yamaha DT125 DT125R 99-03 3RM-85560-00 3RM-85560-01
Alternator Stator Coil For Yamaha DT125 DT125R 99-03 3RM-85560-00 3RM-85560-01
Alternator Stator Coil For Yamaha DT125 DT125R 99-03 3RM-85560-00 3RM-85560-01
Alternator Stator Coil For Yamaha DT125 DT125R 99-03 3RM-85560-00 3RM-85560-01
Alternator Stator Coil For Yamaha DT125 DT125R 99-03 3RM-85560-00 3RM-85560-01

Alternator Stator Coil For Yamaha DT125 DT125R 99-03 3RM-85560-00 3RM-85560-01

Sale price$99.99 USD
SKU: M550-A294
Quantity:
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

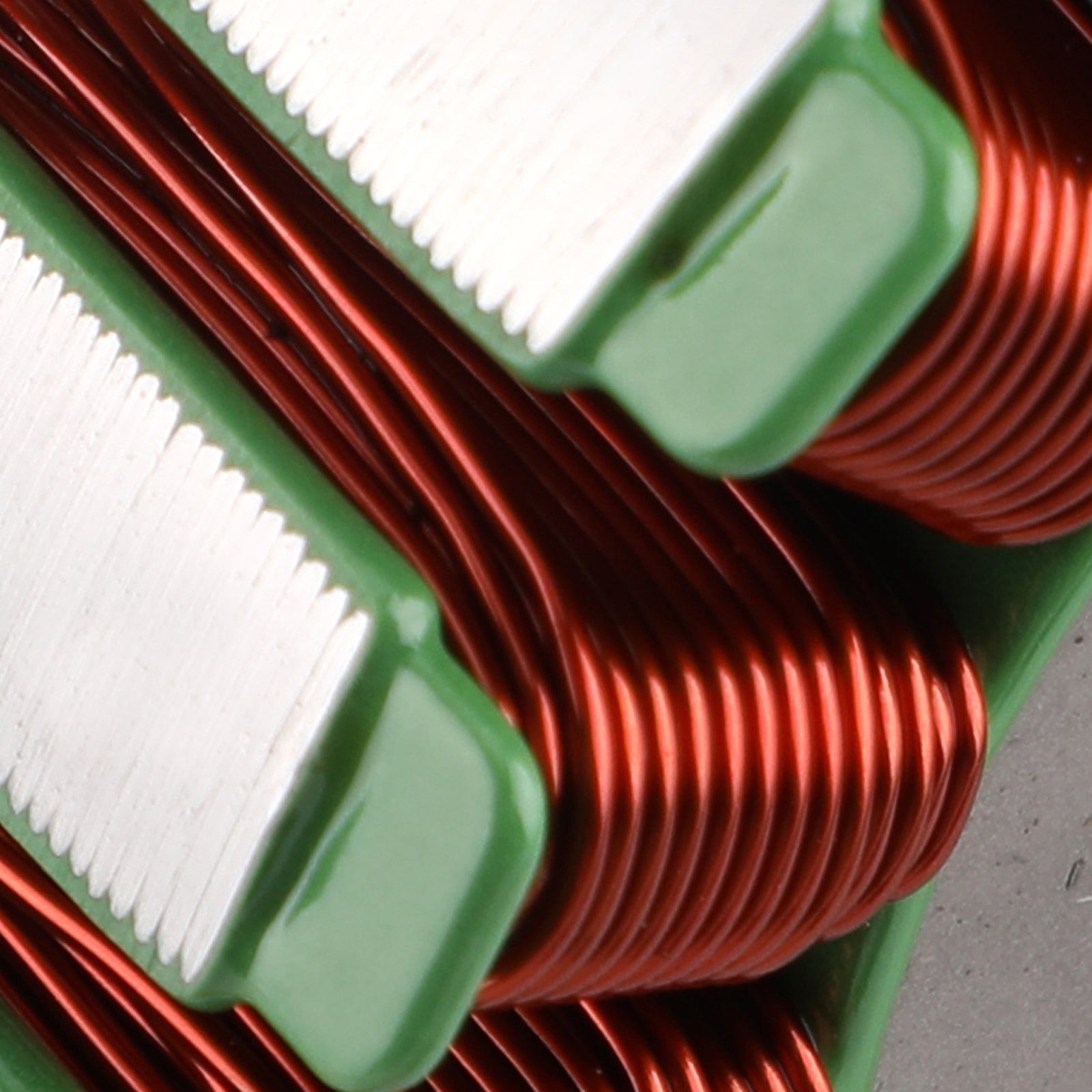

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

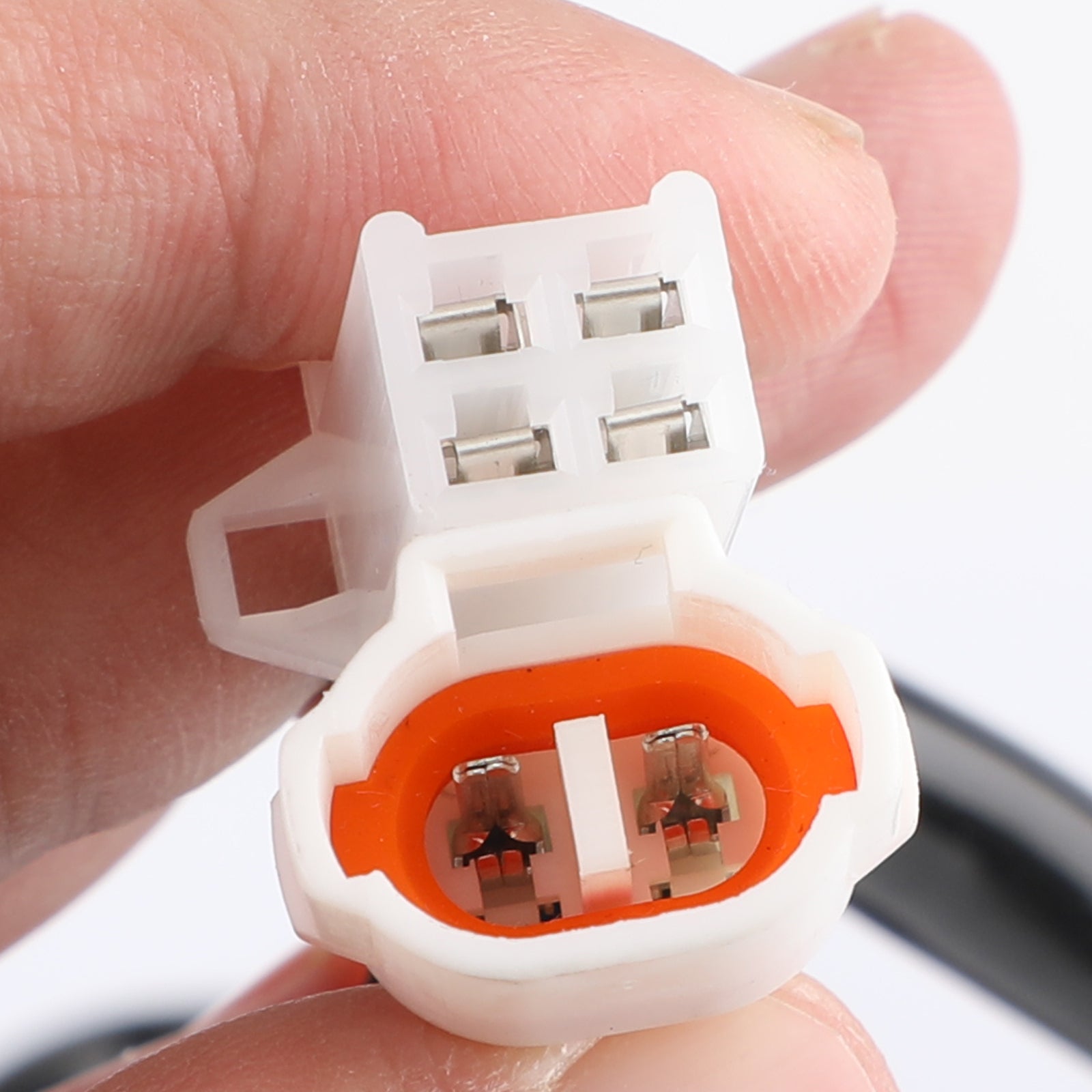

Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 3RM-85560-00,3RM-85560-01

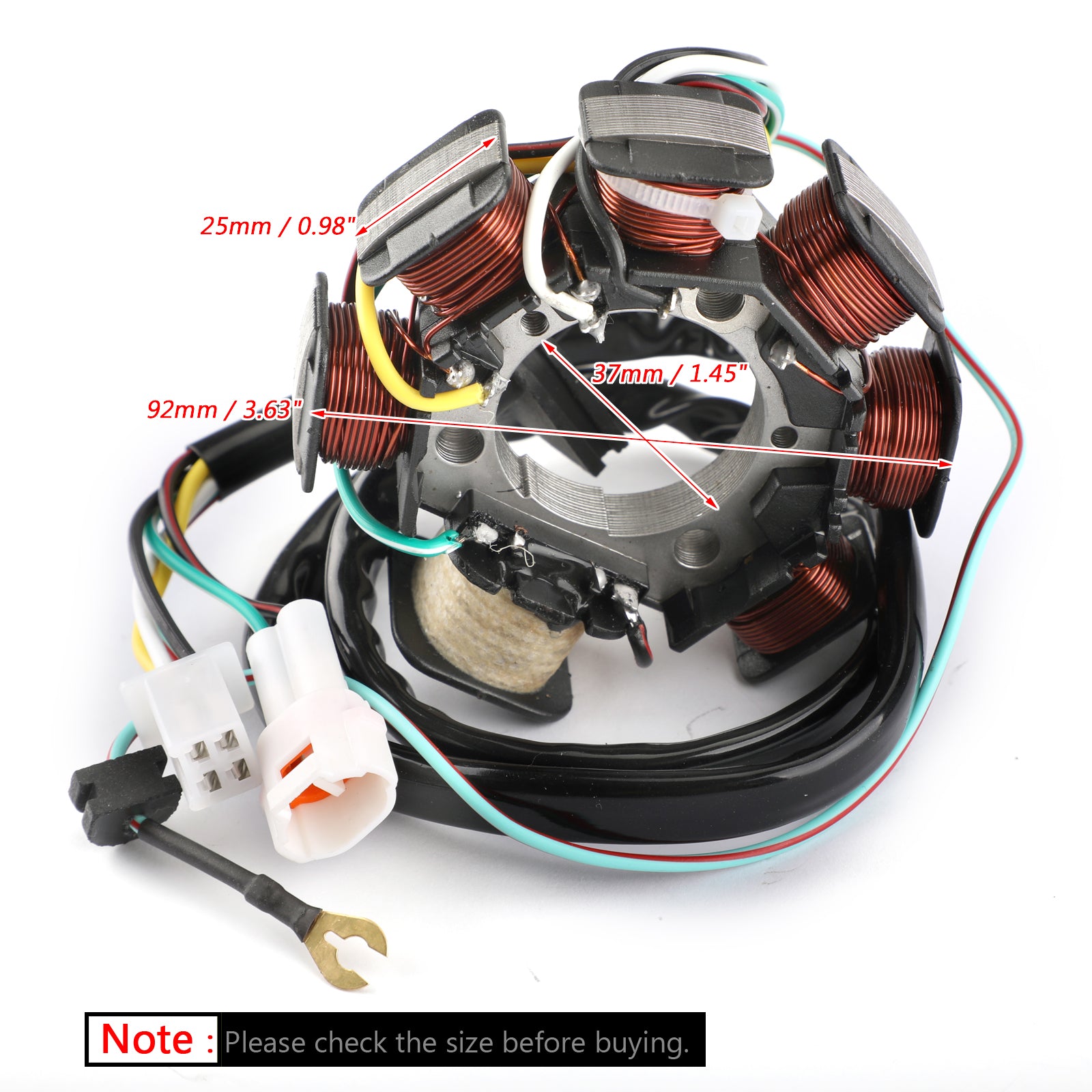

Dimensions :
Interior diameter : 37mm / 1.45"
Exterior diameter : 92mm / 3.63"
Thickness : 25mm / 0.98"

Other specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 2
Number of fixation holes: 3(+2)

FITMENT:
For Yamaha DT125 DT125R 1999-2003

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
