Condition: Aftermarket 100% Brand New

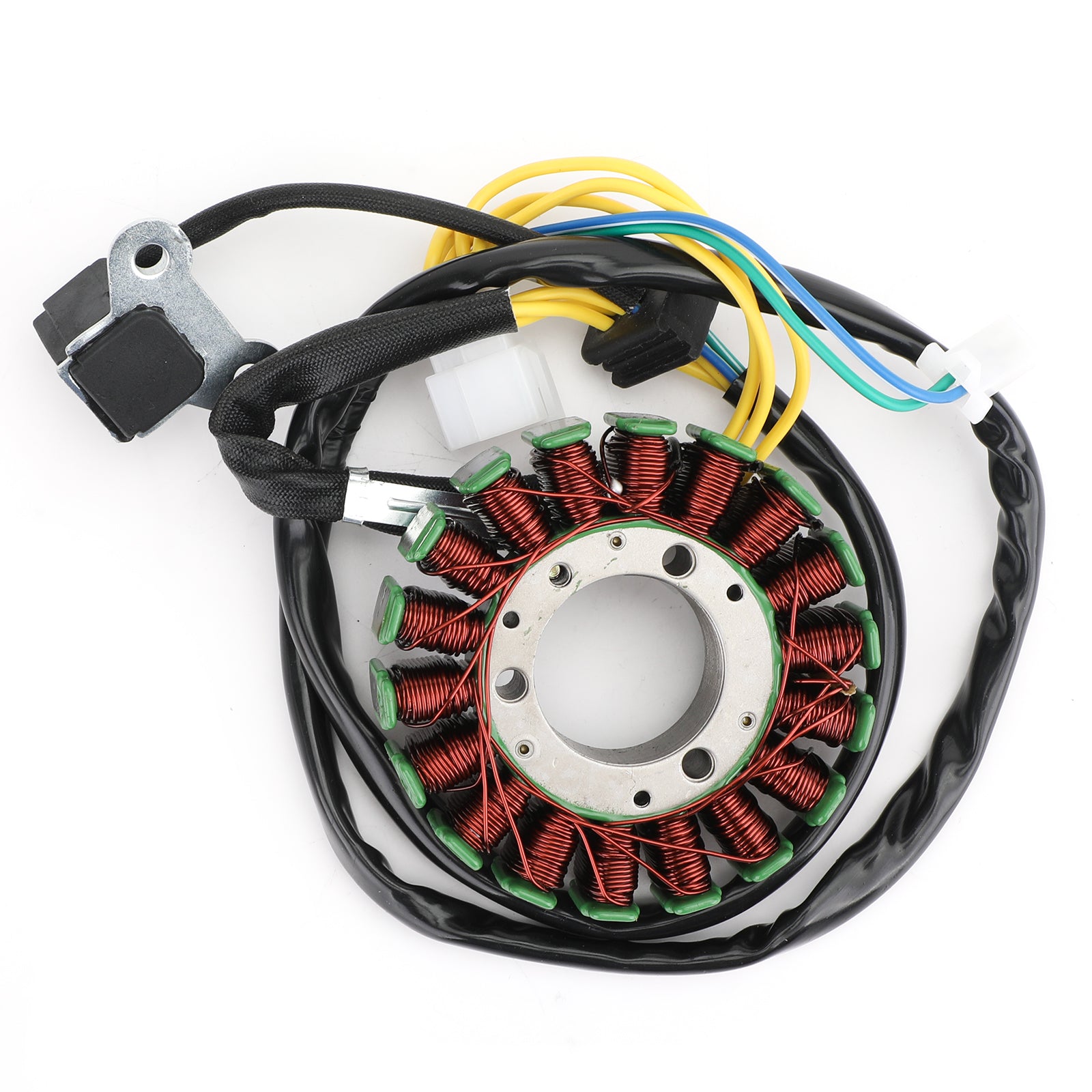

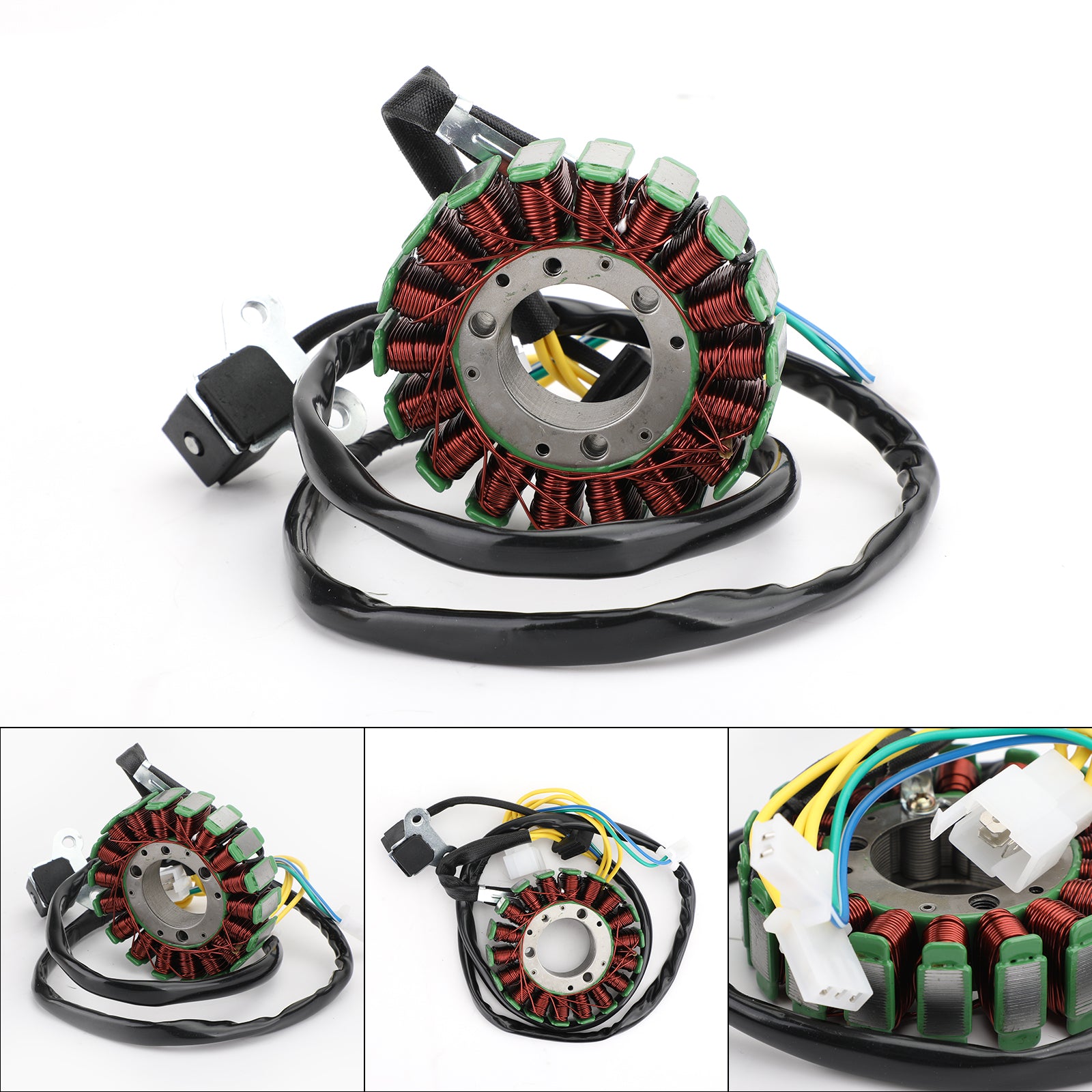

Type: Generator Stator Coil
Replacement Part Number:31120-HTA-000 / 31120-HTA-0003

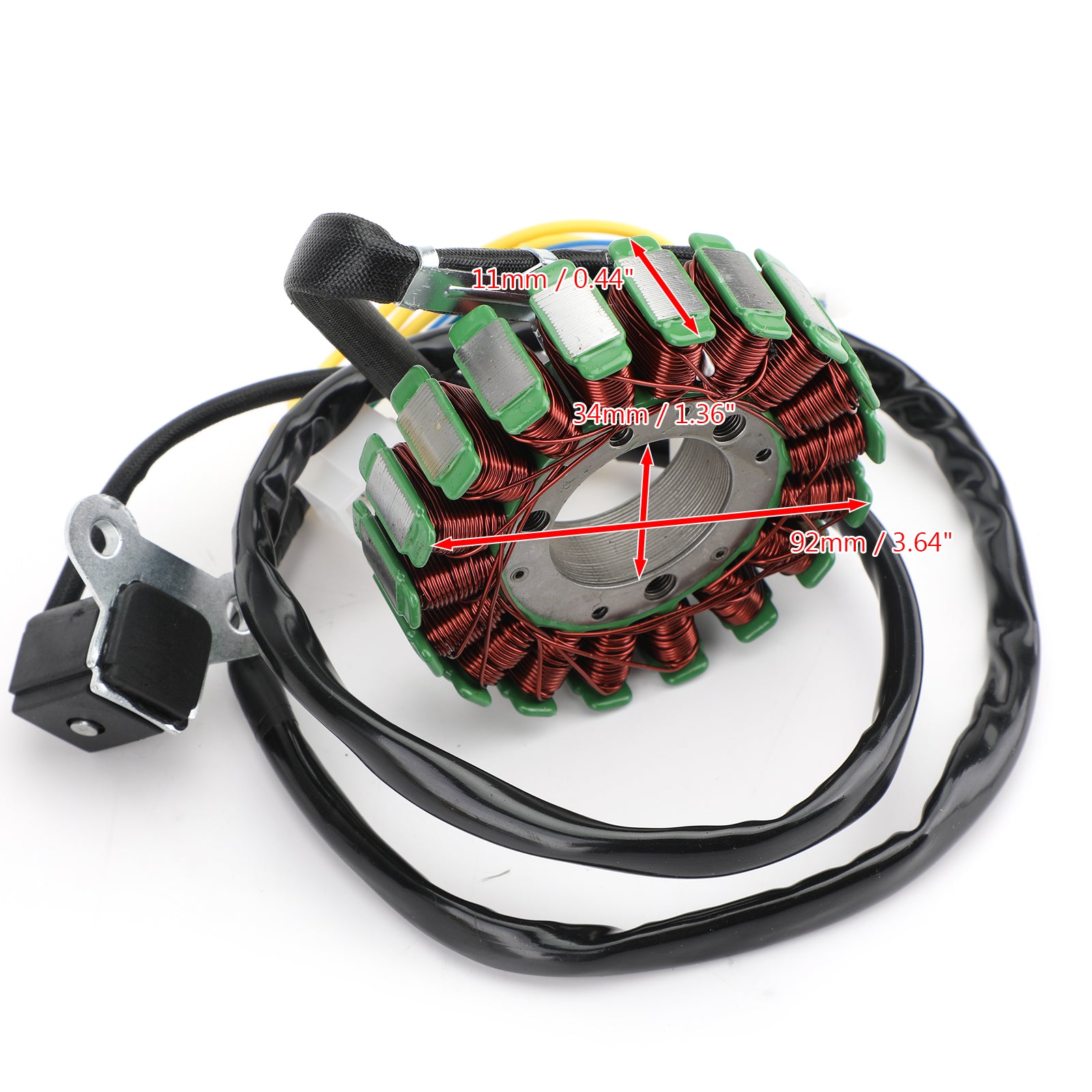

Interior diameter : 34mm / 1.36"
Exterior diameter : 92mm / 3.64"
Thickness : 11mm / 0.44"
Other specifications :
Number of wires: 5
Number of pins: 8
Number of plugs: 3
Number of fixation holes: 3(+3)
Fixation holes length: 34mm / 1.33"
For SYM GTS125 LM12W1-7
For SYM GTS125 LM12W3-6
For SYM GTS125 LM12W3-F
For SYM GTS125 LM12W5-6
For SYM GTS125 LM12W5-7
For SYM GTS125 LM12W5-F
For SYM GTS125 LM12W-6
For SYM GTS125 LM12W-F
For SYM JOYMAX 125 LM12W-T
For SYM GTS 200 LM18W-6
For SYM GTS 200 LM18W-MC
For SYM GTS125 LN12W2-6
For SYM GTS125 LN12W3-EU
For SYM JOYMAX 125LN12W4-6
For SYM JOYMAX 125LN12WB-EU
For SYM JOYMAX 125LN12WBH-EU
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
All products shipped are tested.
1x Generator Stator Coil
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Item location: Los Angeles, California warehouse
Delivery Time: 3-7 working days
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
