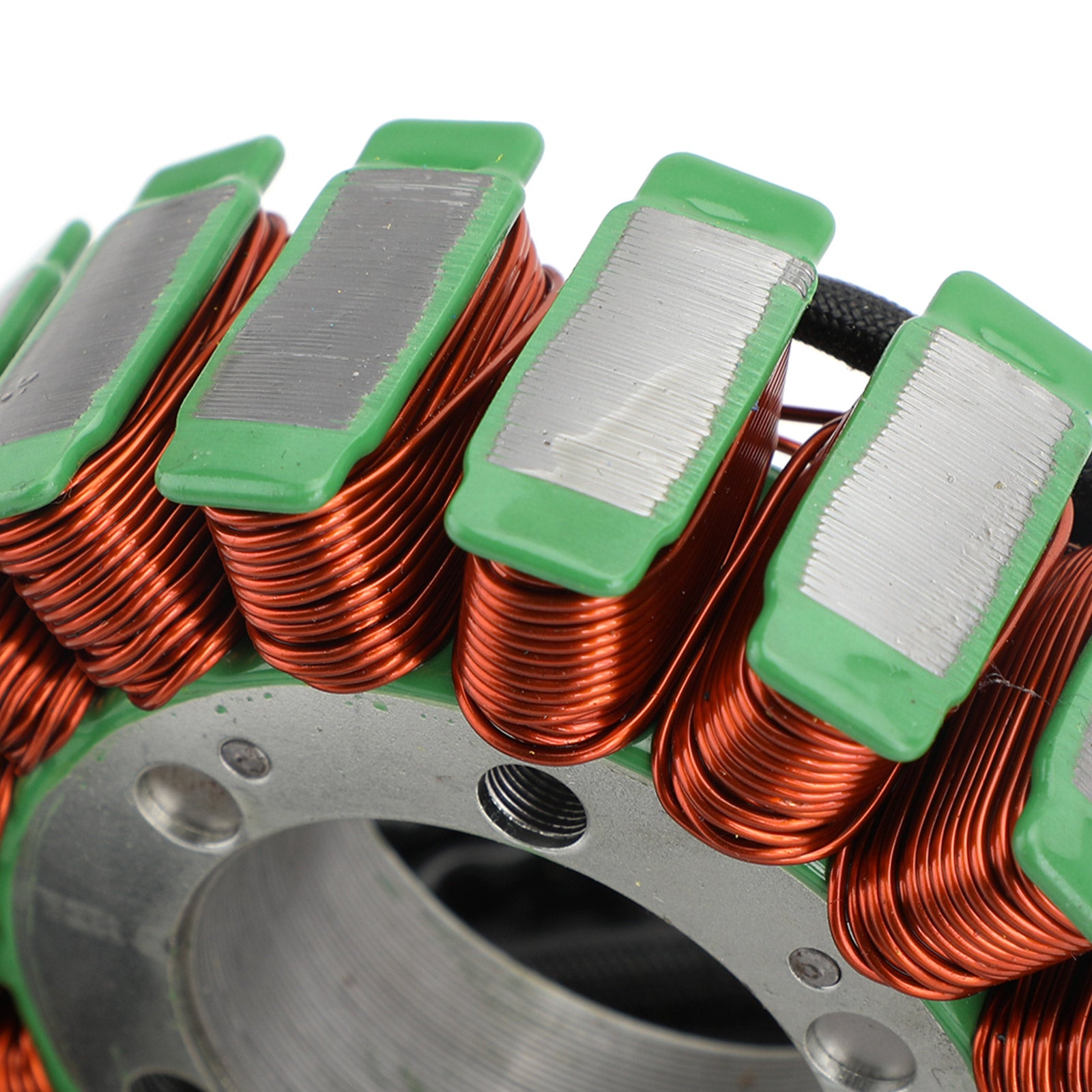

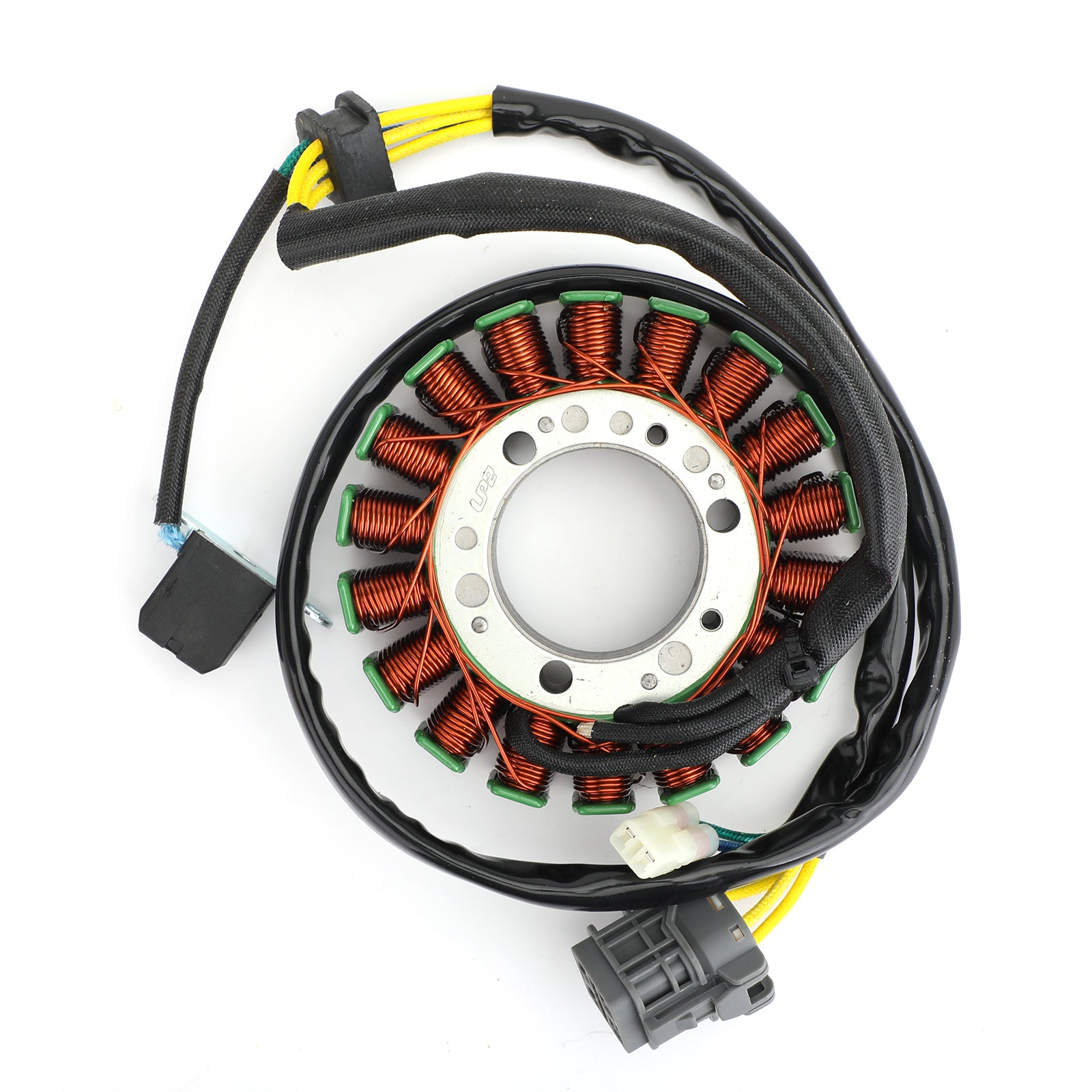

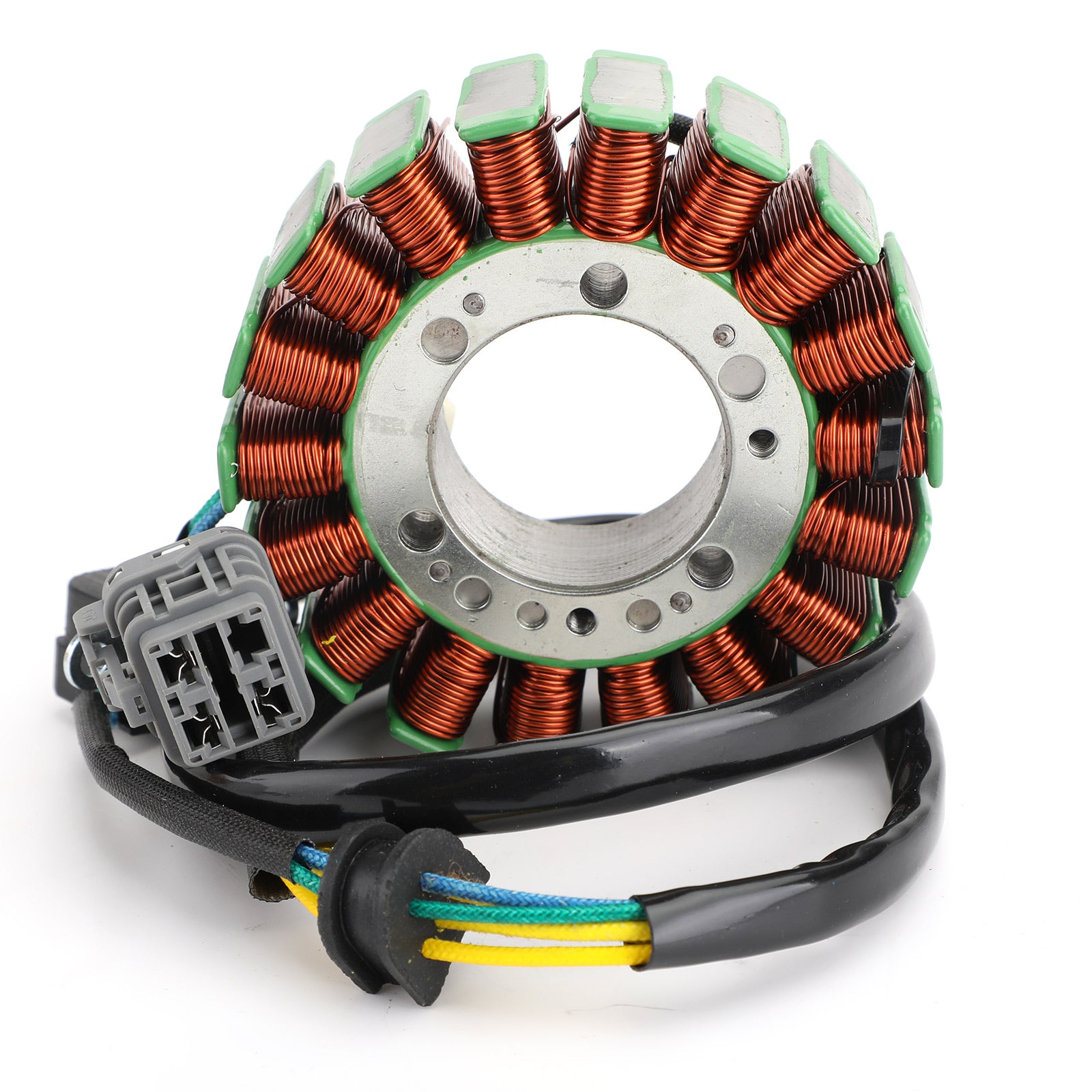

Magneto Generator Engine Stator Coil S31120RCA000 Fit For Bombardier Can-am DS 250 DS250 2008-2016 Generic

Replacement Part Number:
S31120RCA000
Please confirm the Replacement Part Number before ordering.

Fitment:
For Bombardier Can-am DS 250 2008-2016

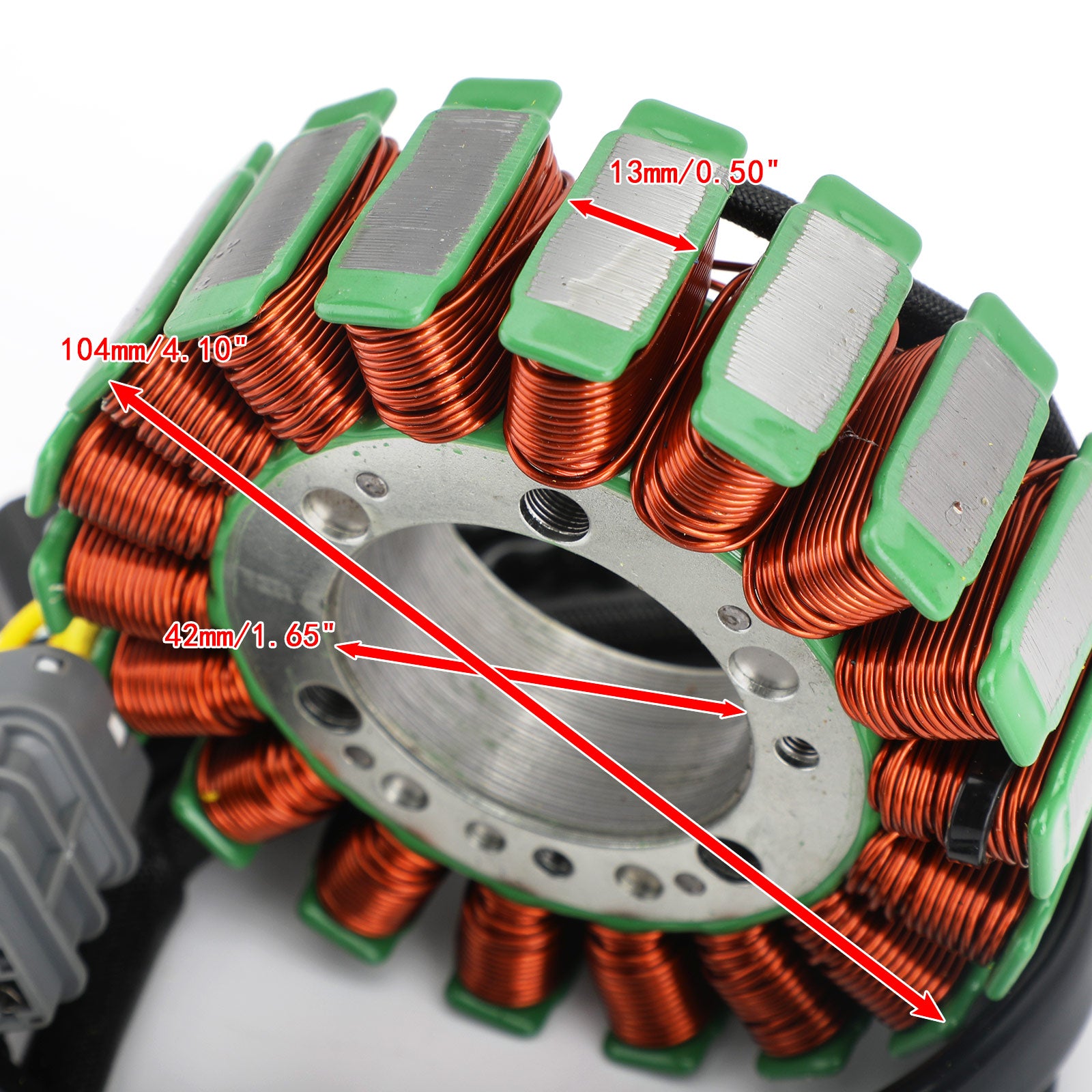

Dimensions:
Interior diameter : 42 mm / 1.65"
Exterior diameter : 104 mm / 4.10"
Thickness : 13 mm / 0.50"

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

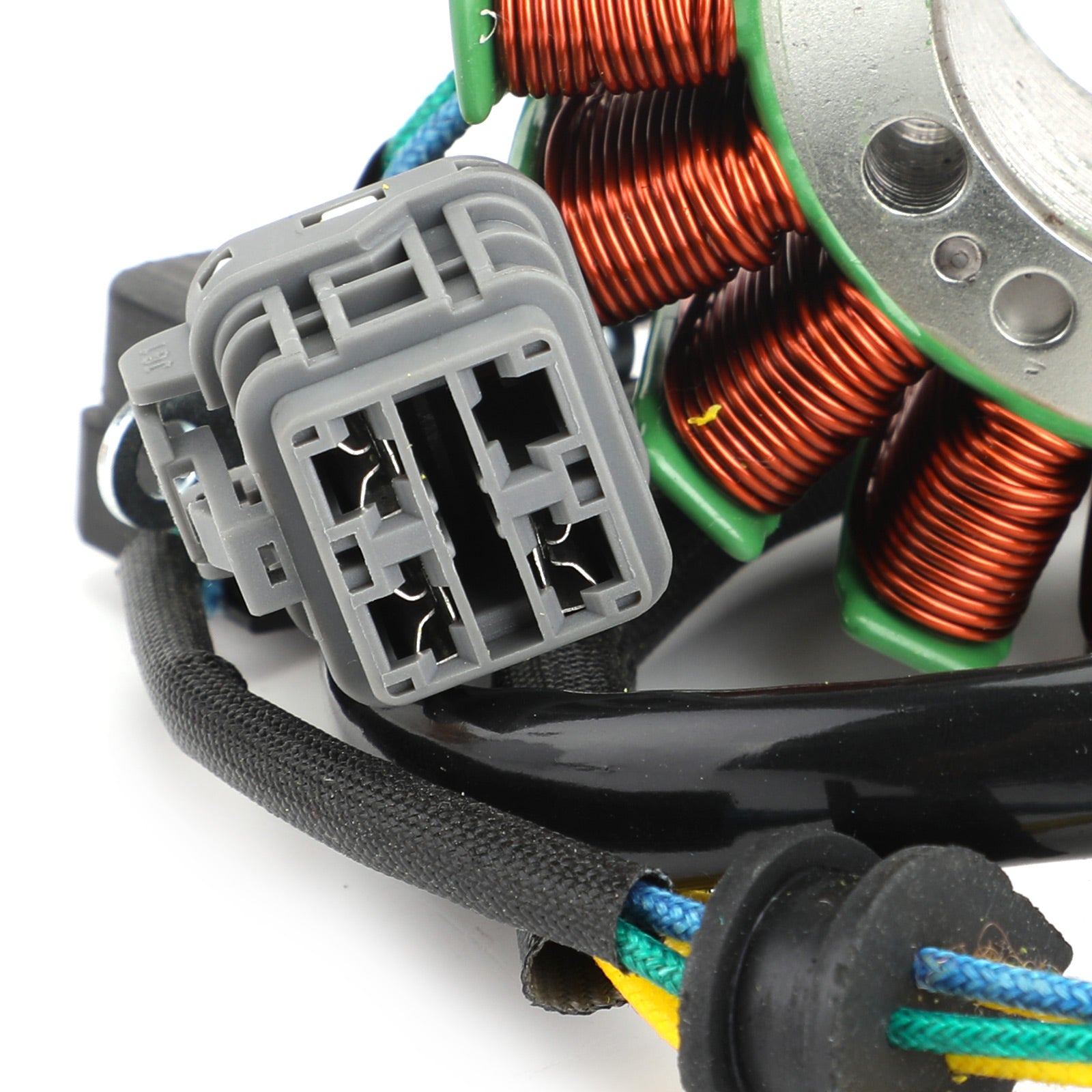

Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

Other specifications:
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+2)
Fixation holes length: 41 mm / 1.61"

Package Incleded:
1 x Generator Stator Coil

Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
