Magneto Generator Engine Stator Coil 6C5-81410-01 Fit For Yamaha FT60 FT50 F70 F60 F50 F40 2005-2017
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
PACKAGE INCLUDED: 1x Generator Stator Coil

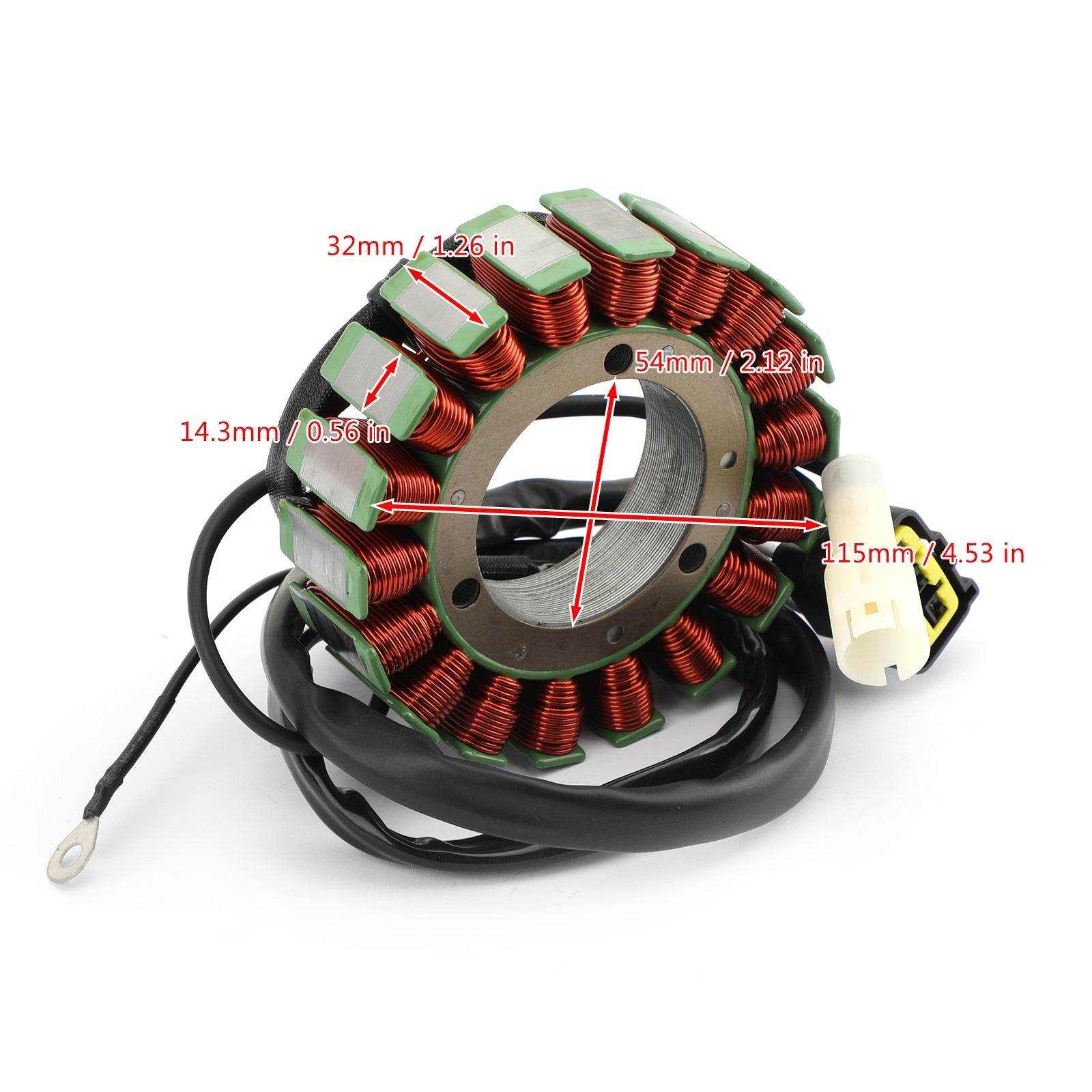

Dimensions :
Interior diameter : 54mm / 2.12 inches
Exterior diameter : 115mm / 4.53 inches
Pole's Thickness : 32mm / 1.26 inches
Pole's Width : 14.3mm / 0.56 inches
Other specifications :
Number of wires: 5
Number of pins: 7
Number of plugs: 3
Number of fixation holes: 3
Number of poles: 18
PART NUMBER(S): 6C5-81410-00 , 6C5-81410-01
FITMENT:
Fits 4-stroke Outboards
Fits Yamaha F40 2006-2017
Fits Yamaha F50 2005-2017
Fits Yamaha F60 2005-2017
Fits Yamaha F70 2010-2017
Fits Yamaha FT50 2005-2017
Fits Yamaha FT60 2005-2017
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
FEATURES:
*Direct replacement to your original unit
*Plug-and-play, direct fit, easy installation.
*Highest grade lamination materials.
*Highest grade copper windings, resistant to 200 degrees Celsius.
*Pick up pulsar coil included.
*Connector included.
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
