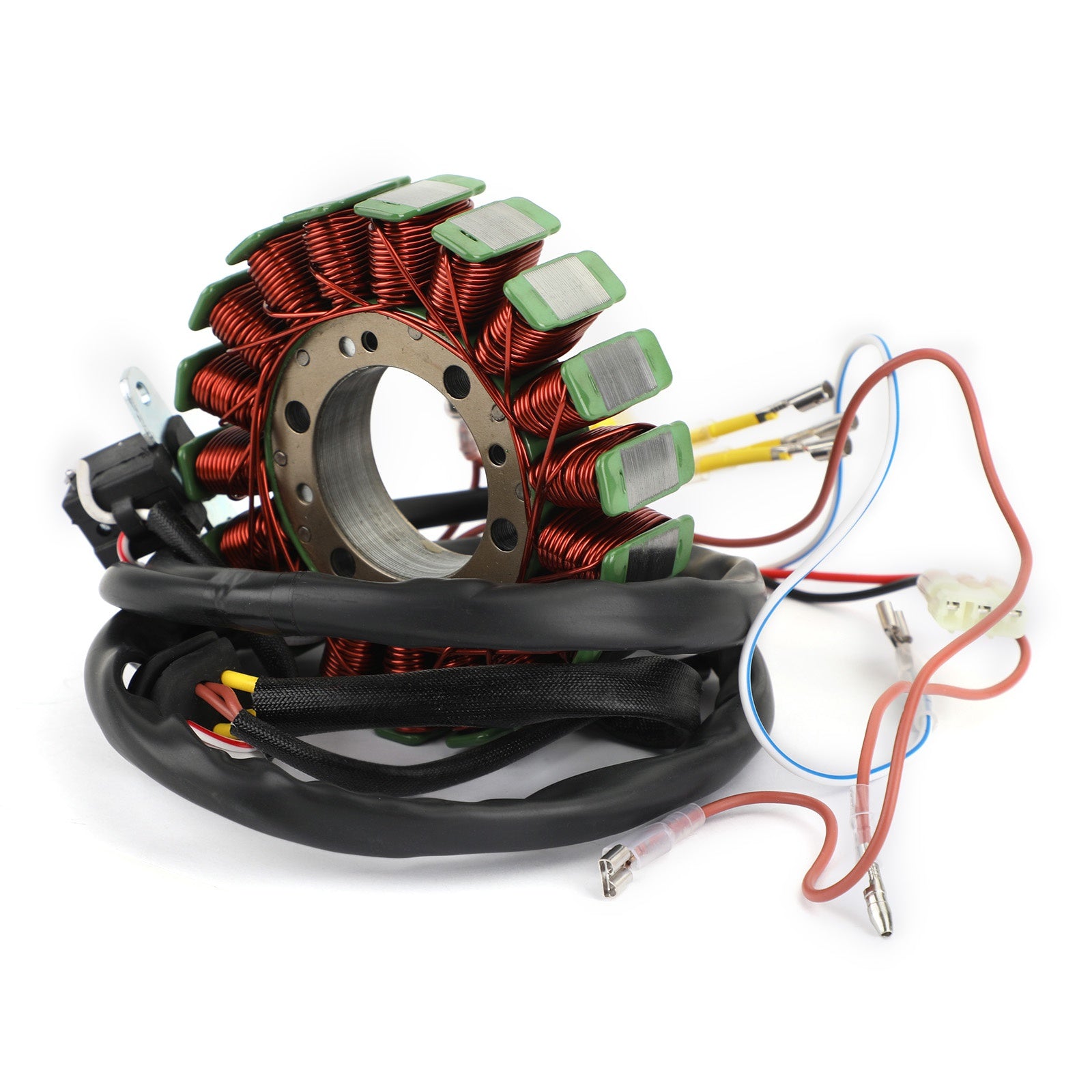

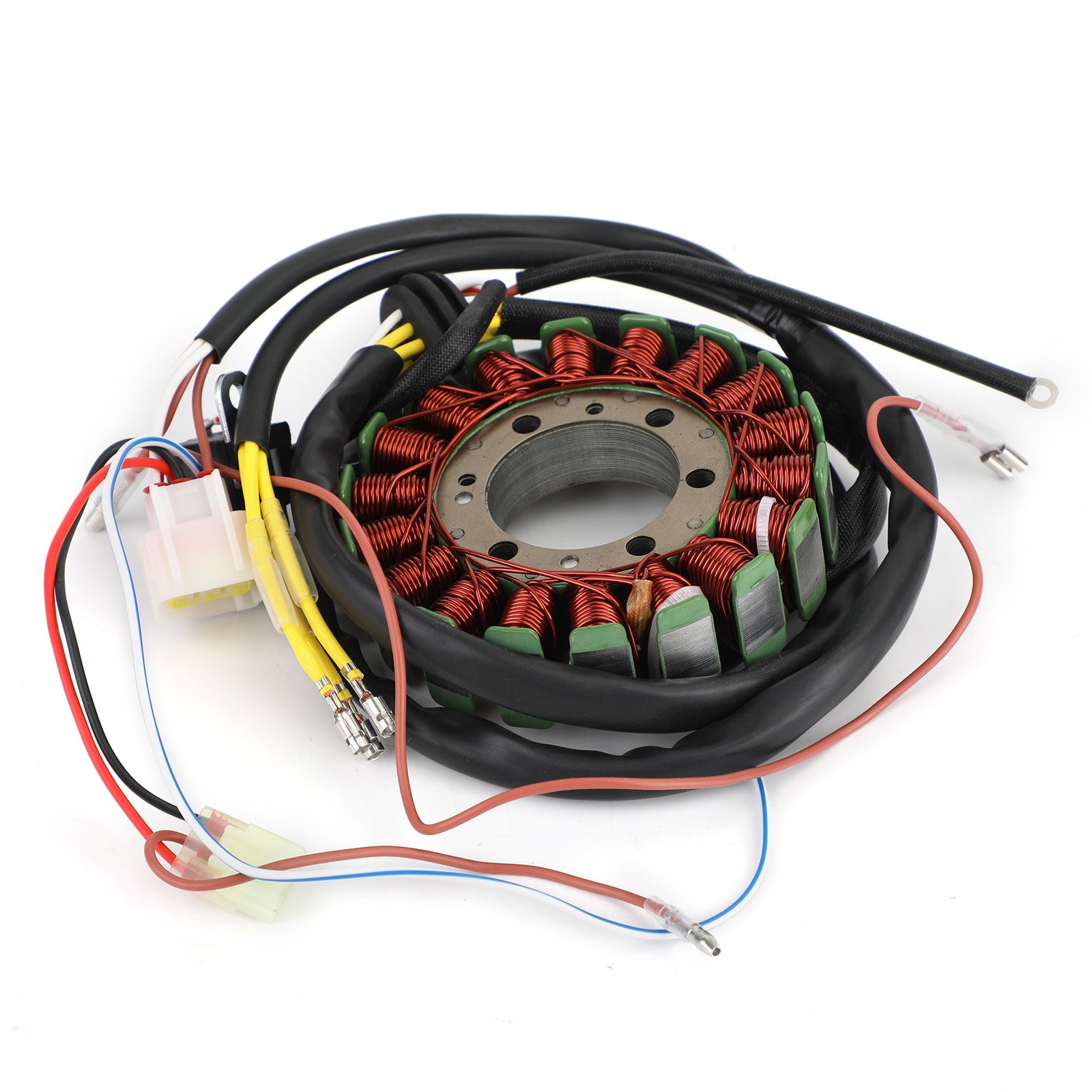

Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009
Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009
Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009
Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009
Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009
Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009
Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009
Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009
Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009
Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009
Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009

Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009

Sale price$129.99 USD
SKU: M550-A450
Quantity:

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

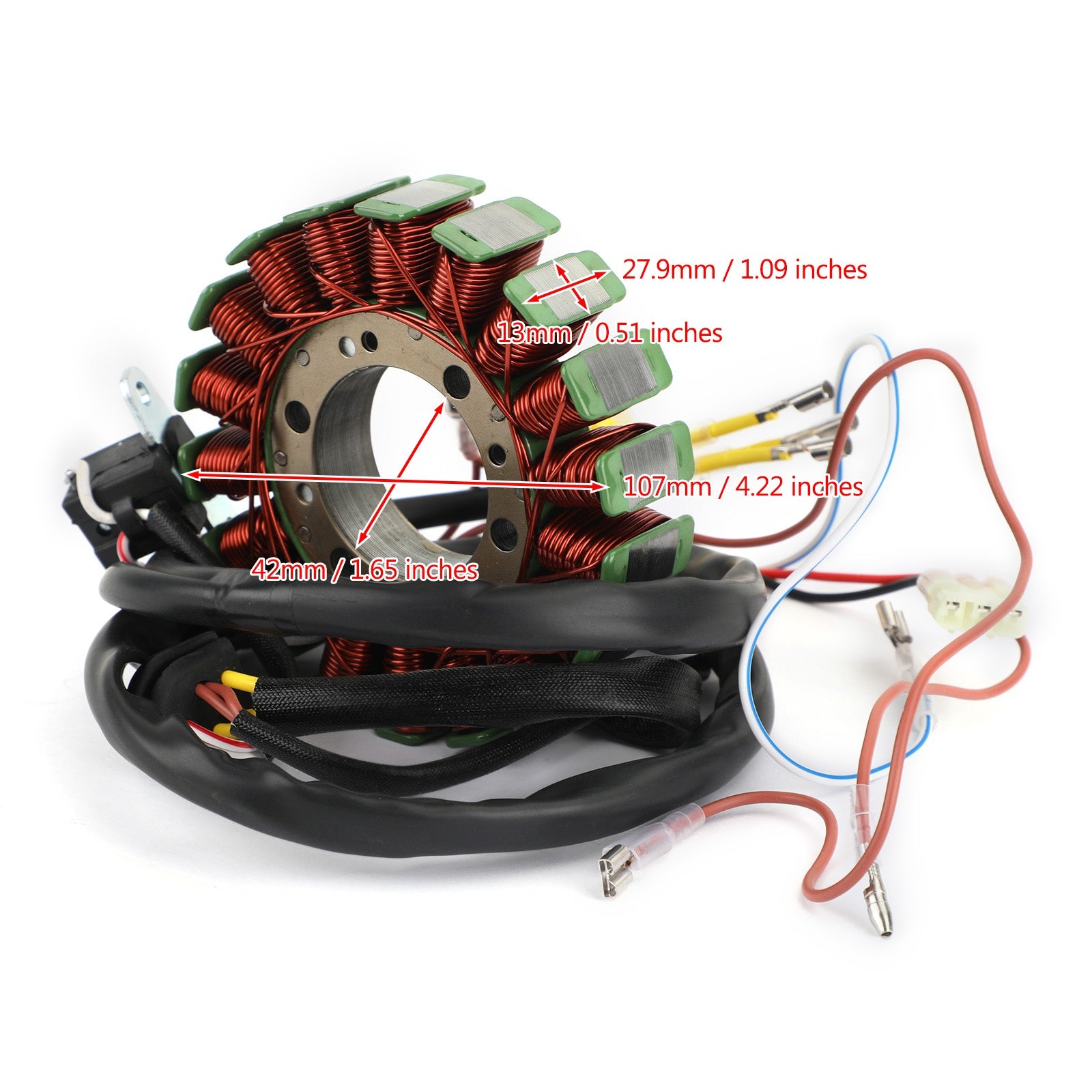

Dimensions :
Interior diameter : 42 mm / 1.65 inches
Exterior diameter : 107 mm / 4.22 inches
Pole's Thickness : 27.9 mm / 1.09 inches
Pole's Width : 13 mm / 0.51 inches

Alternator Magneto Stator Fit for Polaris Ranger 500 2X4 4x4 Carb Israel 05-2009



Other Specifications :
Number of wires: 7
Number of pins: 17
Number of plugs: 10
Number of fixation holes: 5
Number of poles: 18

PART NUMBER(S): 3089579

Fitments:
Fit for Polaris Ranger 500 2X4 2008
Fit for Polaris Ranger 500 2X4 CARB 2009
Fit for Polaris Ranger 500 2X4 CARB ISRAEL 2007-2008
Fit for Polaris Ranger 500 2X4/4X4/6X6 2005
Fit for Polaris Ranger 500 2X4/4X4 2006-2007

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper wingdings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1 x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
