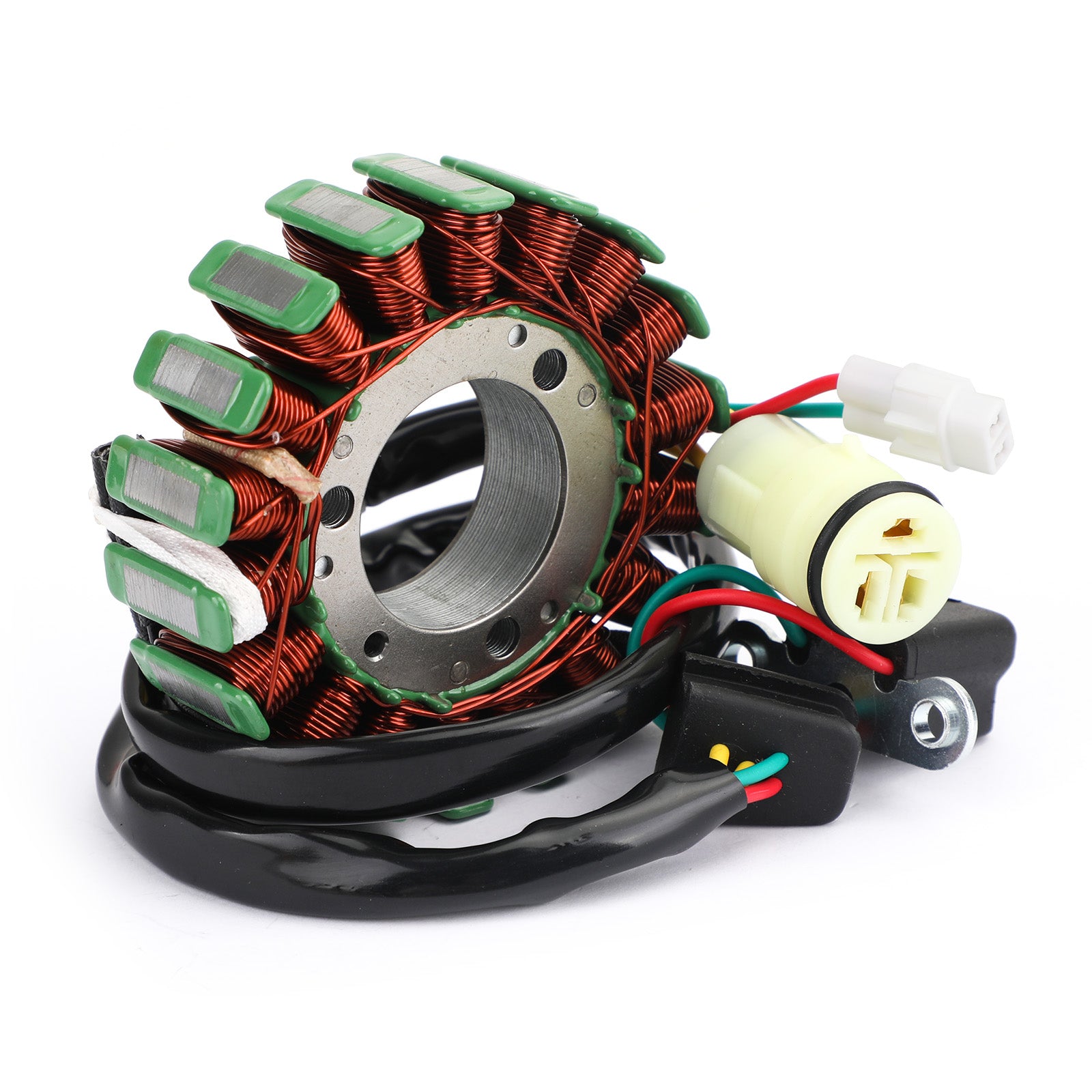

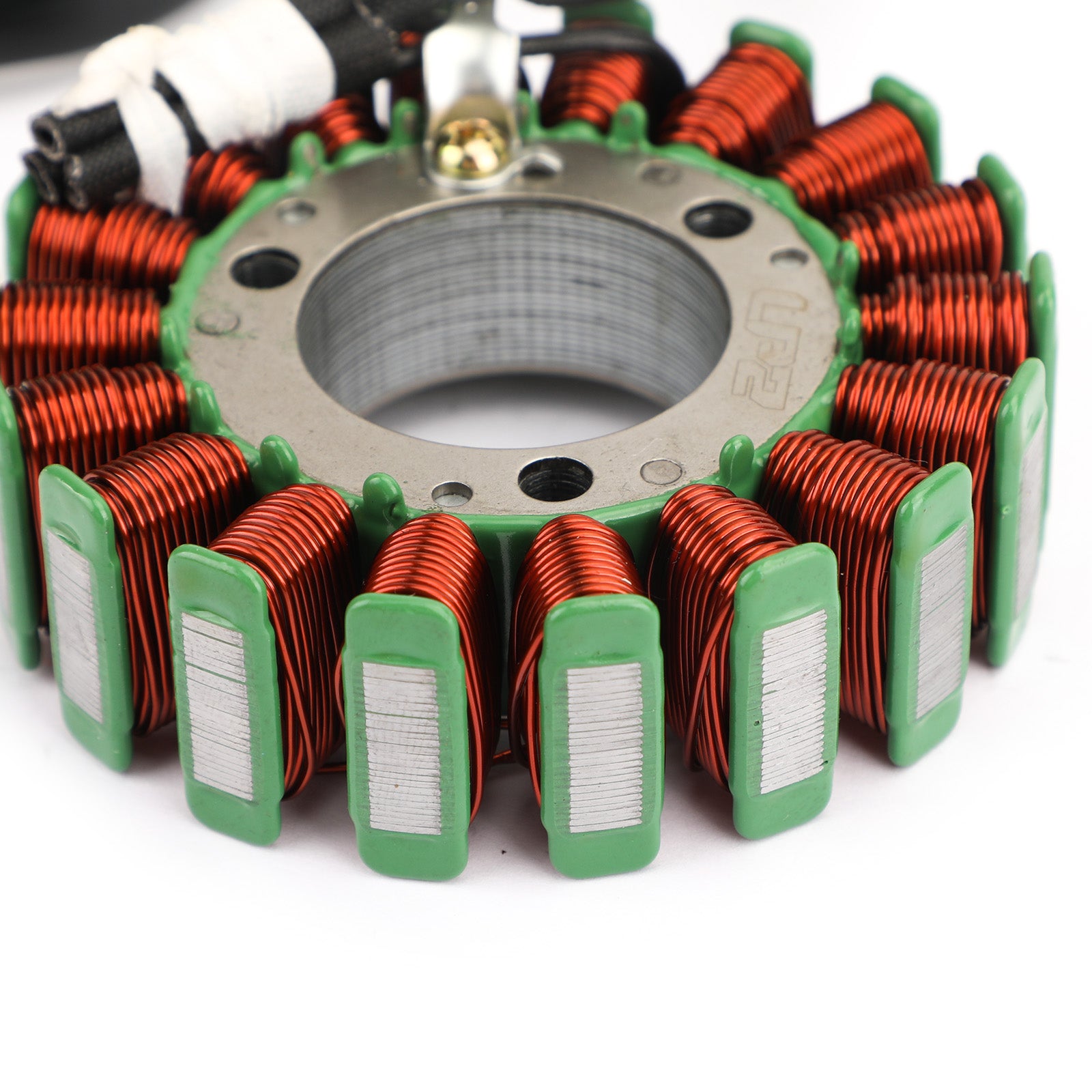

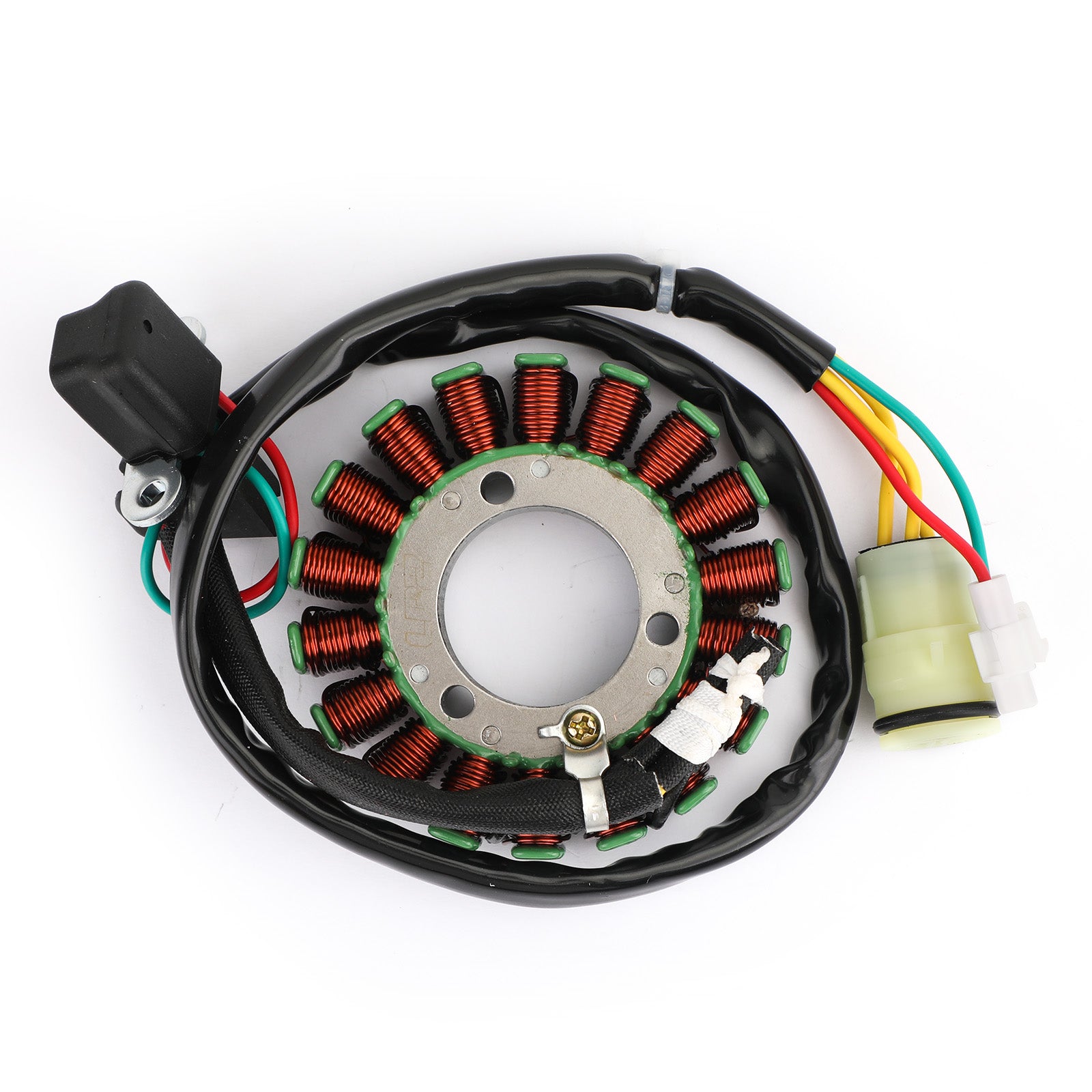

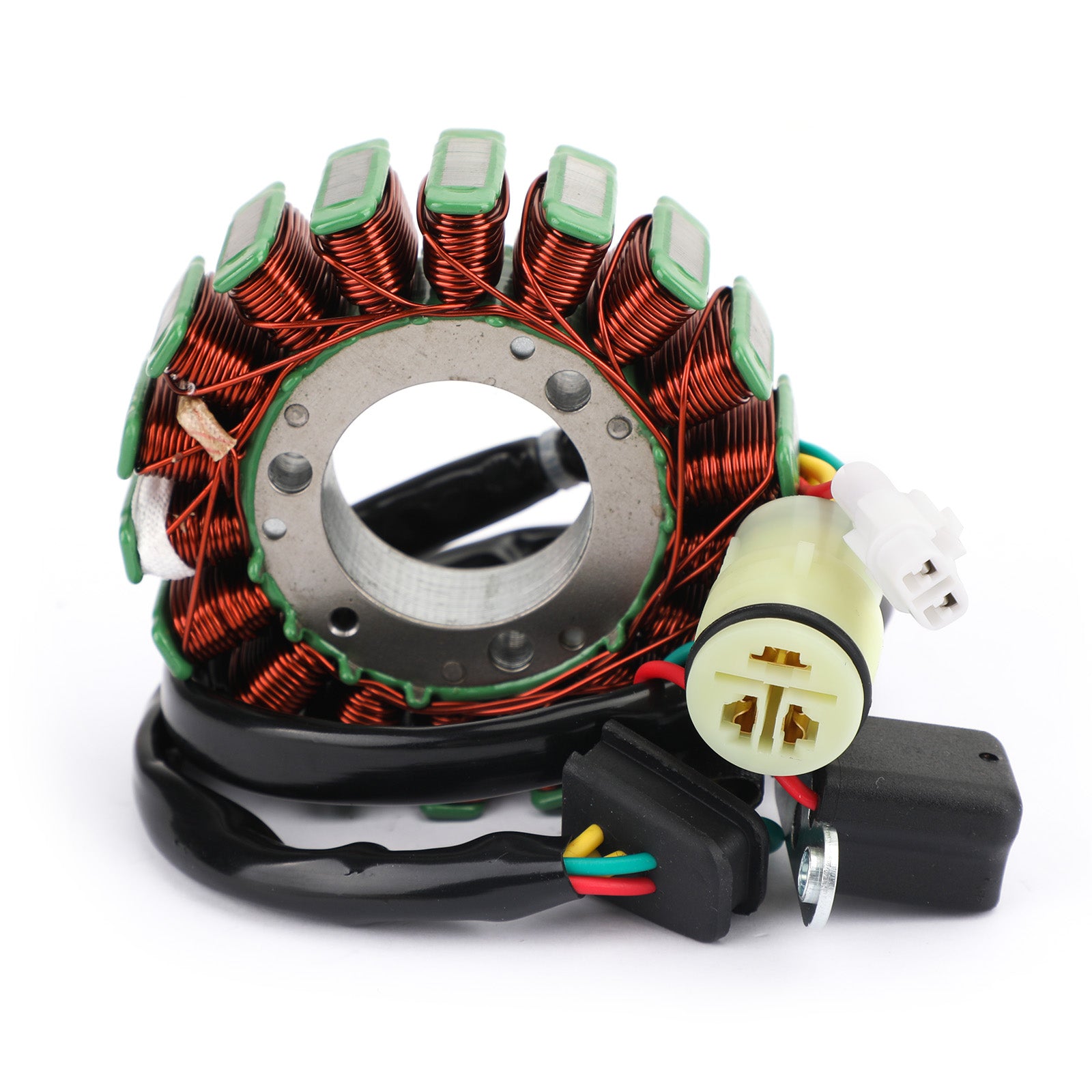

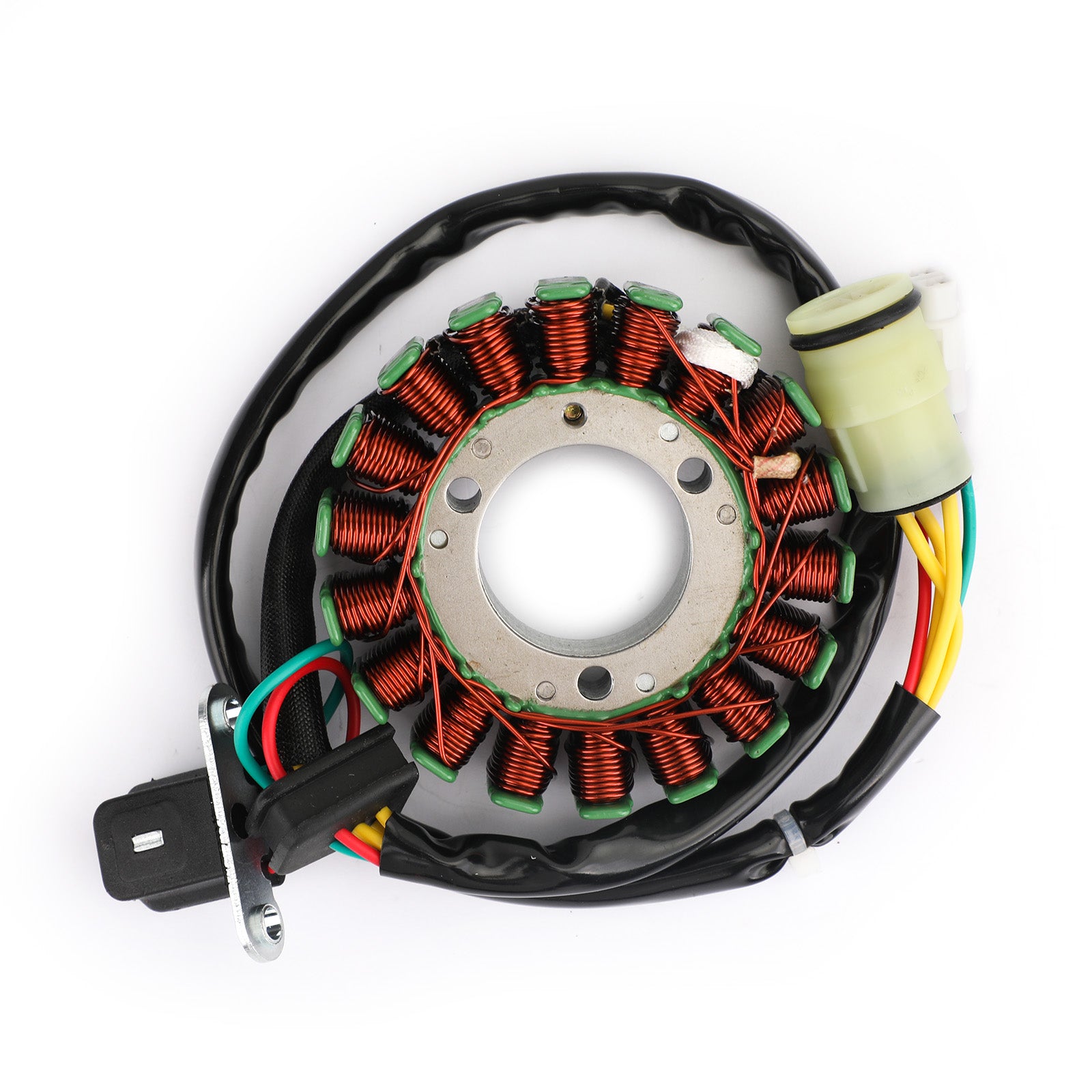

Alternator Magneto Stator Fit for HUSQVARNA TE TC SMR 250 310 450 510 2008-2010
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

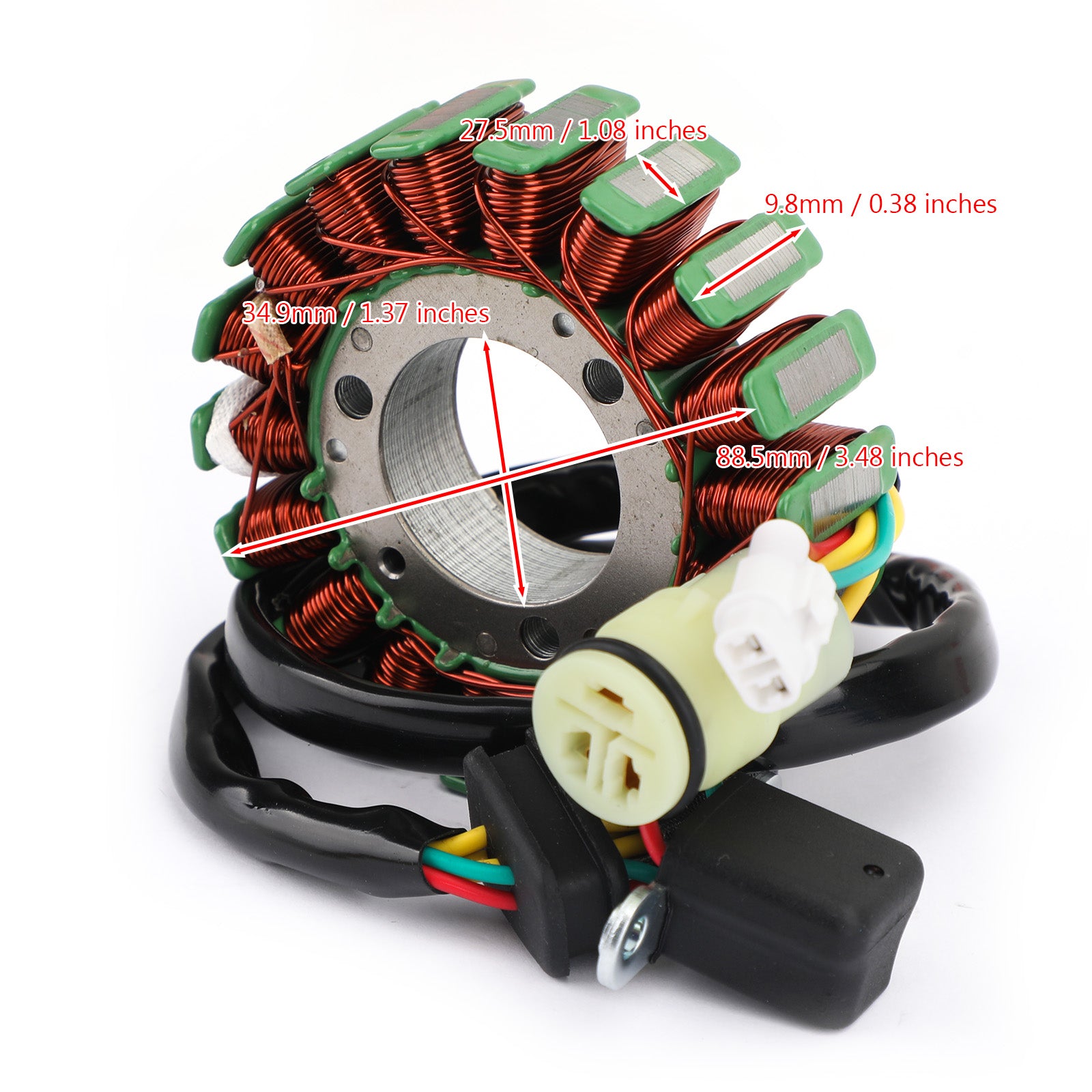

Dimensions :
Interior diameter : 34.9 mm / 1.37 inches
Exterior diameter : 88.5 mm / 3.48 inches
Pole's Thickness : 27.5 mm / 1.08 inches
Pole's Width : 9.8 mm / 0.38 inches
Other specifications :
Number of wires: 5
Number of pins: 5

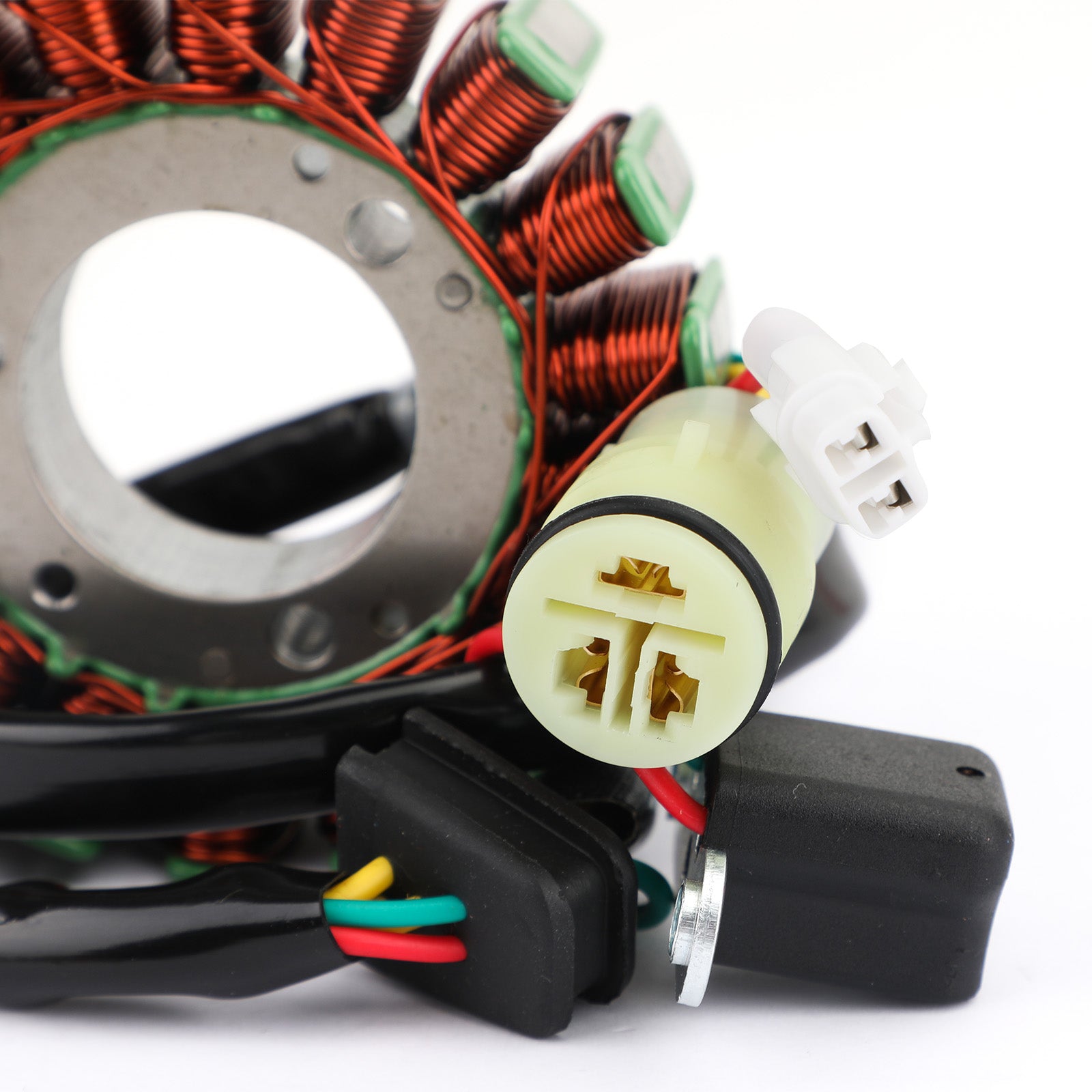

Number of plugs: 2
Number of fixation holes: 3

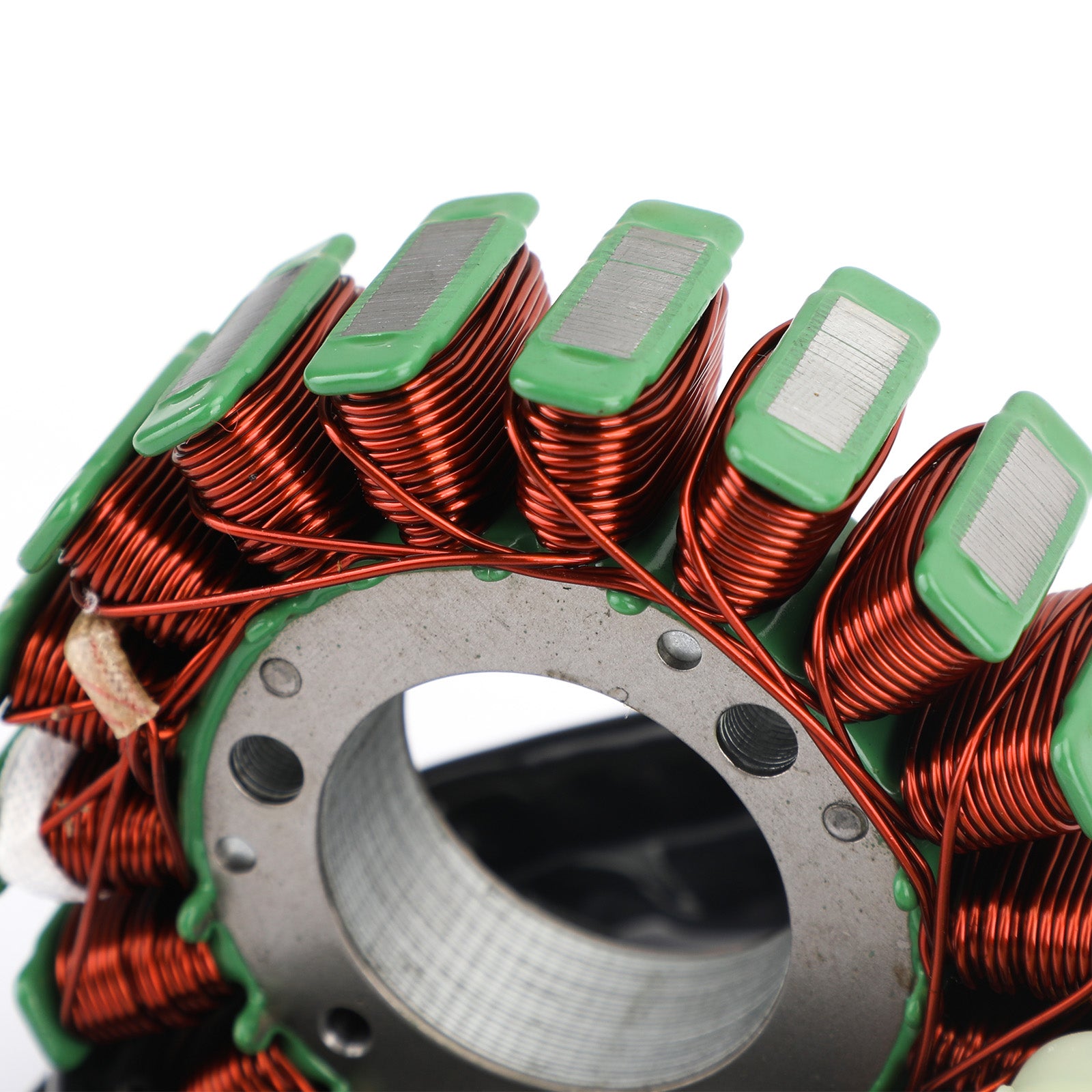

Number of poles: 18
PART NUMBER(S):
8000A6773
FITMENT:
Fits for Husqvarna TE250 2008-2010
Fits for Husqvarna TE310 2008-2010
Fits for Husqvarna TE450 2008-2010
Fits for Husqvarna TE510 2008-2010
Fits for Husqvarna TC250 2008-2010
Fits for Husqvarna TC450 2008-2010
Fits for Husqvarna TC510 2008-2010
Fits for Husqvarna SMR250 2008-2010
Fits for Husqvarna SMR450 2008-2010
Fits for Husqvarna SMR510 2008-2010
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper wingdings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
PACKAGE INCLUDED:
1 x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
