93-01 Yamaha YZ80 YZ85 85cc Cylinder Piston Gasket Top End Kit 4ES-11311-30-00
Choose options
Fitments:
Fit for Yamaha YZ80 1993 - 2001
Fit for Yamaha YZ85 2002 - 2018 (does NOT fits 2019 and later models)
Replacement Part Number:
4ES-11311-20-00, 4ES-11311-30-00 # Cylinder(YZ80)
5PA-11311-20-00, 5PA-11311-30-00 # Cylinder(YZ85)
4ES-11351-00-00 # Cylinder base gasket
4ES-11631-01-A0, 5PA-11631-00-D0 # Piston
4ES-11633-00-00 # Pin, piston
43K-11611-00-00 # Piston ring
93450-16115-00 # Circlips, piston(2)
93210-56459-00 # O-ring seal
93210-84724-00 # O-ring seal
93310-21417-00 # Needle bearing(14 x 18 x 16.5 mm)
Features:
This kit is designed to fit Yamaha YZ85 and will also fit Yamaha YZ80 models.
Kit includes cylinder, piston, rings, pin, o-ring, bearing, clips & base gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Kit is for standard bore size - 47.50 mm.
8.2:1 Compression ratio.
All of the components within this kit are bolt-on ready for a hassle free installation.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 85cc
Bore Type: Stanard Bore
Bore Size: STD 47.50mm
Stroke: 47.80mm
Thread: 6.5mm
Package Includes:

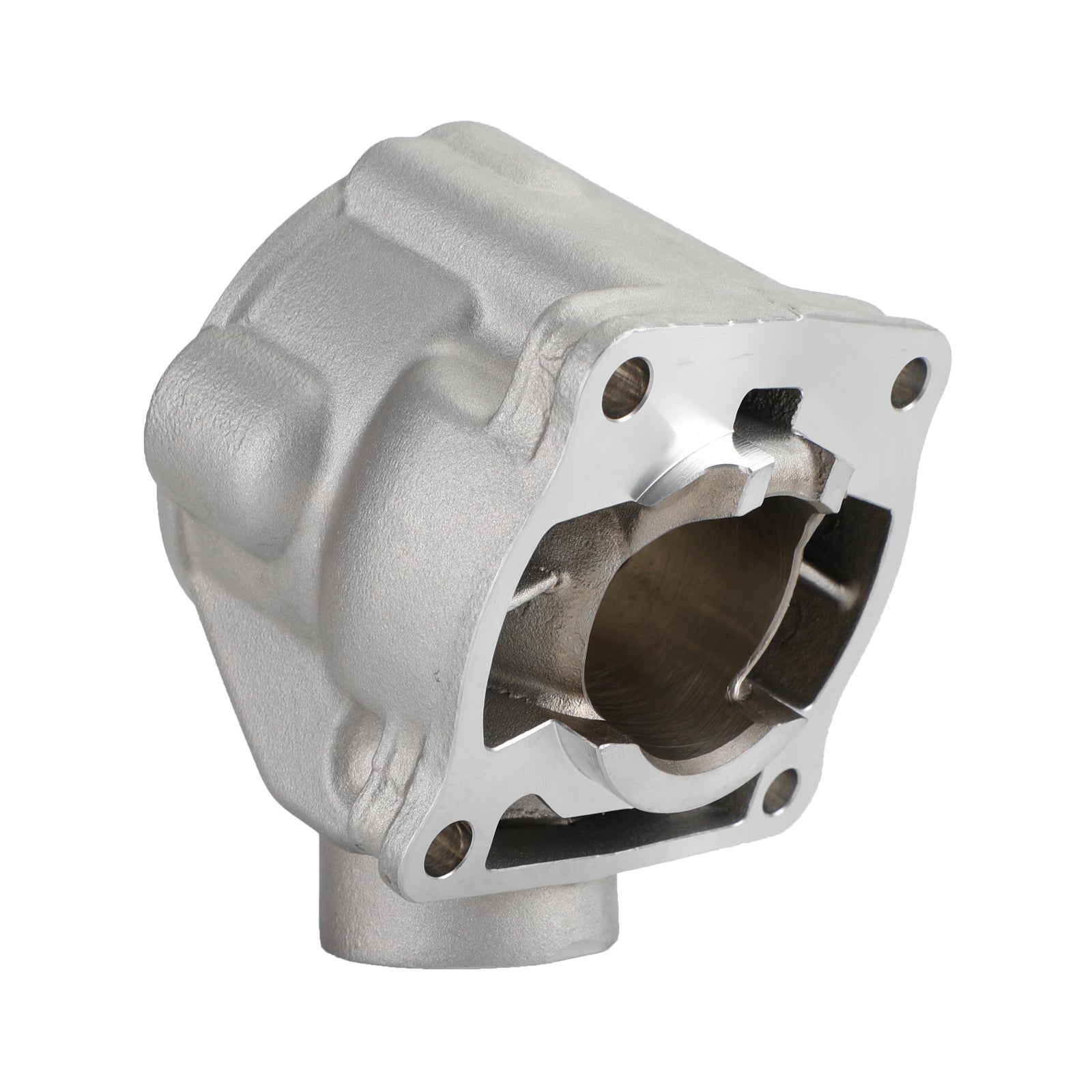

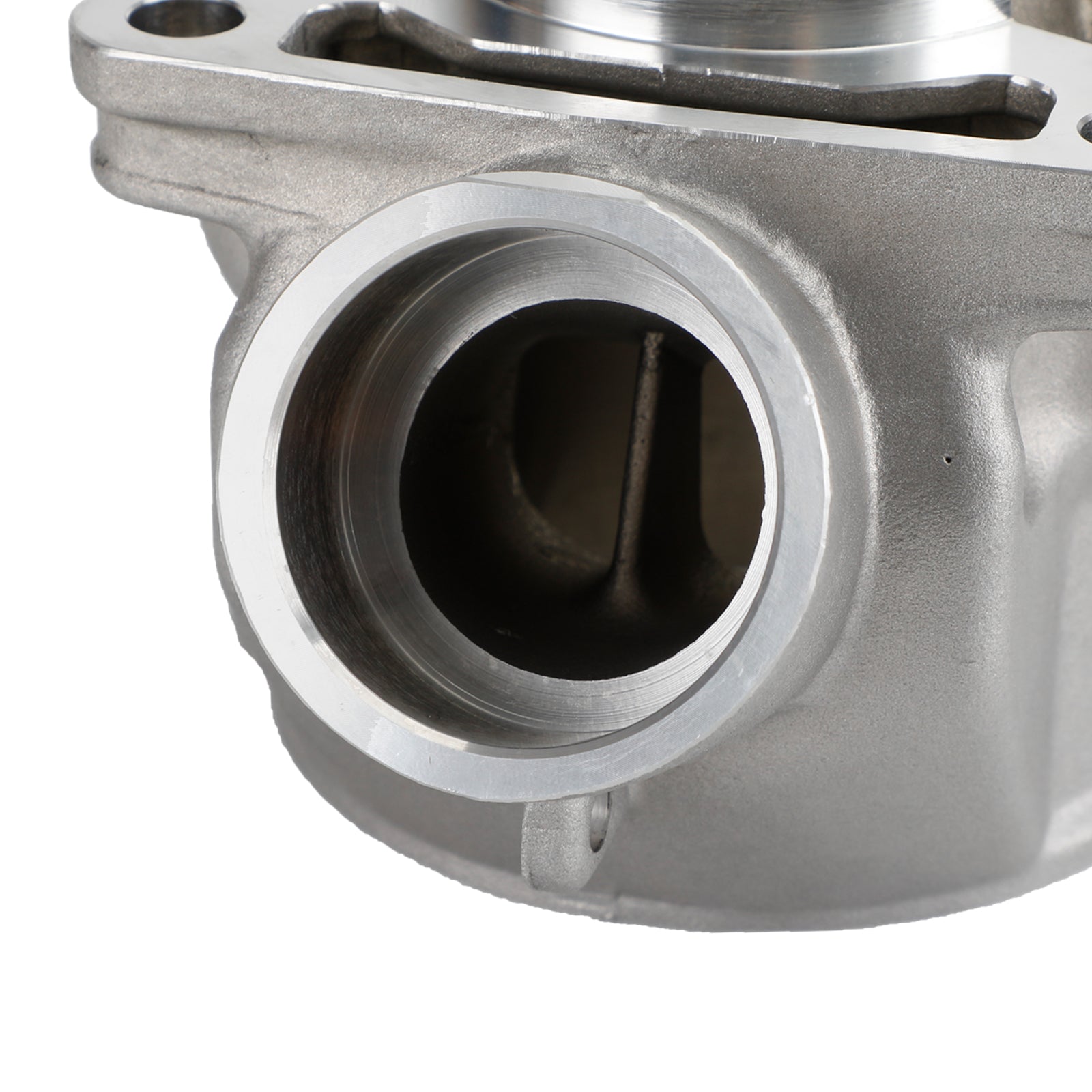

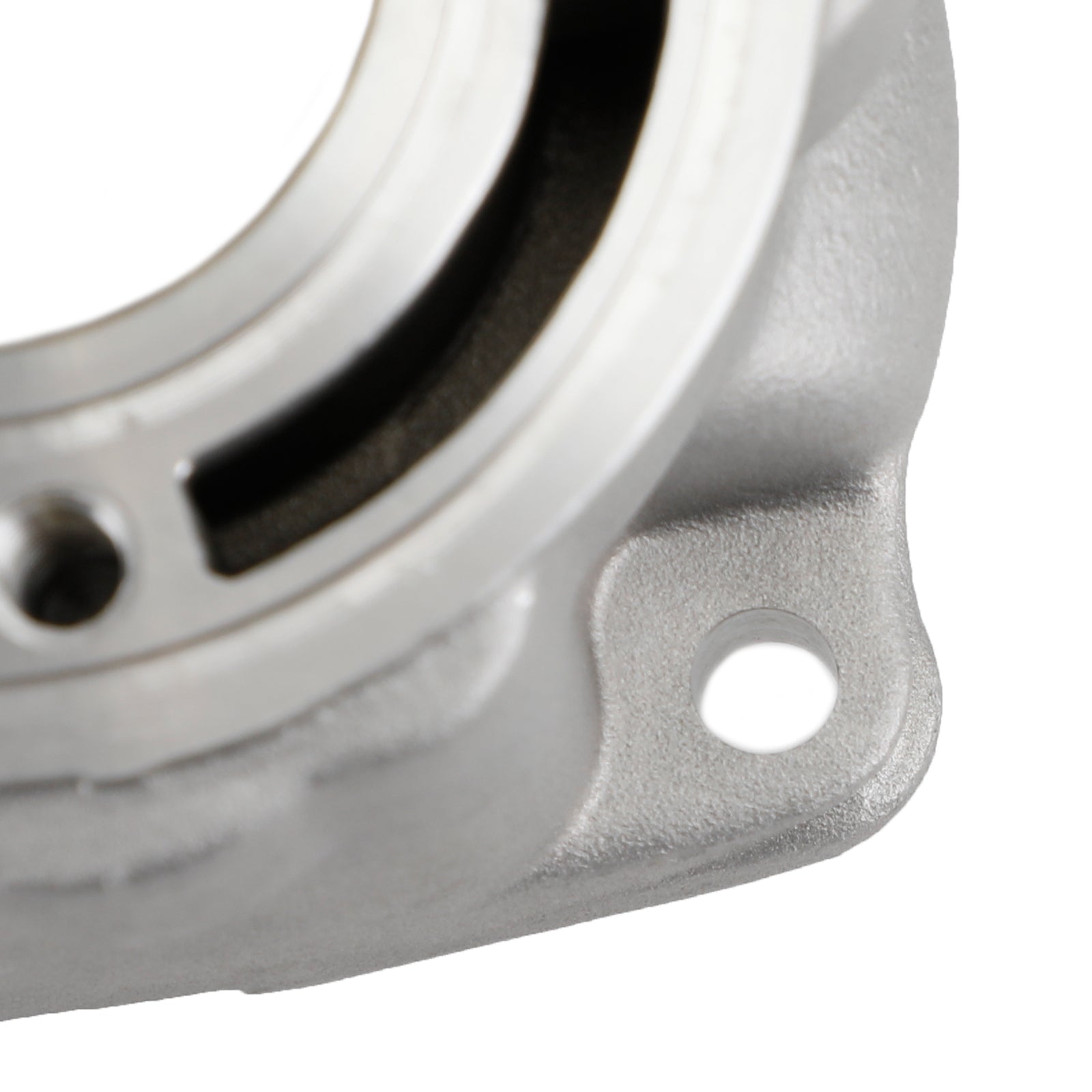

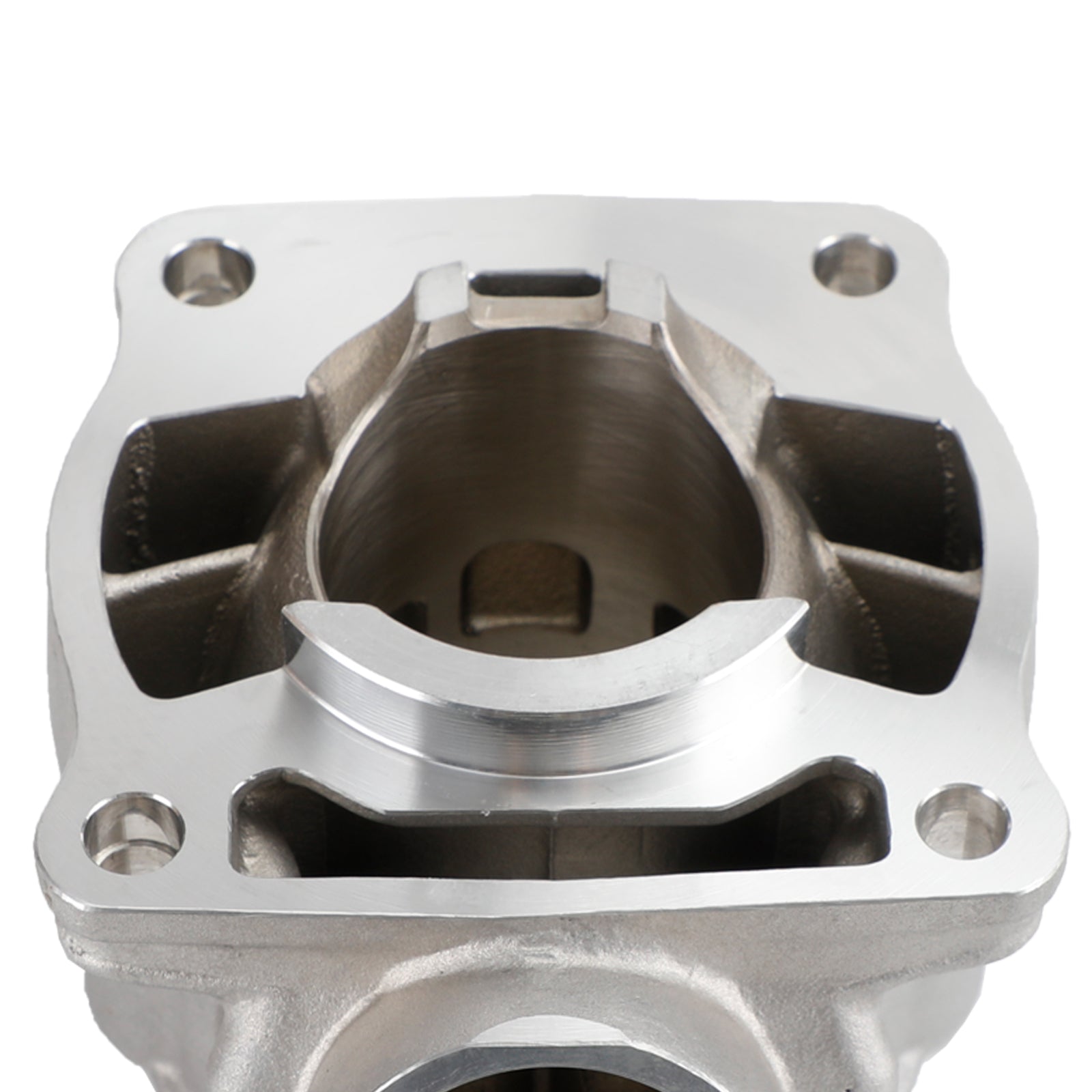

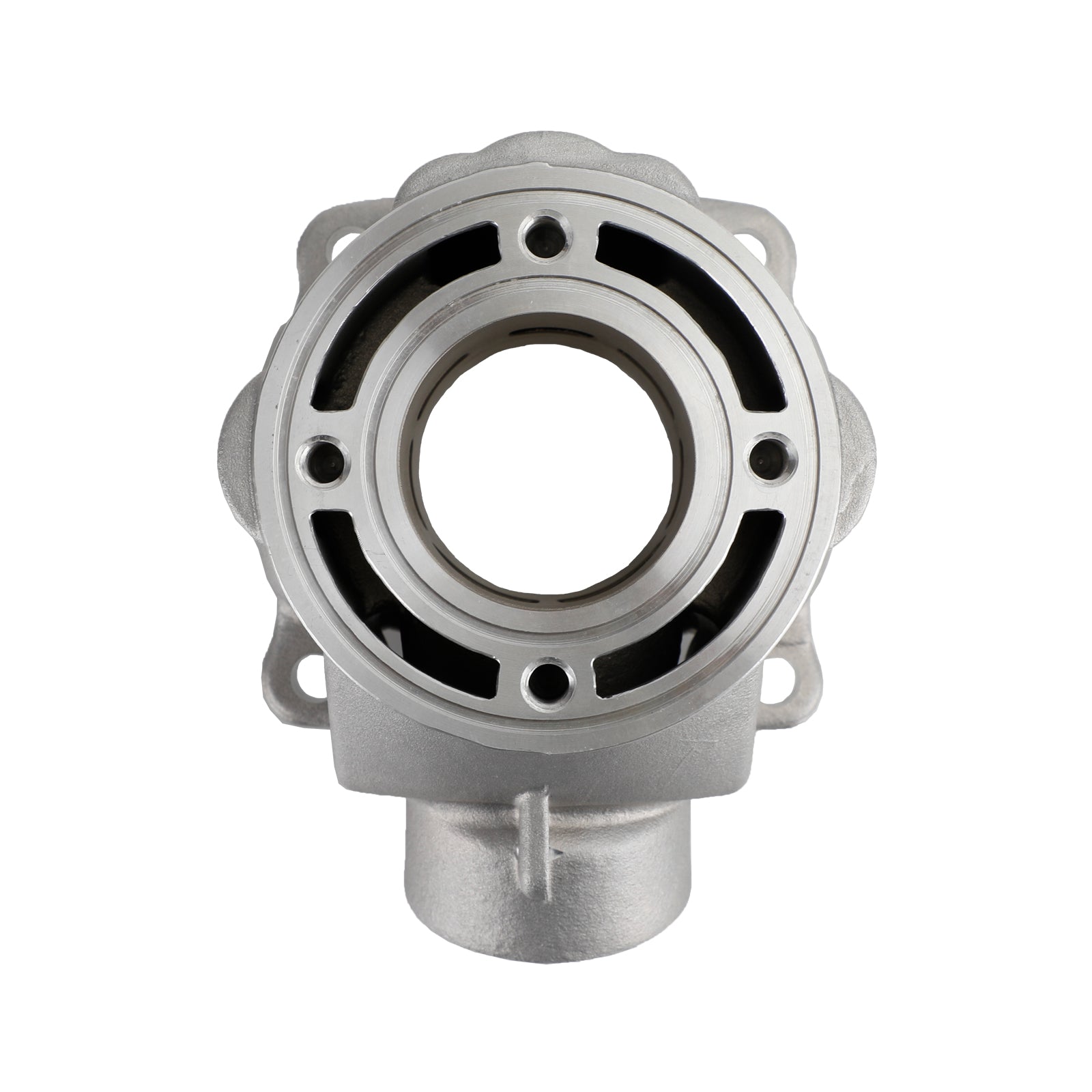

1x 47.5mm cylinder
1x Piston(STD)

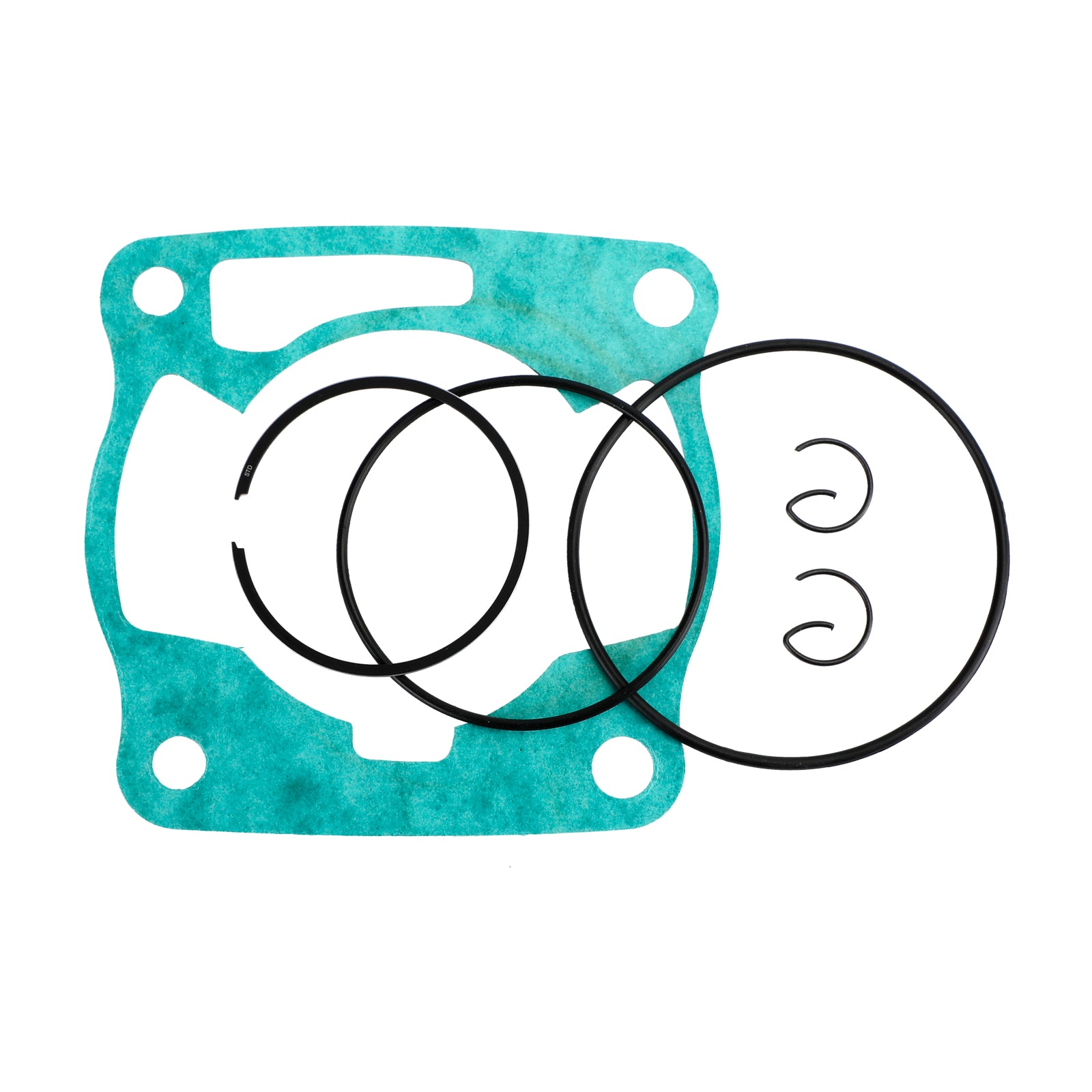

1x Piston ring

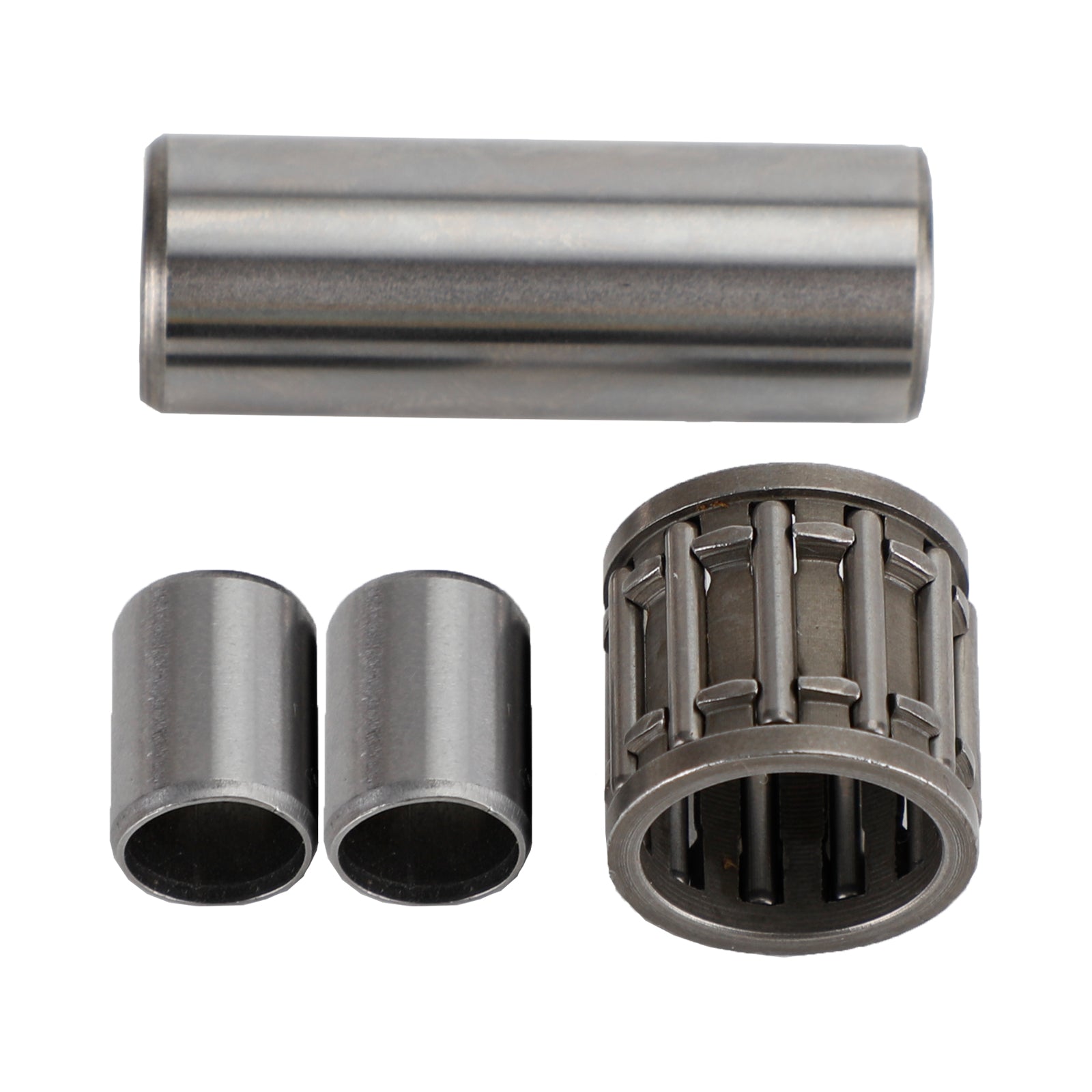

1x Wristpin
1x Circlip(2)
1x Cylinder base gasket
1x Needle bearing
1x O-Ring #1
1x O-Ring #2
Note:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
