434cc Big Bore Cylinder Piston Gasket Top End Kit For Arctic Cat DVX 400 04-08
434cc Big Bore Cylinder Piston Gasket Top End Kit For Arctic Cat DVX 400 04-08
434cc Big Bore Cylinder Piston Gasket Top End Kit For Arctic Cat DVX 400 04-08
434cc Big Bore Cylinder Piston Gasket Top End Kit For Arctic Cat DVX 400 04-08
434cc Big Bore Cylinder Piston Gasket Top End Kit For Arctic Cat DVX 400 04-08
434cc Big Bore Cylinder Piston Gasket Top End Kit For Arctic Cat DVX 400 04-08
434cc Big Bore Cylinder Piston Gasket Top End Kit For Arctic Cat DVX 400 04-08
434cc Big Bore Cylinder Piston Gasket Top End Kit For Arctic Cat DVX 400 04-08

434cc Big Bore Cylinder Piston Gasket Top End Kit For Arctic Cat DVX 400 04-08

$168.89
SKU: M587-A058
Quantity:

Fitments:
Fit for Suzuki DR-Z400 2000-2021
Fit for Suzuki DRZ400SM 2005-2009/2013-2021
Fit for Suzuki DRZ400S 2000-2009/2011-2021
Fit for Suzuki DRZ400E 2000-2007
Fit for Suzuki LTZ 400 Quadsport Z400 2003-2014
Fit for Kawasaki KFX400 2003-2006
Fit for Arctic Cat DVX 400 2004-2008

Features:
Kit includes piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for big bore size - 94.00 mm.
All of the components within this kit are bolt-on ready for a hassle free installation.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 434cc
Bore Type: Big Bore
Bore Size: 94.00mm
Stroke: 62.60mm

Replacement Part Number:
Fits Suzuki LTZ400
Cylinder: 11210-29F20-0F0
Cylinder Base Gasket: 11241-29F10, 11241-29F11
Cylinder Head Gasket: 11141-29F01
Chain Tensioner Gasket:
Piston: 12111-29F00-0F0
Pin, piston: 12151-24F10
Ring Set, piston: 12140-29F00
Circlips, piston: 09381-20004
Head Cover Washser: 11191-13E00
Washers(4): 09160-10082 10.5x19x2.0

Fits Kawasaki KFX400
Cylinder: 11005-S007
Cylinder Base Gasket: 11061-S070, 11061-S091
Cylinder Head Gasket: 11004-S006
Chain Tensioner Gasket: 11061-S073
Piston: 13001-S006
Pin, piston: 13002-S006
Ring Set, piston: 13008-S008
Circlips, piston: 92033-S040
Washers(4): 92200-S009 10.5x19x2.0
Washer: 92200-S015

Fits Arctic Cat DVX400
Cylinder: 3402-844
Cylinder Head Gasket: 3402-841
Chain Tensioner Gasket: 3402-137
Piston: 3402-846
Ring Set, piston: 3502-011
Circlips, piston: 3003-439
3402-845
3402-847
3402-841

Package Includes:

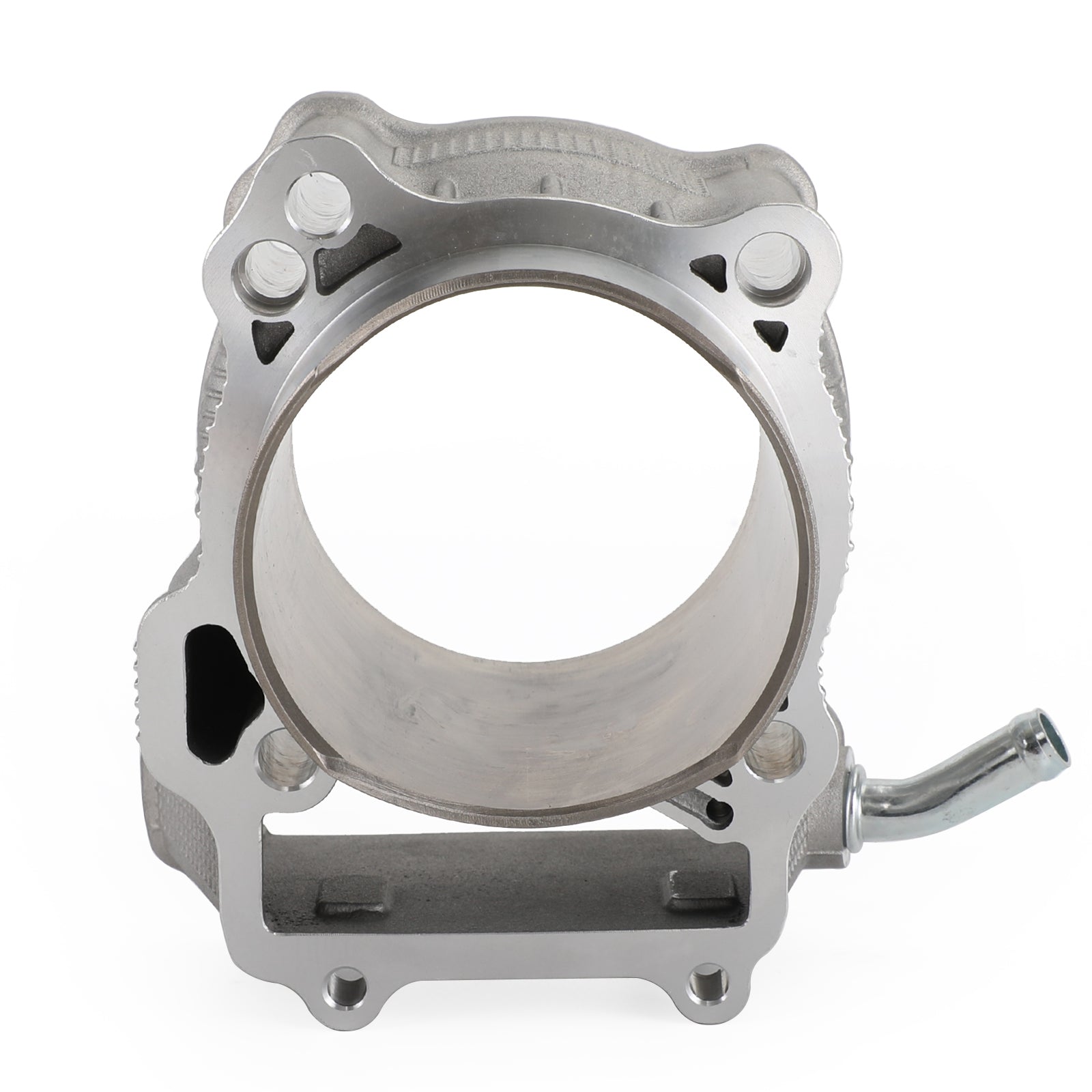

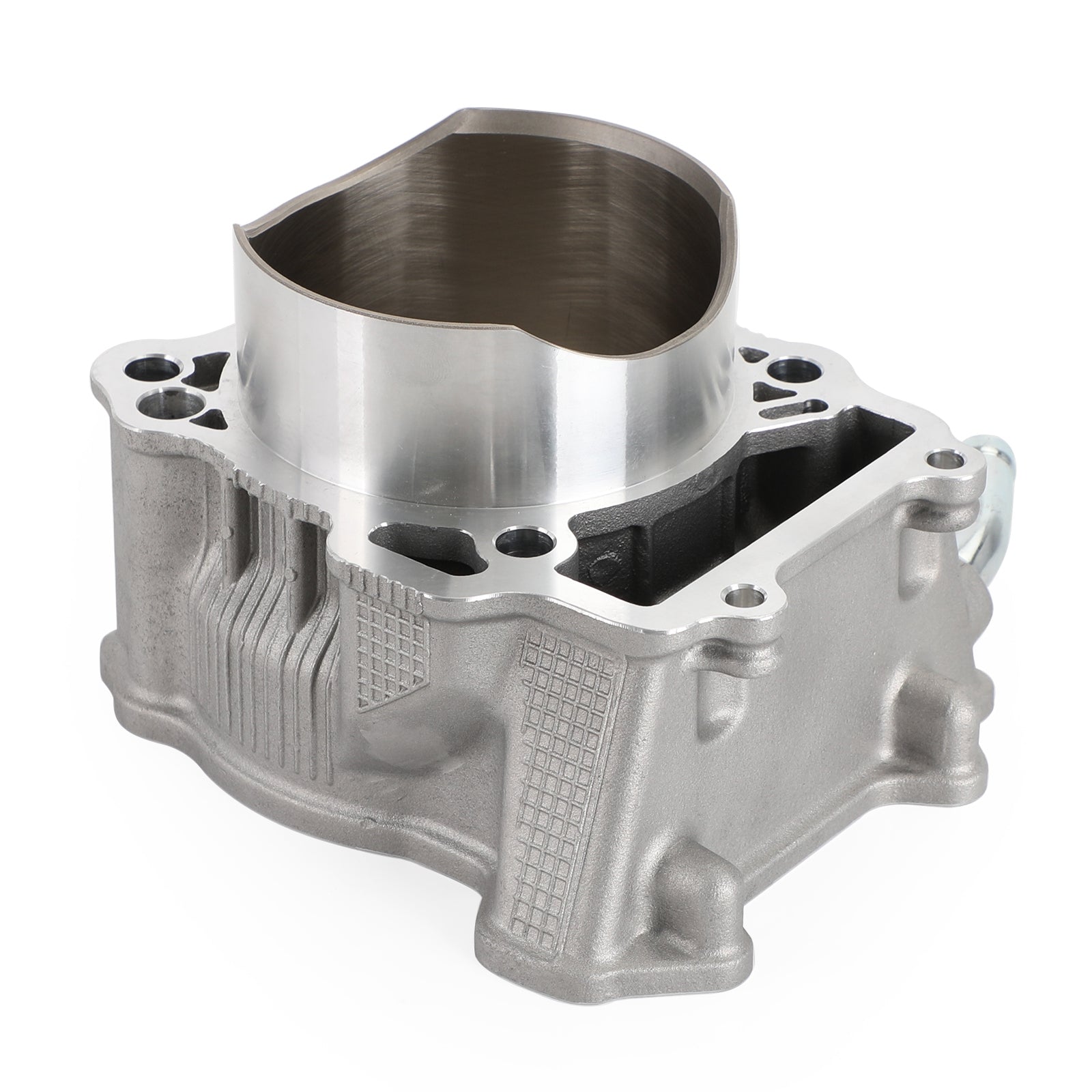

1x 94mm Cylinder

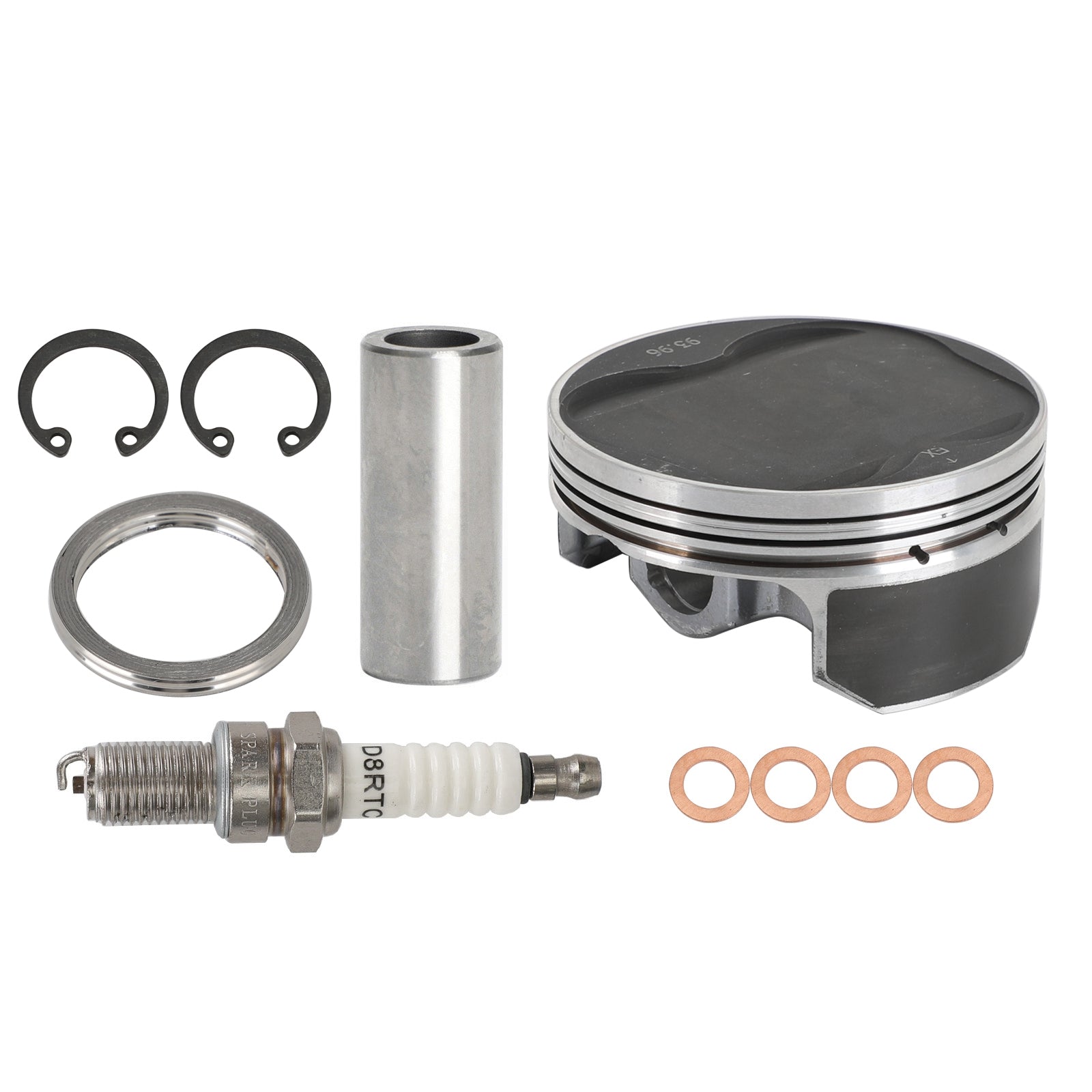

1x Piston

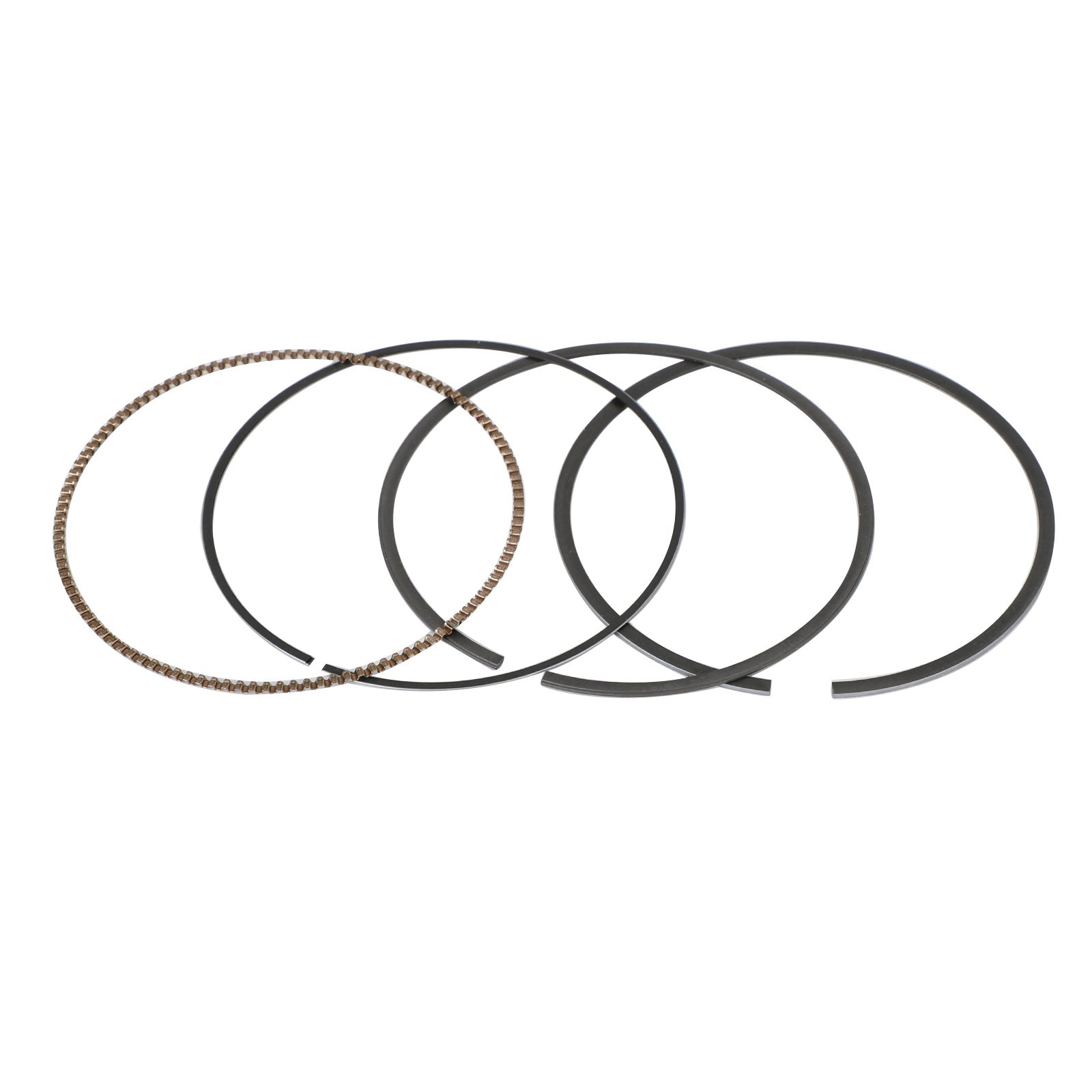

1x Piston Ring Set
1x Wristpin
1x Circlip(2)

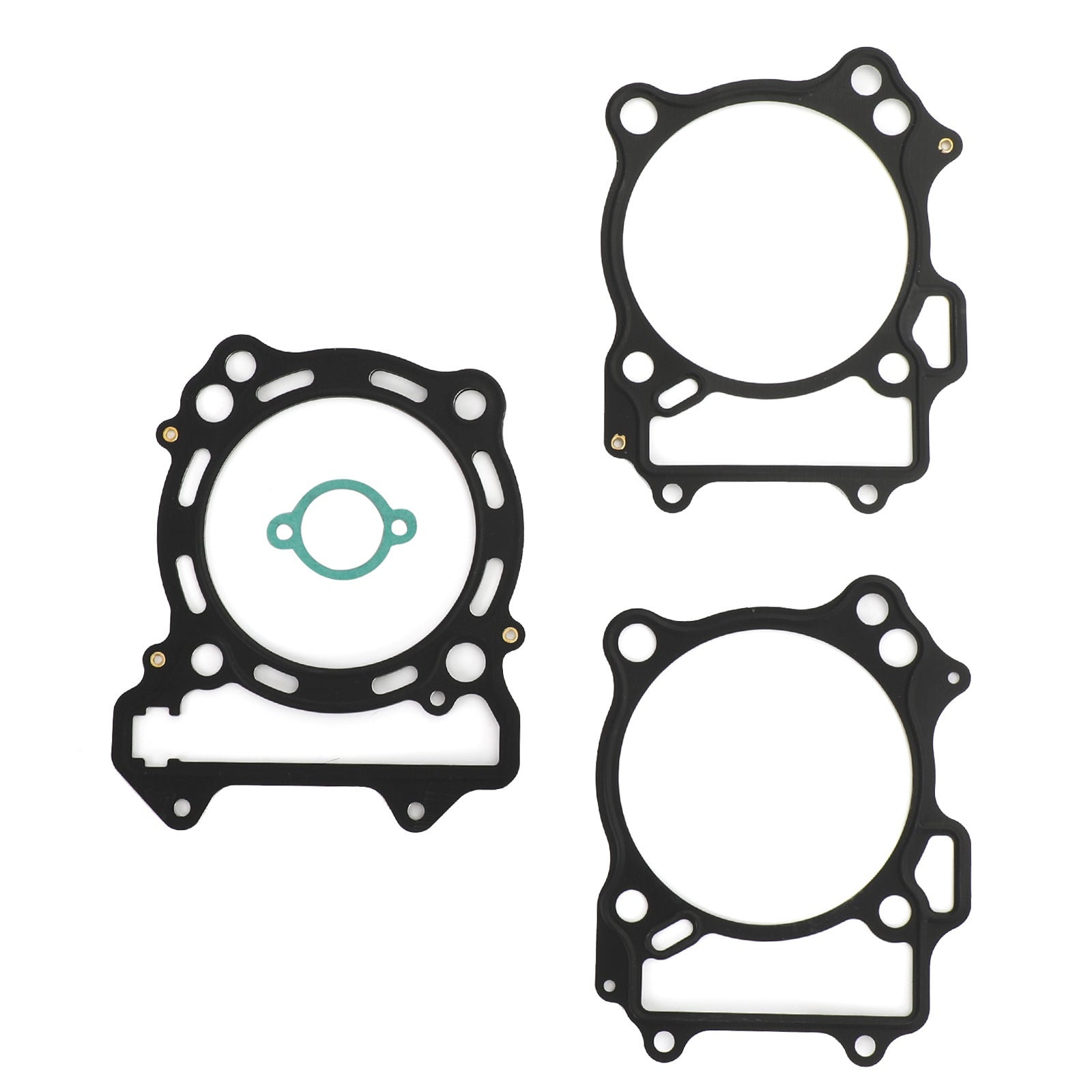

2x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
1x Head Cover Washser
4x Valve Washers
1x Spark Plug

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
