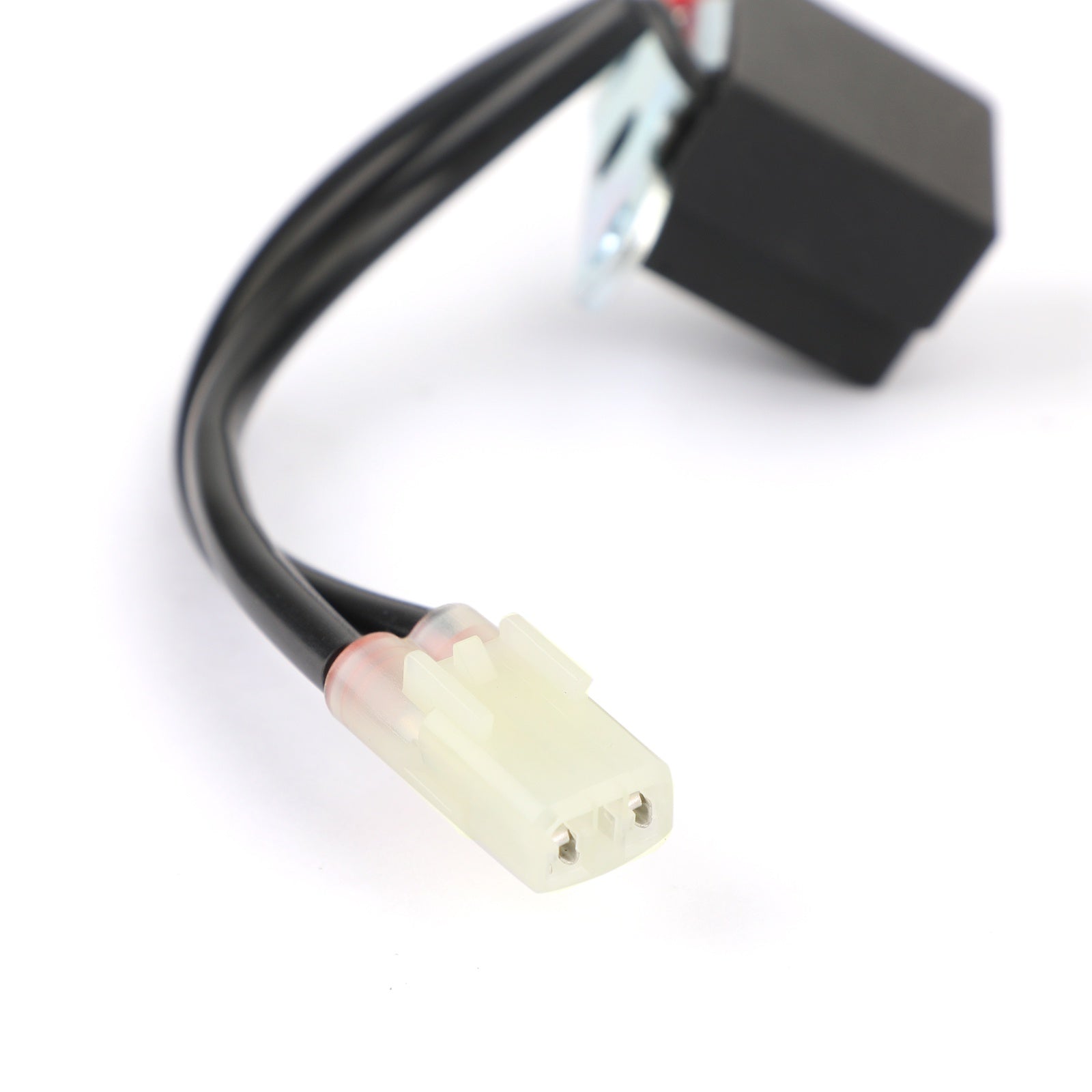

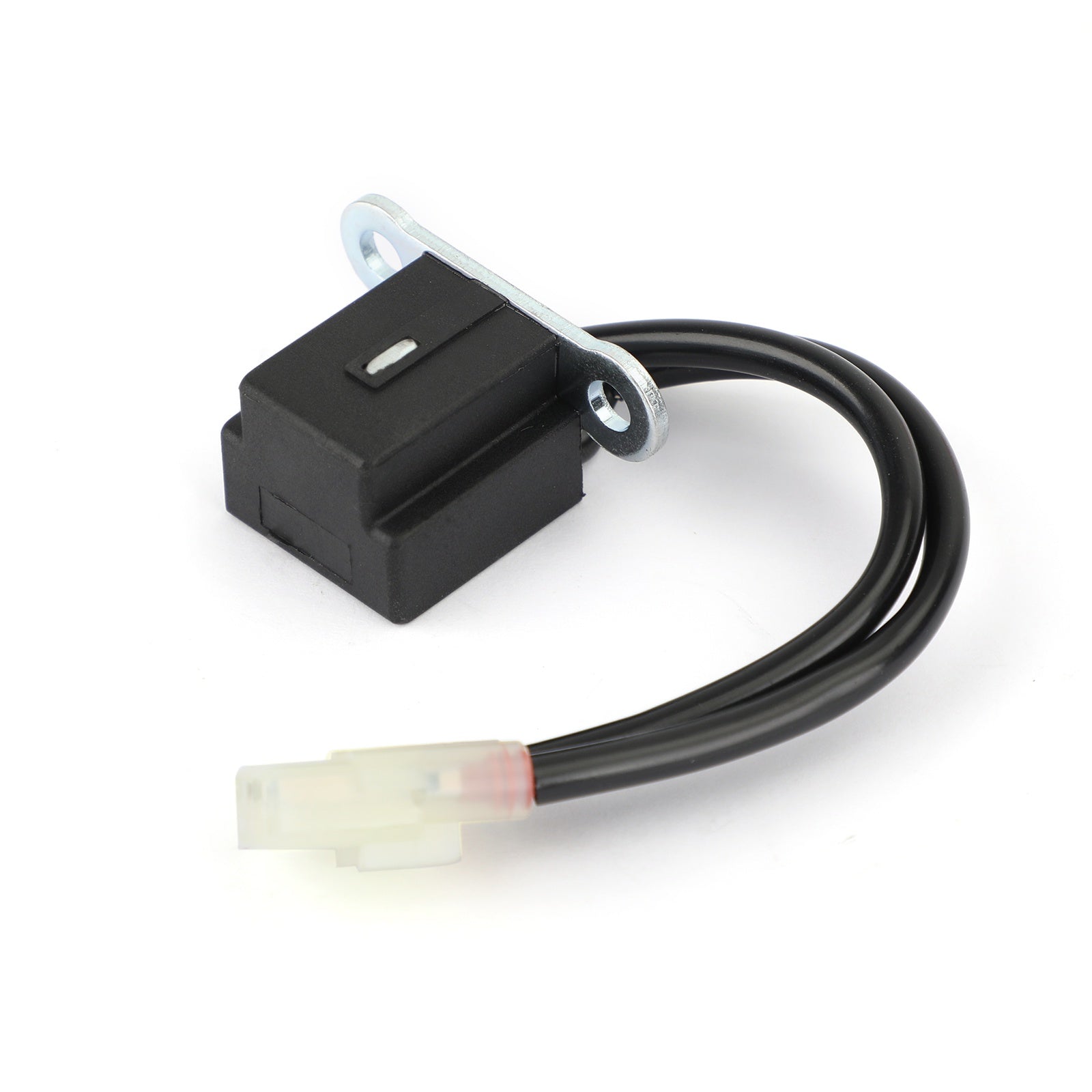

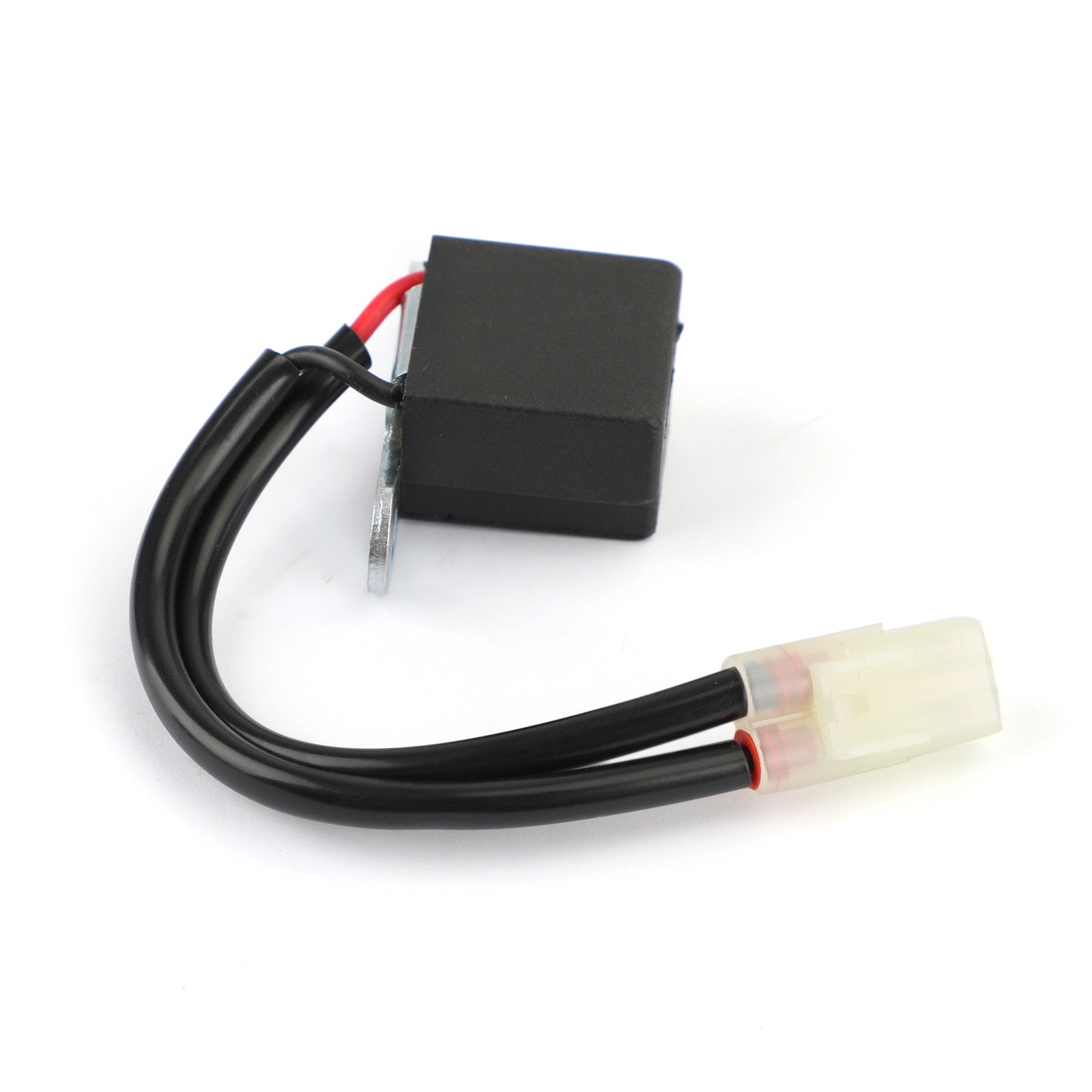

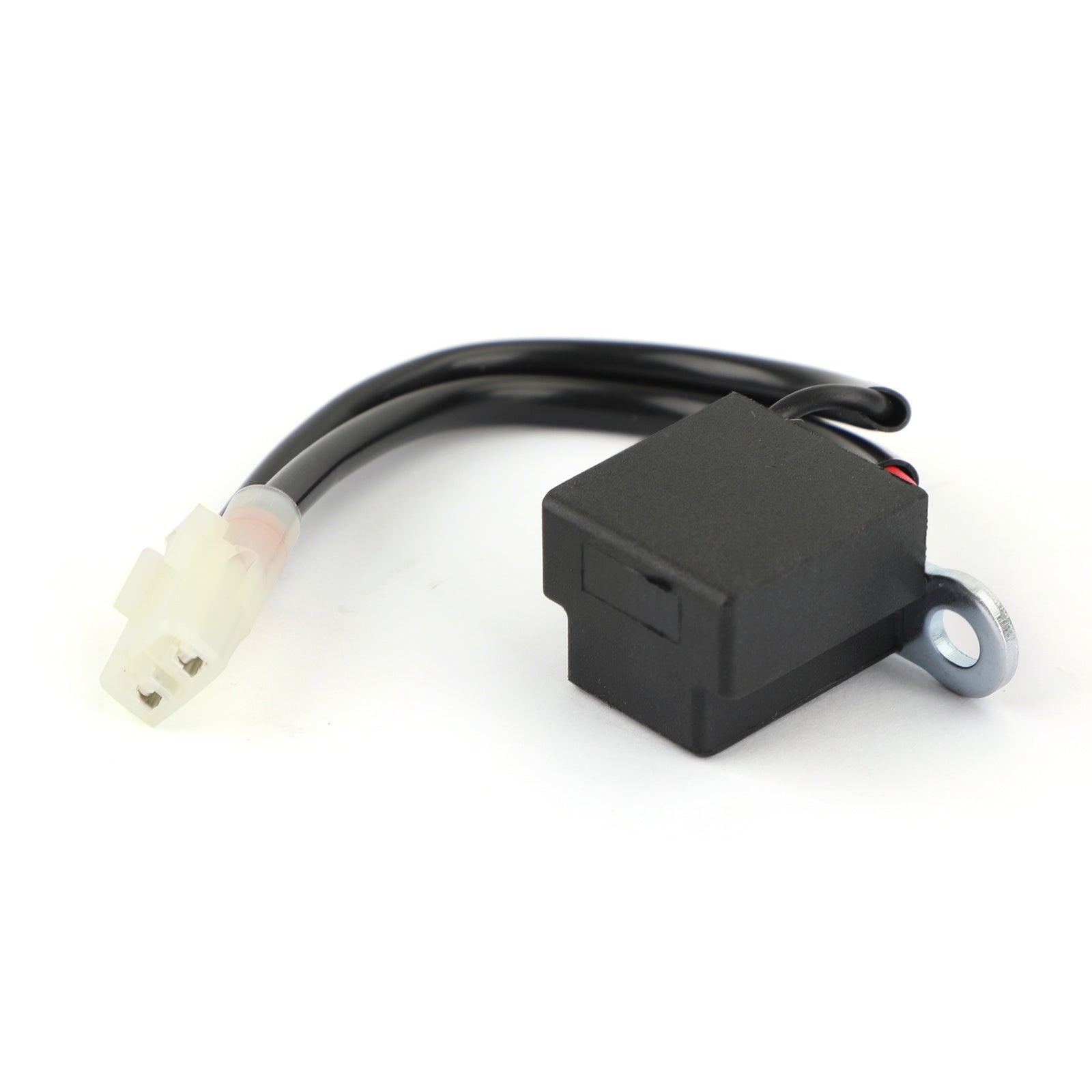

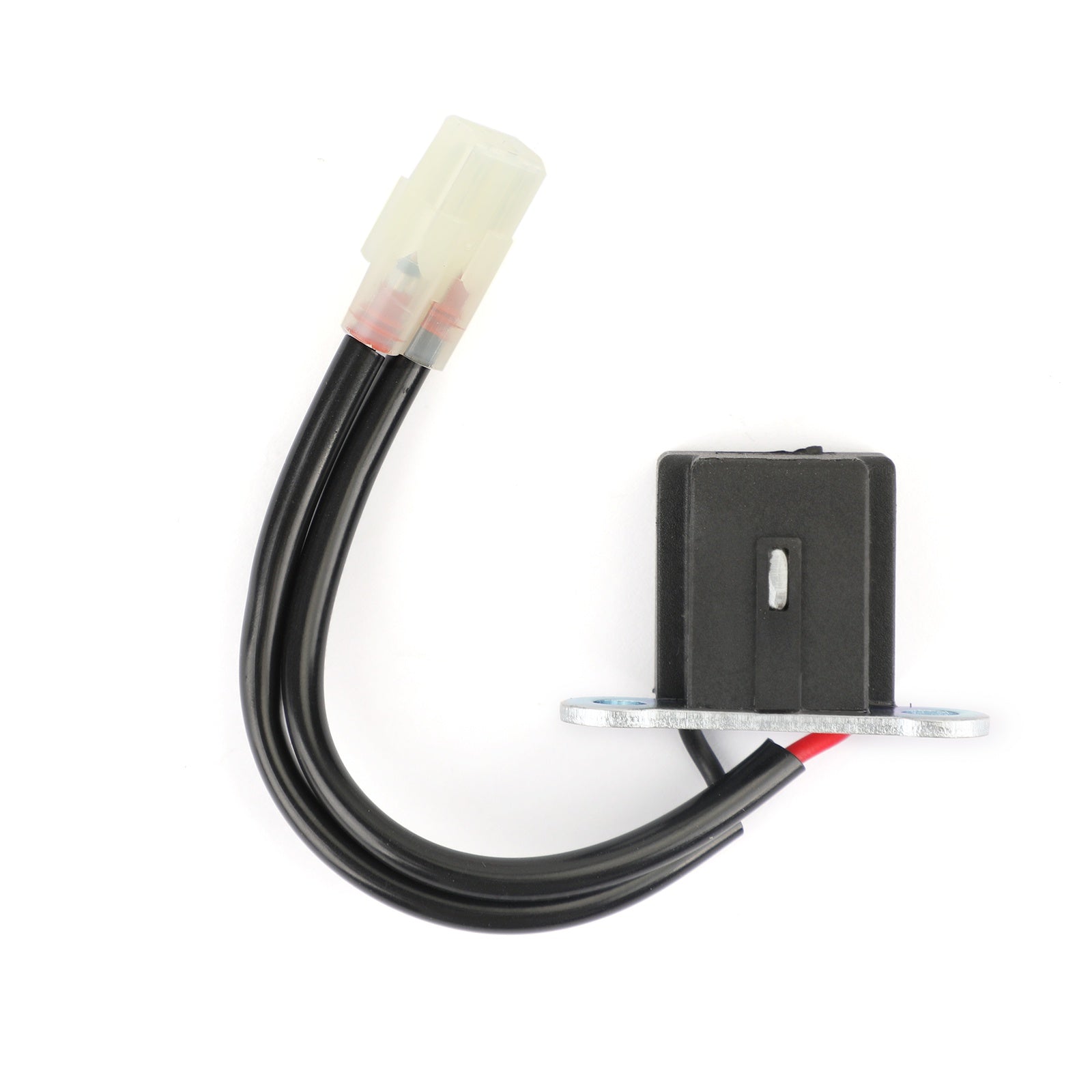

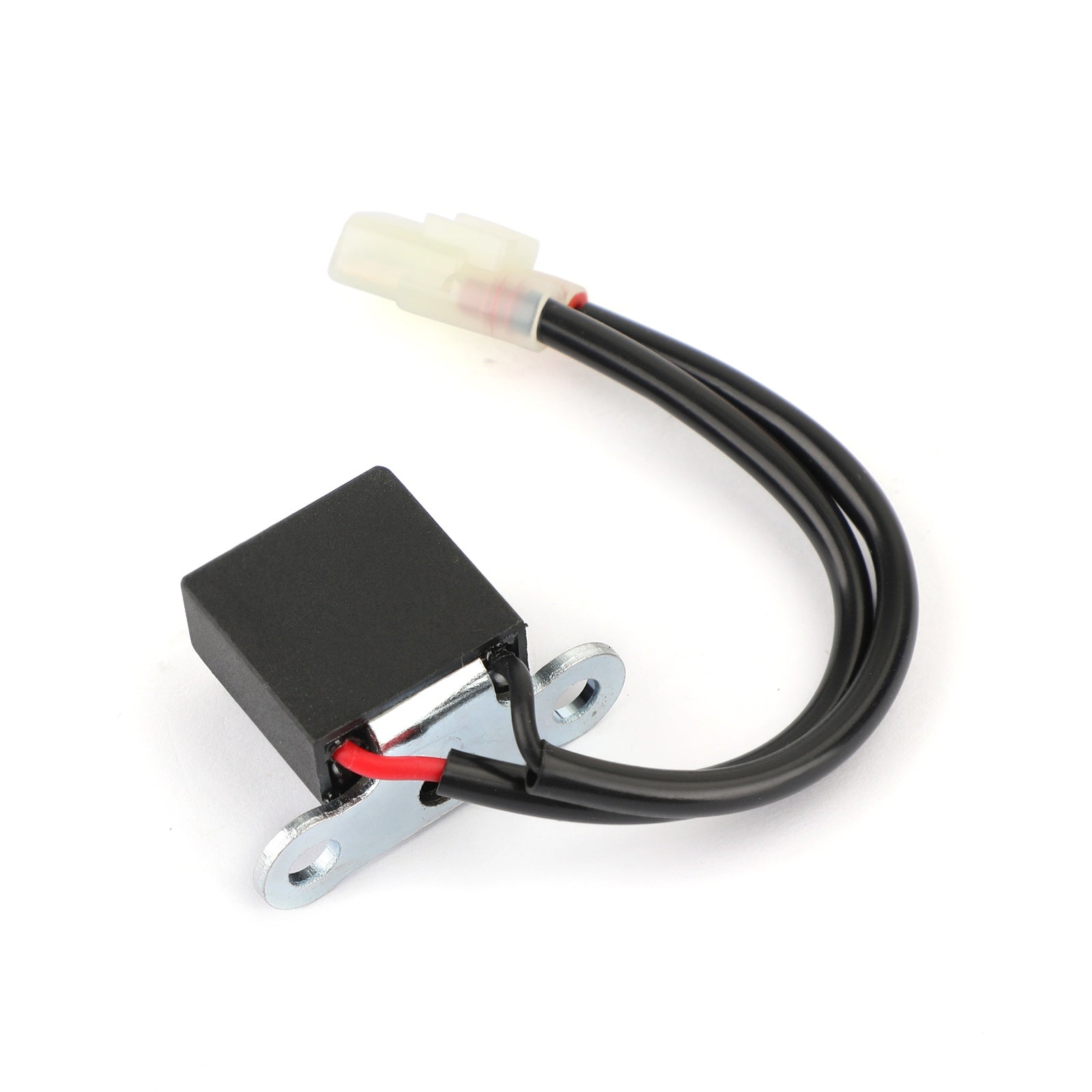

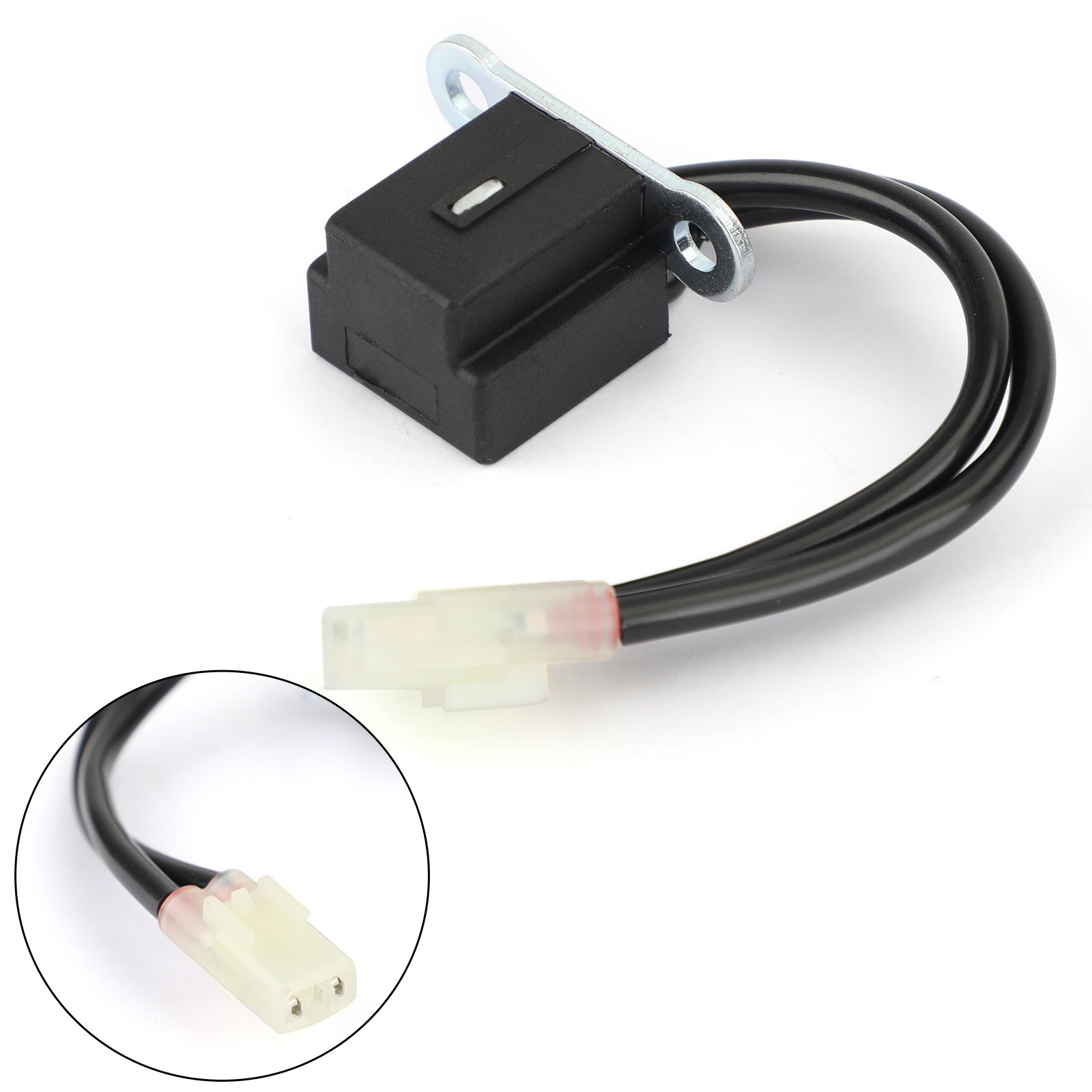

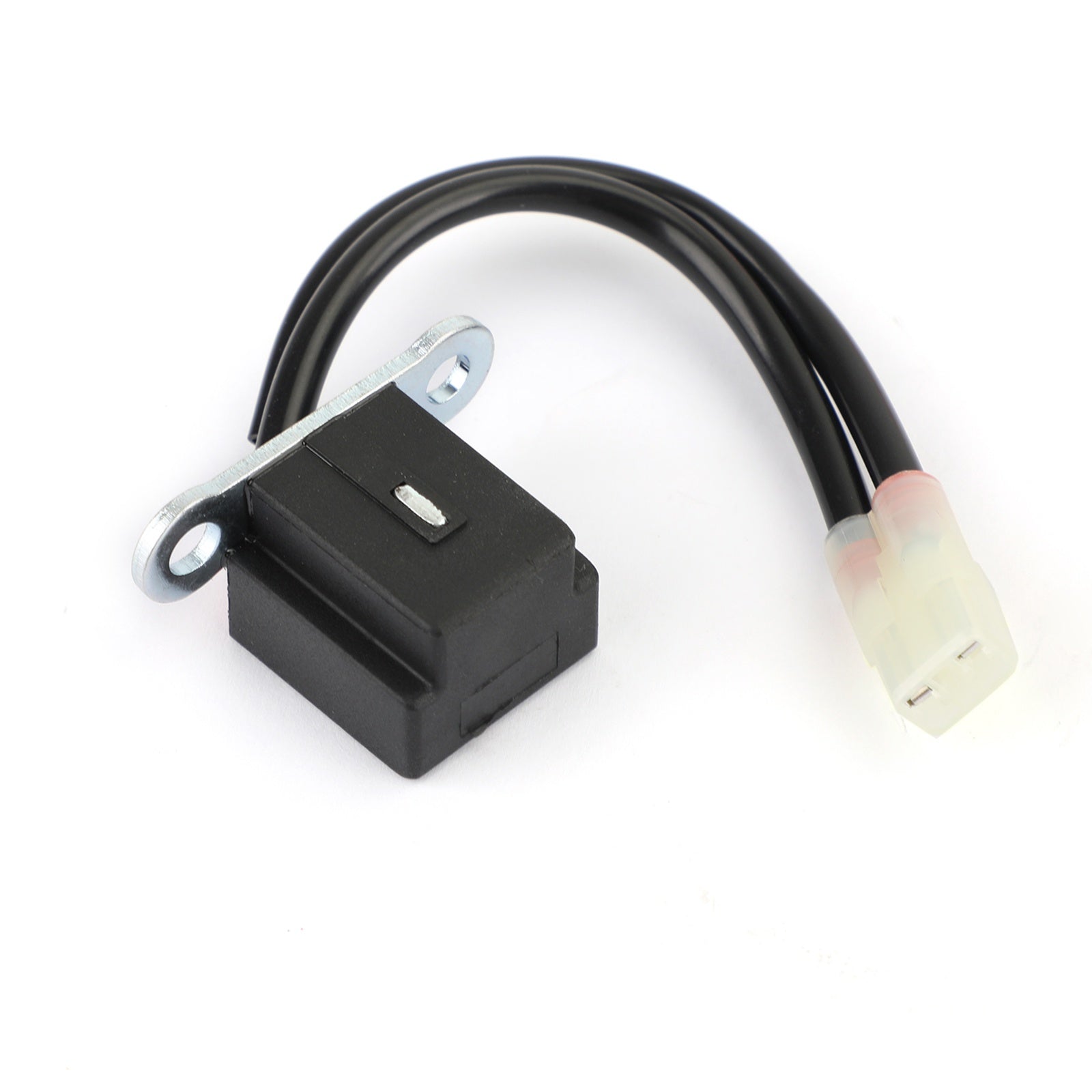

ピックアップコイルセンサースズキ DT150 馬力 DT200 馬力 DT225 馬力 98-03 32160-92E20 フェデックス経由
ピックアップコイルセンサースズキ DT150 馬力 DT200 馬力 DT225 馬力 98-03 32160-92E20 フェデックス経由
ピックアップコイルセンサースズキ DT150 馬力 DT200 馬力 DT225 馬力 98-03 32160-92E20 フェデックス経由
ピックアップコイルセンサースズキ DT150 馬力 DT200 馬力 DT225 馬力 98-03 32160-92E20 フェデックス経由
ピックアップコイルセンサースズキ DT150 馬力 DT200 馬力 DT225 馬力 98-03 32160-92E20 フェデックス経由
ピックアップコイルセンサースズキ DT150 馬力 DT200 馬力 DT225 馬力 98-03 32160-92E20 フェデックス経由
ピックアップコイルセンサースズキ DT150 馬力 DT200 馬力 DT225 馬力 98-03 32160-92E20 フェデックス経由
ピックアップコイルセンサースズキ DT150 馬力 DT200 馬力 DT225 馬力 98-03 32160-92E20 フェデックス経由
ピックアップコイルセンサースズキ DT150 馬力 DT200 馬力 DT225 馬力 98-03 32160-92E20 フェデックス経由

ピックアップコイルセンサースズキ DT150 馬力 DT200 馬力 DT225 馬力 98-03 32160-92E20 フェデックス経由

販売価格¥7,800 JPY
SKU: M550-B022
量:

仕様:
状態: アフターマーケット 100% 新品
数量: 1 個
タイプ: ピックアップパルサーコイル

寸法:
高さ:18.5mm
長さ:26mm
幅:23mm
ブラケット中心から中心まで:29.2mm
ワイヤーの長さ:約120mm

Pick-Up Coil Sensor Fit for Suzuki DT150 Hp DT200 Hp DT225 Hp 98-03 32160-92E20 via fedex



その他の仕様:
ワイヤ数: 2
プラグ数: 1

部品番号:
32160-92E20

適合車種:
スズキ DT150 1998-2003 に適合
スズキ DT200 1998-2000 に適合
スズキ DT225 2001 に適合-2003

特徴:
ステーターを修理するための新品のピックアップ/パルサー コイル。
元のユニットと直接交換。
プラグ アンド プレイ、直接フィット、簡単な取り付け。
多くの場合、OEM メーカーから入手できません。
出荷されるすべての製品はテストされています。

パッケージ内容:
ピックアップ パルサー コイル 1 個

(互換性チャートは参考用です!!!)
(適合性を決定するために、故障したユニットと当社が提供した画像と比較してください)

注:
これらの指示に従わないと、車両の部品やその他のコンポーネントが損傷する可能性があります。
-小さなはんだごてを使用して、ワイヤを OEM ワイヤリング ハーネスのワイヤに溶接します。
-はんだを熱で絶縁します。縮小します。
-車両を始動する前に、特定のモデルではエアギャップの調整が必要です。
-盛り上がったノードがピックアップ/パルサーコイルと揃うようにフライホイールを手で回転させ、次のように調整します。できるだけ近くしますが、0.010 インチ以上にしてください。
- スパークがない場合、またはスパークが不安定な場合は、プラグのワイヤを切り替えます。

送料:
送料無料
処理時間: 24 時間以内に発送
配達時間: 3 ~ 7 営業日

保証:
1.状態: 100% 新品
2.保証期間:1年
3. 24 時間サポート: タイムリーなアフターサポートを提供します


Customer Reviews

Based on 153 reviews
92%
(141)
6%
(9)
2%
(3)
0%
(0)
0%
(0)
M
Markus
Lichtmaschine +Regler+Dichtung

Alles passte bis auf das ,das Kabel des Reglers zu kurz war, habe es aber mit dem originalen einfach verlängert! Sonst Top für diesen Preis 👍

A
Anonymous
Perfect

My stator volts were in the low 12s. Replaced this and they are around 14-14.2 at idle. It fixed my battery charging issue

d
domenico speranza

Everything is fine thank you

J
Jason P
Almost perfect

Part came in looking like the original and had plenty of wiring loom to make it from A to Z. I left the electrical box open so I could check for spark before putting it all back together, hit the start button and nothing, engine didnt even turn over so I started retracing my steps and found that the ground wires on the new stator had come out of their mounting eyelit because it was never crimped. No big deal, took a few minutes to fix and make a solid connection and then she turned over and I had spark. I will be taking it out on the water in the next 2 weeks to make sure all is running good.

A
Anonymous
Parts were correct and excellent condition.

Im not going to lie, I was skeptical about ordering this stator and flywheel but I ordered it Saturday morning and I received it Monday afternoon and parts were exactly what I needed and go my bike up and running and I'm super grateful. I was to excited to install them and I forgot to take a picture of the new stator and flywheel.

A
Angelo Testino

Everything was perfect!

K
Ki Walters
Just one problem

Part worked great and it had good quality. Only problem we ran into was that the stator wire was about 2 inches short. Splicing some in to extend it worked but it was a bit annoying.

S
Sebastian Tank
Funktioniert

Kabel vom Stator war zu kurz und musste verlängert werden.

Fünf Sterne für den Preis und die Funktionalität und maßhaltigkeit.
