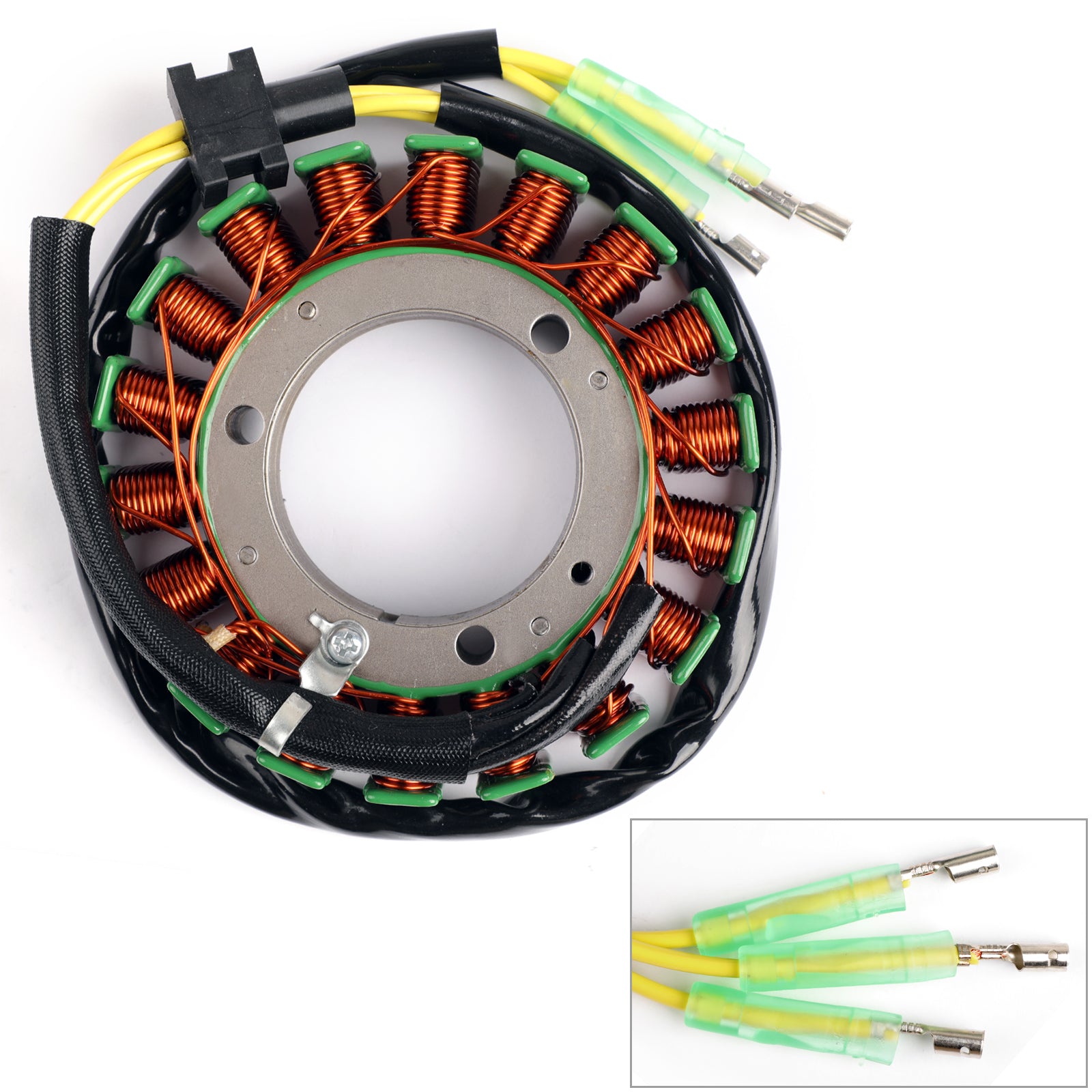

ステータージェネレーター カワサキ VN1500 VN15 VN-15 バルカン 88 SE 1987-1999 に適合
ステータージェネレーター カワサキ VN1500 VN15 VN-15 バルカン 88 SE 1987-1999 に適合
ステータージェネレーター カワサキ VN1500 VN15 VN-15 バルカン 88 SE 1987-1999 に適合

ステータージェネレーター カワサキ VN1500 VN15 VN-15 バルカン 88 SE 1987-1999 に適合

販売価格¥14,900 JPY
SKU: M550-A204
量:

仕様:
状態: アフターマーケット 100% 新品
数量: 1 個
タイプ: 発電機ステーター コイル

寸法:
内部直径 : 54mm / 2.12in
外径 : 115mm / 4.52in
厚さ : 14mm / 0.55in

Stator Generator Fit for Kawasaki VN1500 VN15 VN-15 Vulcan 88 SE 1987-1999



その他仕様:
芯数:3
ピン数:3
プラグ数:3
固定穴数: 3

交換部品番号:
21003-1164
21003-1385

適合品:
Kawasaki VN1500 に適合VN-15 SE 1989-1992
カワサキVN1500 Vulcan 88 SE 1987-1990
カワサキVN1500 VN-15 1988-1999に適合します。 Kawasaki VN1500 バルカン 88 1987-1995
Kawasaki VN1500 Vulcan 1500L 1996-1997 に適合
Kawasaki VN1500 VN-15 1994-1995 に適合
(互換性表は参考のみです!!!)
(故障したユニットと、適合性を決定するために提供された画像と比較してください)

特徴:
元のユニットと直接交換
プラグアンドプレイ、直接フィット、簡単な取り付け。
最高級のラミネート材料
摂氏 200 度まで耐性のある最高級の銅巻線。
コネクタが付属。
出荷されるすべての製品はテストされています。

パッケージ内容:
1x ジェネレーター ステーター コイル

注意:
新しいステーターを取り付ける前に
ステーターの AC 出力を確認してください。
焼けているものは交換してください。ステータおよびレギュレータ/整流器のコネクタが腐食しているか、または腐食しています
溶けた配線を確認して修理してください。
すべてのコネクタに高温誘電グリースを使用してください
当社のステータでは、オリジナルとは異なるワイヤのカラー コードが使用されている場合があります。
すべてのワイヤが正しい順序で取り付けられています。配線構成は変更しないでください。
このステータは直接プラグイン交換品として設計されており、そのまま使用する必要があります。
ステータをボルトで固定するときは、常にロック剤を使用してください。
当社のステータの場合は、ピックアップ コイルが含まれています。取り付けの際は必ずエア ギャップが正しいことを確認してください。
すべての商品写真は正確です。疑問がある場合は、当社の商品をオリジナルの部品と比較することを躊躇しないでください。

送料:
送料無料
商品の所在地: カリフォルニア州ロサンゼルスの倉庫
納期: 3 ~ 7 営業日

保証:
1.状態: 100% 新品
2.保証期間:1年
3. 24 時間サポート: タイムリーなアフターサポートを提供します
