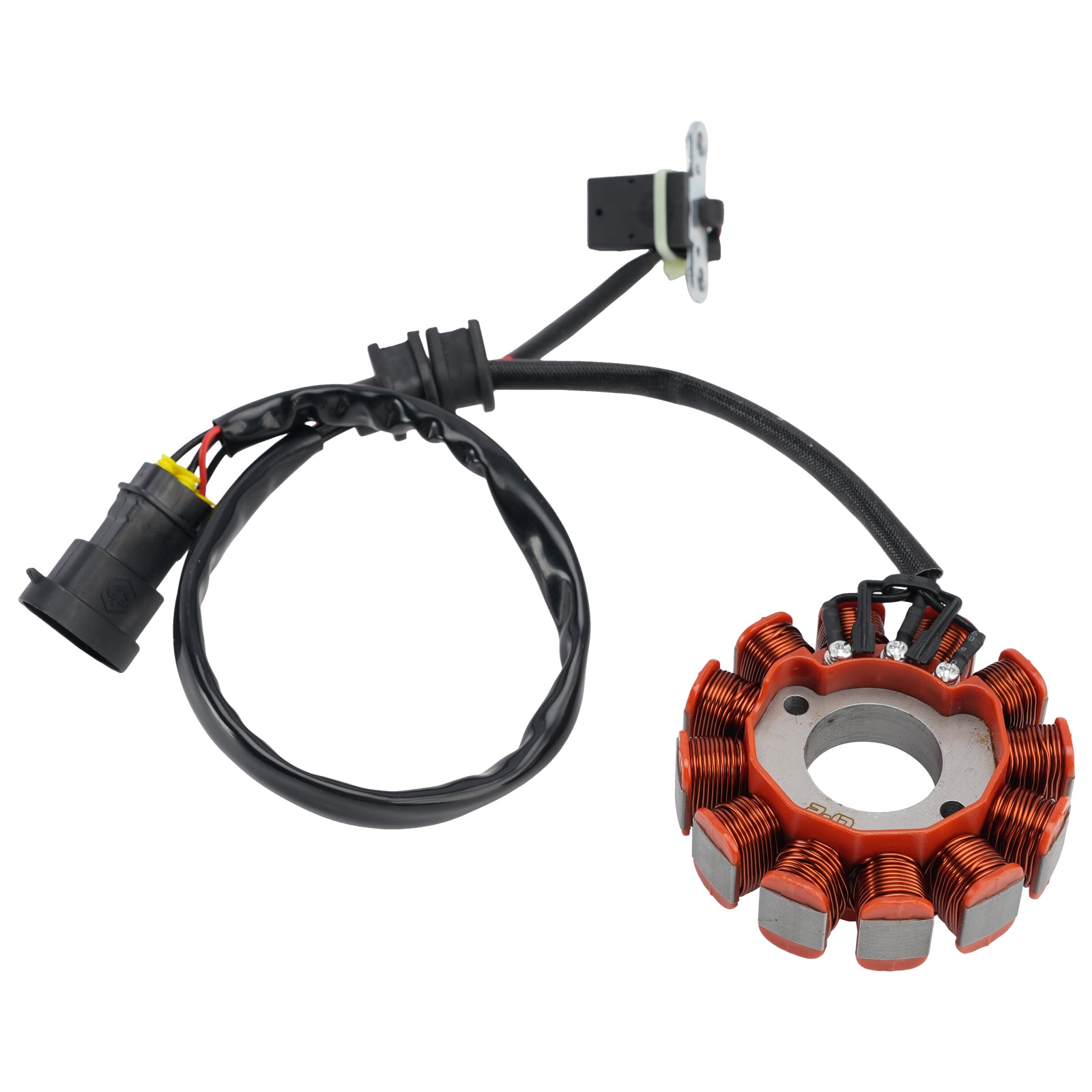

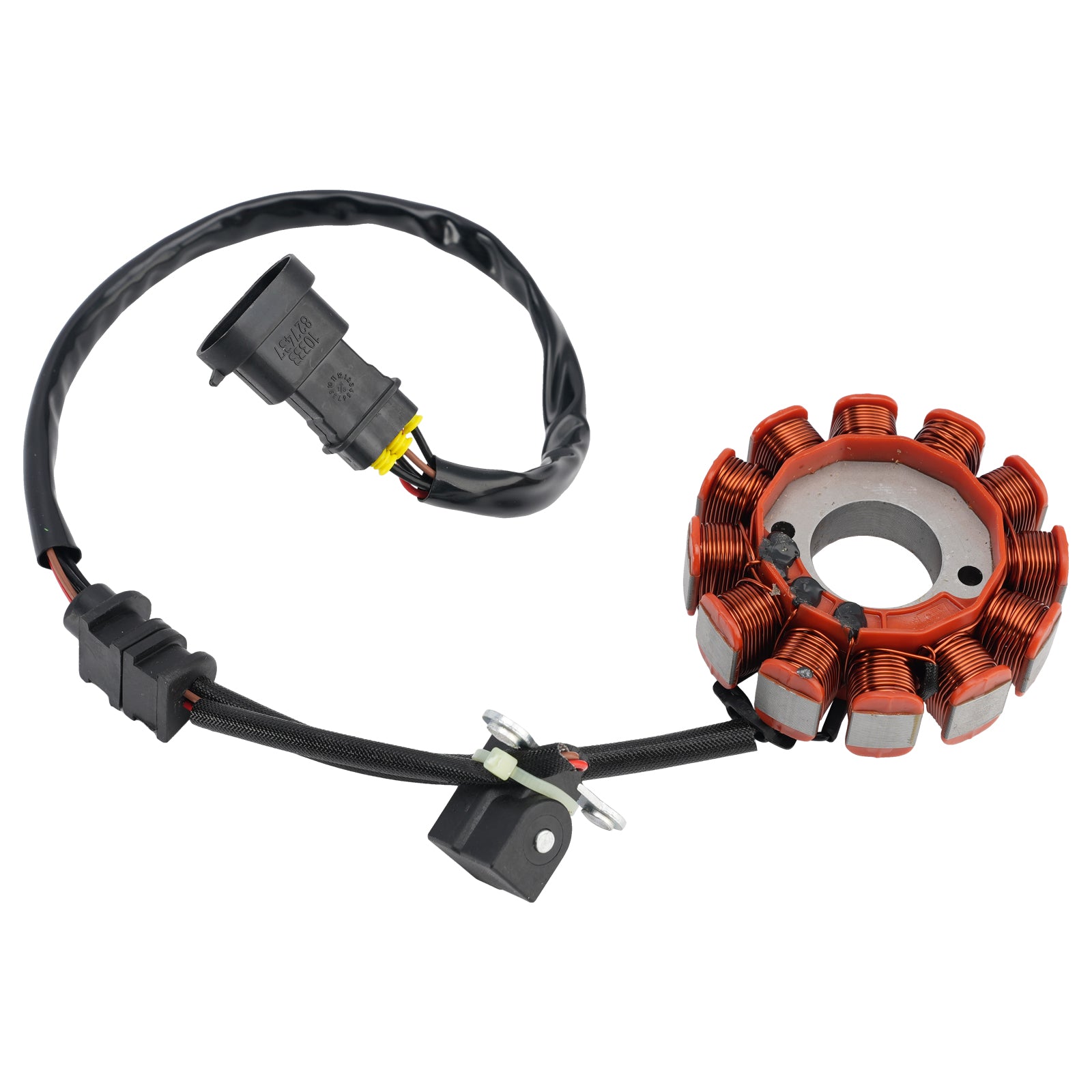

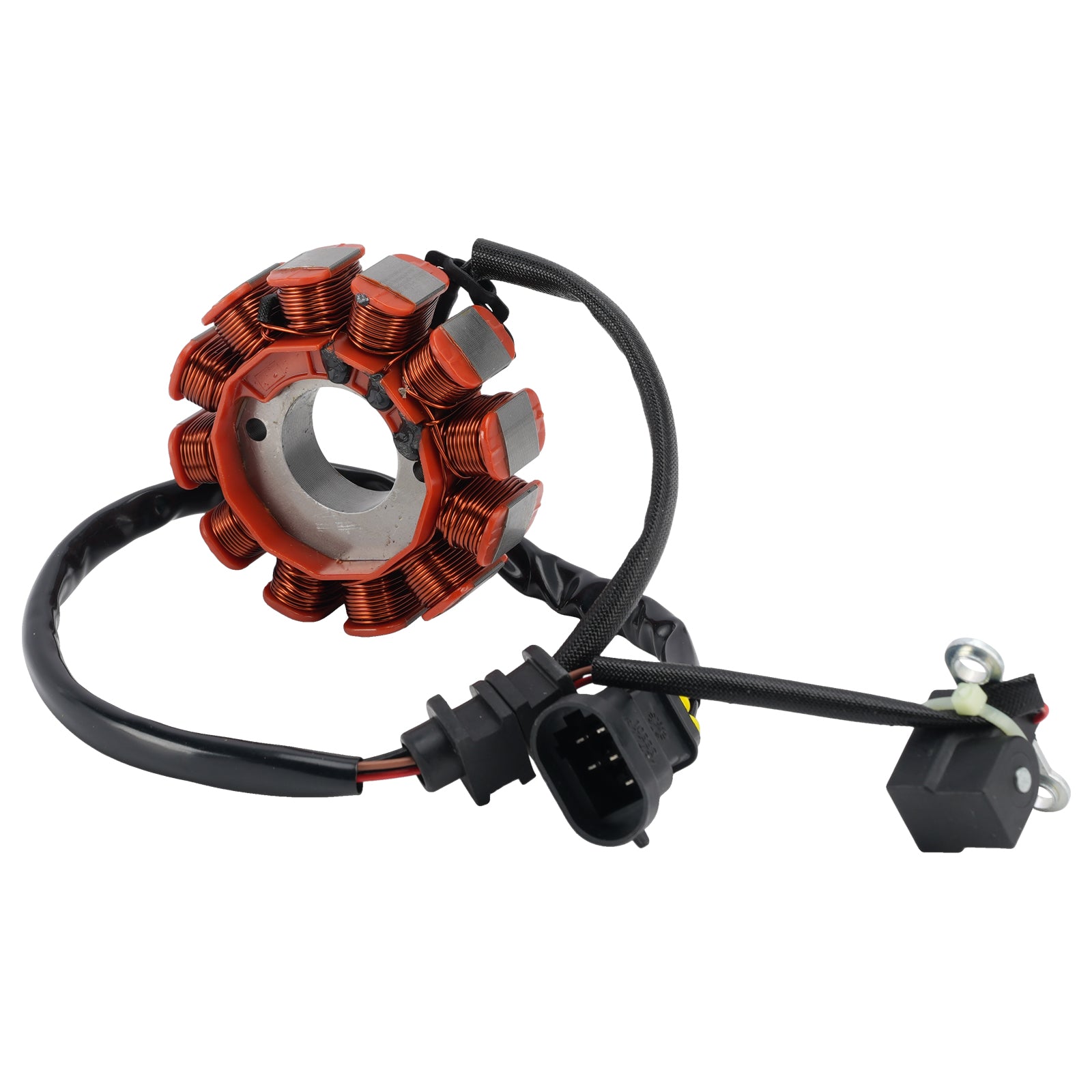

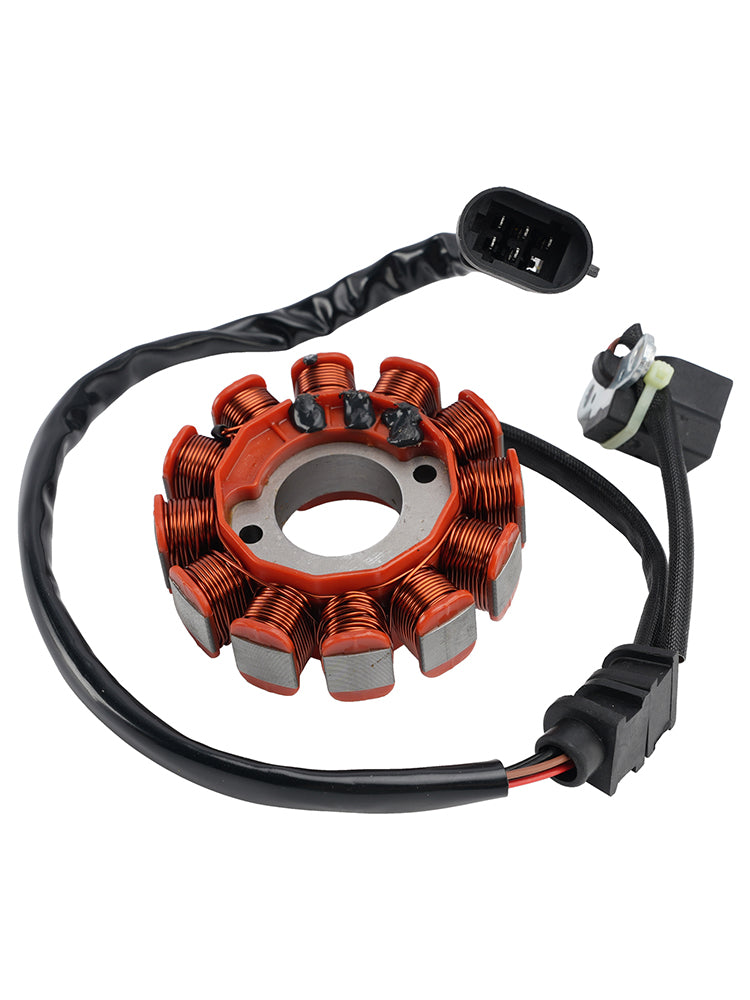

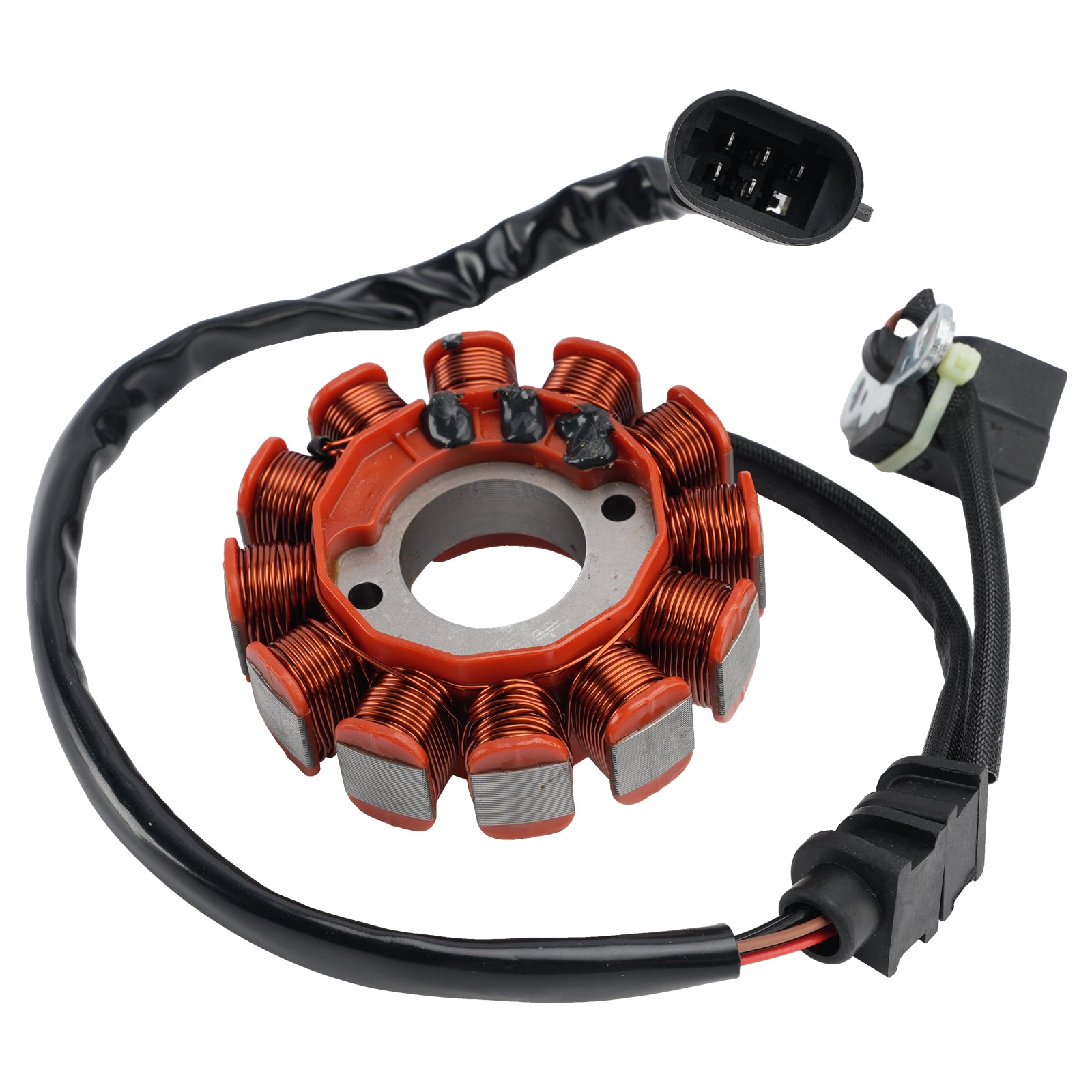

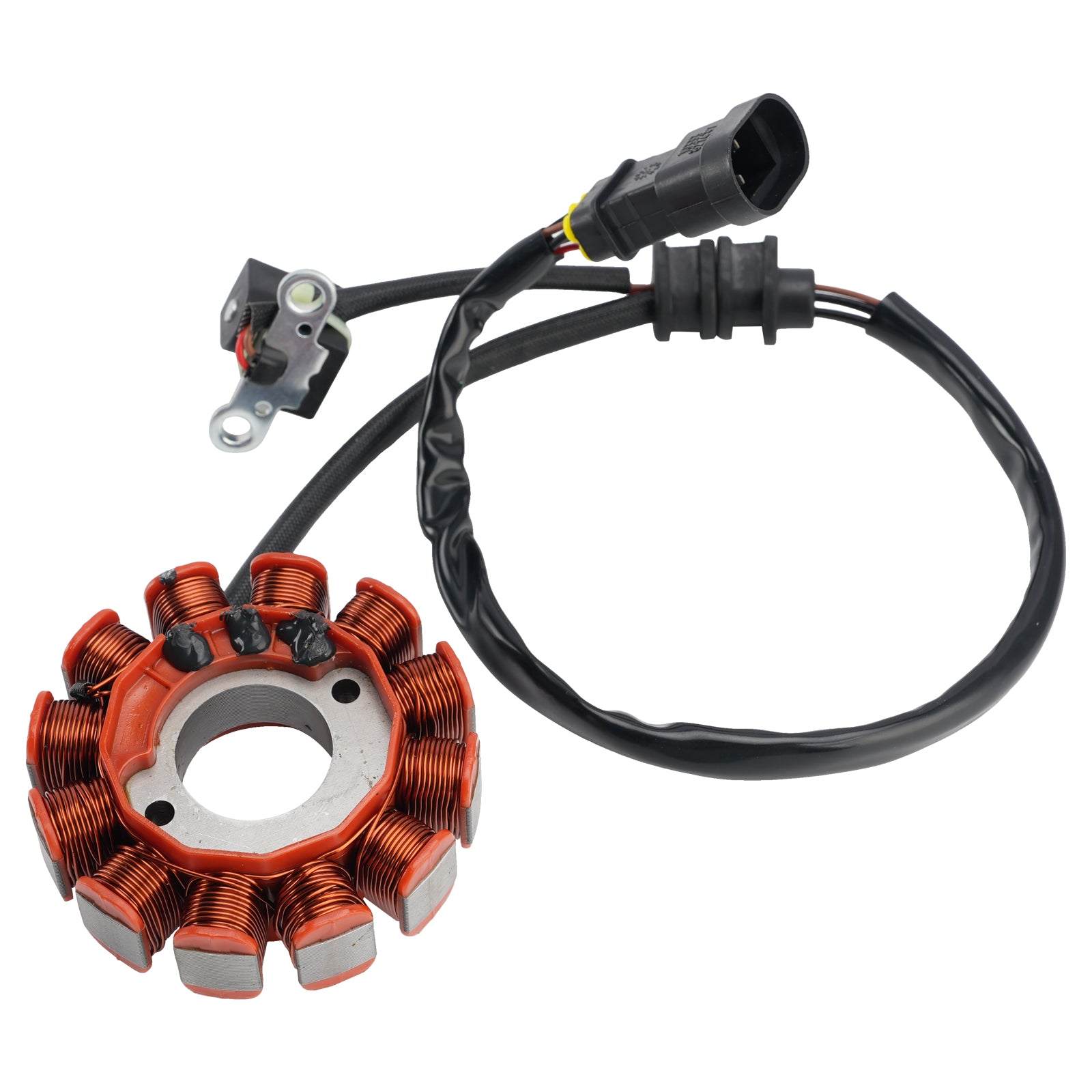

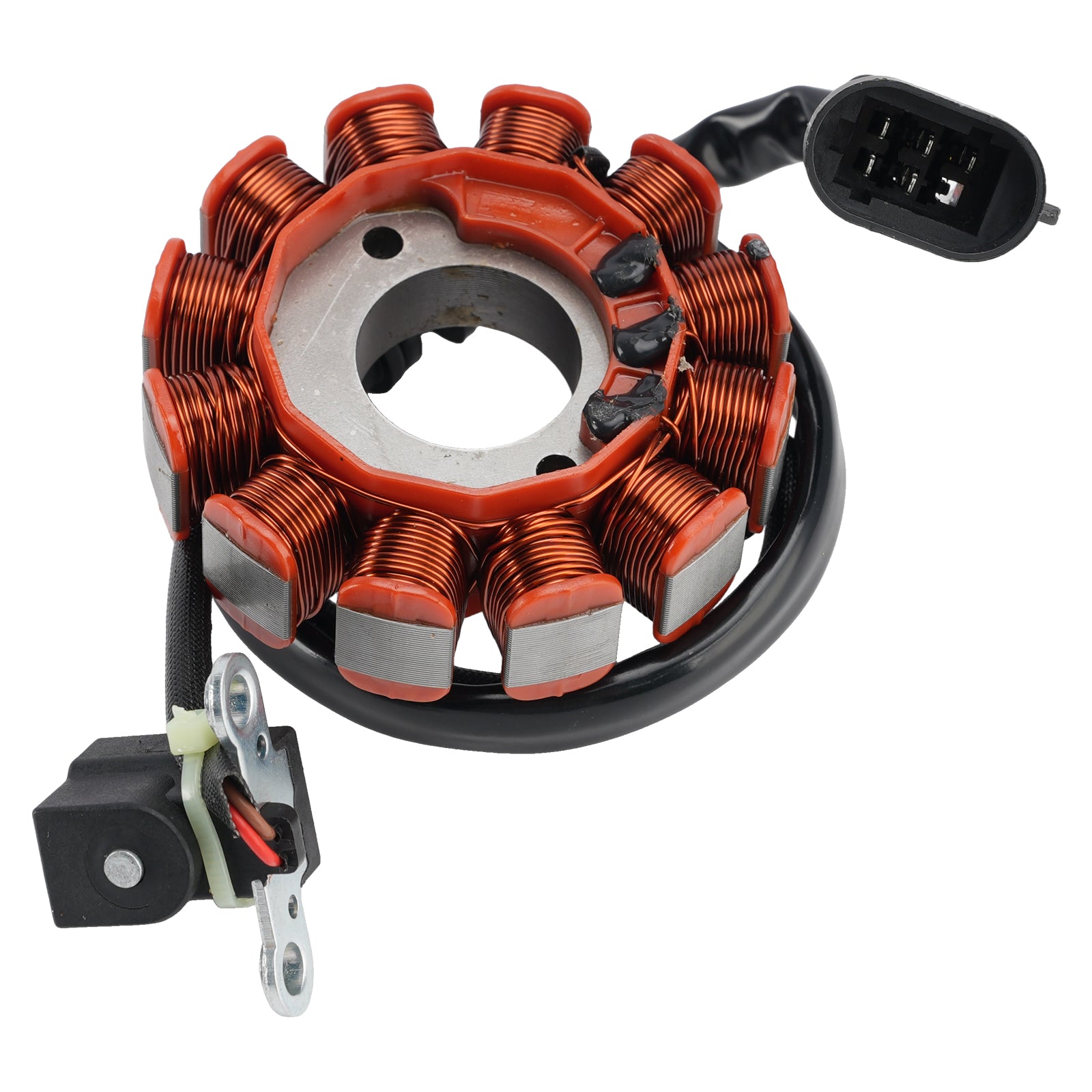

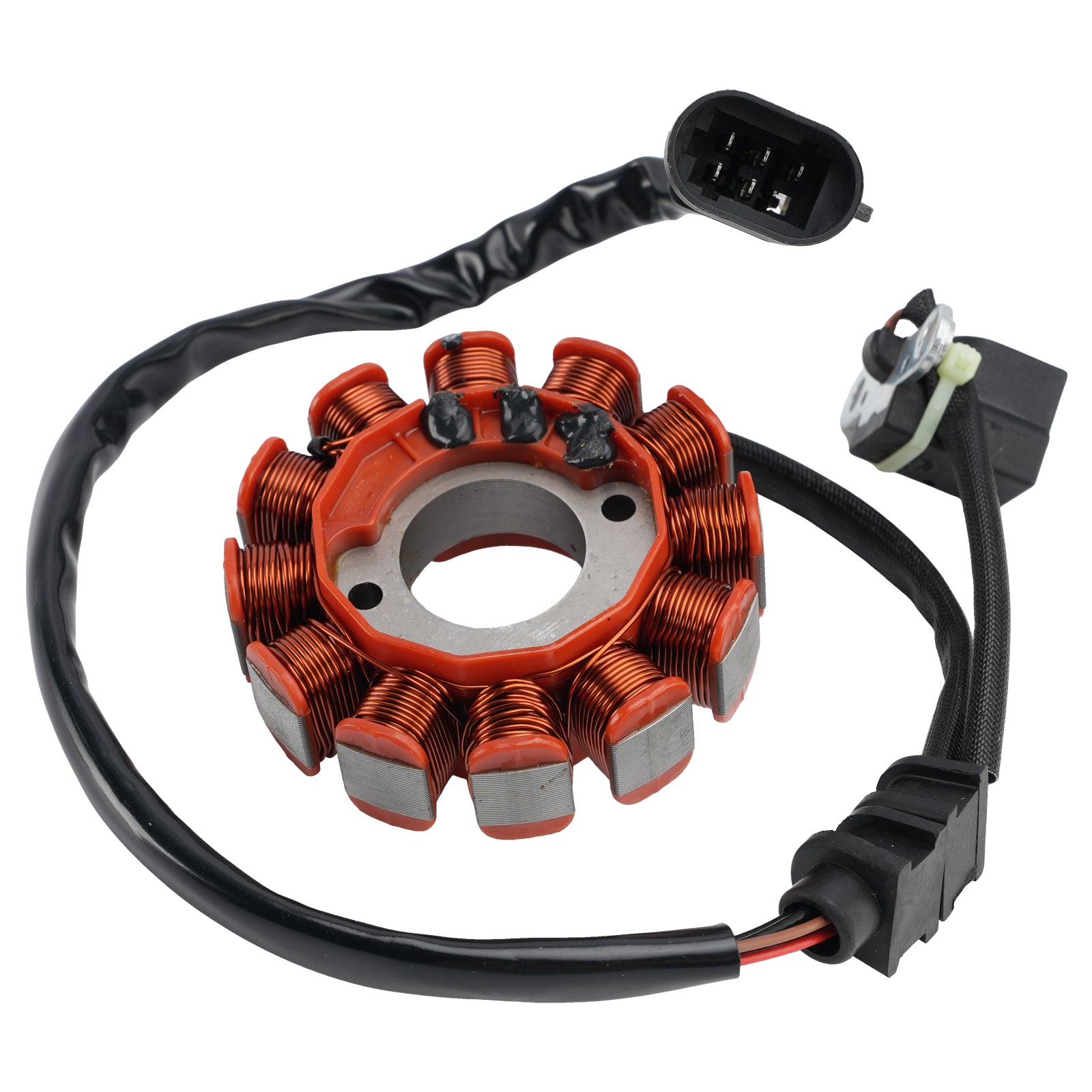

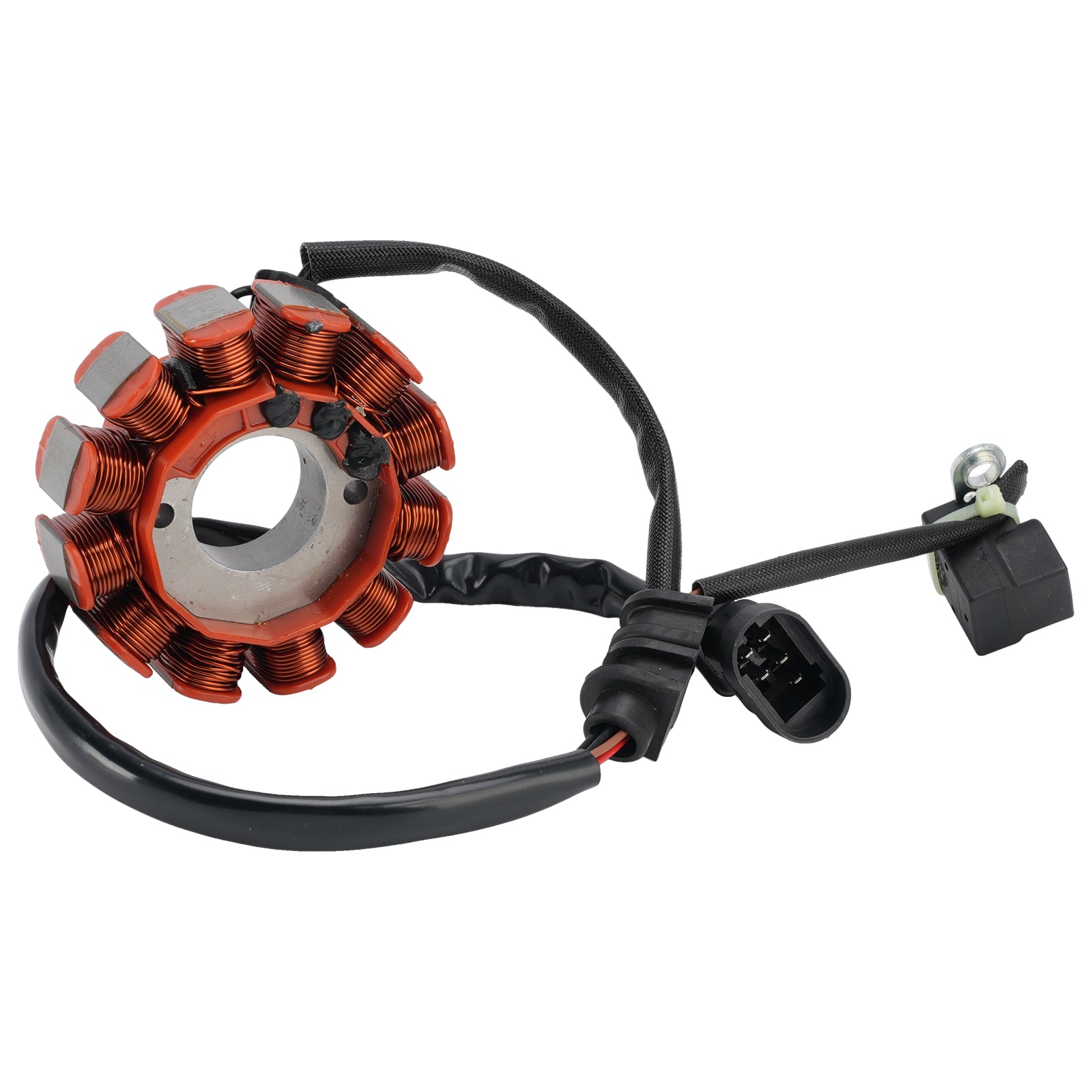

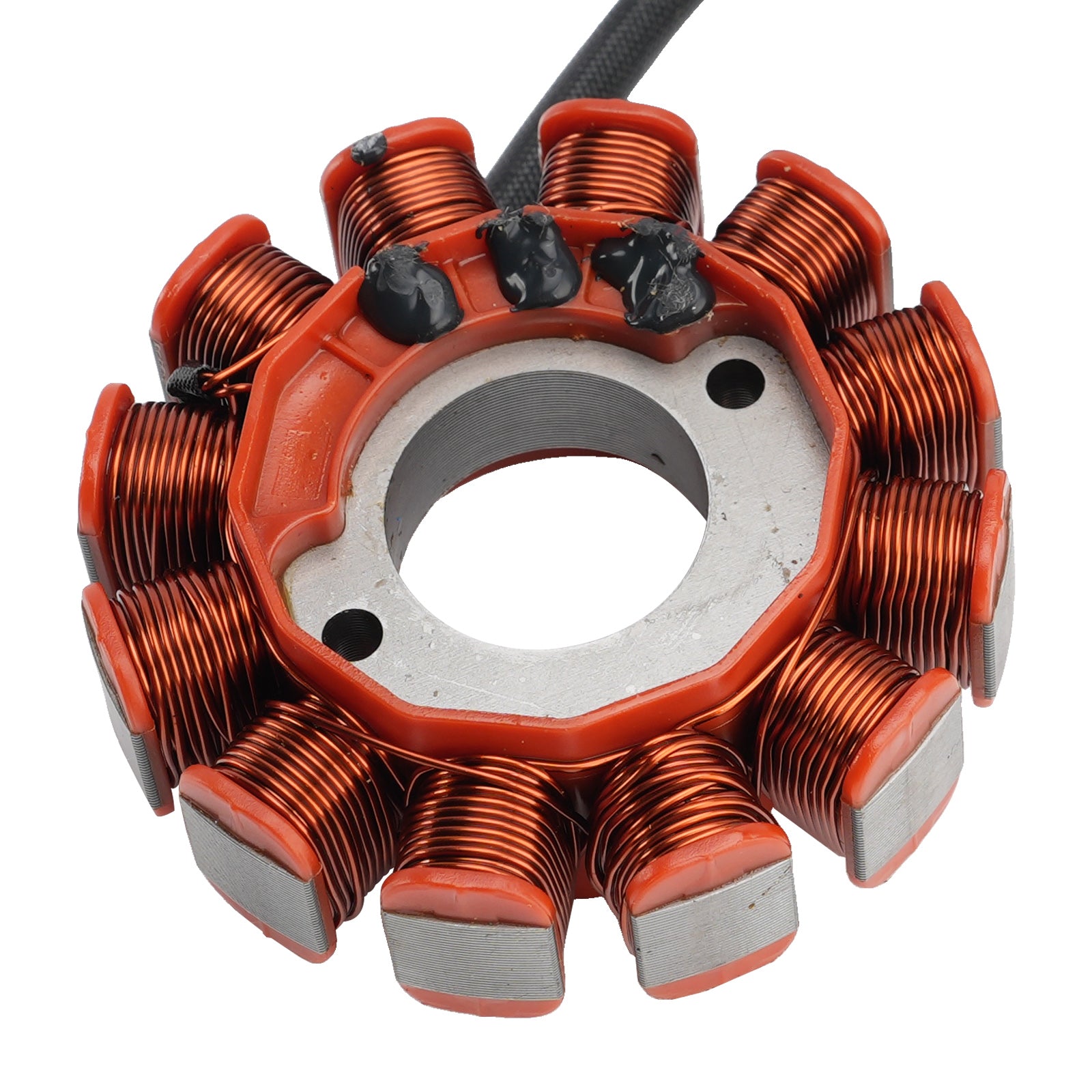

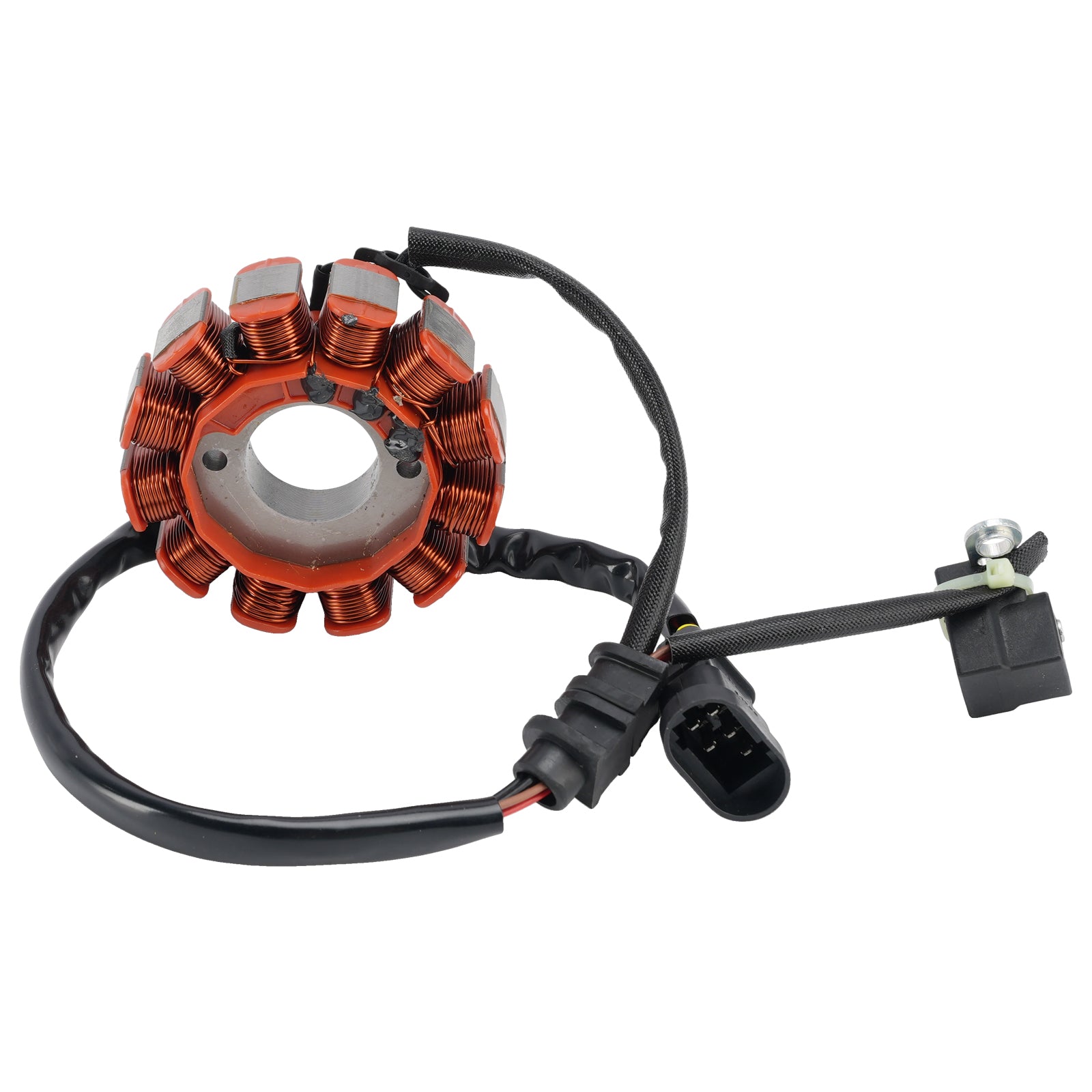

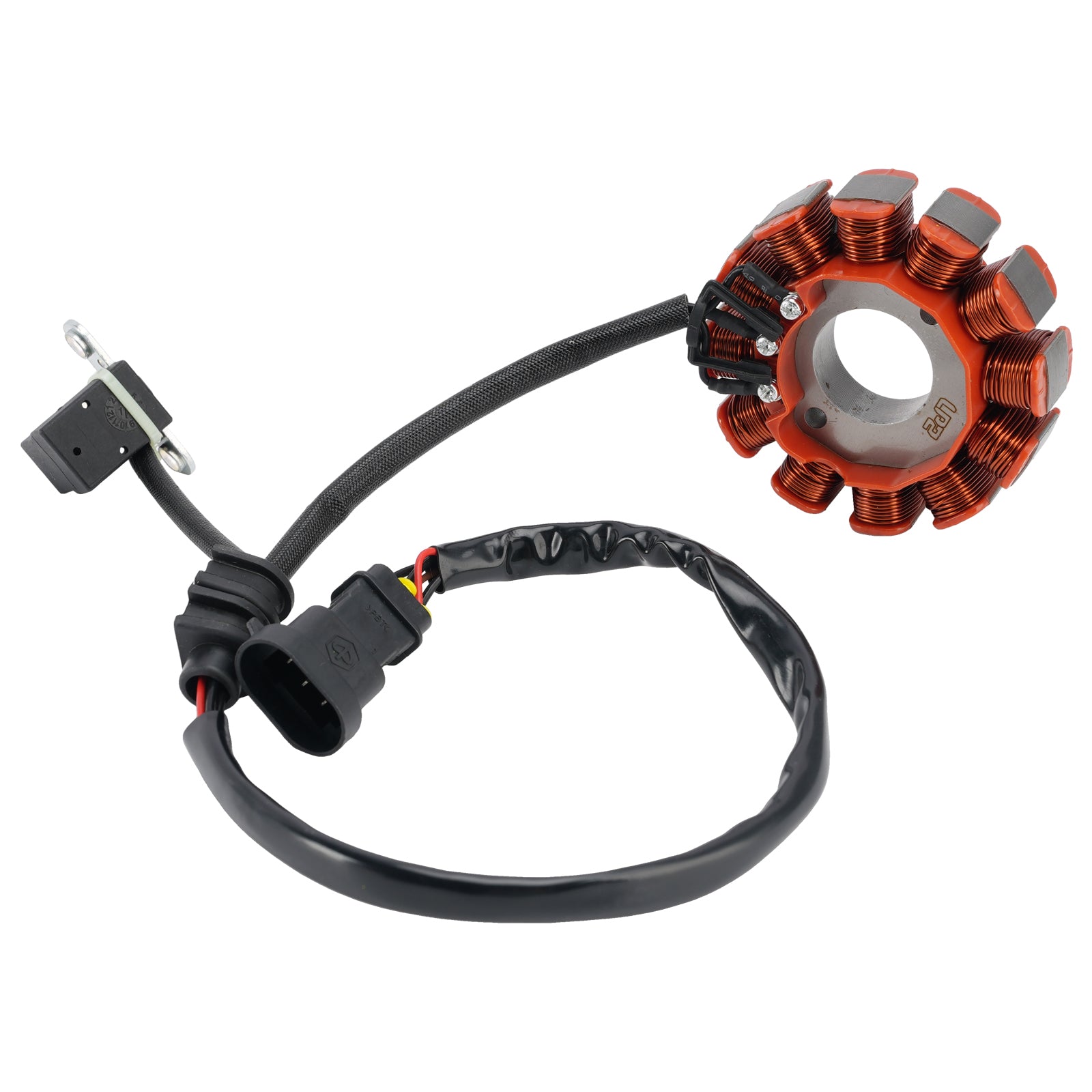

Aprilia RS 125 RS4 125 RX125 SX125 Tuono 125 4T Stator Alternator 640043

Generator Stator Magneto Fit for Aprilia RS 125 ABS SX, Malaguti Dune

Features:
Direct replacement to your original unit
Highest grade lamination materials.

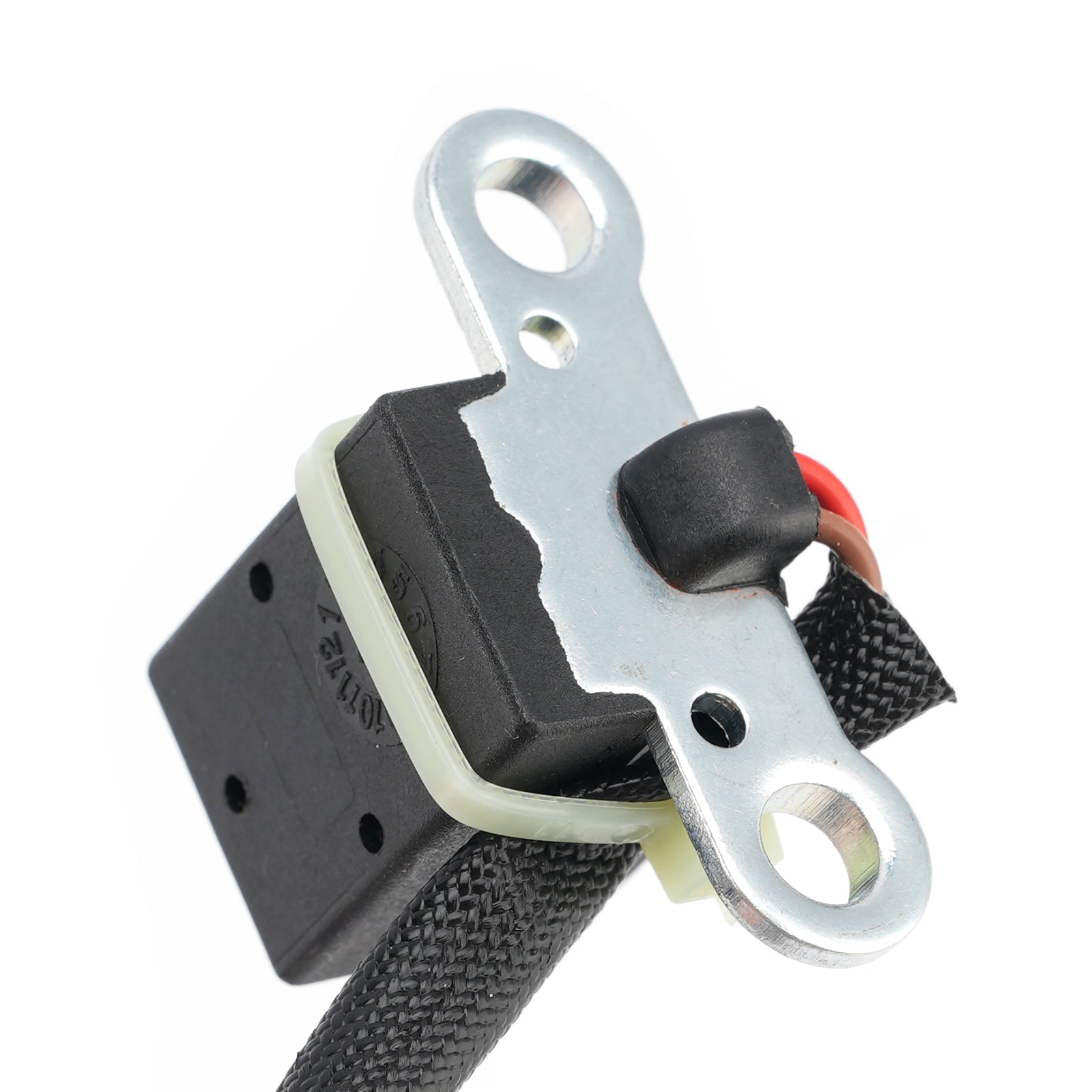

Pick up pulsar coil included.
Connector included.
Rubber grommet included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator Coil

other specifications:
Number of wires: 5

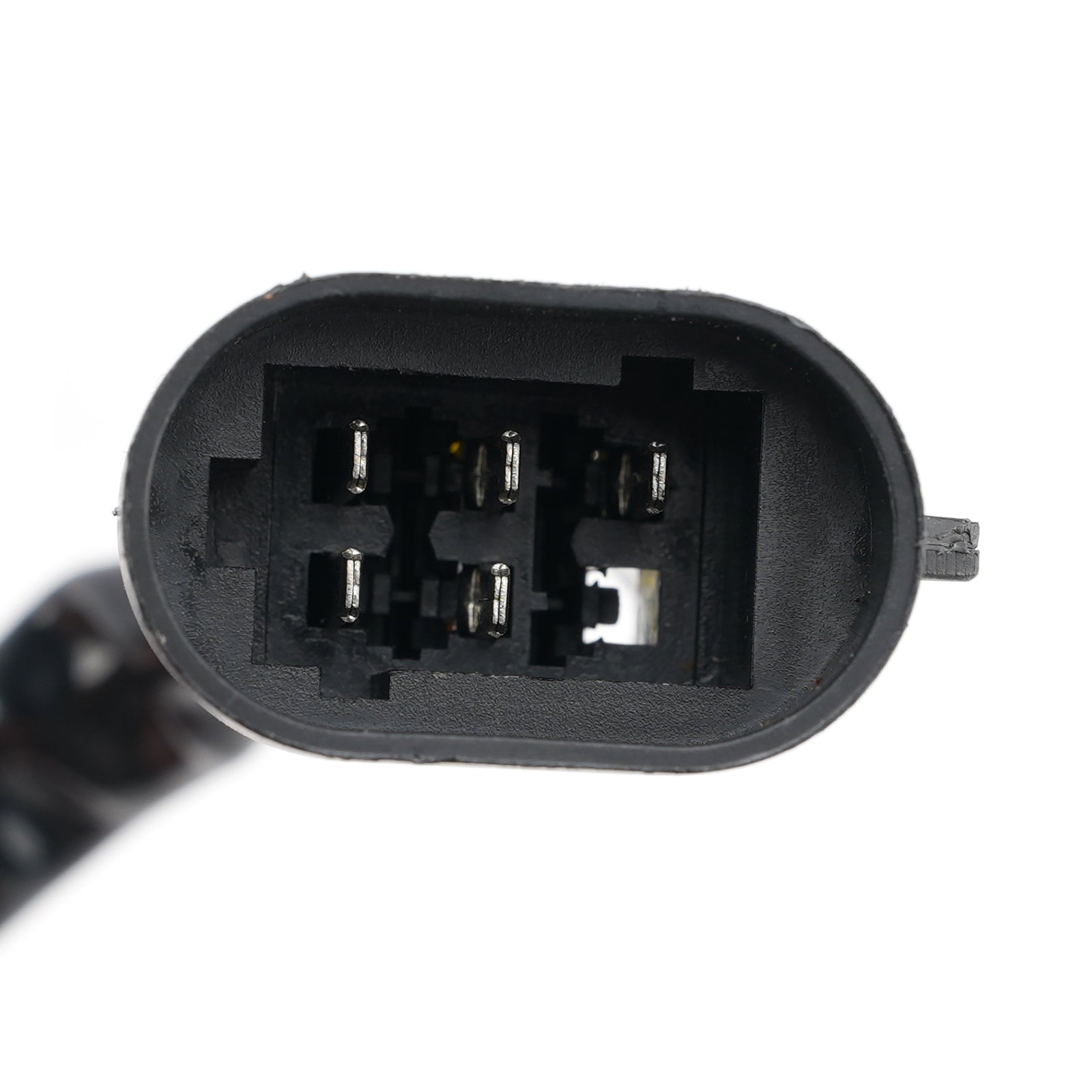

Number of plugs: 1
Number of pins: 5
Number of poles: 12

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
640043

(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)

Fits Make/Model/Year:
Fit for Aprilia RS 125 4T ABS 2017-2023
Fit for Aprilia RS 125 4T ABS Replica 2019-2022
Fit for Aprilia RS 125 4T ABS Replica 2021-2022
Fit for Aprilia RS 125 4T E5 ABS 2024
Fit for Aprilia RS 125 GP Replica 2023-2024
Fit for Aprilia RS 125 GP Replica 4T ABS 2023
Fit for Aprilia RS 125 Replica 4T 2017-2018
Fit for Aprilia RS4 125 4T 2011-2016
Fit for Aprilia RX 125 2018-2024
Fit for Aprilia SX 125 2018-2024
Fit for Aprilia Tuono 125 2020-2024
Fit for Aprilia Tuono 125 4T 2017-2019
Fit for Derbi GPR 125 4T 2009-2011
Fit for Derbi Mulhacen 125 2007-2013
Fit for Derbi Senda 125 R/SM DRD 2009-2016
Fit for Derbi Senda 125 R/SM DRD Racing 2009-2012
Fit for Derbi Terra 125 2007-2013
Fit for Derbi Terra 125 Adventure 2007-2013
Fit for FB Mondial SMX 125
Fit for FB Mondial SMX 125 E5
Fit for FB Mondial SMX 125 Enduro E5
Fit for FB Mondial Flat Track 125
Fit for FB Mondial HPS 125 ABS
Fit for FB Mondial HPS 125 ABS E5
Fit for FB Mondial HPS 125 CBS
Fit for FB Mondial HPS 125 CBS M1
Fit for FB Mondial HPS 125 Limited Edition
Fit for FB Mondial HPS 125 Ubbiali E5
Fit for FB Mondial HPS 125 CBS M1 E5
Fit for FB Mondial Pagani 125
Fit for FB Mondial Piega 125 ABS E5

Please check and comfirm the number of stator poles is the same as ours and if your connectors and harness looks like the one in the photo before purchasing.

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

(The product contains all that can be seen in the picture.)

NOTICE:
Adjusting the grommet - Cables can be pulled through the grommet one at a time, some lubrication should help with this.

Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
