¥19,900 JPY
SKU: M550-A670
Quantity:

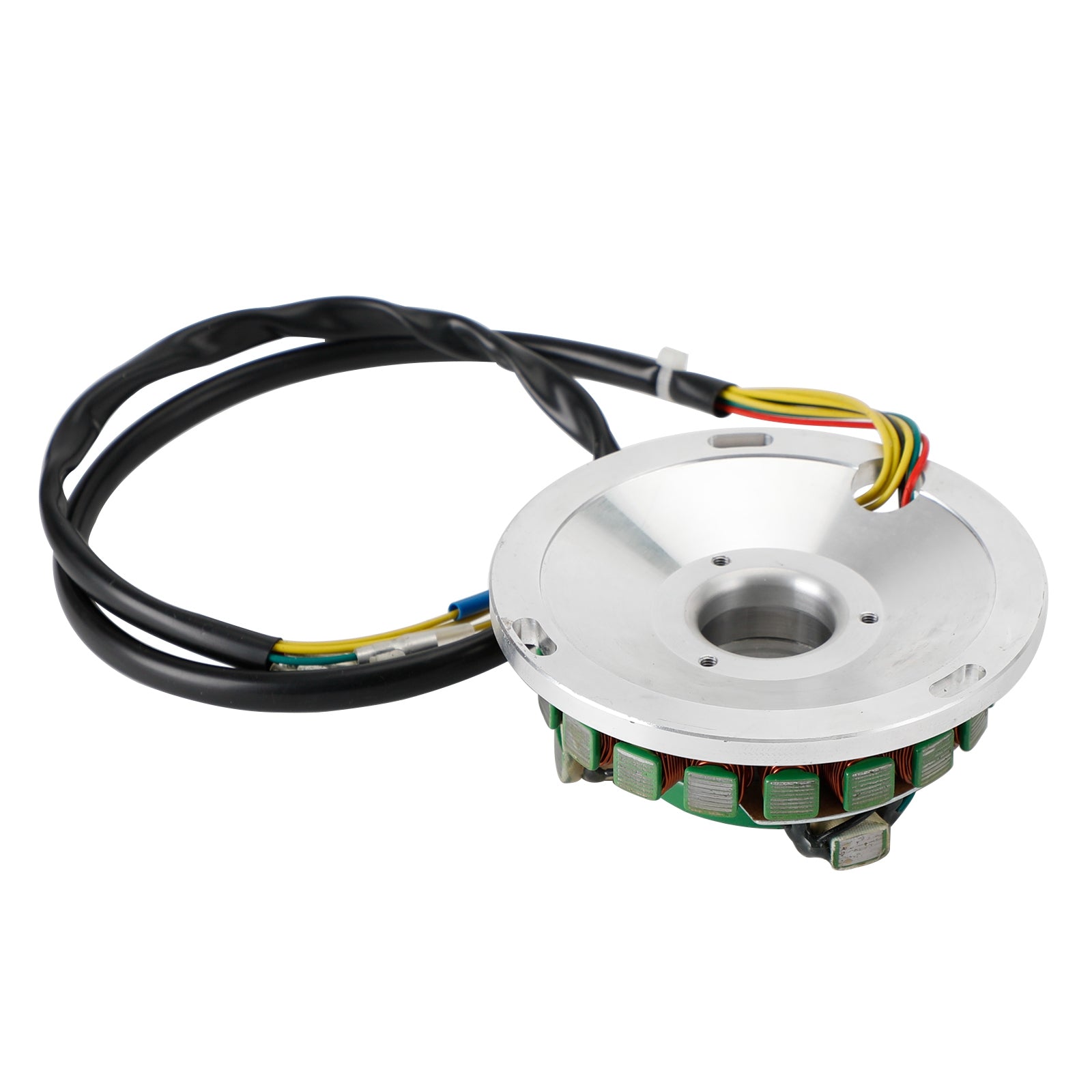

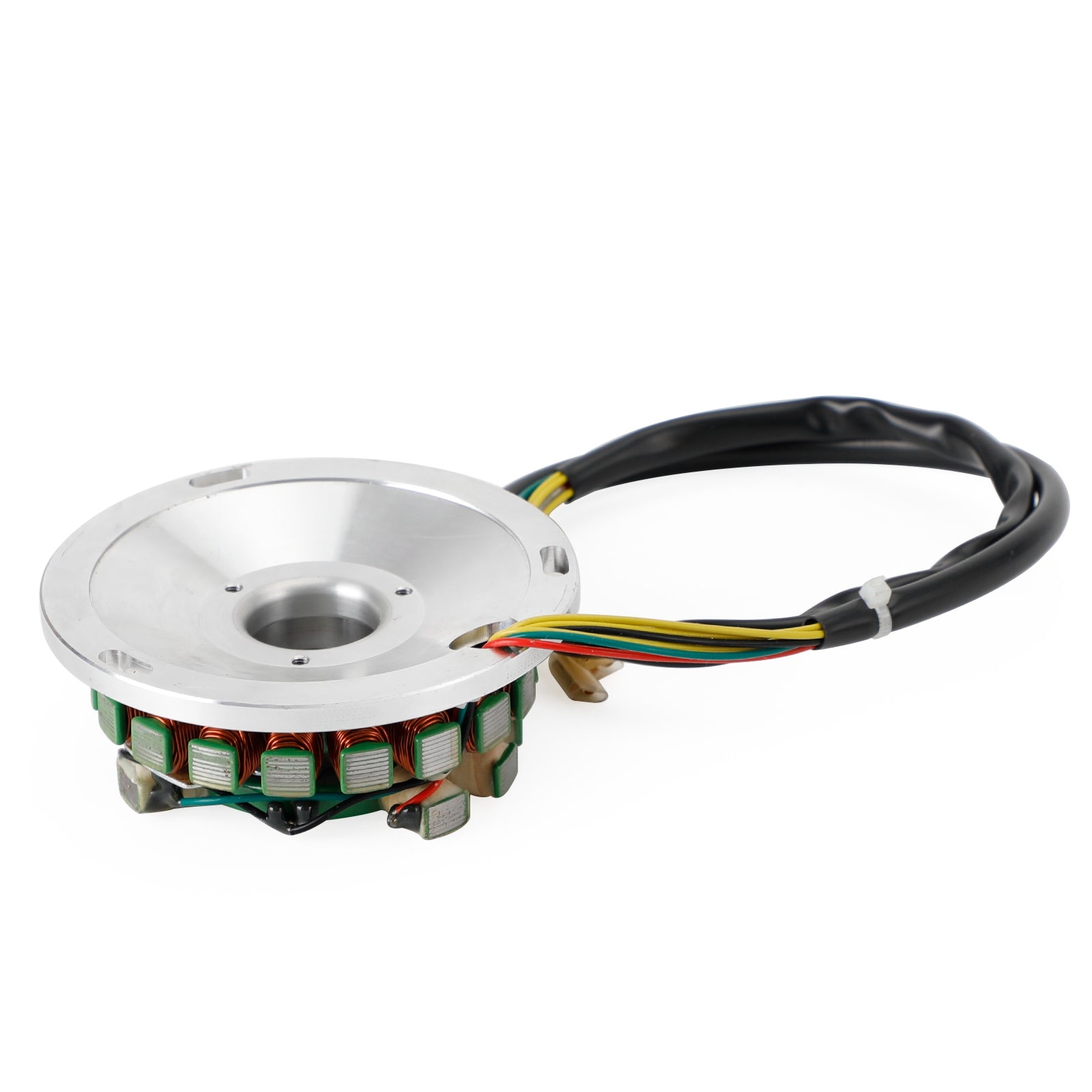

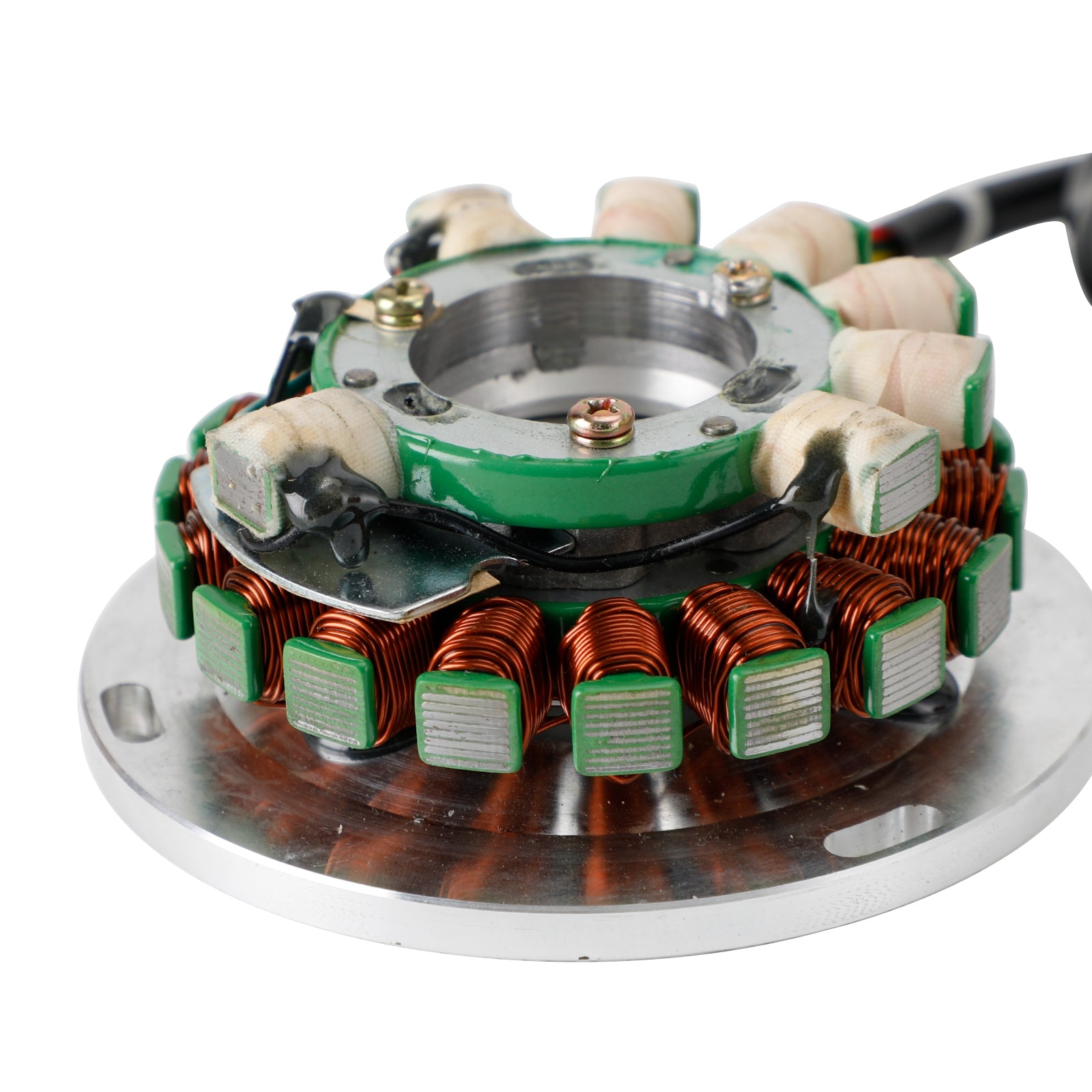

Ignition Stator Base Assly Fit for Husqvarna 350 500 510 610 TC TE WXC WXE Repl. # 800068902, 161528101, 161510801

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
This stator has a controlled output whch regulates voltage to prevent damage to the original cdi/HT coil.
The alternator output can be connected the same as the original stator from direct AC lighting using the original regulator (or optional RG12 - see related products below).
The alternator also has the capability of being connected to a 3 phase regulator/rectifier such as our optional RR17 for high power 200w DC supply.

Specifications:
Condition: Aftermarket 100% Brand New
Type: Ignition Stator Base Assy
Plate: 110mm / 4.33 inches

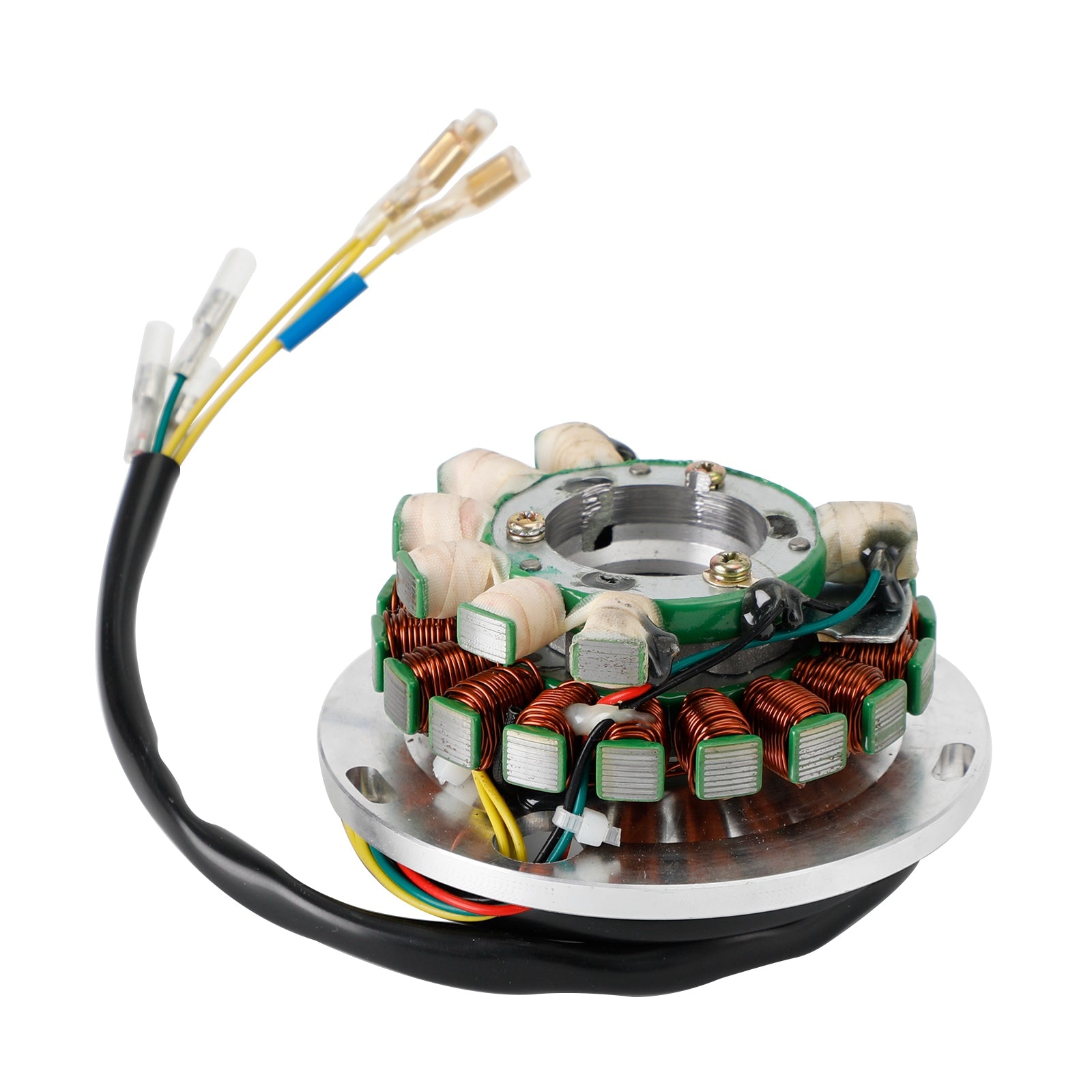

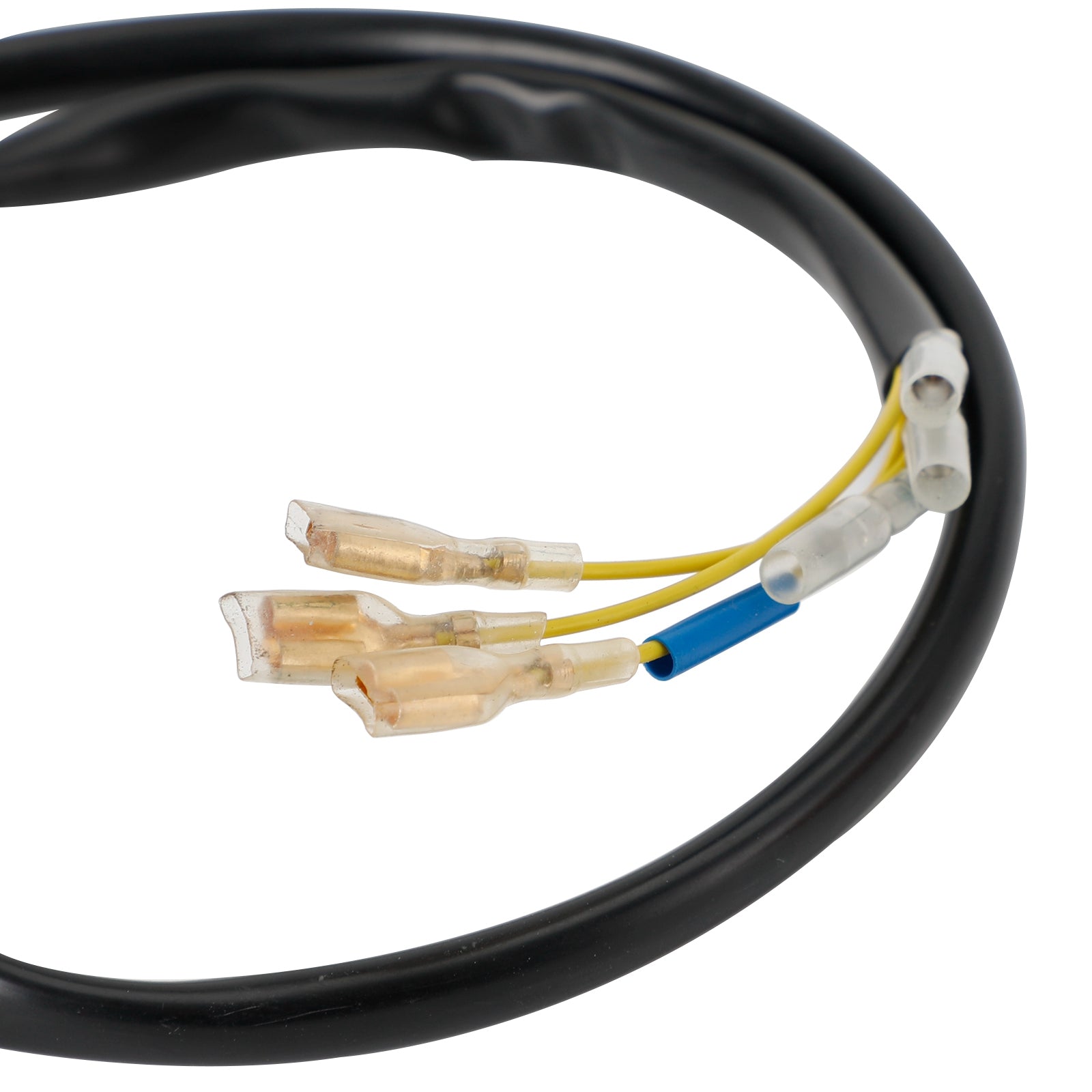

Cable: 3x Yellow, 1x Black, 1x Green, 1x Red
Red to Black source coil: 1400 ohms
Green to Black: 25 ohms
Output: 100W as single phase (as original) - 200W as a 3 phase with optional RR17

Replacement Part Number:
1615108-01
800068902
1615281-01

Fitments:
Fit for Husqvarna WMX510 1990
Fit for Husqvarna WMX610 1991
Fit for Husqvarna WXE350 1991-1994
Fit for Husqvarna WXE510 1990
Fit for Husqvarna WXE610 1991-1994
Fit for Husqvarna WXC350 1992-1994
Fit for Husqvarna WXC610 1992-1994
Fit for Husqvarna TC500 1983
Fit for Husqvarna TC510 1987-1990
Fit for Husqvarna TC610 1992-1994
Fit for Husqvarna TE350 1990-1994
Fit for Husqvarna TE510 1983-1990
Fit for Husqvarna TE610 1992-1994
Fit for Husqvarna TX510 1983-1988

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Ignition Stator Base Assy

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Shipping:
Free Shipping
Handling?time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
