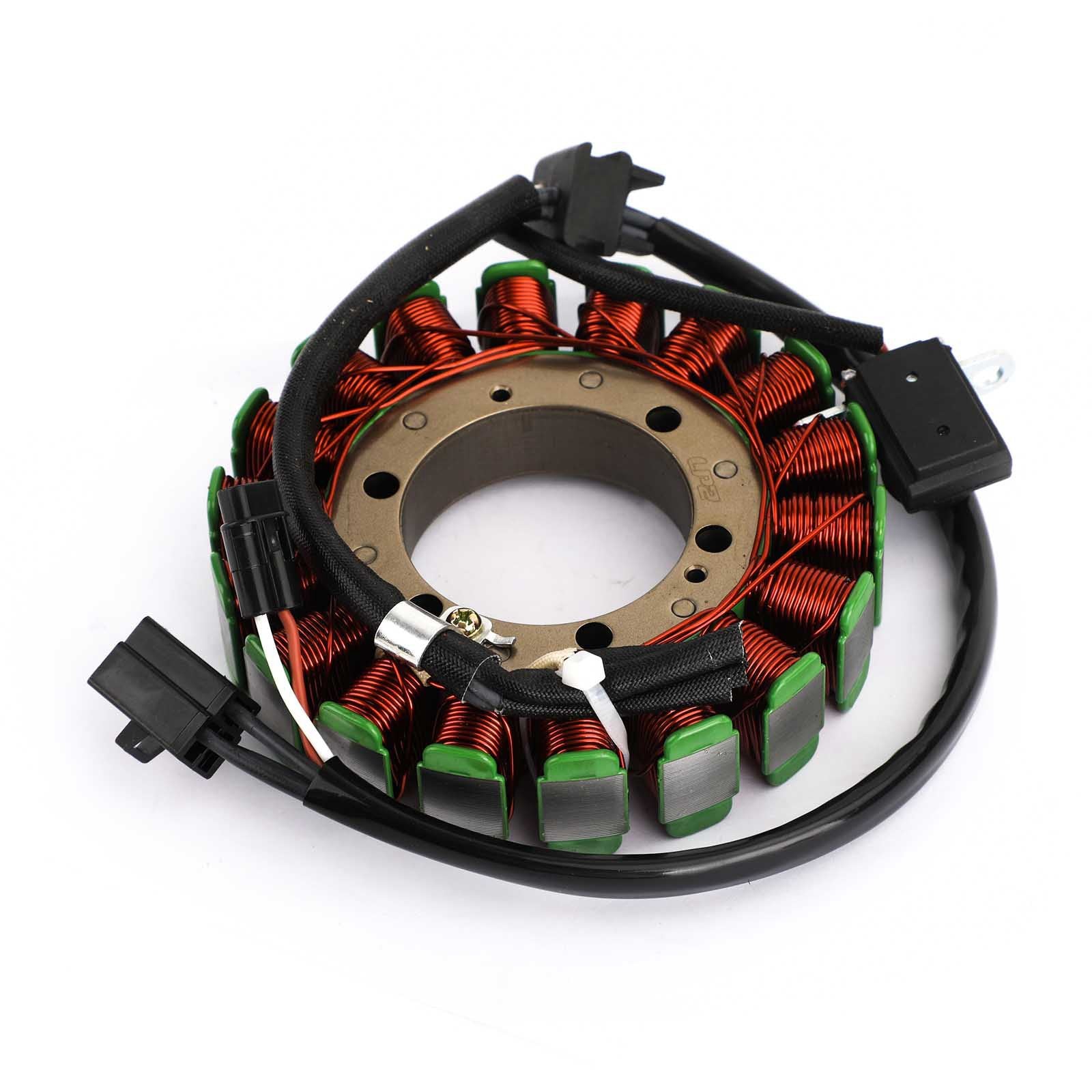

Alternator Stator Fit for Arctic Cat UTV 0802-072 0802-064 Wildcat 1000 X X4 4
Choose options
SEARCH YOUR DREAM FAIRING
Replacement Part Number:
0802-072
0802-064
Please confirm the?Replacement Part Number before ordering.
Fitments:
Fit for Arctic Cat Wildcat 1000 GT 2012
Fit for Arctic Cat Wildcat 1000 LTD 2014
Fit for Arctic Cat Wildcat 1000 2012-2015
Fit for Arctic Cat Wildcat 1000 Metallic 2013
Fit for Arctic Cat Wildcat 1000 LATE BUILD 2013
Fit for Arctic Cat Wildcat 1000 LTD LATE BUILD 2013
Fit for Arctic Cat Wildcat 4 Metallic 2013
Fit for Arctic Cat Wildcat 4 1000 2013-2014
Fit for Arctic Cat Wildcat 4X 1000 2014-2016
Fit for Arctic Cat Wildcat X Metallic 2013
Fit for Arctic Cat Wildcat X 1000 2013-2016
Fit for Arctic Cat Wildcat X 2013-2016/2018-2019
Dimensions:
Interior diameter : 53.9 mm / 2.12 inches
Exterior diameter : 126.1 mm / 4.96 inches
Pole's Thickness : 29.6 mm / 1.16 inches
Pole's Width : 16.2 mm / 0.64 inches
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil
Other Specifications:
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 5(+2)
Number of poles: 18
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:
1 x Generator Stator Coil
Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
| For TRIUMPH Fairing | |||
| Daytona 675 06-08 | Daytona 675 09-12 | Daytona 675 13-16 | Daytona 600/650 02-05 |
| For OTHER BRAND Fairing | |||
| Benelli Tornado Tre 1130 04-13 | MV AGUSTA F4 1000 05-06 | ||
Customer Reviews
My stator volts were in the low 12s. Replaced this and they are around 14-14.2 at idle. It fixed my battery charging issue
The battery is charging while the engine is on, so that solved my problem perfectly.
After upgrade the stator and regulator, the battery stays charged, the lights remain bright, and the ignition system operates correctly. As same as get a new bike.
Works great! No more dead batteries!
Perfect fit and fired right up ! Let’s see if it holds up as longer than last OEM one !
Corrected the overcharging issue with my bike. Required a change over of the factory charging electrical connector. Only took a few minutes but was worth the savings.
It works great i think I've had it for over a week bow and its working good no issues at all easy install
Good product. Real pain in the butt to get the old one off to replace but product lined right up and fixed my charging issue.
