Engine Cylinder Barrel Piston Gasket Kit for Kawasaki Bayou 300 KLF300B 88-2004
Engine Cylinder Barrel Piston Gasket Kit for Kawasaki Bayou 300 KLF300B 88-2004
Engine Cylinder Barrel Piston Gasket Kit for Kawasaki Bayou 300 KLF300B 88-2004
Engine Cylinder Barrel Piston Gasket Kit for Kawasaki Bayou 300 KLF300B 88-2004
Engine Cylinder Barrel Piston Gasket Kit for Kawasaki Bayou 300 KLF300B 88-2004
Engine Cylinder Barrel Piston Gasket Kit for Kawasaki Bayou 300 KLF300B 88-2004
Engine Cylinder Barrel Piston Gasket Kit for Kawasaki Bayou 300 KLF300B 88-2004
Engine Cylinder Barrel Piston Gasket Kit for Kawasaki Bayou 300 KLF300B 88-2004

Engine Cylinder Barrel Piston Gasket Kit for Kawasaki Bayou 300 KLF300B 88-2004

Sale price€120,99 EUR
Quantity:

Fitment:
Fit for Kawasaki Bayou 300 KLF300A 1985-1987
Fit for Kawasaki Bayou 300 KLF300B 1988-2004
Fit for Kawasaki Bayou 300 KLF300C 4X4 1989-2005
Fit for Kawasaki Prairie 300 KVF300A 1999-2002
Fit for Kawasaki Prairie 300 KVF300B 1999-2002
Fit for Kawasaki Lakota 300 KEF300A 1995-2000
Fit for Kawasaki Lakota 300 KEF300B Sport 2001-2003

Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

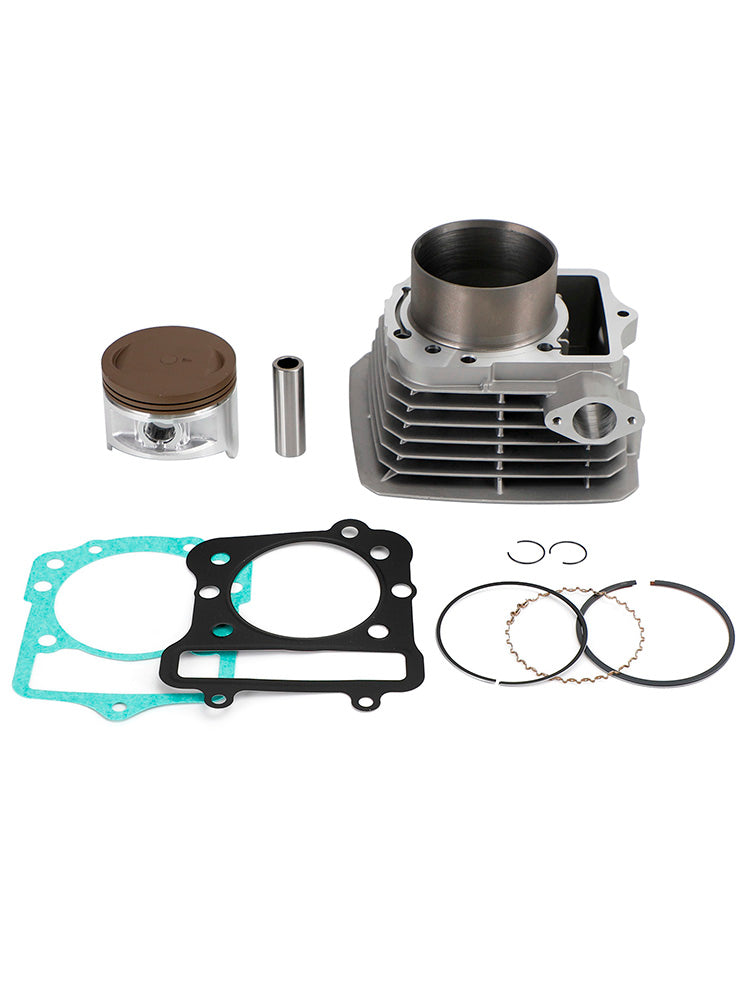

Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard size - 76mm x 64mm, 18mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 290cc
Bore Type: Standard Bore
Bore Size: STD 76mm
Stroke: 64mm
Pin Diameter: 18mm

Replacement Part Number:
Cylinder: 11005-1446, 11005-1533
Cylinder Base Gasket: 11060-1652, 11009-1515
Cylinder Head Gasket: 11004-1183, 11004-1340
Piston (Std): 13001-1244, 13001-1430
Pin, Piston: 13002-1059
Piston Ring Set (Std): 13008-1068, 13008-1111
Circlips, piston: 92033-1099

Package Includes:

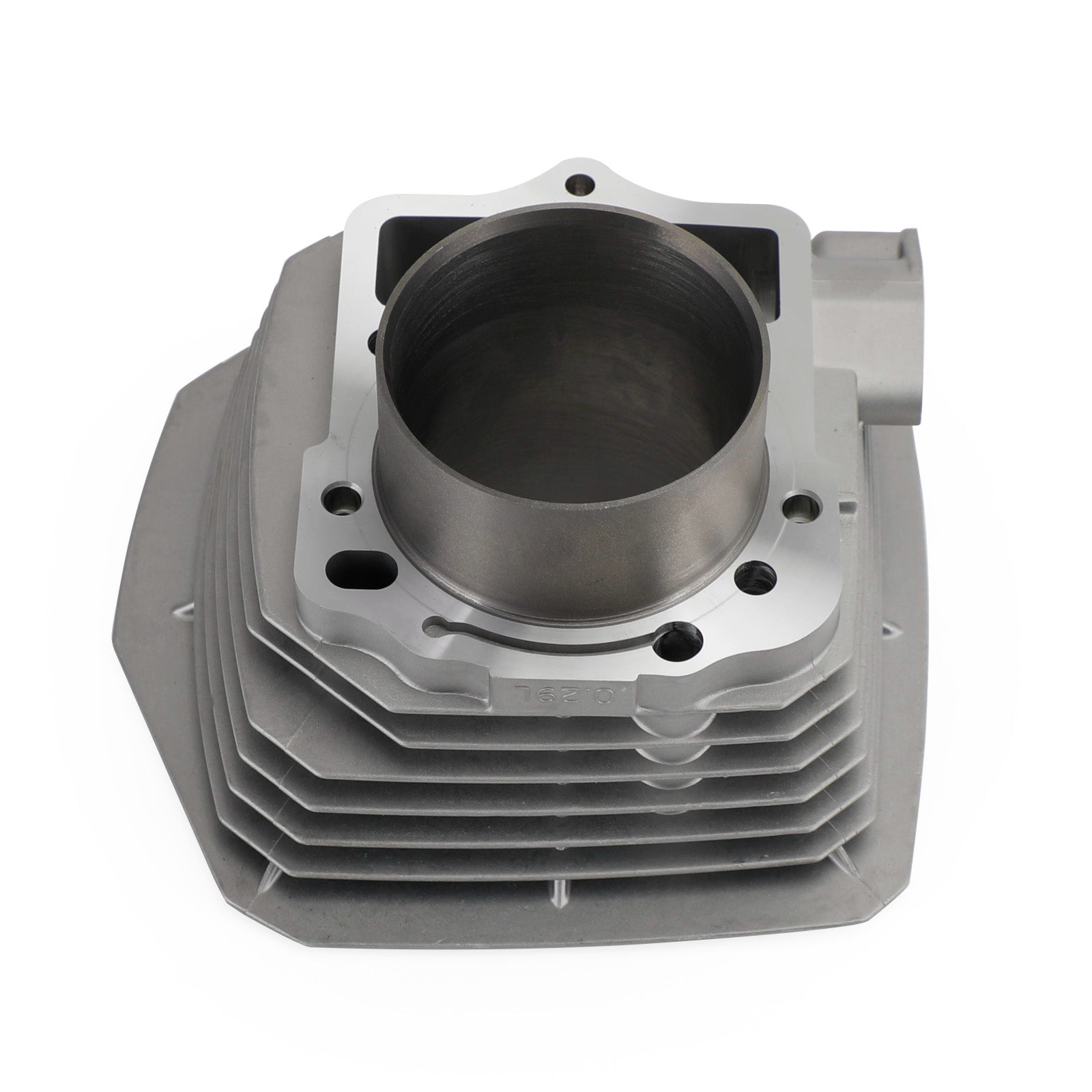

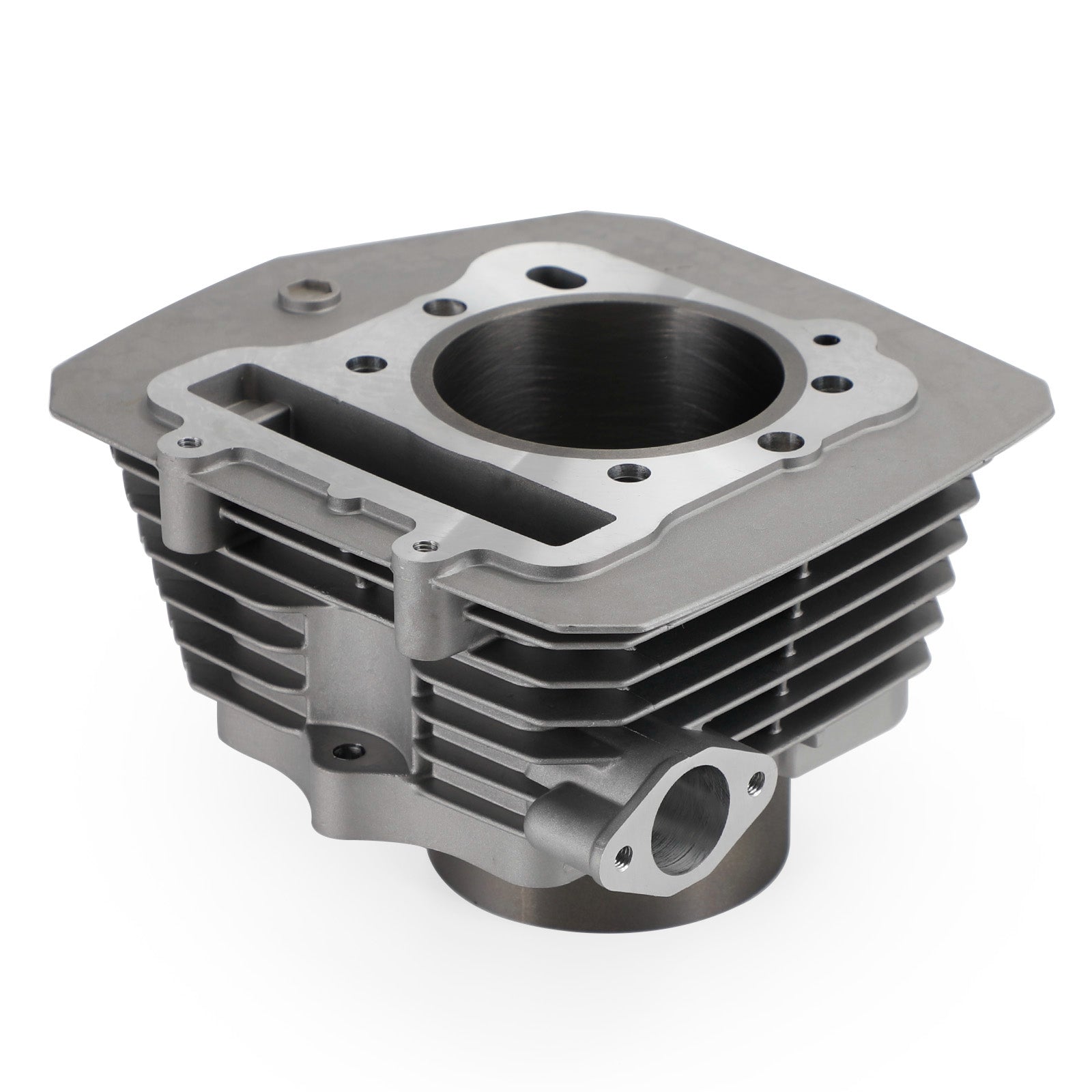

1x Cylinder

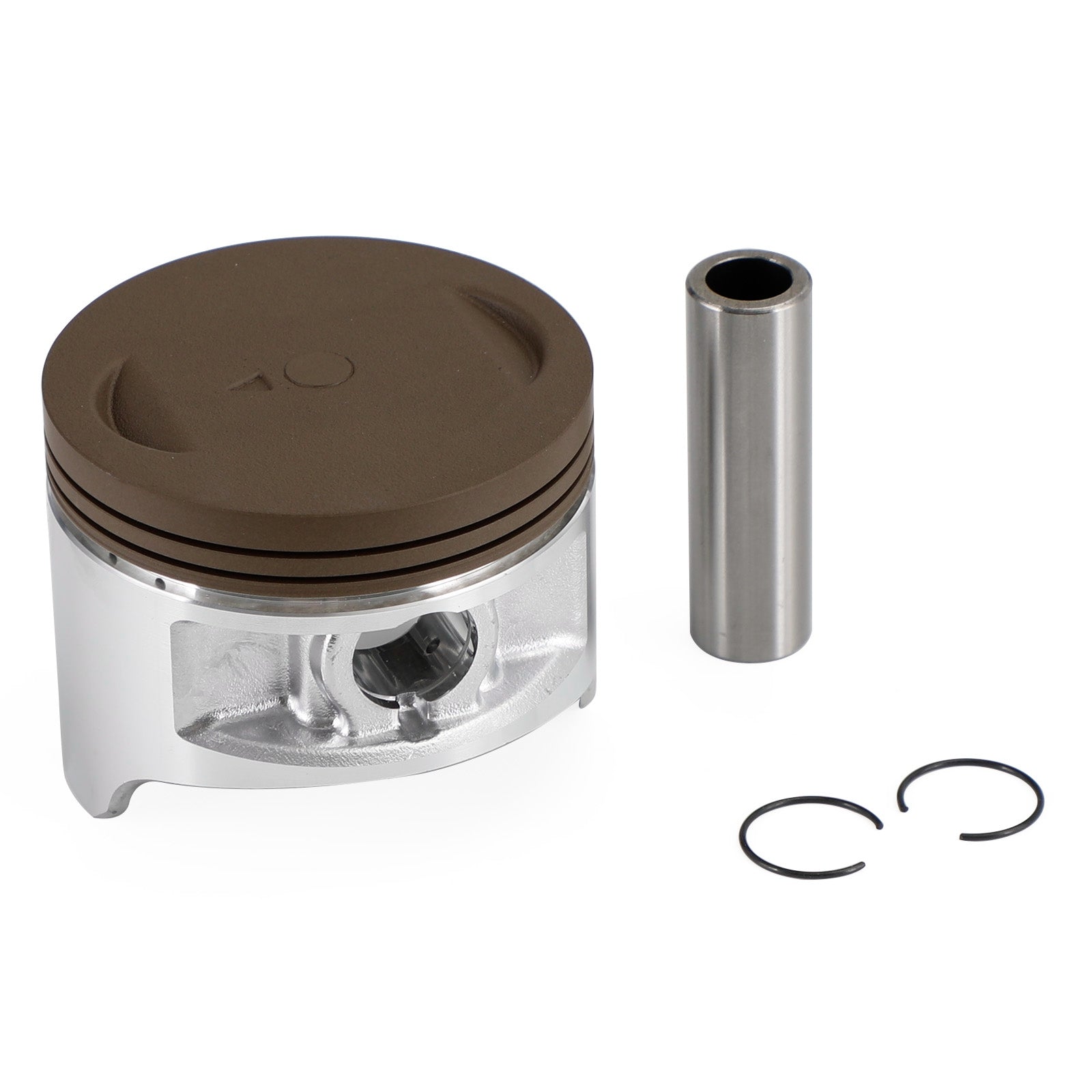

1x Piston(STD)
1x Piston Ring Set
1x Wristpin
2x Circlip(20.5 x 1.2)

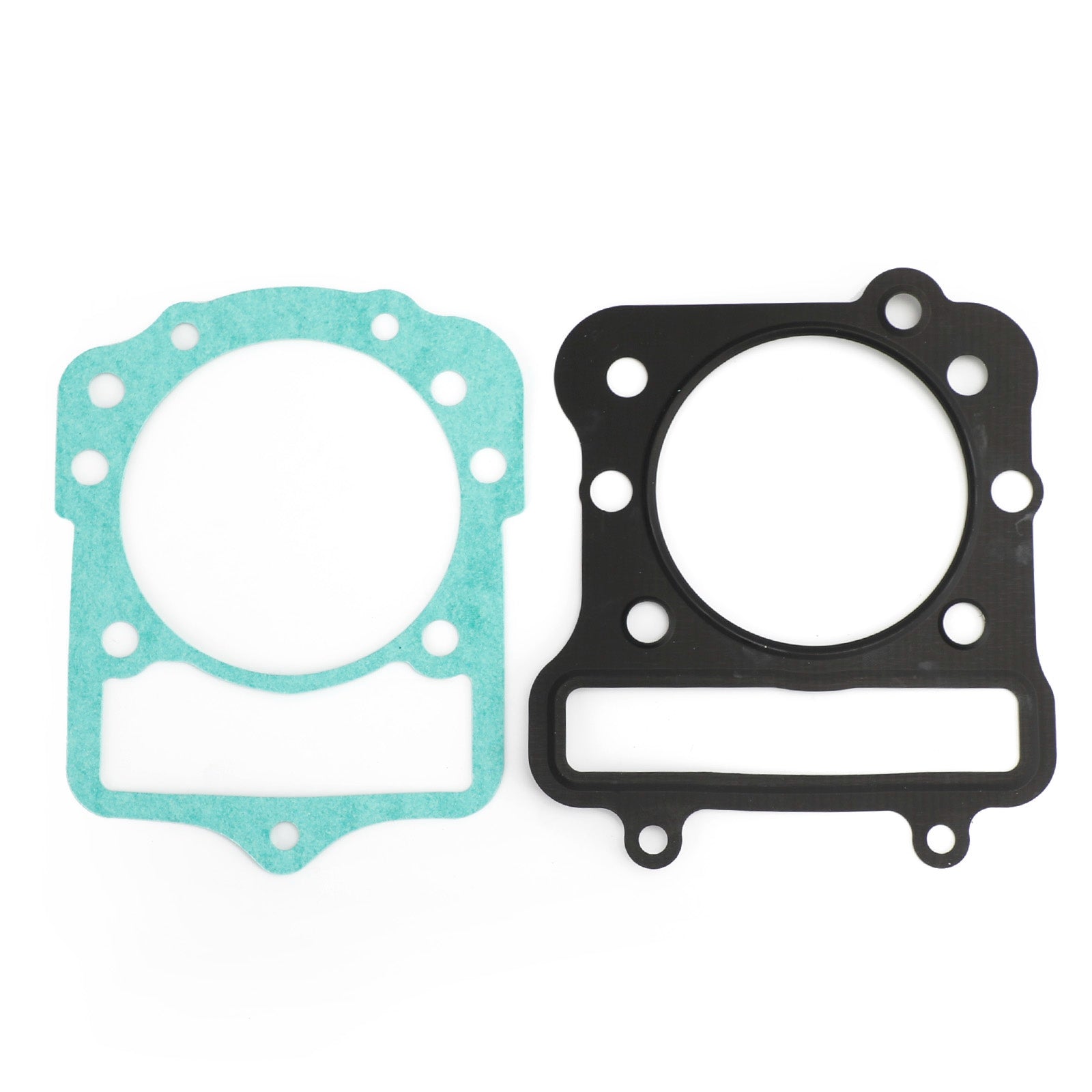

1x Cylinder Base Gasket
1x Cylinder Head Gasket

Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
