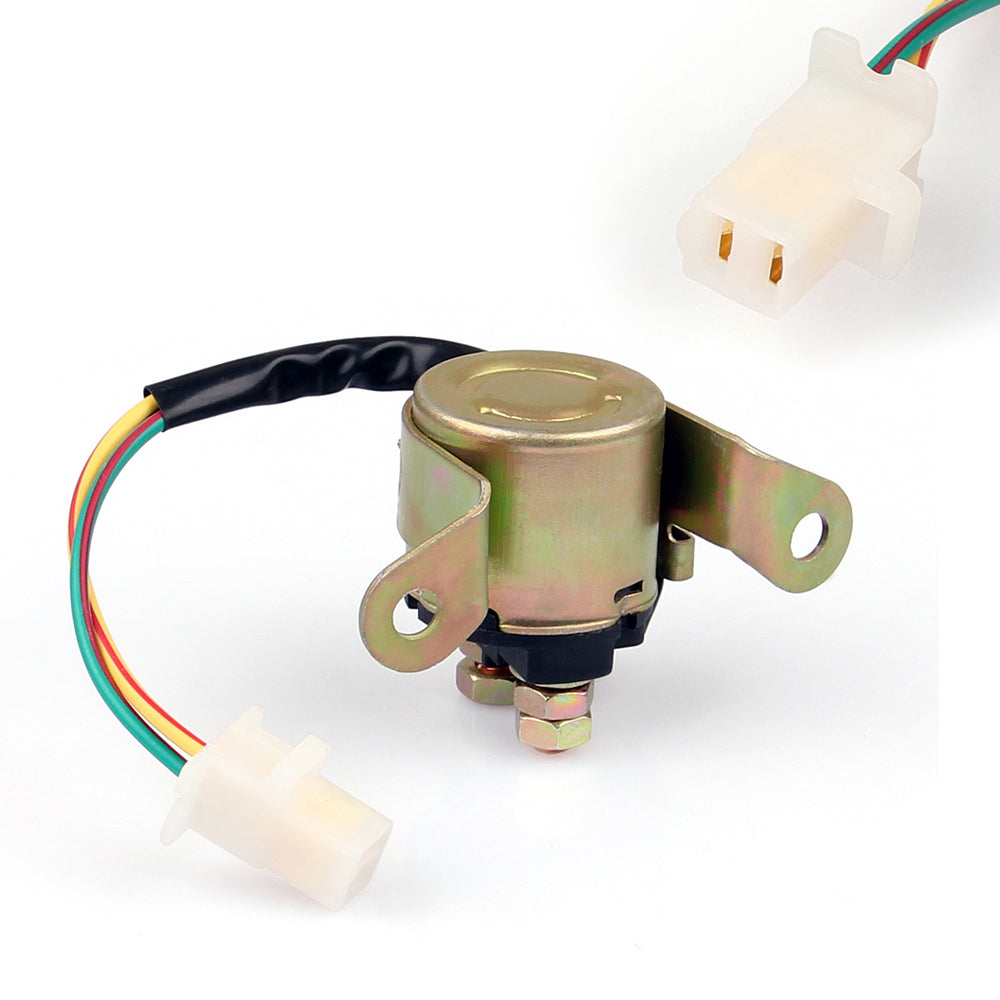

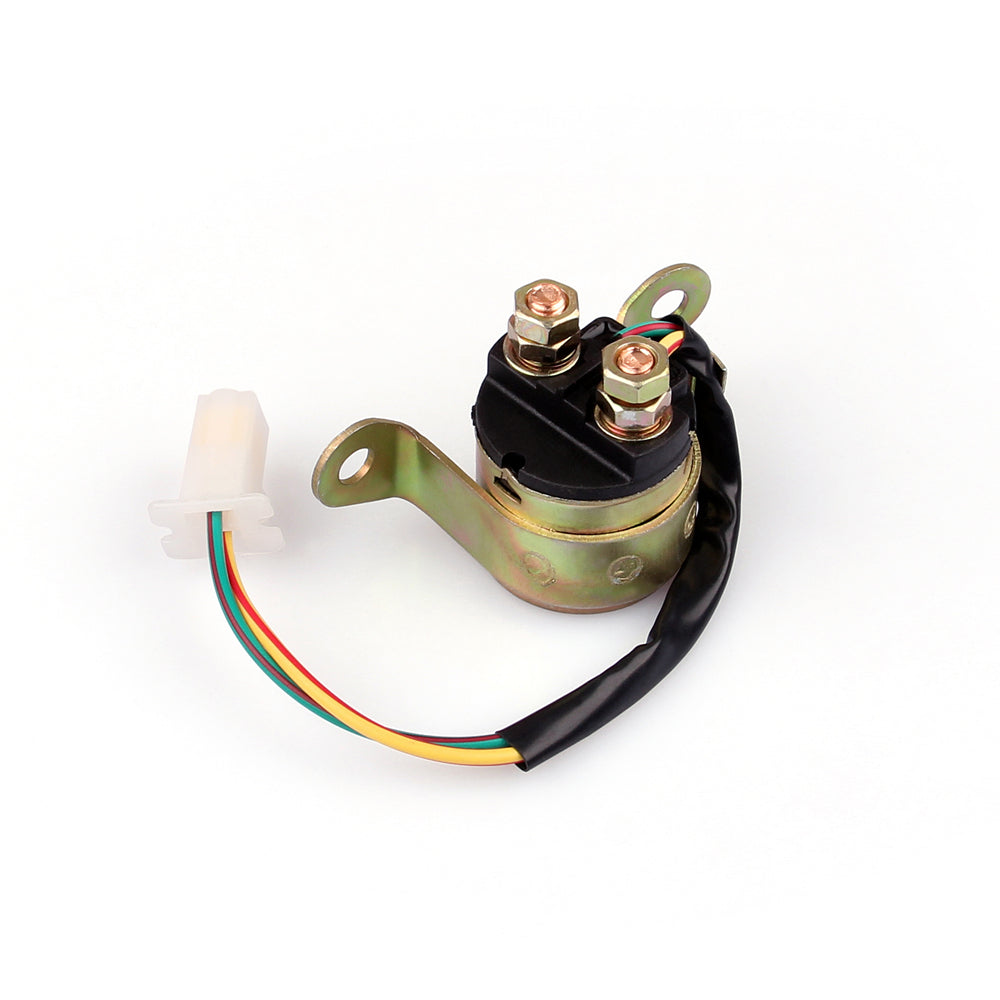

97-07 SUZUKI DR200SE Starter Solenoid Relay 31800-15500 31800-15501
Choose options
FEATURES:
Aftermarket Starter Relay Solenoid.
In most cases this is a direct bolt on part.
HOWEVER you made need to modify the mounting position and the wiring connections to allow it to work on your Motorcycle.
Rubber shell protection against leakage damage.
Stable characteristics, high reliability.
High class quality and very durable.
Mounting bracket NOT included,Installation Instruction NOT Included.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Color: Same As Picture Show
Material: Plastic & Metal
OEM Replacement Part Number:
31800-15501
31800-15500
FITMENT:
Fits Suzuki DR200SE 1997-2007
Fits Suzuki DR125SE 1994-1996
Fits Suzuki GS750ED 1983
Fits Suzuki GS1100GD 1983
Fits Suzuki GS700 1985
Fits Suzuki GR650D GR650XD TEMPER 1983
Fits Suzuki GV700GLF MADURA 1985
Fits Suzuki GV1400 VS700 1986-1987
Fits Suzuki GV1200 GV 1200 MADURA 1985-1986
Fits Suzuki VS800GLV INTRUDER 1992-1997
Fits Suzuki VX800 VX800P MARAUDER 1990-1993
Fits Suzuki VS750 INTRUDER 1988-1991
Fits Suzuki VS800GL INTRUDER 1993-2005
Fits Suzuki VS800 INTRUDER 2006-2009
PACKAGE INCLUDED:
1x Starter Relay Solenoid
Installation Instruction NOT Included
TESTING PROCEDURE:
Make SURE the Motorcycle is in NEUTRAL!!! Even with the ignition OFF!
Before pulling an old solenoid off a Motorcycle, you can test it.
Applying 12 volts to the two wires inside the plastic connector, the solenoid is polarity sensitive.
Applying 12 volts in the wrong polarity doesn't hurt the solenoid, it simply won't work.
When the 12 volts are applied to the two small wires correctly:
If the starter cranks, the solenoid, the battery and the starter are all good.
If the solenoid makes an audible click sound but your starter doesn't crank, the solenoid is good.
NOTE:
This is an Aftermarket Replacement Part BUT NOT Genuine.
This may or may not be a direct fit for the Motorcycles listed below!
However, given the cost of an OEM replacement we think it's well worth the time you may spend installing it.
See pictures for additional measurements to ensure this is the right starter relay for you!
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
