Yamaha XT600E TT600E 1996-1998 Stator Generator Regulator Rectifier Gasket

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:
Stator
Number of wires: 6

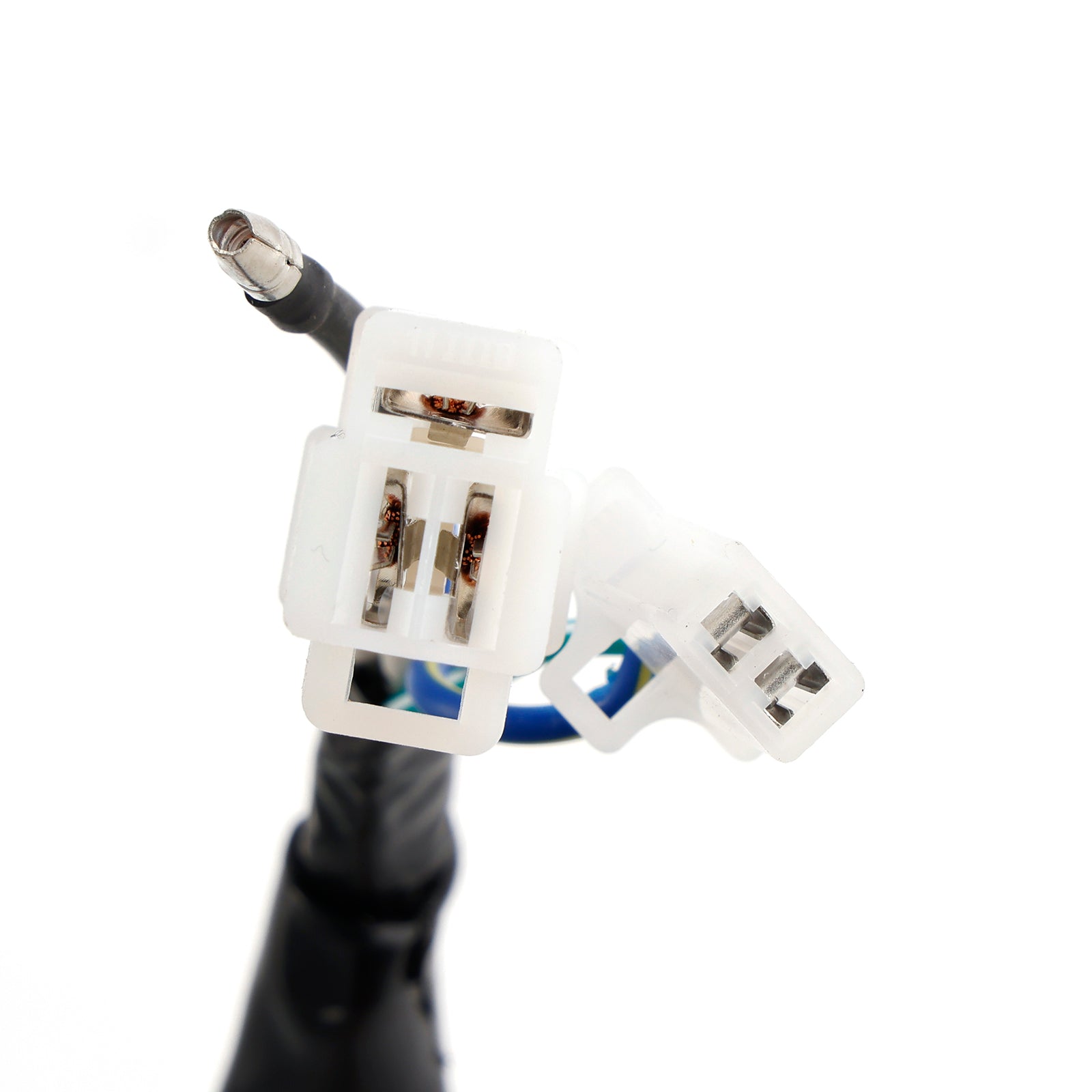

Number of plugs: 2
Number of pins: 2 + 3 + 1
Number of fixation holes: 5
Number of poles: 18

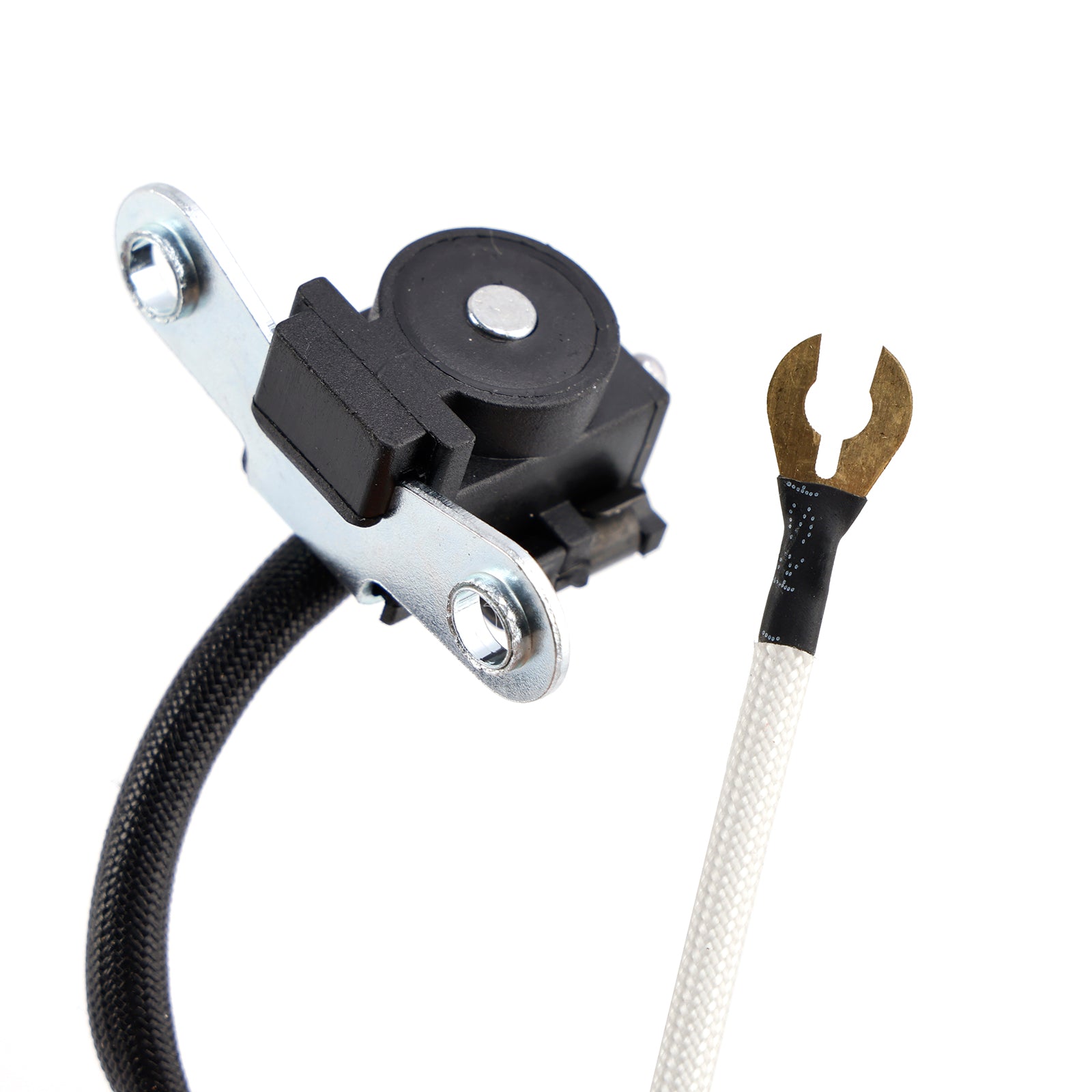

Pick up pulsar coil included.

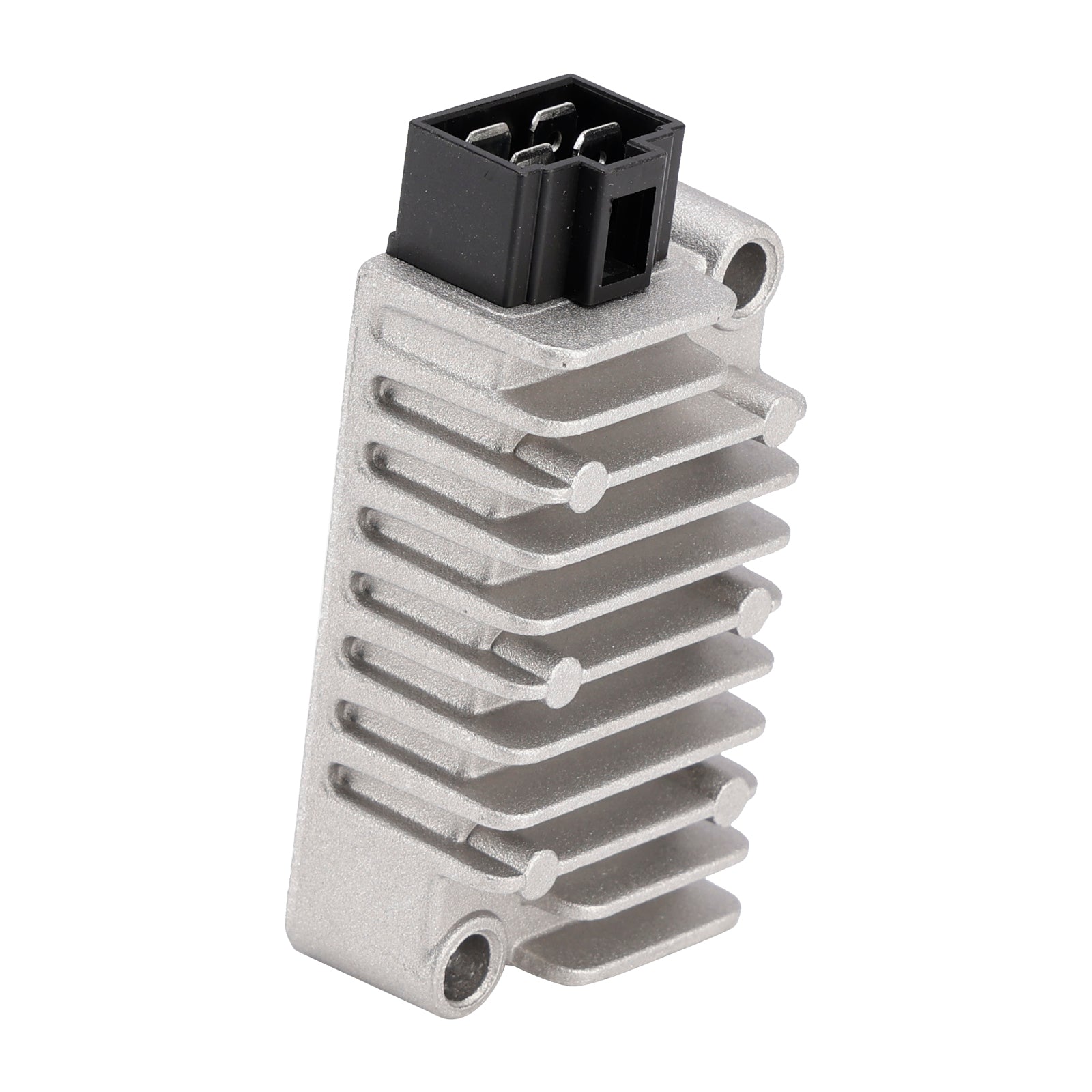

Regulator

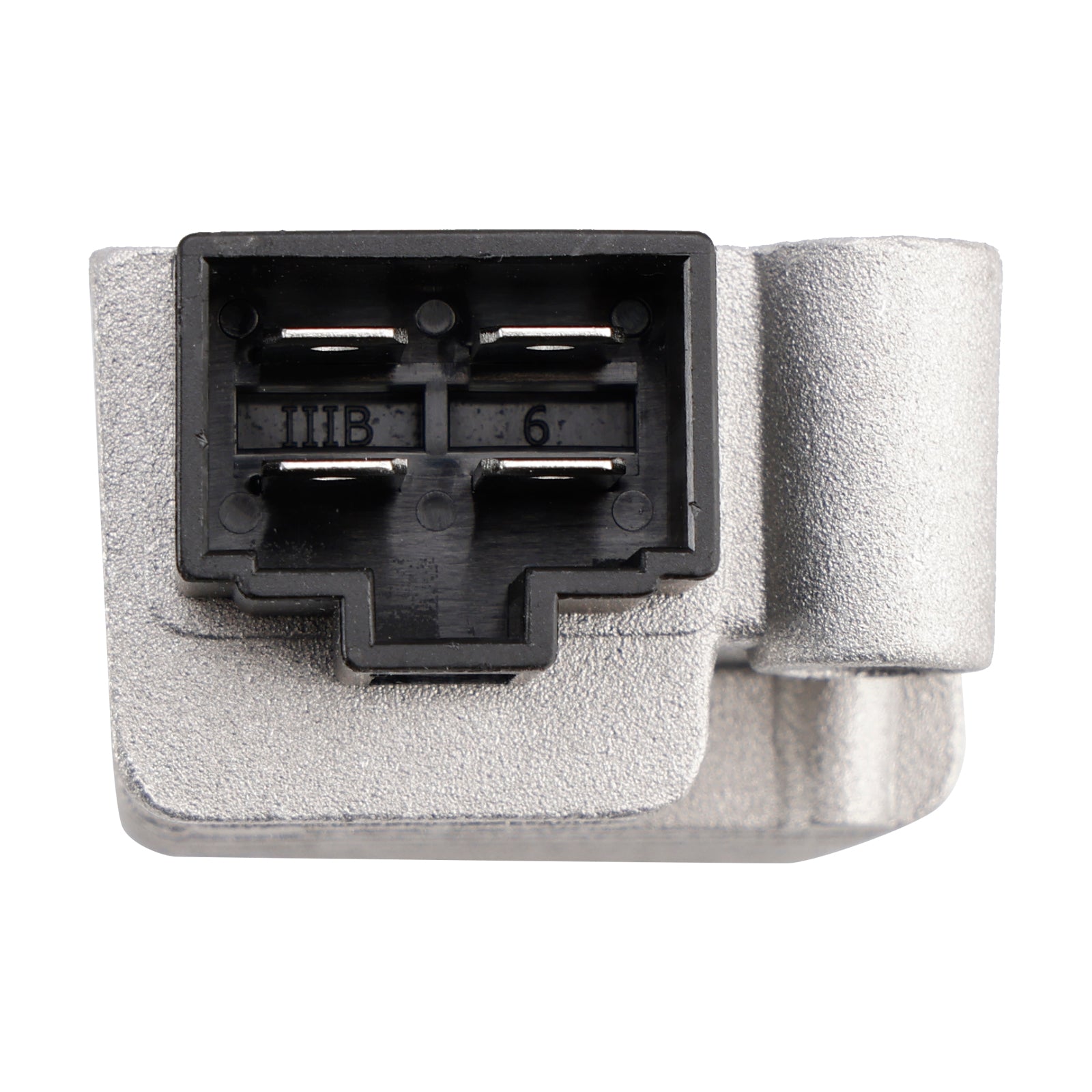

Number of plugs: 1
Number of pins: 4

Please compare the number of pins and plugs with the old part before purchasing.

Replacement Part Number:
Stator Assy : 3TB-81410-00, 3TB-81410-01

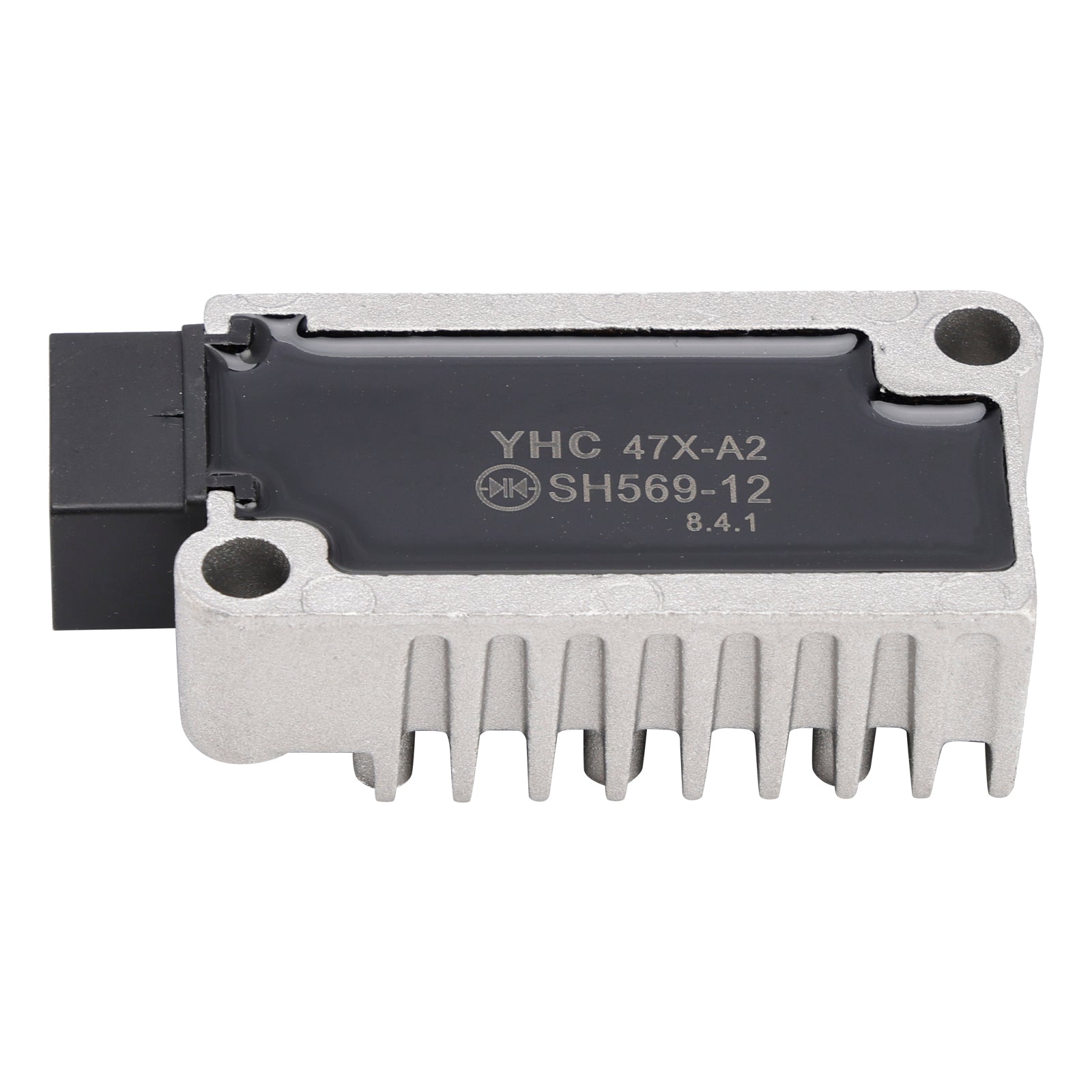

Rectifier, regulator : 47X-81960-A1, 47X-81960-A3, 3TJ-81960-02

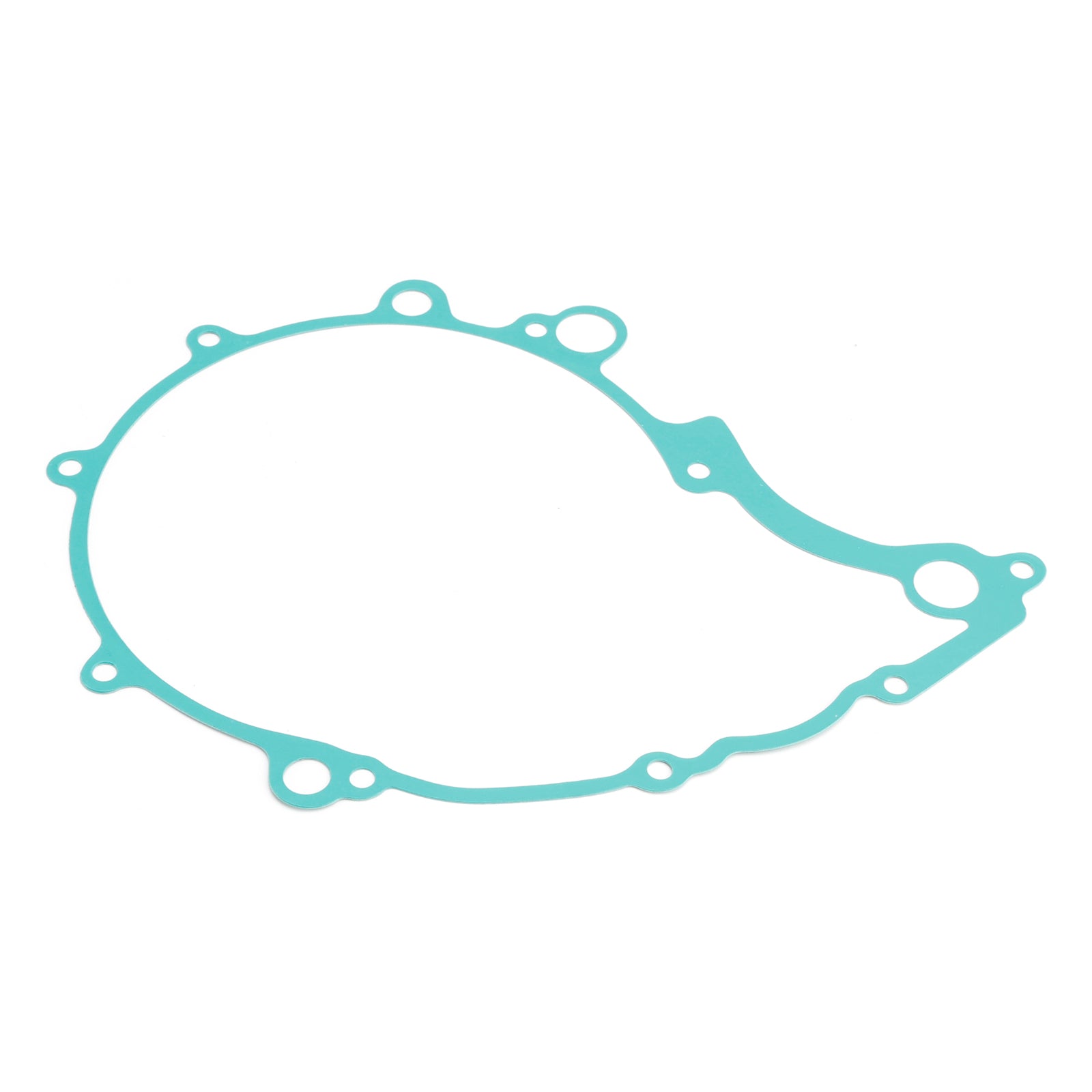

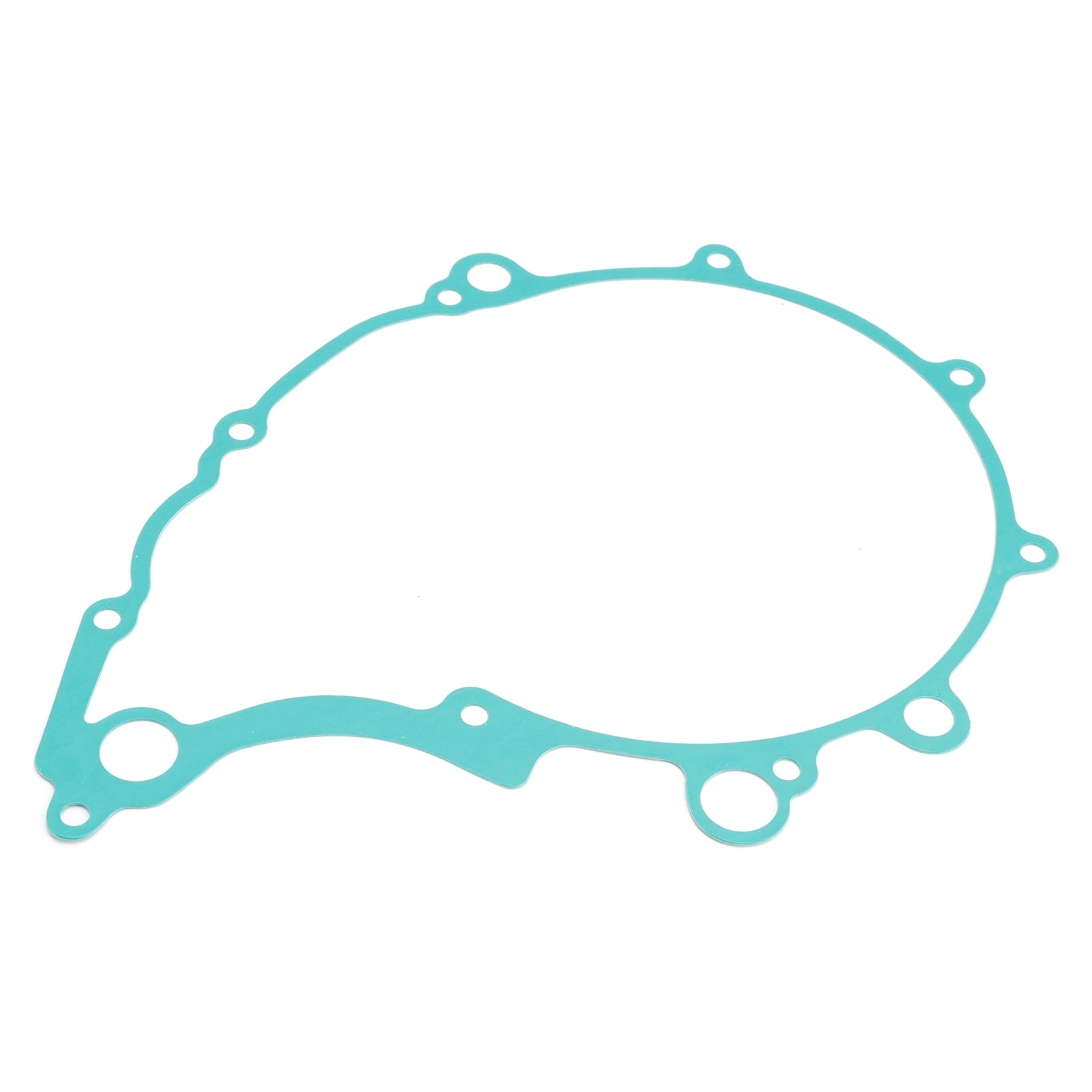

Gasket, generator cover : 1VJ-15451-00,4DW-15451-00

(Always compare part numbers to your parts schematics and cross reference appropriately.)

Fits Make/Model/Year:
Fit for Yamaha XT400E Artesia 1991-1992
Fit for Yamaha XT500E 1990/1992-1994
Fit for Yamaha XT600E 1990-1995
Fit for Yamaha XT600EA 1990
Fit for Yamaha XT600EAC 1990
Fit for Yamaha XT600EB 1991
Fit for Yamaha XT600EBC 1991
Fit for Yamaha XT600ED 1992
Fit for Yamaha XT600EDC 1992
Fit for Yamaha XT600EE 1993
Fit for Yamaha XT600EEC 1993
Fit for Yamaha XT600EF 1994
Fit for Yamaha XT600EFC 1994
Fit for Yamaha XT600EG 1995
Fit for Yamaha XT600EGC 1995
Fit for Yamaha XT600E XT600 1992-2000/2002
Fit for Yamaha TT600E 1994/1996-1998
Fit for Yamaha TT600RE 2004

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

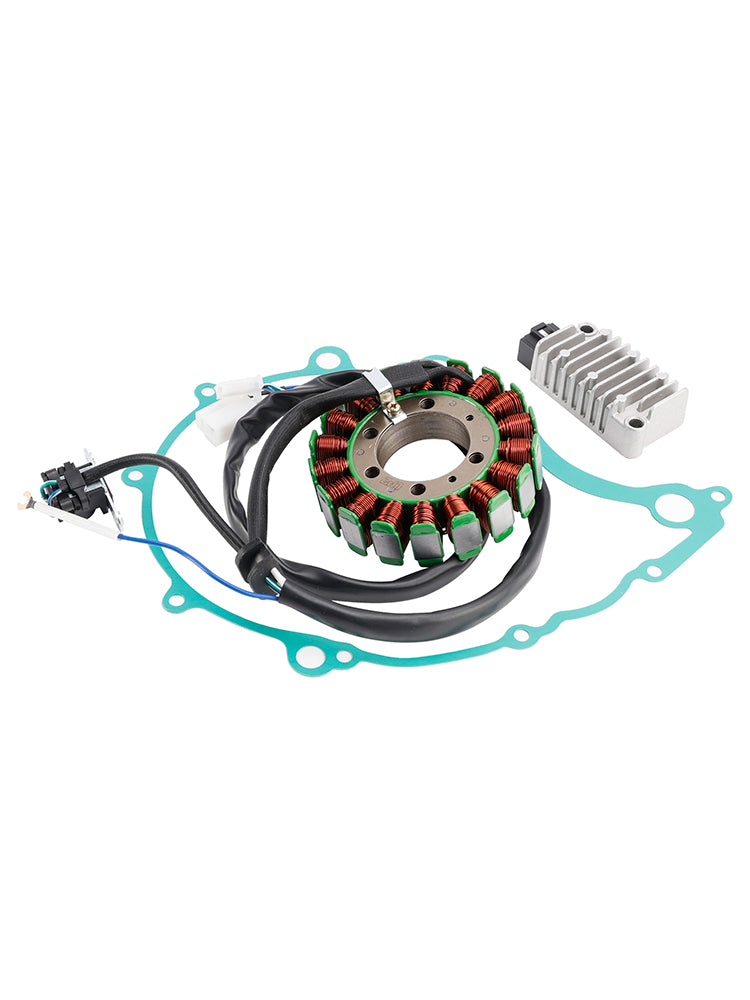

Package Includes:
1 x 18-Pole Generator Stator
1 x 4-Pin Voltage Regulator
1 x Crankcase Gasket

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
