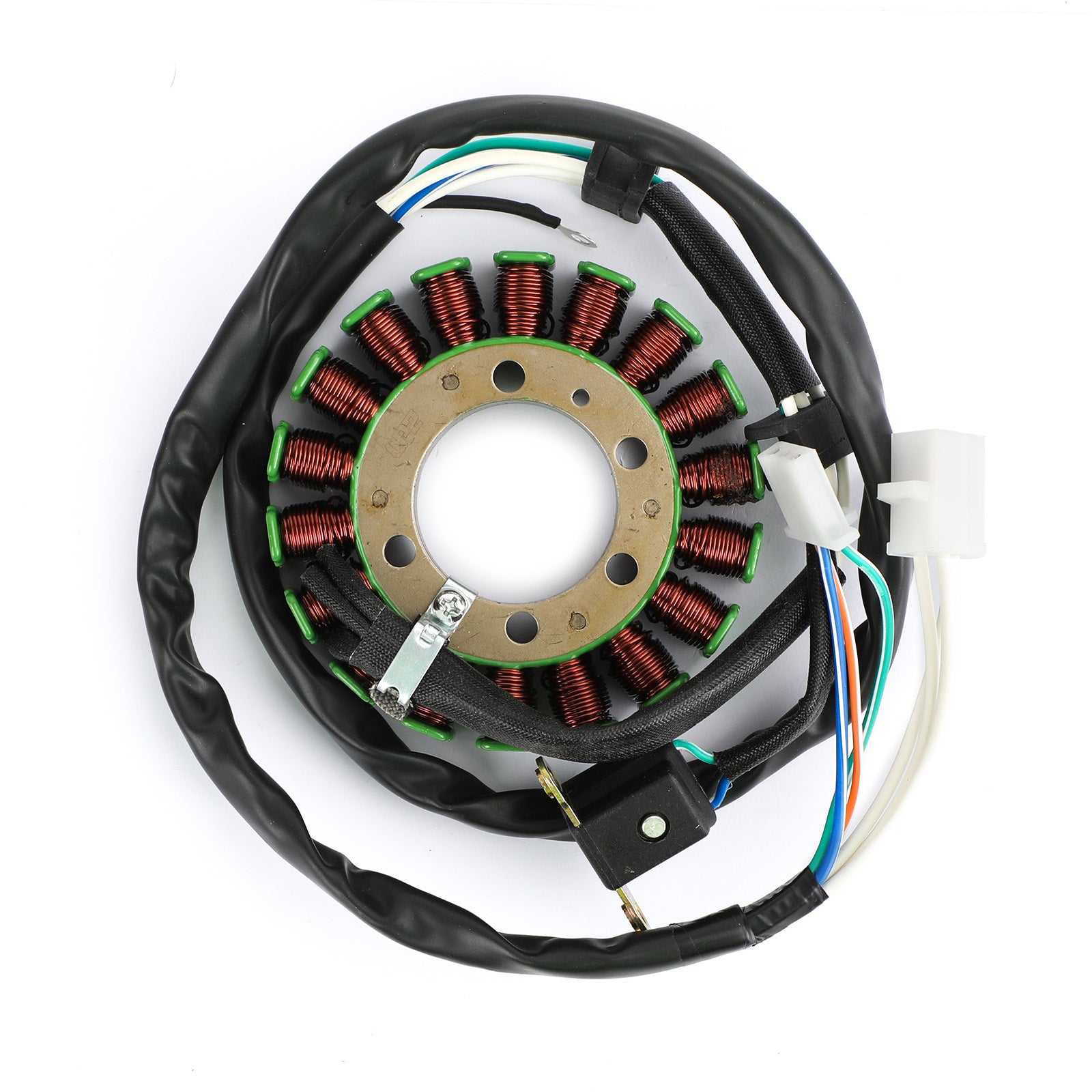

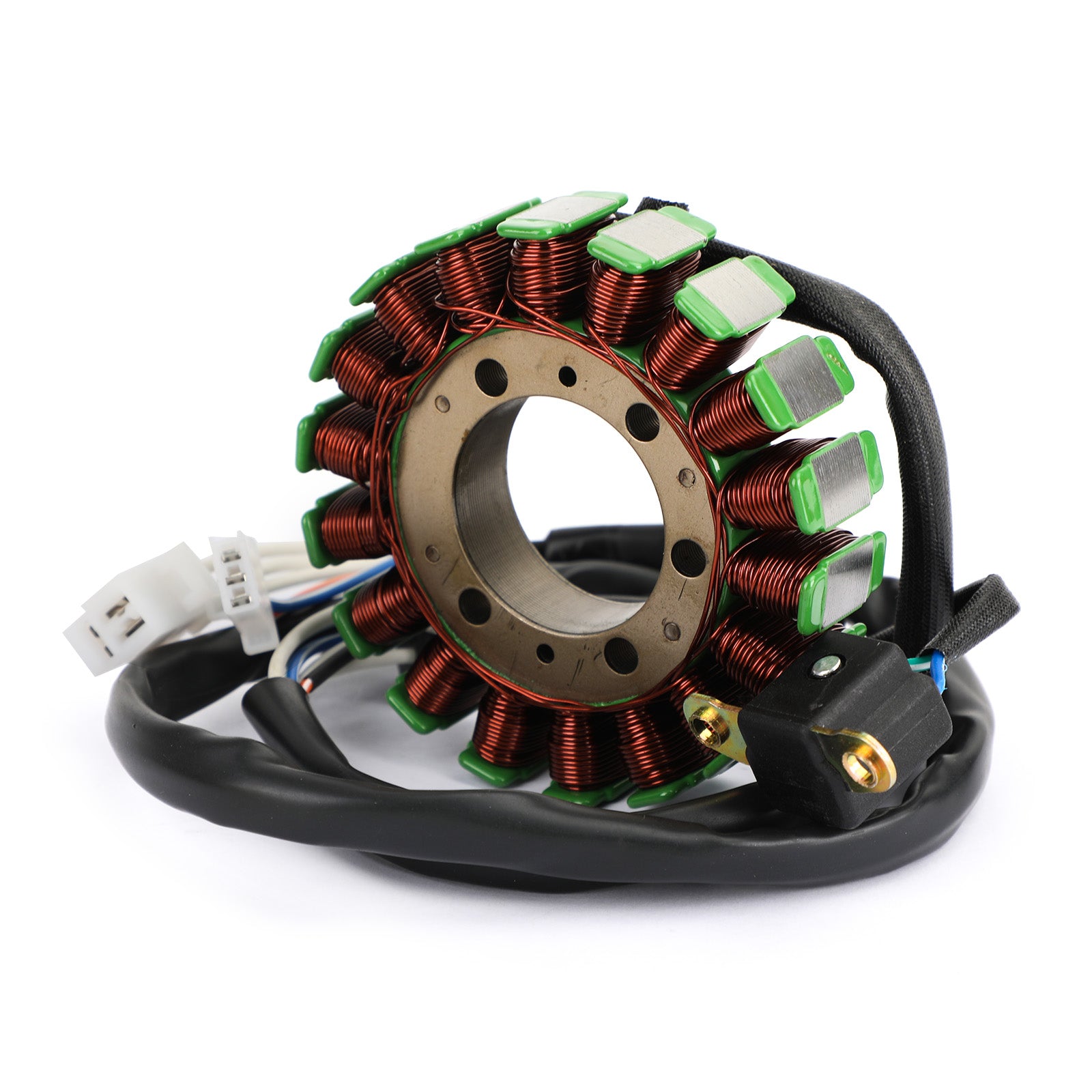

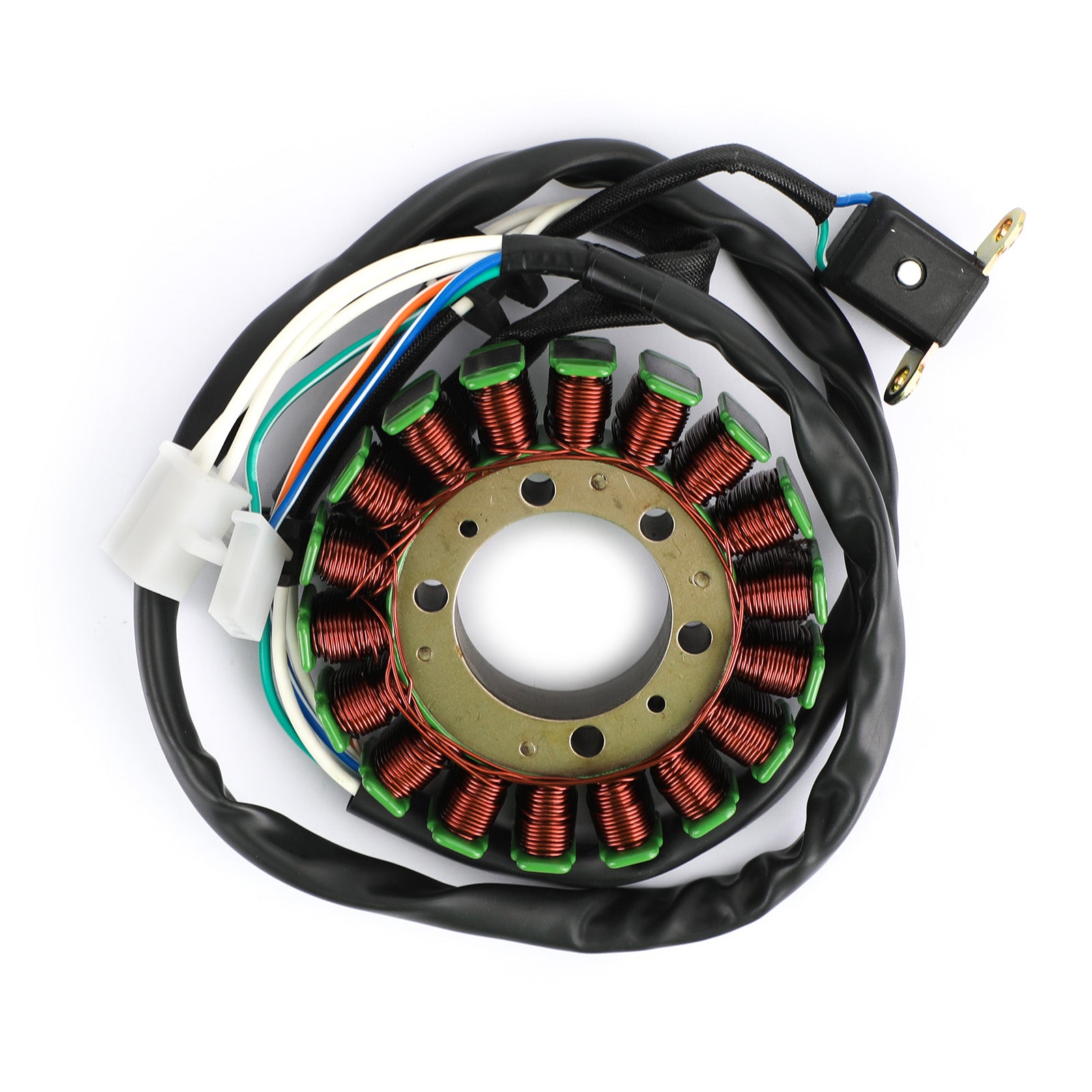

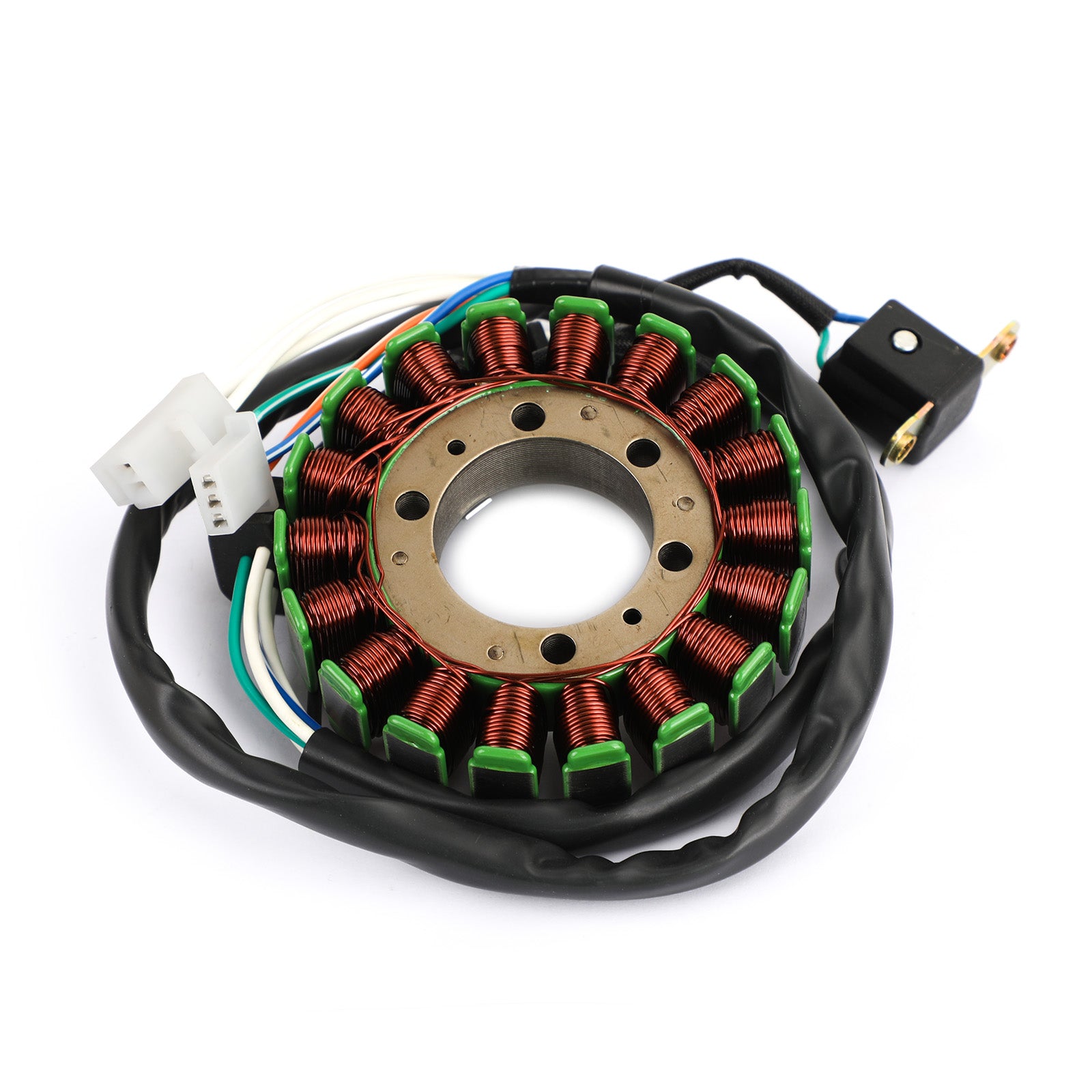

Magneto Generator Engine Stator Coil Fit For Yamaha XVS 125 250 Drag Star 2000-2006 5JX-81410-00-00

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC
Type: Generator Stator Coil

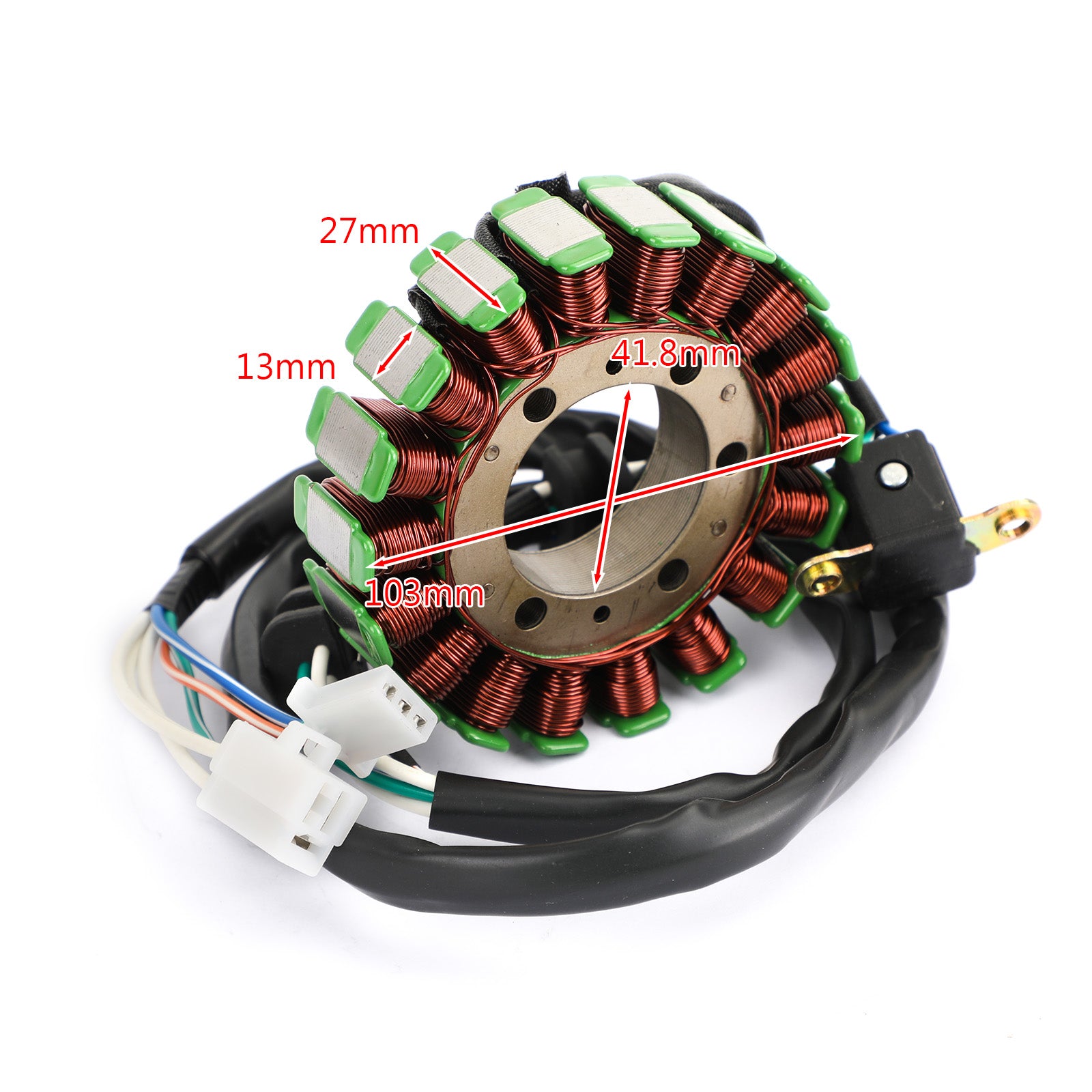

Dimensions :
Interior diameter : 41.8mm
Exterior diameter : 103mm
Pole's Thickness : 27mm
Pole's Width : 13mm

Other Specifications :
Number of wires: 6
Number of pins: 6(+1)
Number of plugs: 3
Number of fixation holes: 5
Number of poles: 18

REPLACEMENT PART NUMBER: 5JX-81410-00-00

Fitments:
Fit for Yamaha XVS125 Drag Star 2000-2004
Fit for Yamaha XVS250 Drag Star 2000-2006
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Package Included: 1 x Generator Stator Coil

NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
