Replacement Part Number:
31120-HC4-003
31120-HC4-004
31120-HC4-014
31120-HC4-750
Please confirm the Replacement Part Number before ordering.
Fitment:
For Honda TRX300 FOREMAN 2X4/4X4 1988-2000
For Honda TRX300 BigRed 300 1988-2000
For Honda TRX300 FourTrax 300 1988-2000
Dimensions:
Interior diameter : 34 mm / 1.34 inches
Exterior diameter : 92 mm / 3.63 inches
Thickness : 11 mm / 0.44 inches
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1PC

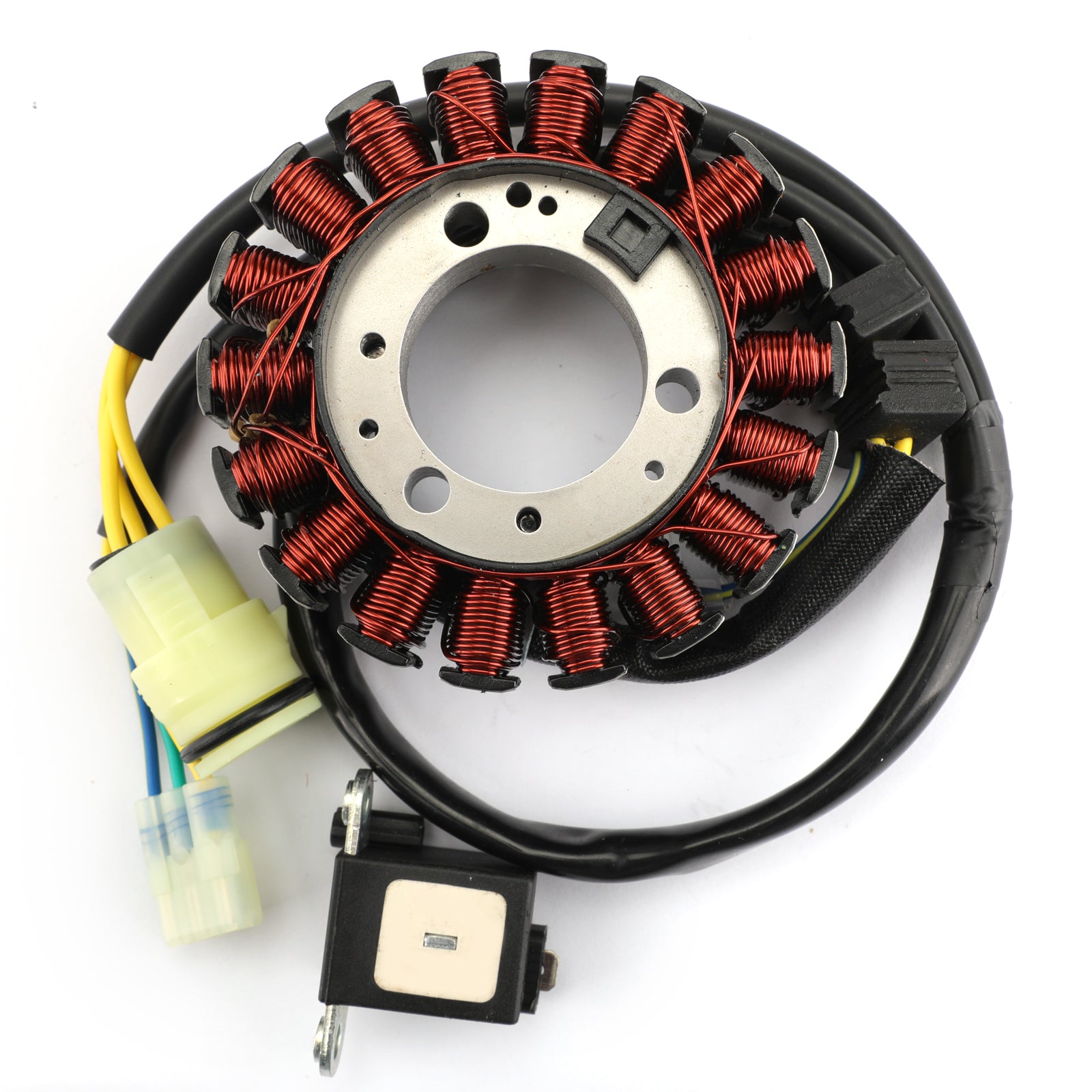

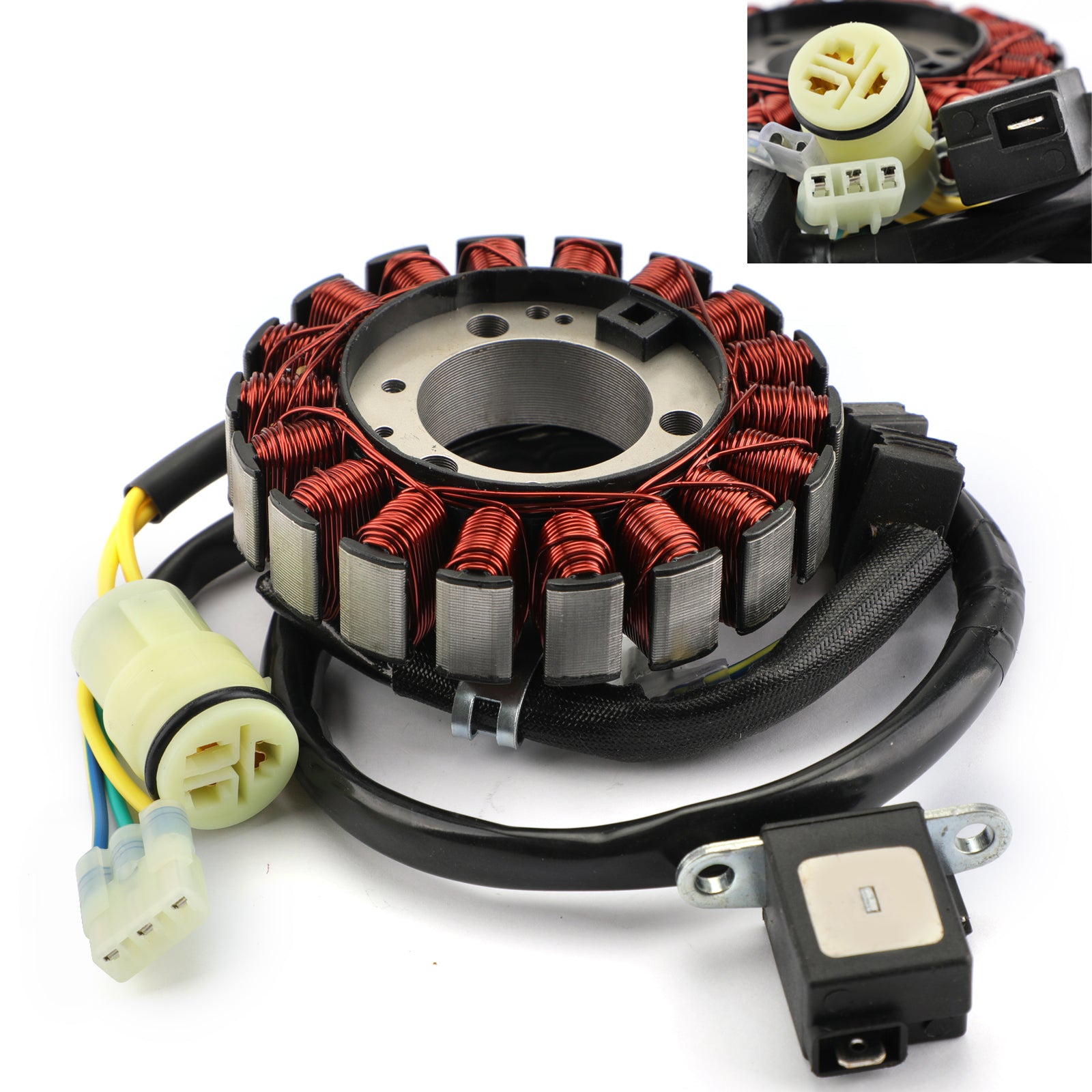

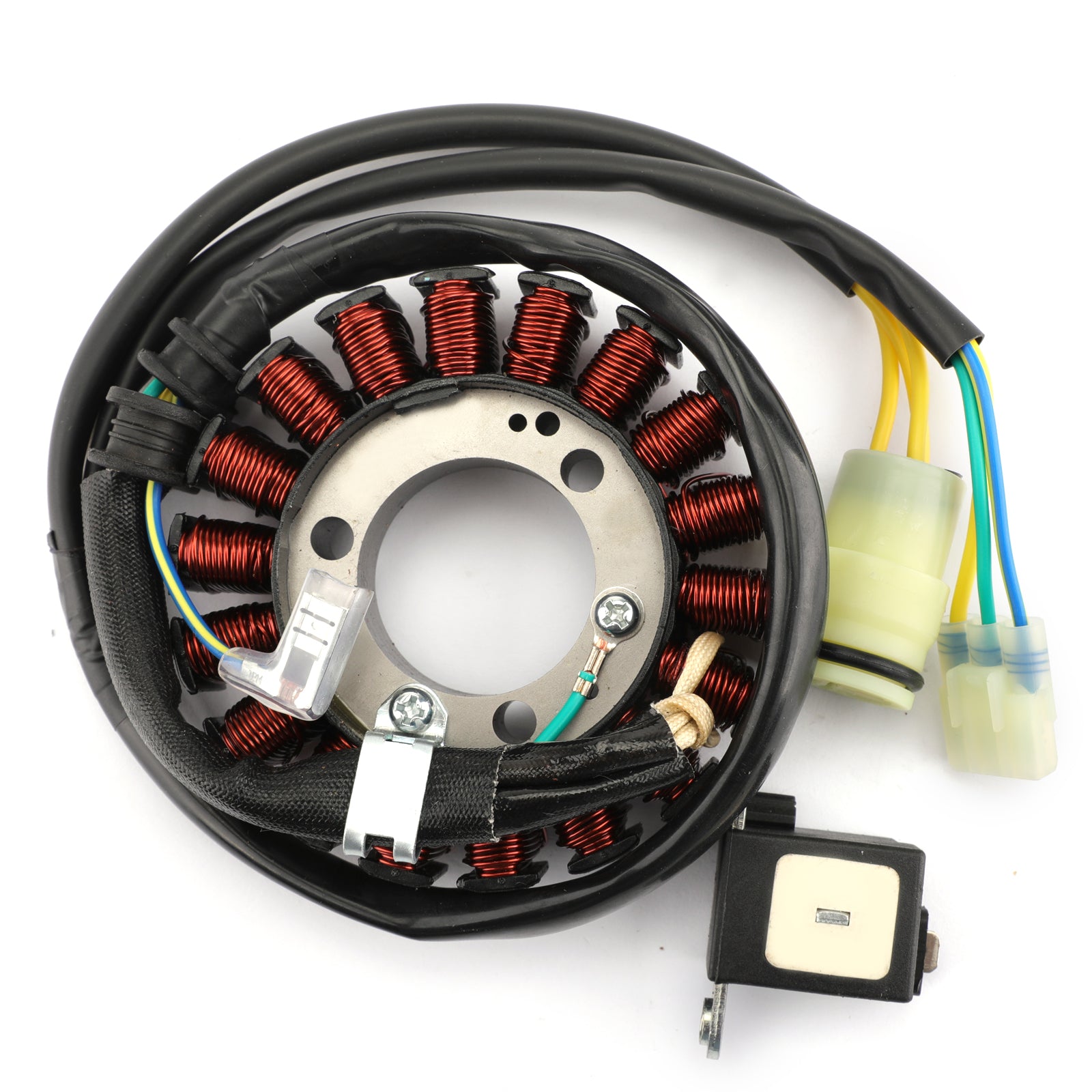

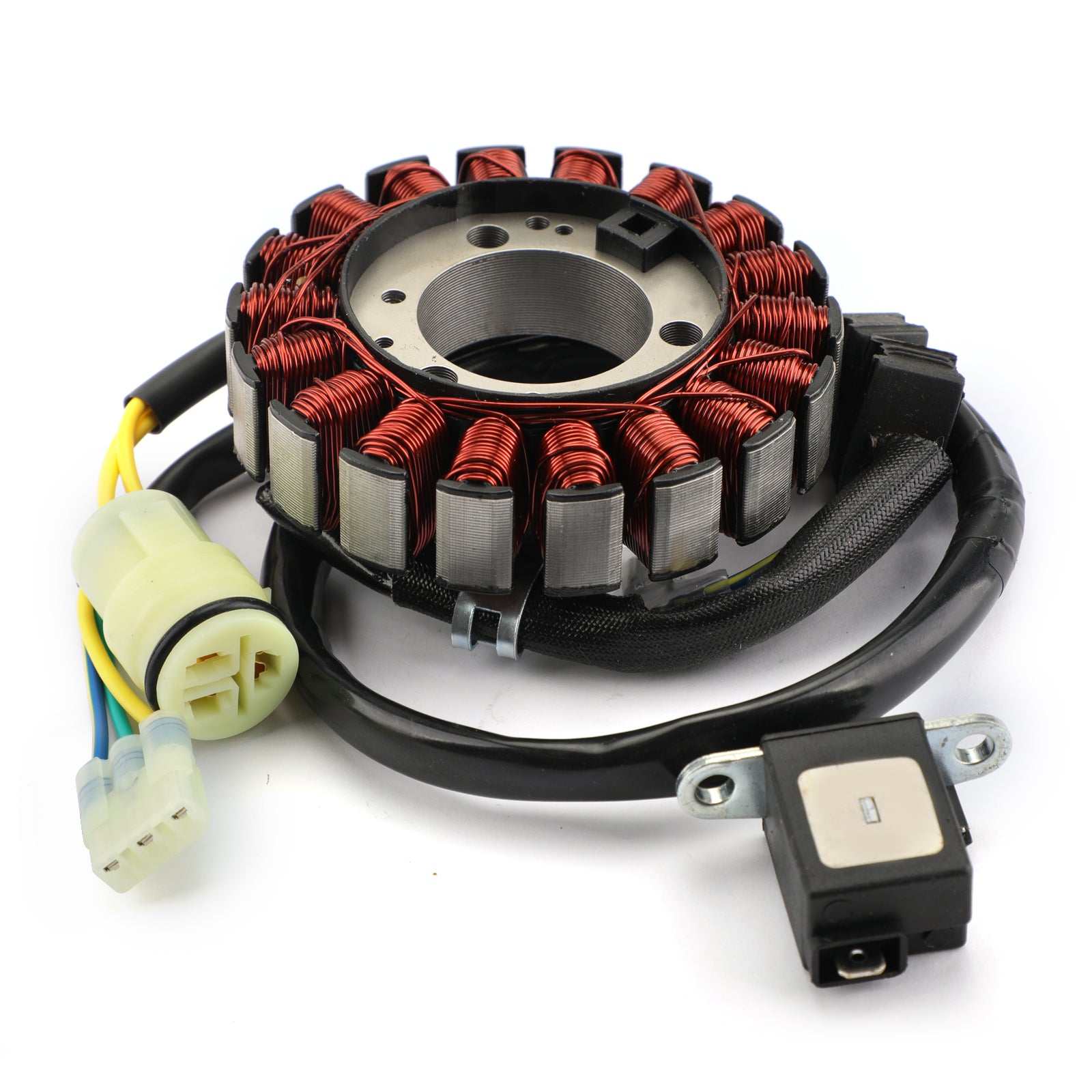

Type: Generator Stator Coil
Other specifications:
Number of wires: 6
Number of pins: 7
Number of plugs: 3
Number of fixation holes: 3
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

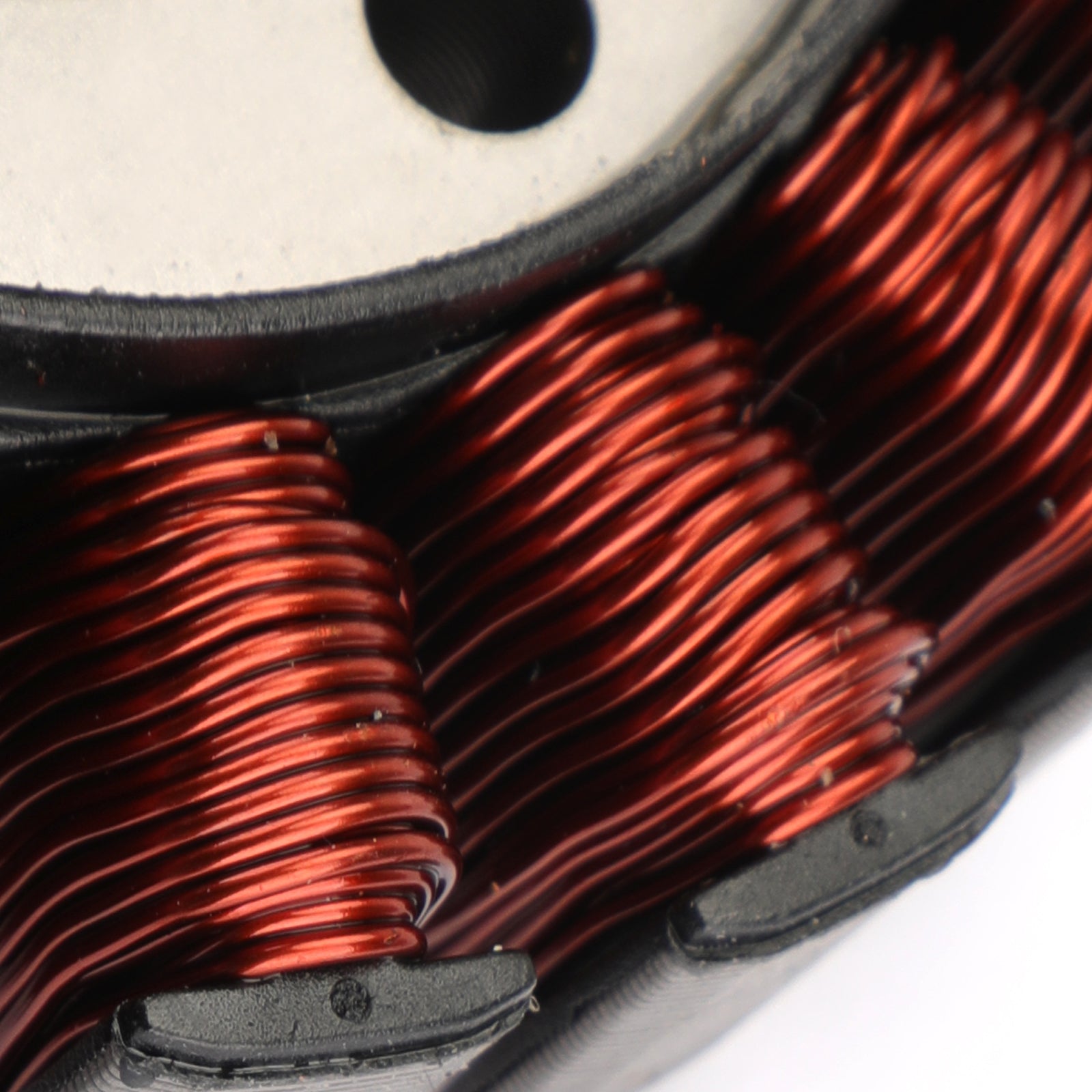

Highest grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
Package Incleded:
1 x Generator Stator Coil
Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
