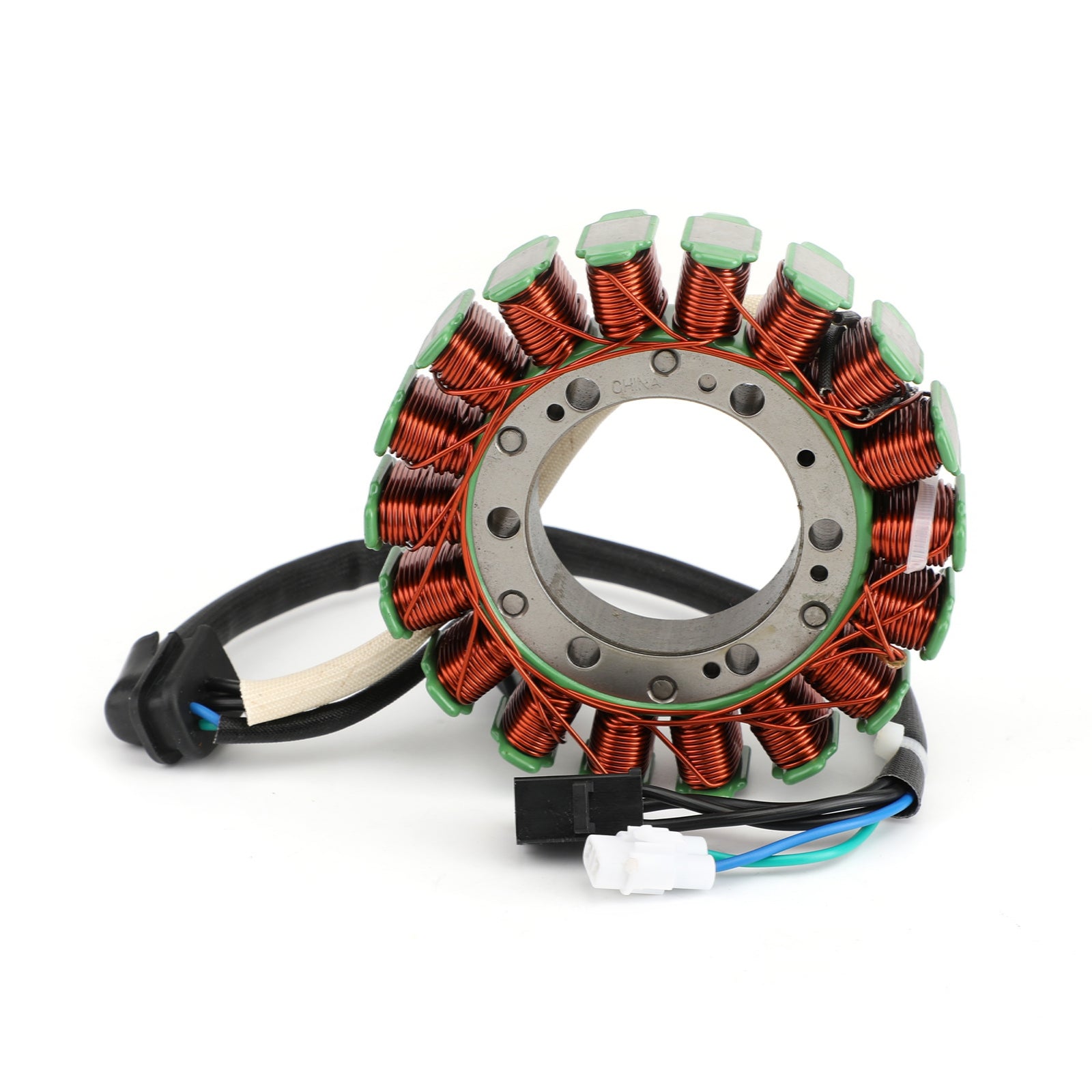

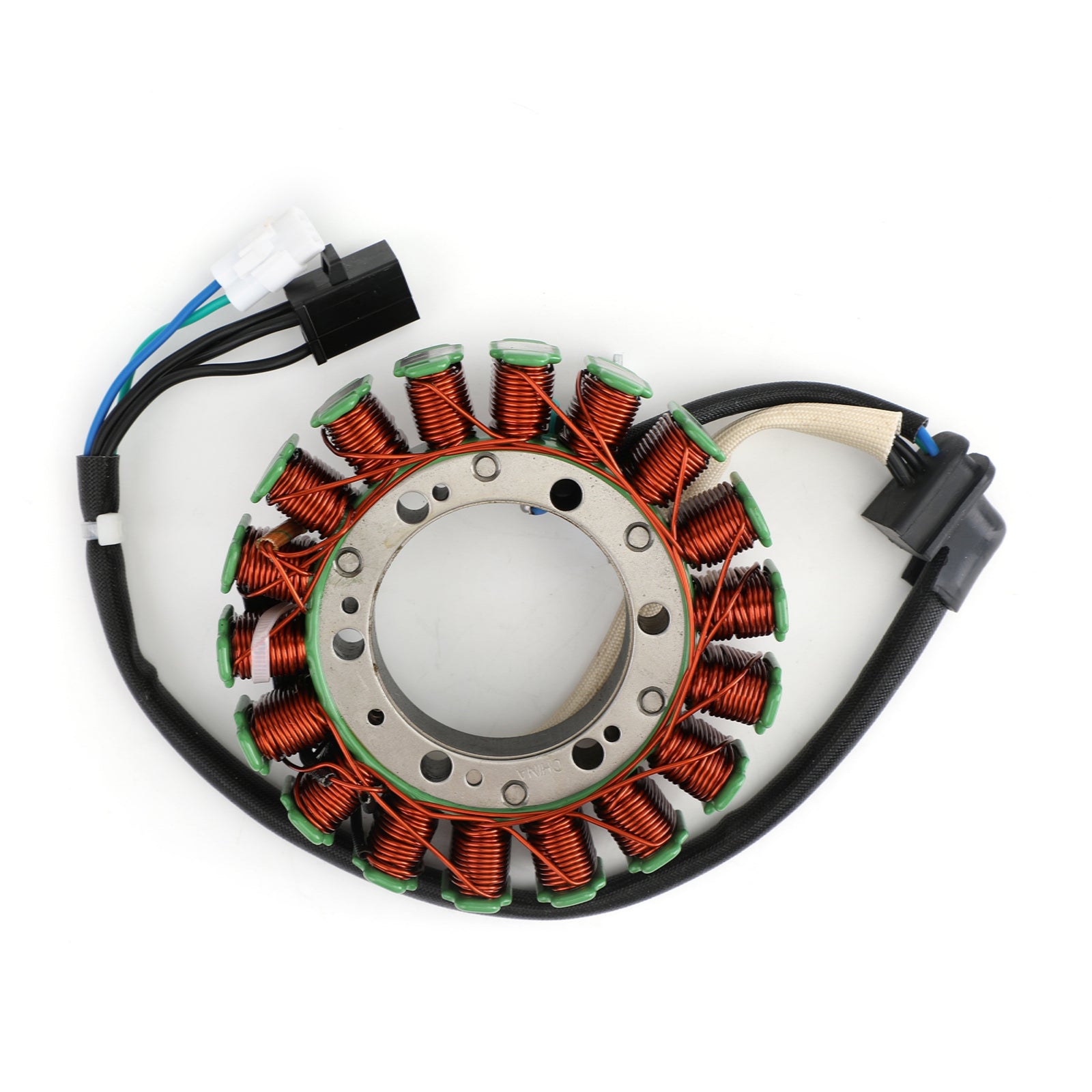

Magneto Generator Engine Stator Coil Fit For Arctic Cat Thundercat 1000 2008-2010 TBX700 2010-2012 1000 2011-2012 700 GT 2012
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quantity: 1x Generator Stator Coil
Type: Generator Stator Coil
Replacement Part Number: 0802-041
Dimensions :
Interior diameter : 55mm / 2.16"
Exterior diameter : 118.5mm / 4.66"
Pole's Thickness : 30.6mm / 1.20"
Pole's Width : 15mm / 0.59"
![Magneto Generator Engine Stator Coil Fit For Arctic Cat Thundercat 1000 2008-2010 TBX700 2010-2012 1000 2011-2012 700 GT 2012](https://cdn.shopify.com/s/files/1/0524/8273/6299/files/M550-A355-2.jpg?v=1658540373)
Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 6(+3)
Number of poles: 18
FITMENT:
For Arctic Cat ATV 700 700 GT 2012
For Arctic Cat ATV 700 H1 EFI 2008-2012
For Arctic Cat ATV 700 Limited 2012
For Arctic Cat Prowler 550 2009-2014
For Arctic Cat Prowler 700 2008-2012
For Arctic Cat Prowler 1000 2009-2014
For Arctic Cat 550 EFI F/C 2010-2013
For Arctic Cat 1000 2011-2012
For Arctic Cat 1000 XT 2013-2014
For Arctic Cat Mudpro 700 2009-2012
For Arctic Cat Mudpro 1000 2010-2012
For Arctic Cat TRV 550 2010-2013
For Arctic Cat TRV 700 2009-2012
For Arctic Cat TRV 1000 2010-2012
For Arctic Cat TBX700 2010-2012
For Arctic Cat Thundercat 1000 2008-2010
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
