Cylinder Piston Rings Gaskets Kit Fit For Honda CRF230M 2009 CRF230L 2008-2009 XR230 2003-2008
Quantity:
Features:

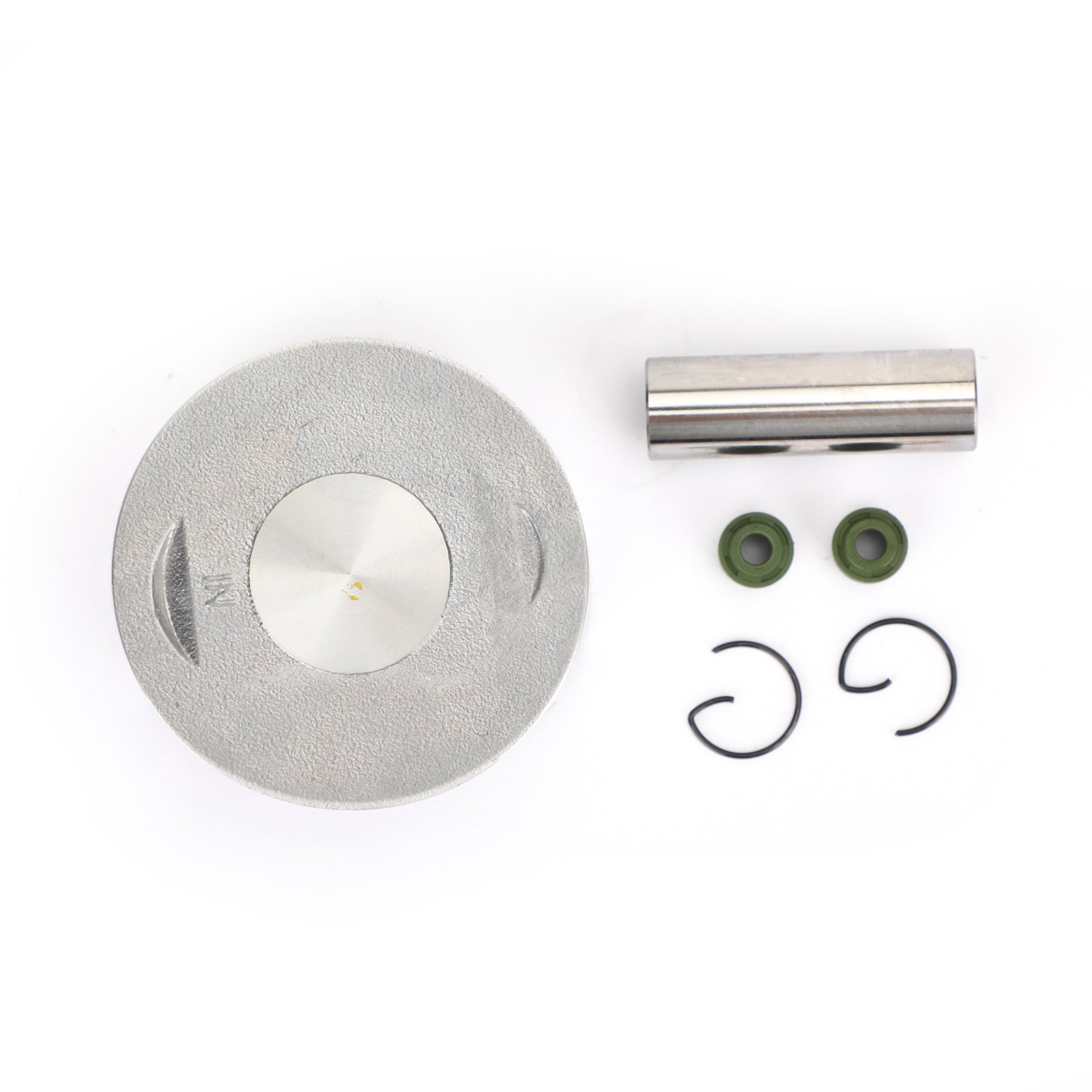

Kit includes piston, rings, pin, clips, & top end gasket kit (you get exactly what is pictured).
Cast piston has super-high silicone content for additional strength.
Piston skirts are Molybdenium Teflon coated to minimize resistance/wear and provide extended life.
Piston dome is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
11:1 Standard compression rati.
All of the components within this kit are bolt-on ready for a hassle free installation.
Specifics:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set

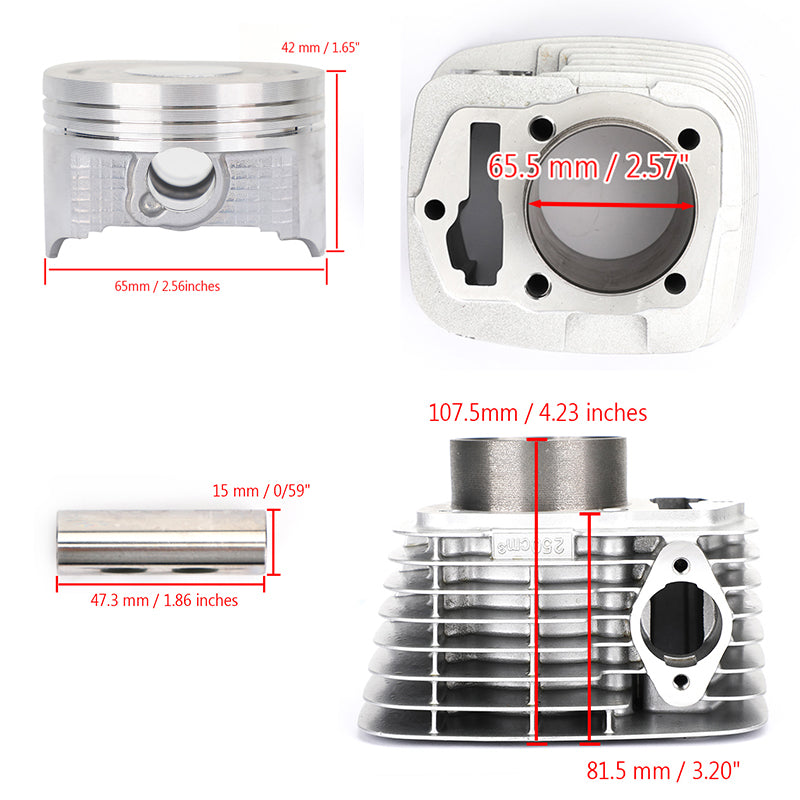

Piston Material: Forged Aluminum
Actual Displacement: 250 cc
Bore size: 65.50 mm
Piston diameter: 65 mm
Piston height: 42 mm
Piston pin diameter: 15 mm
Piston pin height: 47 mm
Cylinder height: 81.5 mm
Overview height: 107.5 mm
Ring groove: 0.8 x 0.8 x 1.5
Replaces Part Number:
Intake Gasket: 16214-KPS-900, 16214-KPS-901
Base Gasket: 12191-KCN-000, 12191-KCN-010
2 x Valve Stem Seals: 12208-413-003
Fitment:
Fit for Honda SL230 1997-2008
Fit for Honda XR230 2003-2008
Fit for Honda CRF230F 2003-2019
Fit for Honda CRF230L 2008-2009
Fit for Honda CRF230M 2009
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Fit for Honda ATC200X 1983-1987 (might be a little big, make sure it is what you want)
Fit for Honda ATC200S 1983-1985 (might be a little big, make sure it is what you want)
Fit for Honda XL200/XR200s 1979-1983 (might be a little big, make sure it is what you want)
Fit for Honda XL200/XR200s 1986-2002 (might be a little big, make sure it is what you want)
It will work for some Honda 250CM3 ATC 200 XL200 ATC 250
(These kit fits most of ATC 200 after 1986, but it is not 100% sure for the older models, might be a little big.
So please check out the bore size and other dimensions to make sure this kit is what you want!)

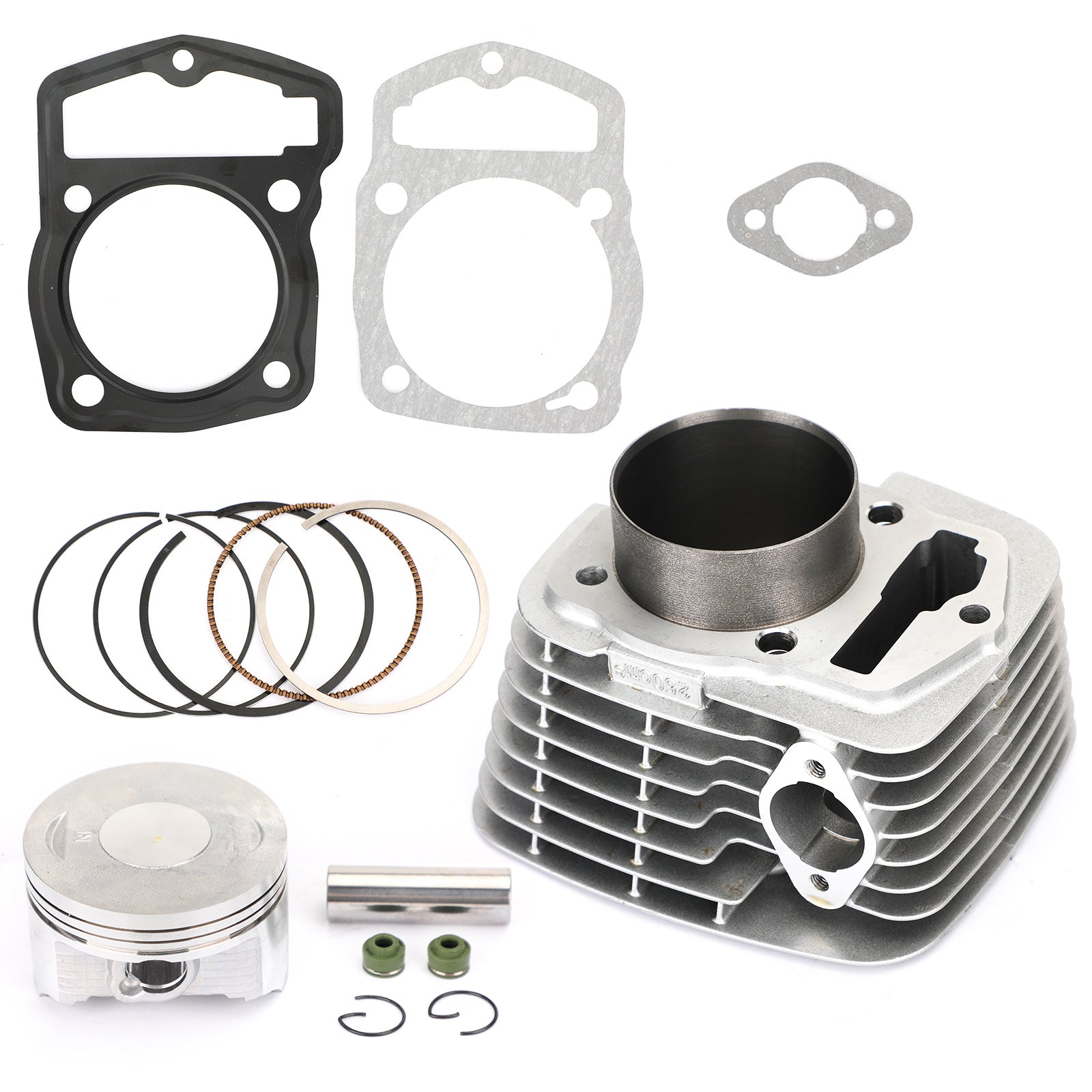

Package Includes:

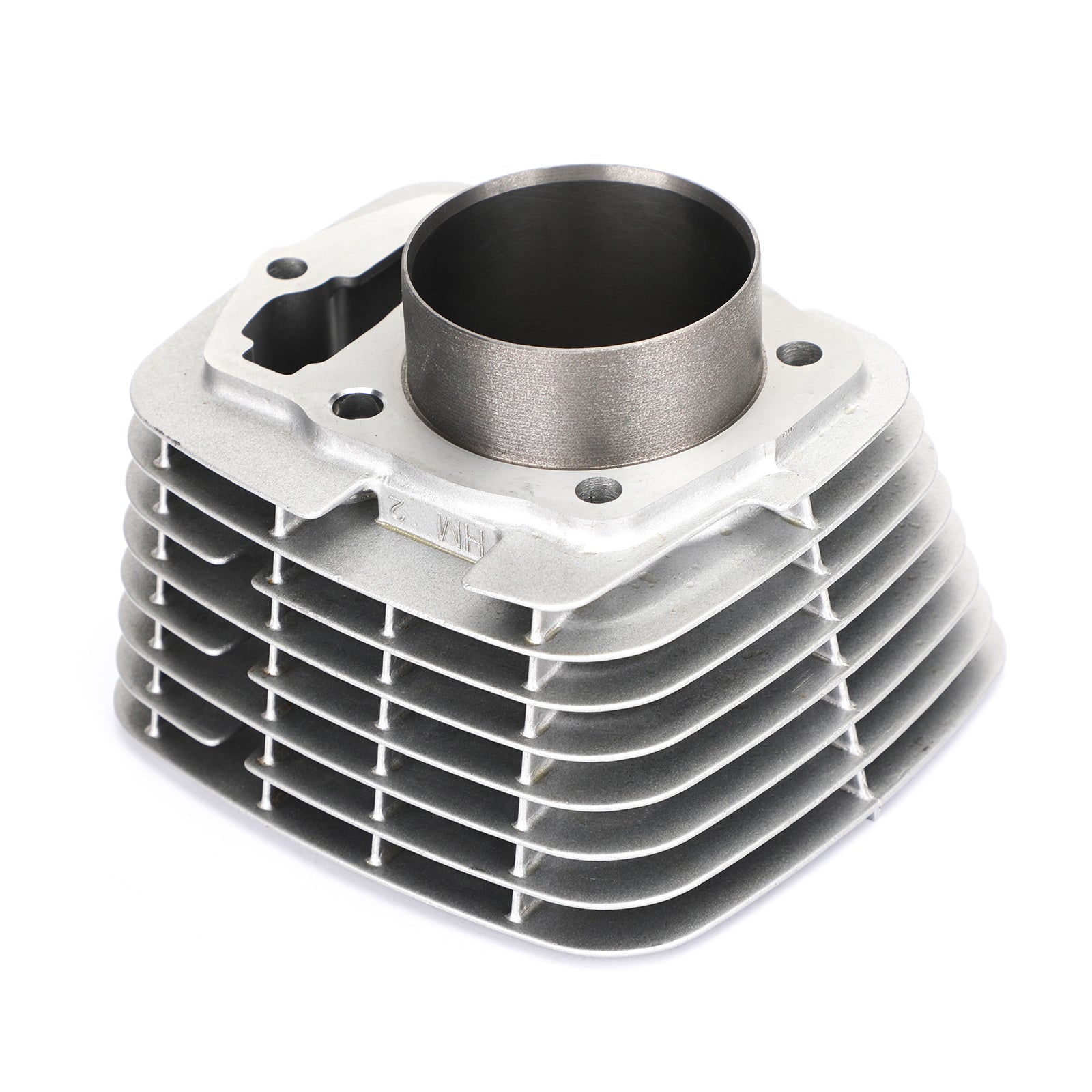

1x Cylinder
1x Piston

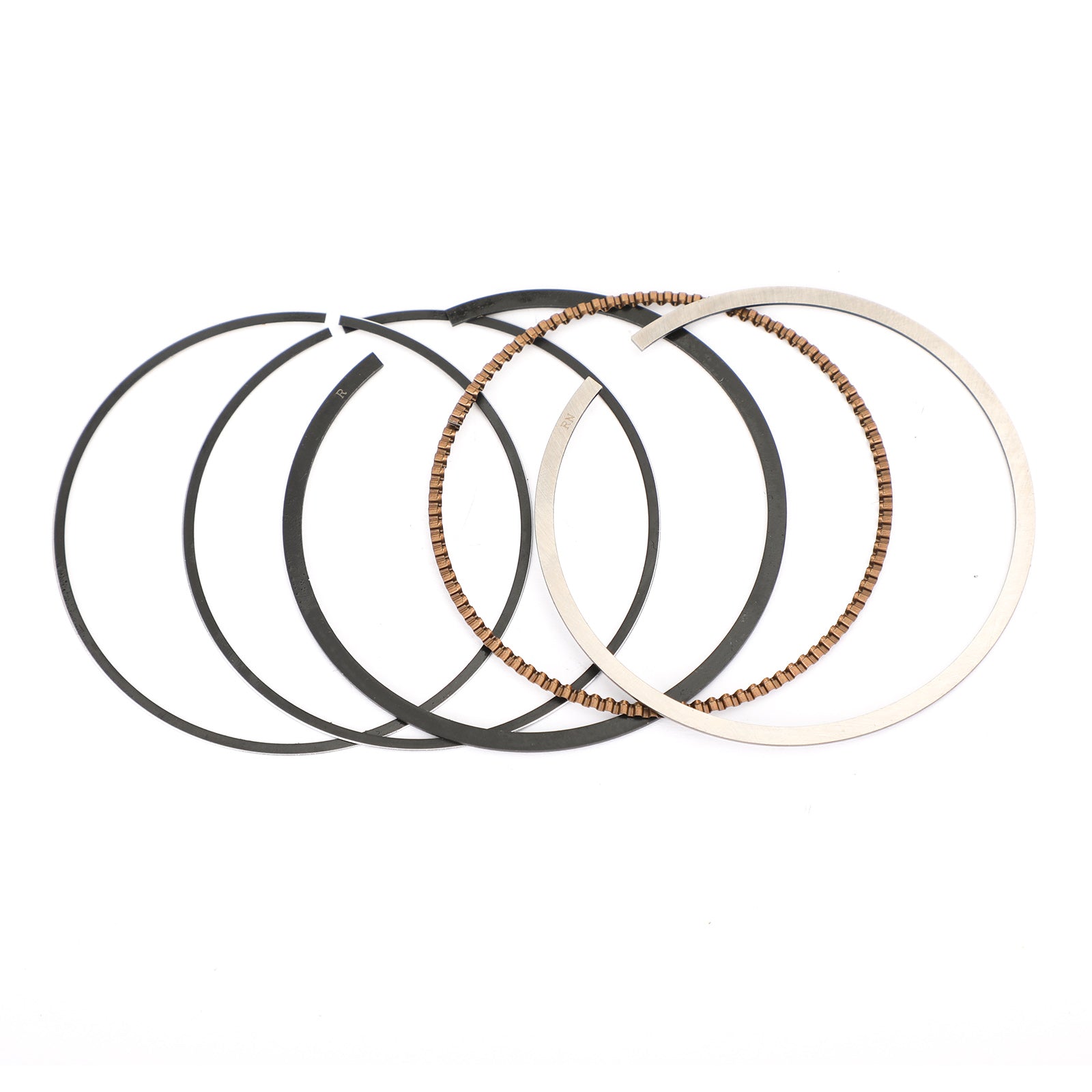

1x sets of Rings
1x Wristpin
2x Circlips

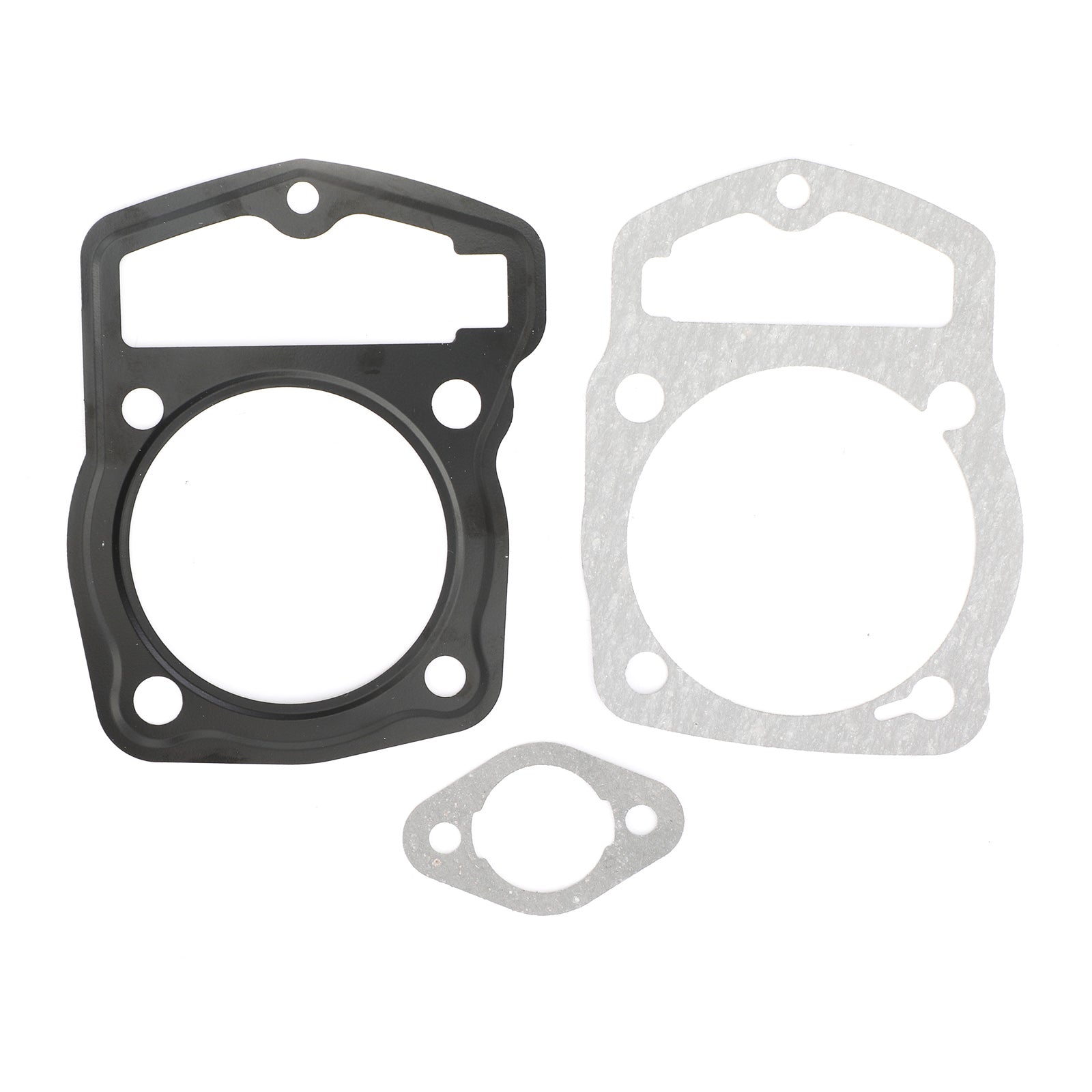

1x Intake Gasket
1x Cylinder Head Gasket
1x Cylinder Base Gasket
2x Valve Stem Seals
Note:
This is 65.50mm bore size cylinder, please do aware of that. (stock ATC185 bore is 63.00mm, stock ATC200 bore is 65.00mm)
This cylinder kit will a little big for some models, such as 83' ATC200x. Don't purchase if you do care about it.
Please check out the product and size fits your motorcycle or not before you purchase.
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
